3-22 — AIR CONTROL PARTS (#124786) — 97 parça

74 64 6 54 276 54 13 48 19 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
6	BOLT; VLV (A) M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
13	VALVE ASM; QUICK RELEASE	1-48410-726-1	01	1	1306-	●	●
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	1306-	●	●
19	BRACKET; QUICK RELEASE VLV (B)	1-47471-390-0	02	1	1306-	●	●
48	BOLT; QUICK RELEASE VLV M8X30 FLANGE	0-28650-830-0	02	1	1306-	●	●
54	CONNECTOR; QUICK RELEASE VLV DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1306-	●	●
64	PROTECTOR; QUICK RELEASE VALVE	8-98043-421-0	01	1	1306-	●	●
74	CONNECTOR; 3WAY DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1306-	●	●
114	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●

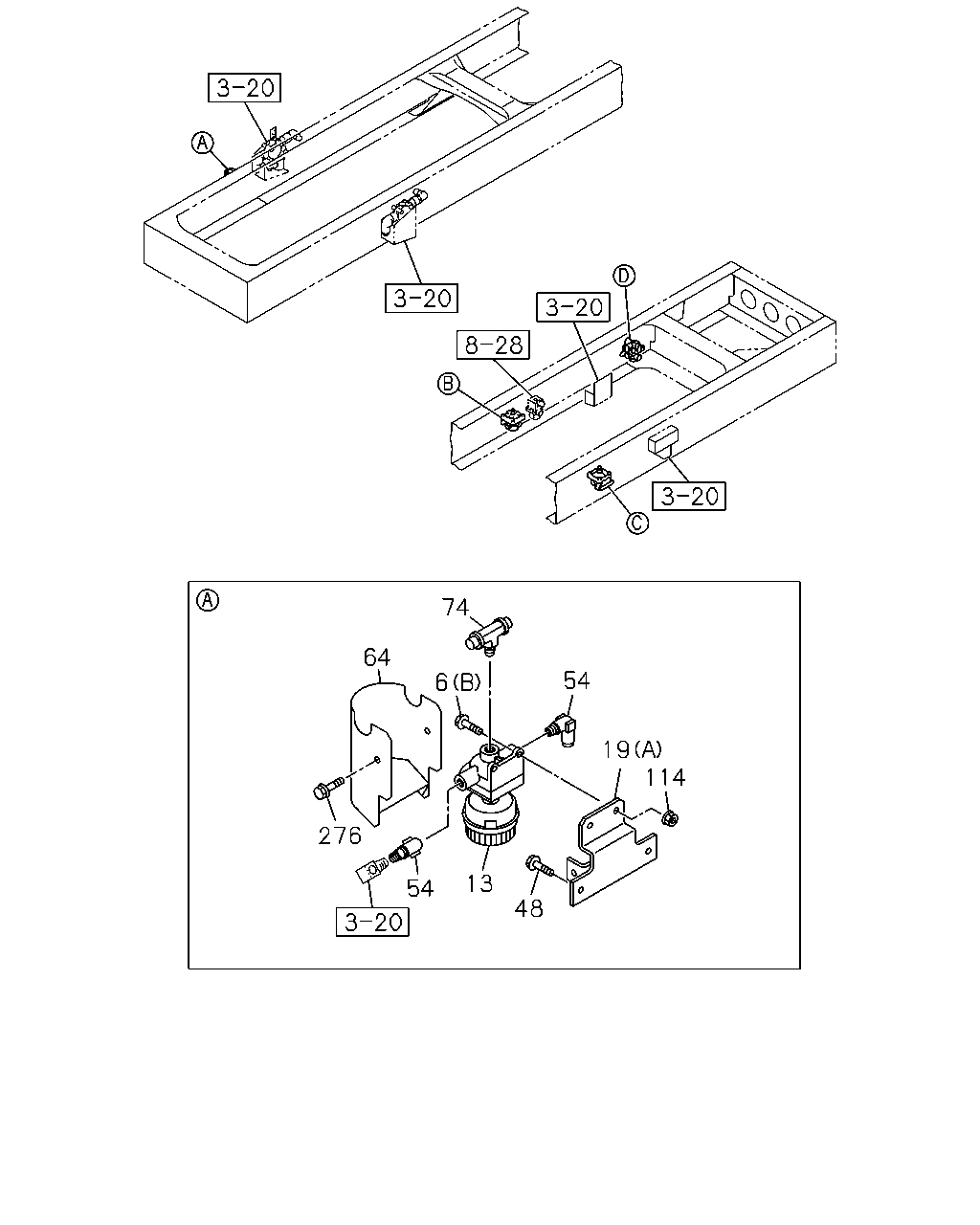

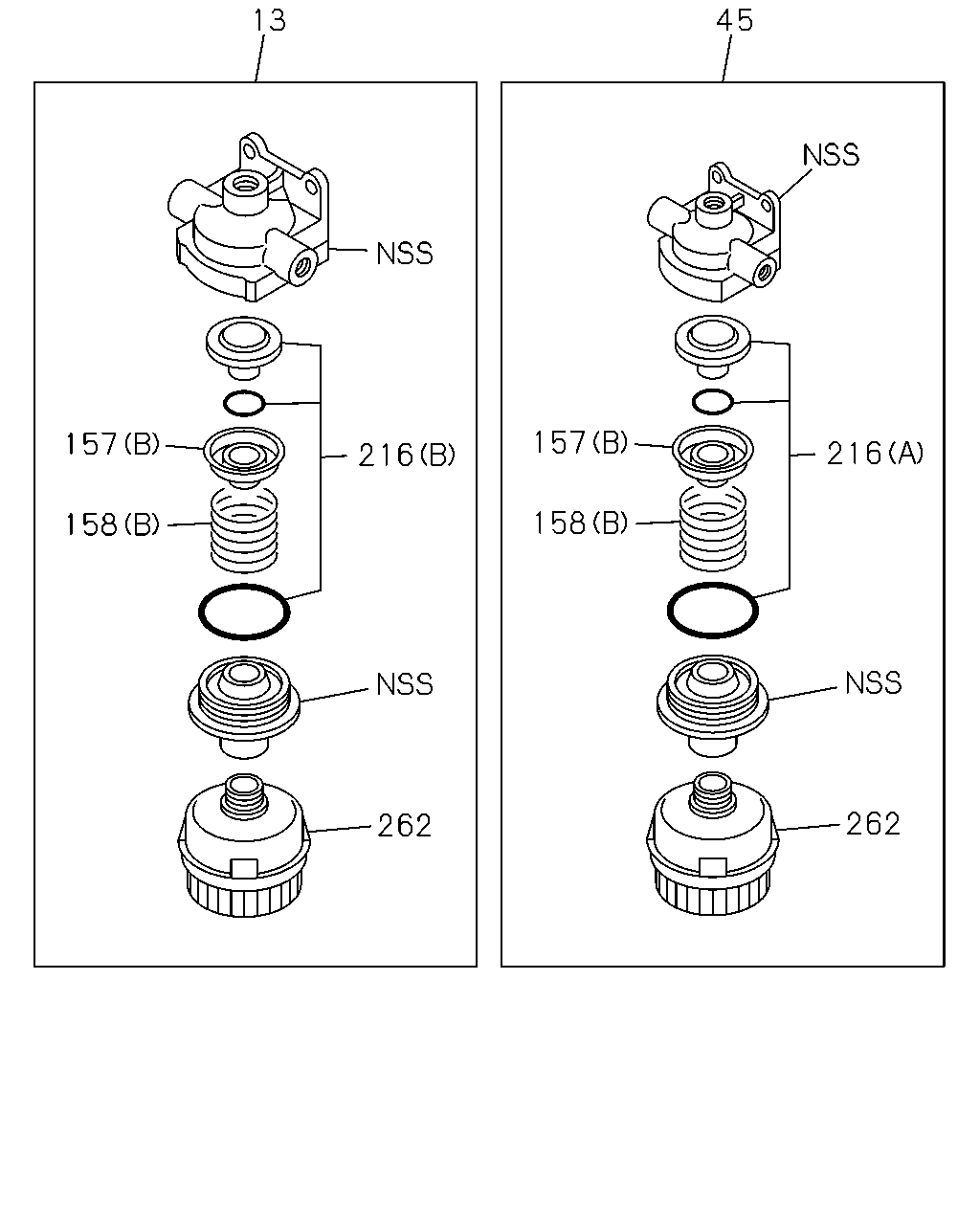

13 216 262 158 157 45 157 158 216 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE	1-48410-726-1	01	1	1306-	●	●
45	VALVE; QUICK RELEASE	8-98170-207-0	02	1	1306-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1306-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1306-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1306-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1306-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1306-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	1306-	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	1-85576-484-0	01	1	1306-	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	8-98171-596-0	02	1	1306-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1306-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1306-	●	●

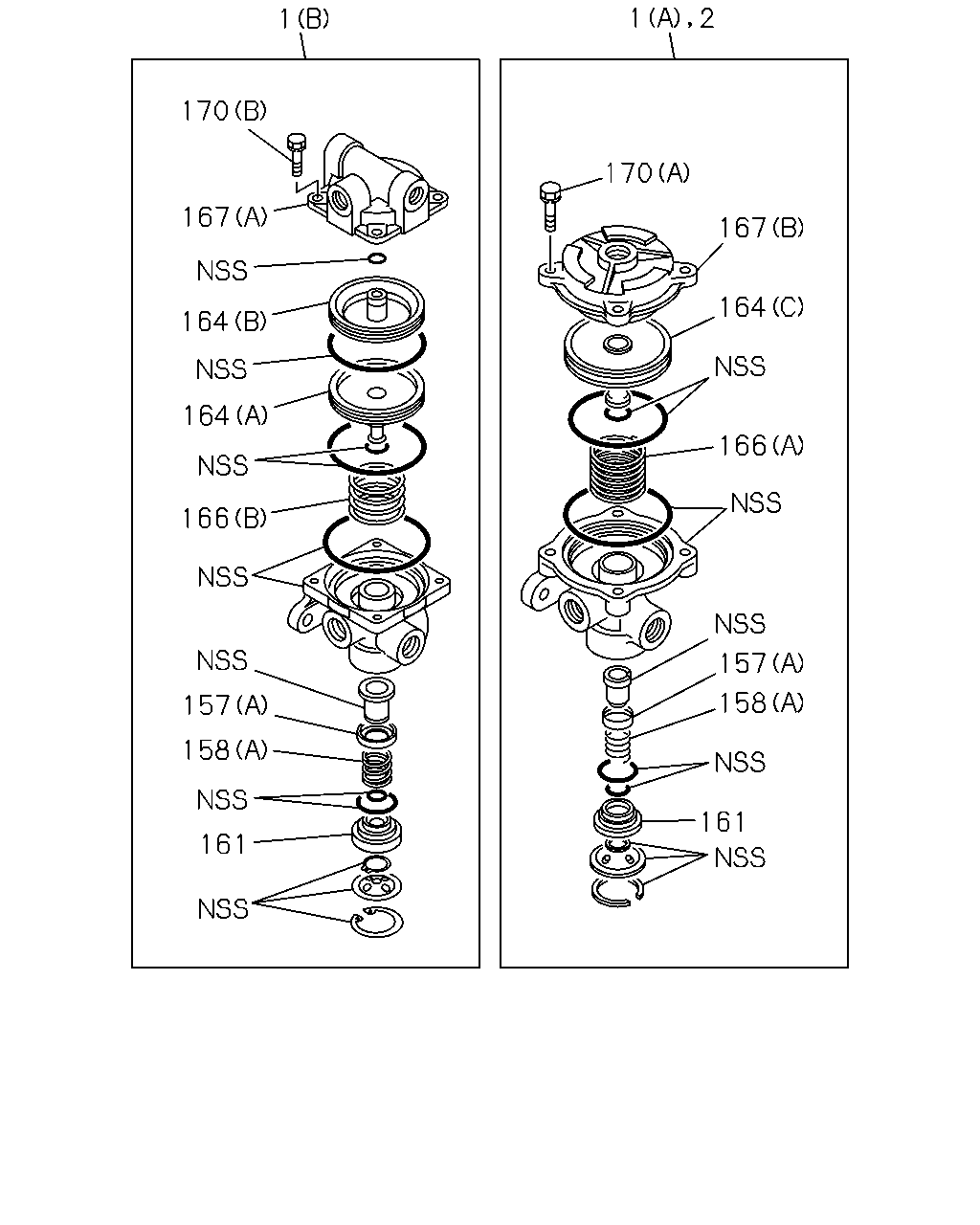

1 1 2 170 167 164 166 157 158 161 161 158 157 166 164 164 167 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR (A)	1-48210-875-0	01	1	1306-	●	●
1	VALVE; RELAY RWD RR (B)	1-48240-041-1	01	1	1306-	●	●
2	VALVE; RELAY	1-48210-875-0	01	1	1306-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1306-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1306-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1306-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1306-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1306-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	1306-	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	1306-	●	●
164	PISTON; RELAY VALVE (A)	1-48219-032-0	01	1	1306-	●	●
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	1306-	●	●
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	1306-	●	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	1306-	●	●
166	SPRING; PISTON (B)	1-48219-048-0	01	1	1306-	●	●
167	COVER; VALVE (A)	1-48219-050-1	01	1	1306-	●	●
167	COVER; VALVE (B)	1-48219-070-0	01	1	1306-	●	●
167	COVER; VALVE (C)	8-98043-421-0	02	1	1306-	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	1306-	●	●
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	1306-	●	●

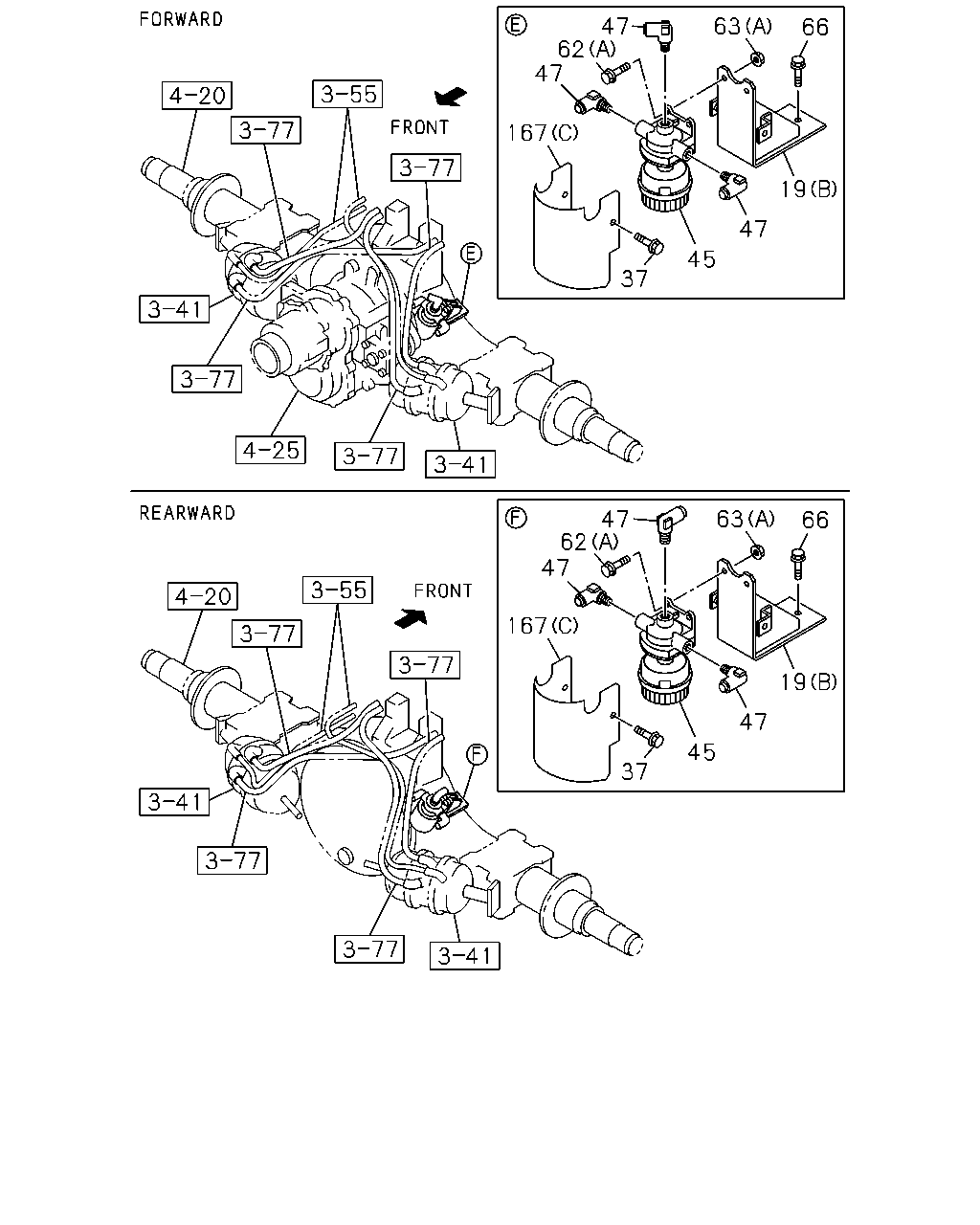

167 47 62 47 37 45 47 19 66 63 167 47 62 47 37 63 45 47 66 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	1306-	●	●
19	BRACKET; QUICK RELEASE VLV (B)	1-47471-390-0	02	1	1306-	●	●
37	BOLT; COVER M8X10 FLANGE	0-28050-810-0	04	1	1306-	●	●
45	VALVE; QUICK RELEASE	8-98170-207-0	02	1	1306-	●	●
47	CONNECTOR; RELAY VLV,CONT DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1306-	●	●
62	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	04	1	1306-	●	●
62	BOLT; BRKT FIX (B) M10X35 FLANGE	0-28651-035-0	02	1	1306-	●	●
63	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	1306-	●	●
63	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	02	1	1306-	●	●
66	BOLT; BRKT,RELAY VLV RR M8X16 FLANGE	0-28050-816-0	04	1	1306-	●	●
167	COVER; VALVE (A)	1-48219-050-1	01	1	1306-	●	●
167	COVER; VALVE (B)	1-48219-070-0	01	1	1306-	●	●
167	COVER; VALVE (C)	8-98043-421-0	02	1	1306-	●	●

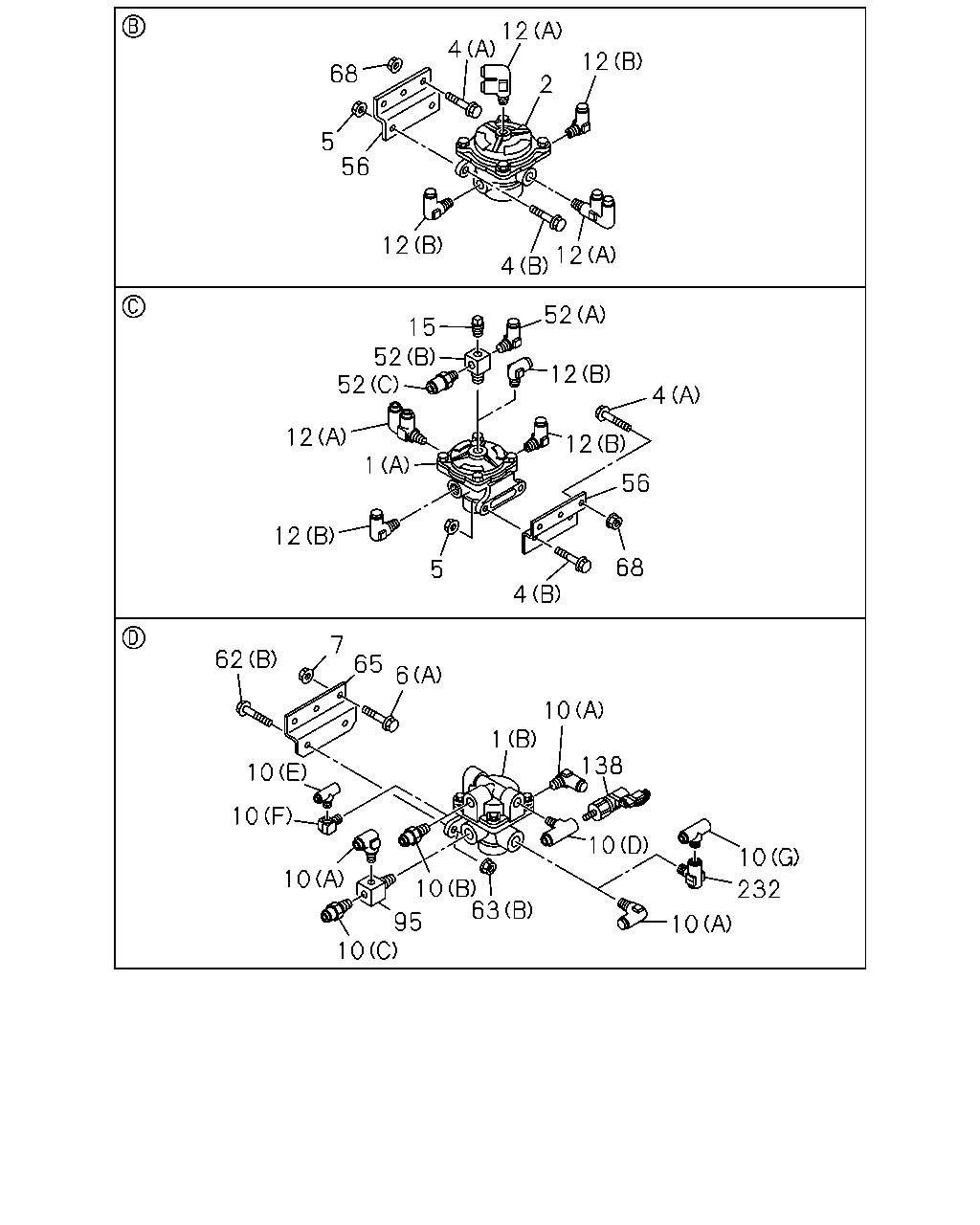

68 5 56 12 4 12 2 12 4 12 15 52 52 12 12 1 5 4 52 12 4 12 56 68 62 7 65 6 10 10 1 10 10 10 95 10 138 10 63 10 232 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR (A)	1-48210-875-0	01	1	1306-	●	●
1	VALVE; RELAY RWD RR (B)	1-48240-041-1	01	1	1306-	●	●
2	VALVE; RELAY	1-48210-875-0	01	1	1306-	●	●
4	BOLT; RELAY VLV TO BRKT (A) M8X35 FLANGE	0-28650-835-0	04	1	1306-	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1306-	●	●
5	NUT M10 FLANGE	0-91180-210-0	02	1	1306-	●	●
6	BOLT; VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
6	BOLT; VLV (A) M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
7	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1306-	●	●
10	CONNECTOR (D) DIN8 & R3/8 & RC1/4 3WAY	8-97620-116-0	01	1	1306-	●	●
10	CONNECTOR FULL TRAILER PIPING<Z25> (F) PT3/8 ELBOW	1-09660-696-0	01	1	1306-	●	●
10	CONNECTOR FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1306-	●	●
10	CONNECTOR FULL TRAILER PIPING<Z25> (E) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1306-	●	●
10	CONNECTOR FULL TRAILER PIPING<Z25> (G) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	1306-	●	●
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1306-	●	●
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1306-	●	●
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1306-	●	●
12	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1306-	●	●
12	CONNECTOR; RELAY VLV (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1306-	●	●
12	CONNECTOR; RELAY VLV (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1306-	●	●
12	CONNECTOR; RELAY VLV EXC. FULL TRAILER PIPING<Z25> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1306-	●	●
15	PLUG; VALVE FULL TRAILER PIPING<Z25> PT3/8	9-09204-517-0	01	1	1306-	●	●
52	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1306-	●	●
52	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1306-	●	●
52	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (B) PT3/8 4WAY	1-09661-489-0	01	1	1306-	●	●
56	BRACKET; RELAY VLV	1-47479-328-0	01	1	1306-	●	●
62	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	04	1	1306-	●	●
62	BOLT; BRKT FIX (B) M10X35 FLANGE	0-28651-035-0	02	1	1306-	●	●
63	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	1306-	●	●
63	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	02	1	1306-	●	●
65	BRACKET; RELAY VLV RR	1-47479-328-0	01	1	1306-	●	●
68	NUT; RELAY VLV TO BRKT M8 FLANGE	0-91180-108-0	04	1	1306-	●	●
95	UNION; AIR VLV PT3/8 3WAY	1-09661-300-0	01	1	1306-	●	●
138	SWITCH; RELAY VALVE STAMP 2.0	8-98010-856-2	01	1	1306-	●	●
232	VALVE; CHECK FULL TRAILER PIPING<Z25>	1-48320-031-1	01	1	1306-	●	●

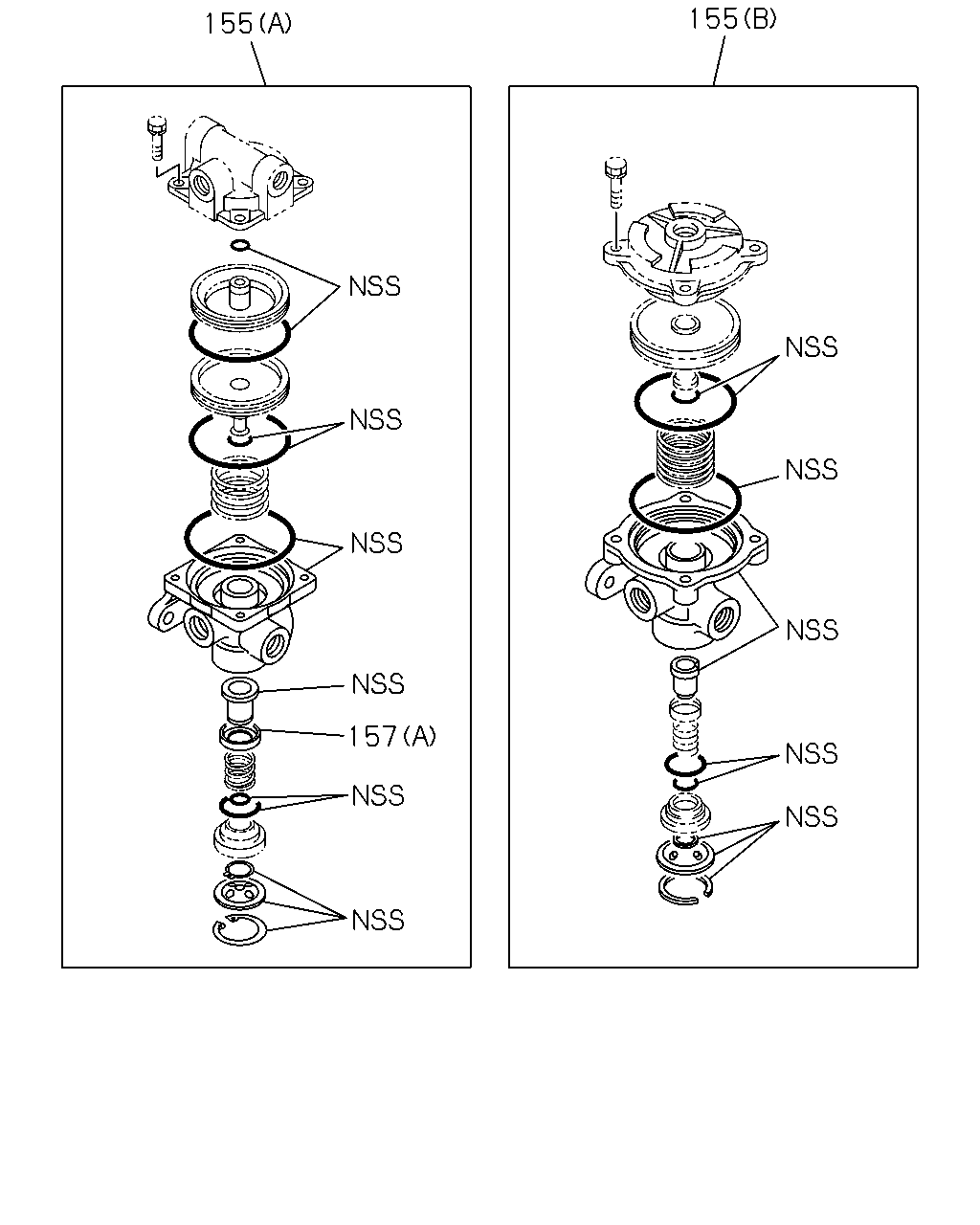

155 157 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	1306-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-035-0	01	1	1306-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1306-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1306-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1306-	●	●
