Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#124785) — 271 parça

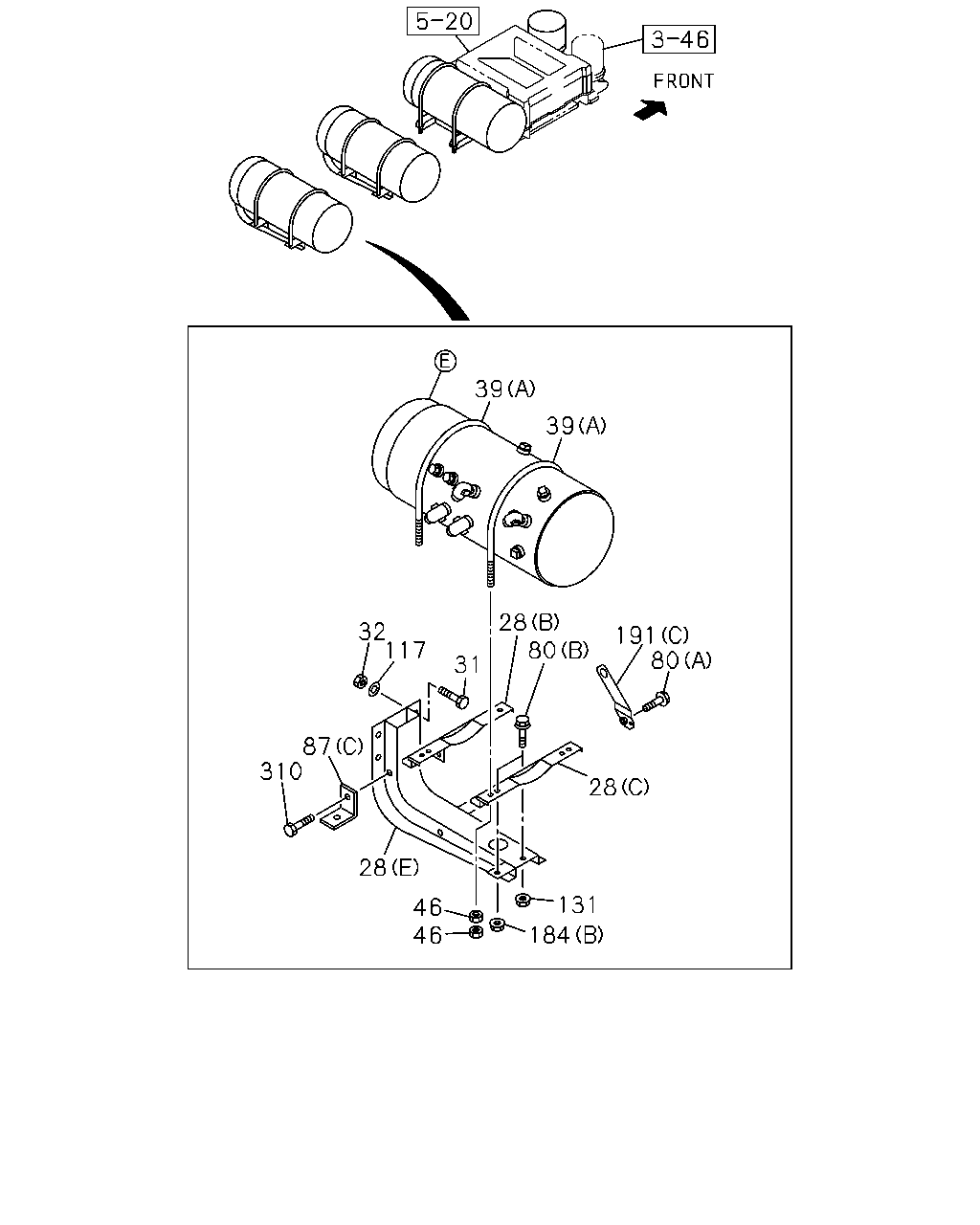

39 39 32 117 87 310 28 46 46 184 131 28 80 191 80 28 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BRACKET; AIR TANK (A)	1-48316-024-3	01	1	1306-	●	●
28	BRACKET; AIR TANK (B)	1-48316-026-0	02	1	1306-	●	●
28	BRACKET; AIR TANK (C)	1-48317-994-2	02	1	1306-	●	●
28	BRACKET; AIR TANK (E)	8-98145-275-1	01	1	1306-	●	●
28	BRACKET; AIR TANK (D)	8-98200-121-2	01	1	1306-	●	●
31	BOLT; BRKT TO FRAME M14X50	0-20851-450-0	08	1	1306-	●	●
32	NUT; BRKT TO FRAME M14	0-91110-514-0	08	1	1306-	●	●
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	03	1	1306-	●	●
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	1306-	●	●
39	U-BOLT; AIR TANK (B) L=253	1-48317-248-1	02	1	1306-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1511-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	12	1	1306-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1306-1510	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1511-	●	●
80	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
80	BOLT; BRKT (B) M12X25 FLANGE	0-28651-225-0	07	1	1306-	●	●
80	BOLT; BRKT (C) M12X30 FLANGE	0-28651-230-0	02	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (B)	1-47471-189-0	02	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (A)	1-47471-241-0	01	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (C)	8-98053-747-0	02	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (E)	8-98054-525-0	01	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (D)	8-98060-053-0	01	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (F)	8-98169-166-0	01	1	1306-	●	●
117	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1306-	●	●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	1306-	●	●
184	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1306-	●	●
184	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	02	1	1306-	●	●
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-015-1	01	1	1306-	●
191	BRACKET; STOPPER,AIR TANK EXC. BATTERY LAYOUT REAR VAR1<NCT> (A)	1-48316-015-1	01	1	1306-		●
191	BRACKET; STOPPER,AIR TANK (B)	1-48316-014-1	01	1	1306-	●	●
191	BRACKET; STOPPER,AIR TANK (C)	8-98167-792-0	01	1	1306-	●	●
191	BRACKET; STOPPER,AIR TANK BATTERY LAYOUT REAR VAR1<NCT> (A)	1-48316-023-1	01	1	1306-		●
310	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	08	1	1306-	●	●
310	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●

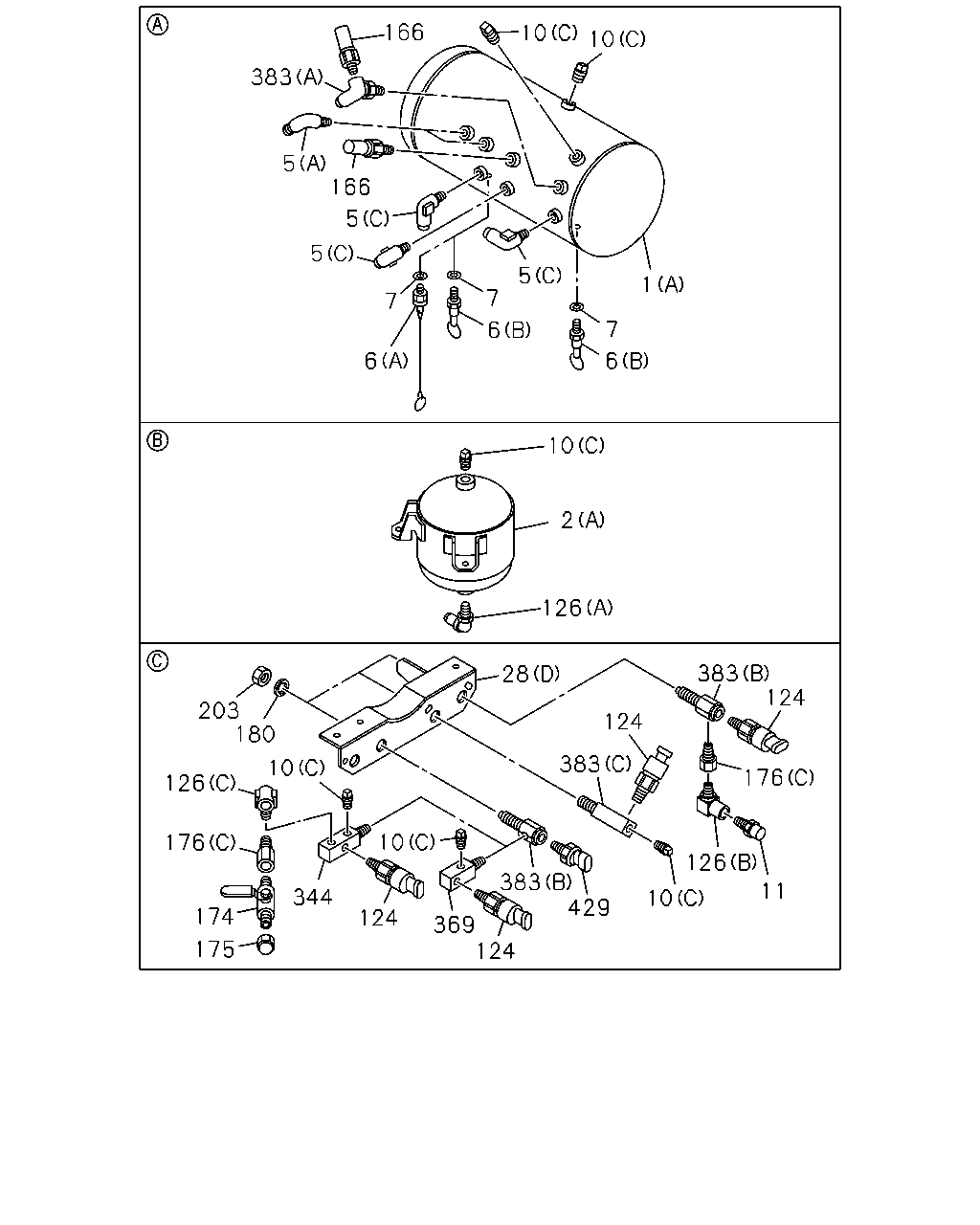

10 10 10 10 10 1 8 5 5 5 7 10 6 10 5 1 7 6 10 5 5 5 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	1-48371-387-1	01	1	1306-	●	●
1	TANK ASM; AIR (A)	1-48371-387-1	01	1	1306-	●	●
1	TANK ASM; AIR (B)	1-48371-434-1	01	1	1306-	●	●
5	UNION; AIR TANK (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1306-	●	●
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1306-	●	●
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1306-	●	●
5	UNION; AIR TANK (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1306-	●	●
5	UNION; AIR TANK (A) M22 & M22 ELBOW	1-09661-550-0	02	1	1306-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-006-1	01	1	1306-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W) (A)	1-48312-006-1	01	1	1306-		●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1306-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W) (B)	1-48312-017-0	01	1	1306-		●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	06	1	1306-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5900MM(59W) (B)	1-48312-017-0	02	1	1306-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1306-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	06	1	1306-	●	●
8	CONNECTOR; AIR TANK DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1306-	●	●
10	PLUG; AIR TANK (A) M22	1-09661-502-0	03	1	1306-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1306-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	1306-	●	●
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	02	1	1306-	●	●
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	02	1	1306-	●	●
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	04	1	1306-	●	●

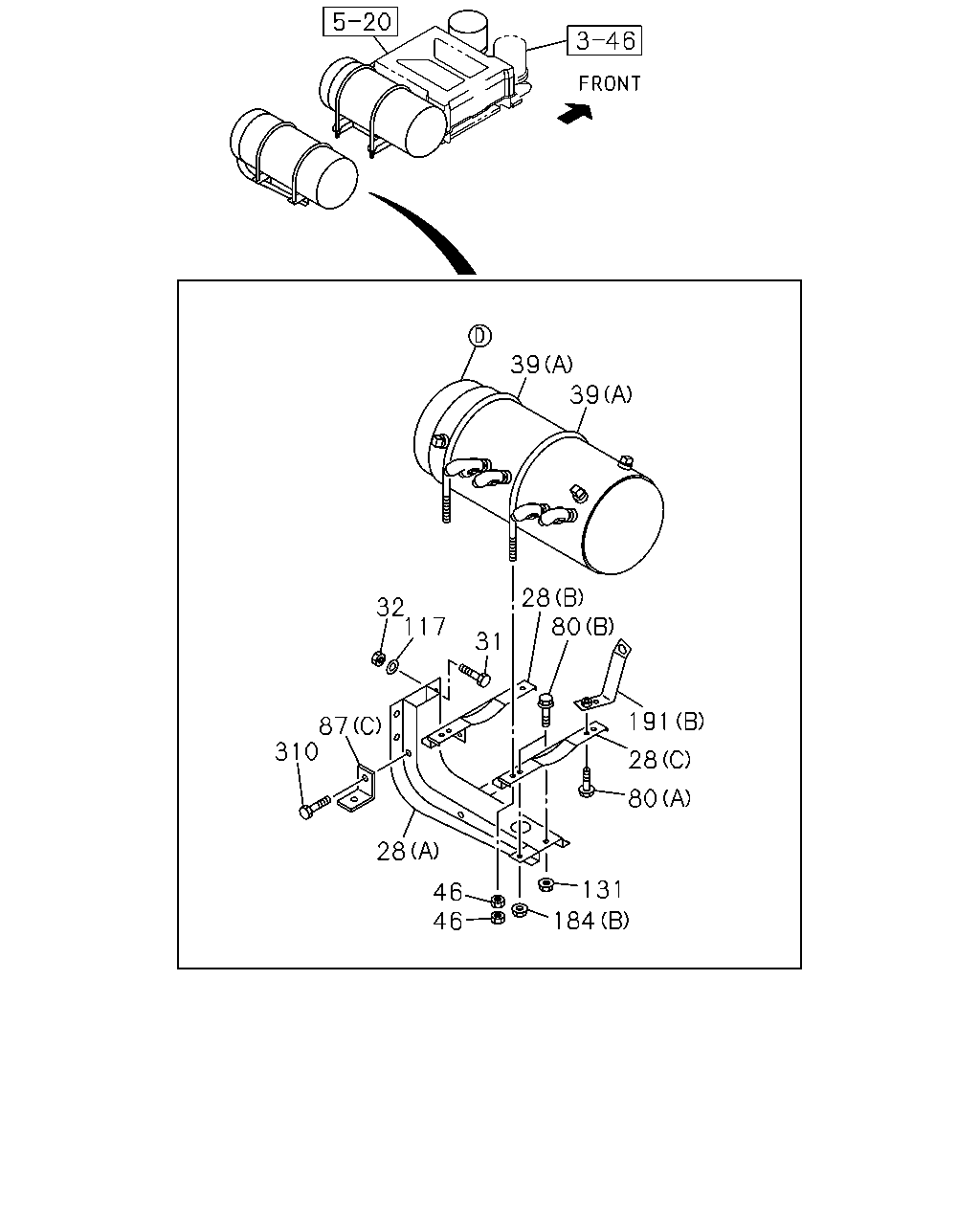

39 39 32 117 31 28 80 87 310 28 46 46 184 131 80 28 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BRACKET; AIR TANK (A)	1-48316-024-3	01	1	1306-	●	●
28	BRACKET; AIR TANK (B)	1-48316-026-0	02	1	1306-	●	●
28	BRACKET; AIR TANK (C)	1-48317-994-2	02	1	1306-	●	●
28	BRACKET; AIR TANK (E)	8-98145-275-1	01	1	1306-	●	●
28	BRACKET; AIR TANK (D)	8-98200-121-2	01	1	1306-	●	●
31	BOLT; BRKT TO FRAME M14X50	0-20851-450-0	08	1	1306-	●	●
32	NUT; BRKT TO FRAME M14	0-91110-514-0	08	1	1306-	●	●
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	03	1	1306-	●	●
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	1306-	●	●
39	U-BOLT; AIR TANK (B) L=253	1-48317-248-1	02	1	1306-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1511-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	12	1	1306-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1306-1510	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1511-	●	●
80	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
80	BOLT; BRKT (B) M12X25 FLANGE	0-28651-225-0	07	1	1306-	●	●
80	BOLT; BRKT (C) M12X30 FLANGE	0-28651-230-0	02	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (B)	1-47471-189-0	02	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (A)	1-47471-241-0	01	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (C)	8-98053-747-0	02	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (E)	8-98054-525-0	01	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (D)	8-98060-053-0	01	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (F)	8-98169-166-0	01	1	1306-	●	●
117	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1306-	●	●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	1306-	●	●
184	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1306-	●	●
184	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	02	1	1306-	●	●
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-015-1	01	1	1306-	●
191	BRACKET; STOPPER,AIR TANK EXC. BATTERY LAYOUT REAR VAR1<NCT> (A)	1-48316-015-1	01	1	1306-		●
191	BRACKET; STOPPER,AIR TANK (B)	1-48316-014-1	01	1	1306-	●	●
191	BRACKET; STOPPER,AIR TANK (C)	8-98167-792-0	01	1	1306-	●	●
191	BRACKET; STOPPER,AIR TANK BATTERY LAYOUT REAR VAR1<NCT> (A)	1-48316-023-1	01	1	1306-		●
310	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	08	1	1306-	●	●
310	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●

131 137 46 26 164 27 27 39 39 7 6 26 30 2 27 46 80 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR (A)	1-48371-166-3	01	1	1306-	●	●
2	TANK; AIR (B)	8-98145-093-0	01	1	1306-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-006-1	01	1	1306-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W) (A)	1-48312-006-1	01	1	1306-		●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1306-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W) (B)	1-48312-017-0	01	1	1306-		●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	06	1	1306-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5900MM(59W) (B)	1-48312-017-0	02	1	1306-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1306-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	06	1	1306-	●	●
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	1306-	●	●
27	UNION; ELBOW,AIR TANK (A) PT3/8 & PT3/8 ELBOW	1-09660-778-1	02	1	1306-	●	●
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1306-	●	●
30	BRACKET; AIR TANK,SUB (A)	8-98100-865-0	01	1	1306-	●	●
30	BRACKET; AIR TANK,SUB (B)	8-98100-866-0	01	1	1306-	●	●
30	BRACKET; AIR TANK,SUB (C)	8-98177-422-0	01	1	1306-	●	●
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	03	1	1306-	●	●
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	1306-	●	●
39	U-BOLT; AIR TANK (B) L=253	1-48317-248-1	02	1	1306-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1511-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	12	1	1306-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1306-1510	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1511-	●	●
80	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
80	BOLT; BRKT (B) M12X25 FLANGE	0-28651-225-0	07	1	1306-	●	●
80	BOLT; BRKT (C) M12X30 FLANGE	0-28651-230-0	02	1	1306-	●	●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	1306-	●	●
137	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	1306-	●	●
164	CONNECTOR; SUB AIR TANK DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1306-	●	●

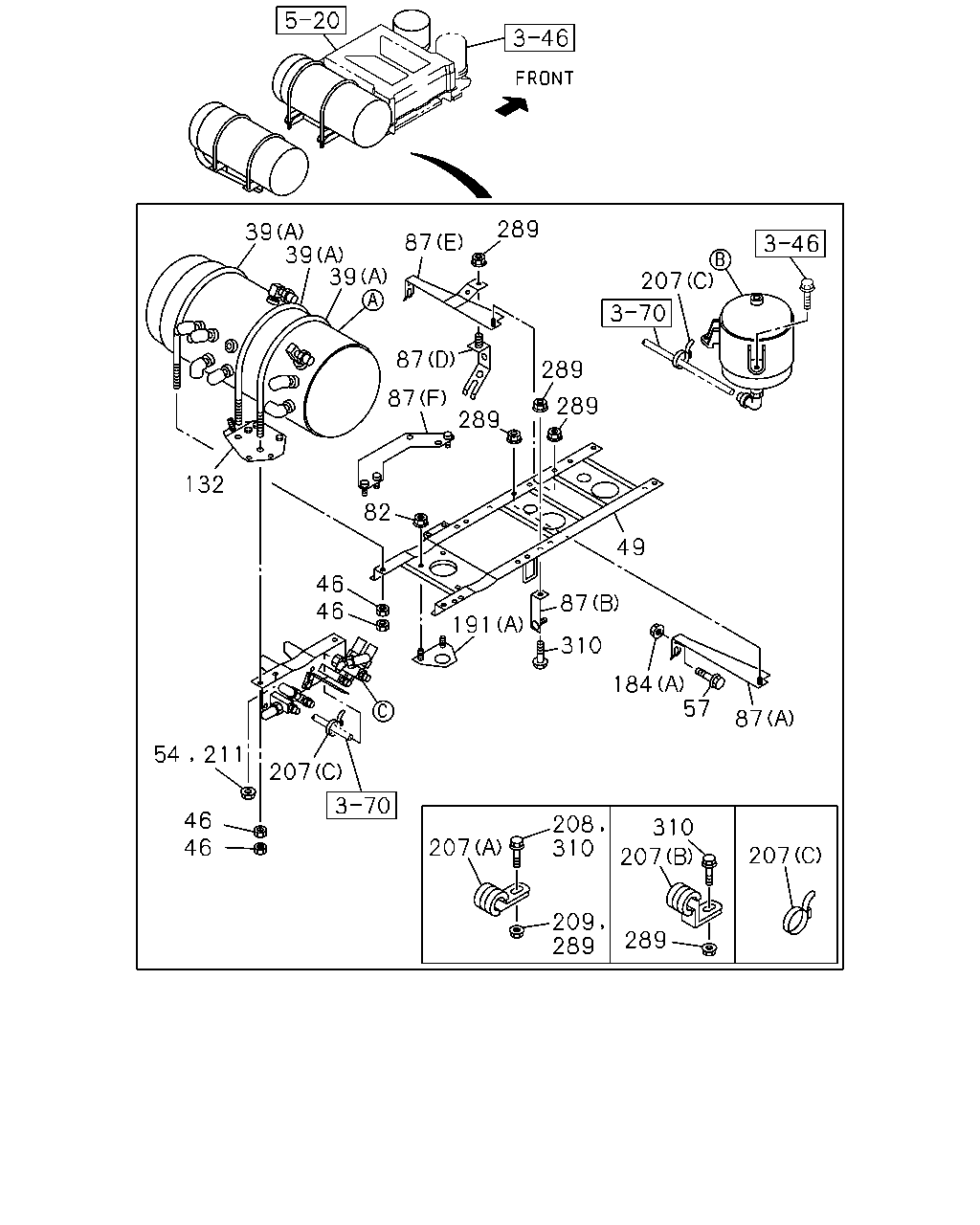

39 39 132 54 211 46 46 207 46 46 82 87 87 87 289 289 289 289 191 87 310 49 184 57 87 207 208 310 209 289 289 207 310 207 207 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	03	1	1306-	●	●
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	1306-	●	●
39	U-BOLT; AIR TANK (B) L=253	1-48317-248-1	02	1	1306-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1511-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	12	1	1306-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1306-1510	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1511-	●	●
49	BRACKET; AIR TANK	8-98241-376-0	01	1	1306-	●	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M10X25 FLANGE	0-28651-025-0	04	1	1306-	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (B)	1-47471-189-0	02	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (A)	1-47471-241-0	01	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (C)	8-98053-747-0	02	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (E)	8-98054-525-0	01	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (D)	8-98060-053-0	01	1	1306-	●	●
87	BRACKET; AIR PIPE JOINT (F)	8-98169-166-0	01	1	1306-	●	●
132	BRACKET; STRING GUIDE	8-98200-122-0	01	1	1306-	●	●
184	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1306-	●	●
184	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	02	1	1306-	●	●
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-015-1	01	1	1306-	●
191	BRACKET; STOPPER,AIR TANK EXC. BATTERY LAYOUT REAR VAR1<NCT> (A)	1-48316-015-1	01	1	1306-		●
191	BRACKET; STOPPER,AIR TANK (B)	1-48316-014-1	01	1	1306-	●	●
191	BRACKET; STOPPER,AIR TANK (C)	8-98167-792-0	01	1	1306-	●	●
191	BRACKET; STOPPER,AIR TANK BATTERY LAYOUT REAR VAR1<NCT> (A)	1-48316-023-1	01	1	1306-		●
207	CLIP; AIR PIPE (A) ID=7 L=20	0-95234-635-0	01	1	1306-1510	●
207	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) (A) ID=7 L=20	0-95234-635-0	01	1	1306-1510		●
207	CLIP; AIR PIPE SPARE WHEEL CARRIER FRAME SIDE<P13> (A) ID=7 L=20	0-95234-635-0	01	1	1511-	●	●
207	CLIP; AIR PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1306-1510	●
207	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) (A) ID=16 L=20	0-95235-535-0	01	1	1306-1510		●
207	CLIP; AIR PIPE SPARE WHEEL CARRIER FRAME SIDE<P13> (A) ID=16 L=20	0-95235-535-0	01	1	1511-	●	●
207	CLIP; AIR PIPE (C) L=350	1-09707-183-0	14	1	1306-	●
207	CLIP; AIR PIPE EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	14	1	1306-		●
207	CLIP; AIR PIPE (C) L=256	1-09707-189-0	02	1	1306-	●
207	CLIP; AIR PIPE EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=256	1-09707-189-0	02	1	1306-		●
207	CLIP; AIR PIPE (A) ID=35 L=35	1-09700-895-0	01	1	1306-	●	●
207	CLIP; AIR PIPE (A) ID=35 L=33	1-09700-945-0	01	1	1306-	●	●
207	CLIP; AIR PIPE (B) ID=35 H=45 L=33	1-09700-947-0	03	1	1306-	●	●
207	CLIP; AIR PIPE BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	13	1	1306-		●
207	CLIP; AIR PIPE BATTERY LAYOUT REAR VAR1<NCT> (C) L=256	1-09707-189-0	01	1	1306-		●
208	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1306-1510	●
208	BOLT; CLIP WHEEL BASE 5500MM(55W) M8X16 FLANGE	0-28050-816-0	01	1	1306-1510		●
208	BOLT; CLIP SPARE WHEEL CARRIER FRAME SIDE<P13> M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
209	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1306-1510	●
209	NUT; CLIP WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	02	1	1306-1510		●
209	NUT; CLIP SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
211	NUT; STRING GUIDE M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	09	1	1306-	●	●
310	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	08	1	1306-	●	●
310	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●

166 10 383 10 5 5 5 166 7 7 7 1 6 6 6 5 10 2 126 383 124 176 126 11 10 383 28 124 10 10 203 180 126 176 174 175 124 344 369 124 383 429

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	1-48371-387-1	01	1	1306-	●	●
1	TANK ASM; AIR (A)	1-48371-387-1	01	1	1306-	●	●
1	TANK ASM; AIR (B)	1-48371-434-1	01	1	1306-	●	●
2	TANK; AIR (A)	1-48371-166-3	01	1	1306-	●	●
2	TANK; AIR (B)	8-98145-093-0	01	1	1306-	●	●
5	UNION; AIR TANK (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1306-	●	●
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1306-	●	●
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1306-	●	●
5	UNION; AIR TANK (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1306-	●	●
5	UNION; AIR TANK (A) M22 & M22 ELBOW	1-09661-550-0	02	1	1306-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-006-1	01	1	1306-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W) (A)	1-48312-006-1	01	1	1306-		●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1306-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W) (B)	1-48312-017-0	01	1	1306-		●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	06	1	1306-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5900MM(59W) (B)	1-48312-017-0	02	1	1306-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1306-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	06	1	1306-	●	●
10	PLUG; AIR TANK (A) M22	1-09661-502-0	03	1	1306-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1306-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	1306-	●	●
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	02	1	1306-	●	●
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	02	1	1306-	●	●
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	04	1	1306-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1306-	●	●
28	BRACKET; AIR TANK (A)	1-48316-024-3	01	1	1306-	●	●
28	BRACKET; AIR TANK (B)	1-48316-026-0	02	1	1306-	●	●
28	BRACKET; AIR TANK (C)	1-48317-994-2	02	1	1306-	●	●
28	BRACKET; AIR TANK (E)	8-98145-275-1	01	1	1306-	●	●
28	BRACKET; AIR TANK (D)	8-98200-121-2	01	1	1306-	●	●
124	SWITCH; AIR PRESSURE STAMP 5.5	8-97609-249-0	03	1	1306-	●	●
126	CONNECTOR; ELBOW (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	1306-	●	●
126	CONNECTOR; ELBOW (B) R1/4 & RC3/8 ELBOW	8-98227-936-0	01	1	1306-	●	●
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1306-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	02	1	1306-	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1306-	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1306-	●	●
176	ADAPTER (D) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1306-	●	●
176	ADAPTER (A) PT3/8 ELBOW	1-09660-696-0	01	1	1306-	●	●
176	ADAPTER (A) PT3/8 ELBOW	1-09660-696-0	01	1	1306-	●	●
176	ADAPTER (B) PT3/8 3WAY	1-09661-300-0	01	1	1306-	●	●
176	ADAPTER (B) PT3/8 3WAY	1-09661-300-0	01	1	1306-	●	●
176	ADAPTER TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT	1-09660-090-0	02	1	1306-	●	●
176	ADAPTER EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT	1-09660-090-0	01	1	1306-	●	●
180	WASHER; LK ID=18.2	0-91510-518-0	03	1	1306-	●	●
203	NUT M18	0-91110-518-0	03	1	1306-	●	●
344	CONNECTOR; 4WAY TIRE INFLATOR DEVICE<SG4> PT1/4 4WAY	1-09660-358-0	01	1	1306-	●	●
369	CONNECTOR; 3WAY EXC. TIRE INFLATOR DEVICE<SG4> DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1306-	●	●
383	UNION; 3 WAY (B)	1-09661-092-0	02	1	1306-	●	●
383	UNION; 3 WAY (A) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	1306-	●	●
383	UNION; 3 WAY (C)	1-09661-593-0	01	1	1306-	●	●
429	SENSOR THREAD R1/4	1-80220-023-1	01	1	1306-	●	●

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1306-	●	●

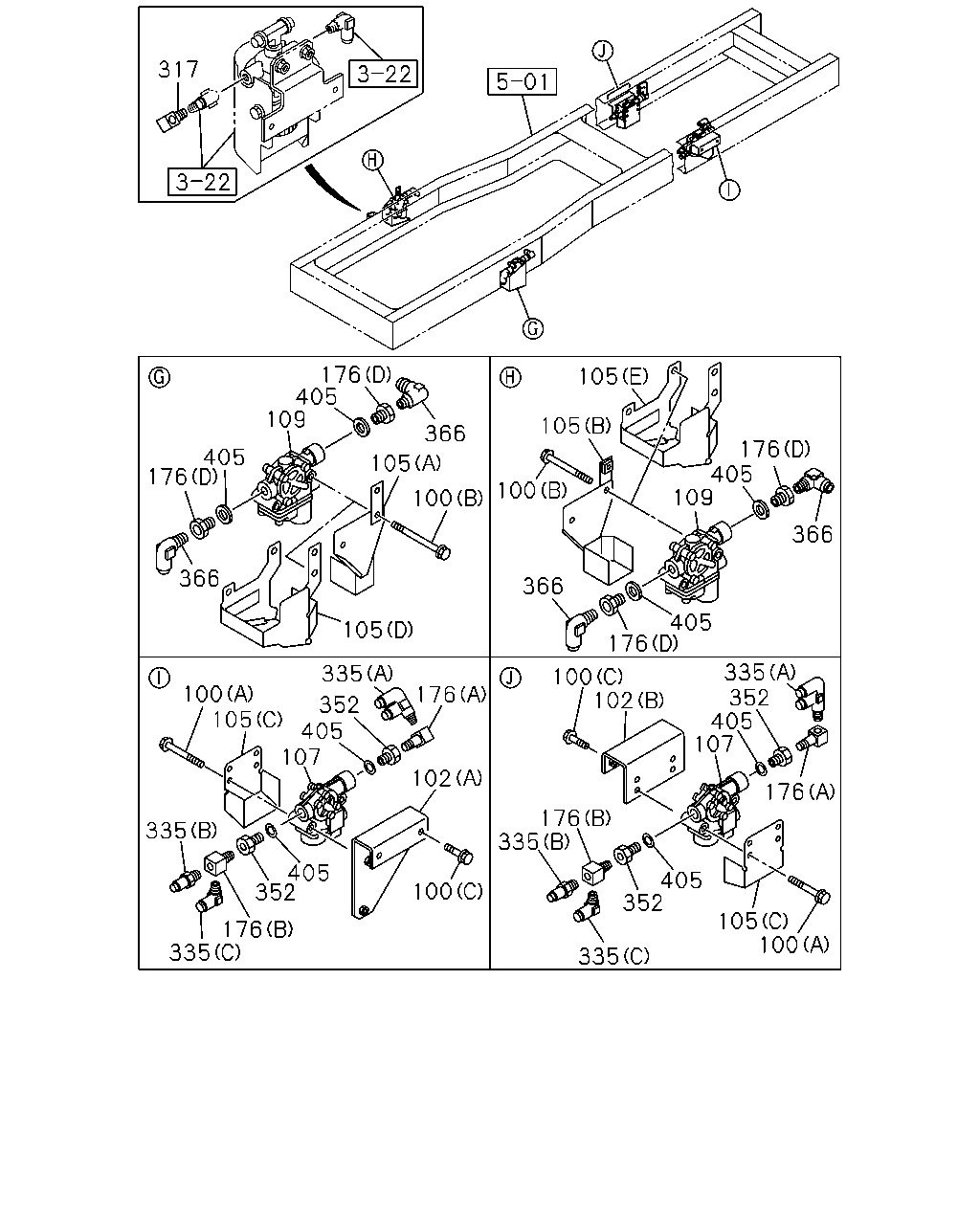

317 105 176 366 405 109 105 100 366 176 405 100 102 335 352 405 107 176 405 335 352 100 105 176 335 100 366 176 405 109 105 105 405 176 366 335 176 352 405 107 100 102 100 105 405 352 176 335 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	02	1	1306-1504	●	●
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	02	1	1306-1504	●	●
100	BOLT; MODULATOR (A) M8X85	1-09044-074-0	02	1	1505-	●	●
100	BOLT; MODULATOR (A) M8X85	1-09044-074-0	02	1	1505-	●	●
100	BOLT; MODULATOR (B) M8X90 FLANGE	0-28050-890-0	04	1	1306-	●	●
100	BOLT; MODULATOR (C) M8X35 FLANGE	0-28650-835-0	04	1	1306-	●	●
102	BRACKET; MODULATOR WHEEL BASE 5900MM(59W) (B)	8-98300-017-0	01	1	1505-		●
102	BRACKET; MODULATOR (A)	1-47471-373-0	01	1	1306-1504	●
102	BRACKET; MODULATOR WHEEL BASE 5500MM(55W) (A)	1-47471-373-0	01	1	1306-1504		●
102	BRACKET; MODULATOR (A)	8-98300-015-0	01	1	1505-	●
102	BRACKET; MODULATOR WHEEL BASE 5500MM(55W) (A)	8-98300-015-0	01	1	1505-		●
102	BRACKET; MODULATOR (B)	1-47471-372-0	01	1	1306-1504	●	●
102	BRACKET; MODULATOR WHEEL BASE 5900MM(59W) (B)	1-47471-372-0	01	1	1306-1504		●
102	BRACKET; MODULATOR (B)	8-98300-012-0	01	1	1505-	●	●
105	COVER; MODULATOR (C)	8-98302-925-0	01	1	1505-	●	●
105	COVER; MODULATOR (C)	1-47471-354-0	01	1	1306-1504	●	●
105	COVER; MODULATOR (C)	1-47471-354-0	01	1	1306-1504	●	●
105	COVER; MODULATOR (C)	8-98302-924-0	01	1	1505-	●	●
105	COVER; MODULATOR (B)	8-98147-206-0	01	1	1306-1504	●	●
105	COVER; MODULATOR (E)	8-98300-154-0	01	1	1505-	●	●
105	COVER; MODULATOR (A)	8-98226-757-0	01	1	1306-1504	●	●
105	COVER; MODULATOR (D)	8-98300-152-0	01	1	1505-	●	●
107	MODULATOR; RR	1-48240-115-0	01	1	1306-1504	●	●
107	MODULATOR; RR	1-48240-115-0	01	1	1306-1504	●	●
107	MODULATOR; RR	8-98215-454-0	01	1	1505-	●	●
107	MODULATOR; RR	8-98215-454-0	01	1	1505-	●	●
109	MODULATOR; FRT	1-48240-115-0	02	1	1306-1504	●	●
109	MODULATOR; FRT	8-98215-454-0	02	1	1505-	●	●
176	ADAPTER (D) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1306-	●	●
176	ADAPTER (A) PT3/8 ELBOW	1-09660-696-0	01	1	1306-	●	●
176	ADAPTER (A) PT3/8 ELBOW	1-09660-696-0	01	1	1306-	●	●
176	ADAPTER (B) PT3/8 3WAY	1-09661-300-0	01	1	1306-	●	●
176	ADAPTER (B) PT3/8 3WAY	1-09661-300-0	01	1	1306-	●	●
176	ADAPTER TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT	1-09660-090-0	02	1	1306-	●	●
176	ADAPTER EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT	1-09660-090-0	01	1	1306-	●	●
317	CONNECTOR; MODULATOR PT3/8 ELBOW	1-09660-696-0	01	1	1306-	●	●
335	CONNECTOR; MODULATOR (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1306-	●	●
335	CONNECTOR; MODULATOR (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1306-	●	●
335	CONNECTOR; MODULATOR (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1306-	●	●
335	CONNECTOR; MODULATOR (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1306-	●	●
335	CONNECTOR; MODULATOR (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1306-	●	●
335	CONNECTOR; MODULATOR (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1306-	●	●
352	CONNECTOR; STRAIGHT INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1306-	●	●
352	CONNECTOR; STRAIGHT INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1306-	●	●
366	CONNECTOR; NYLON TUBE DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1306-	●	●
405	GASKET ID=22.5	9-09571-422-0	02	1	1306-	●	●
405	GASKET ID=22.5	9-09571-422-0	02	1	1306-	●	●
405	GASKET ID=22.5	9-09571-422-0	04	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
