2-07 — CLUTCH BOOSTER; MINIPACK (#124766) — 129 parça

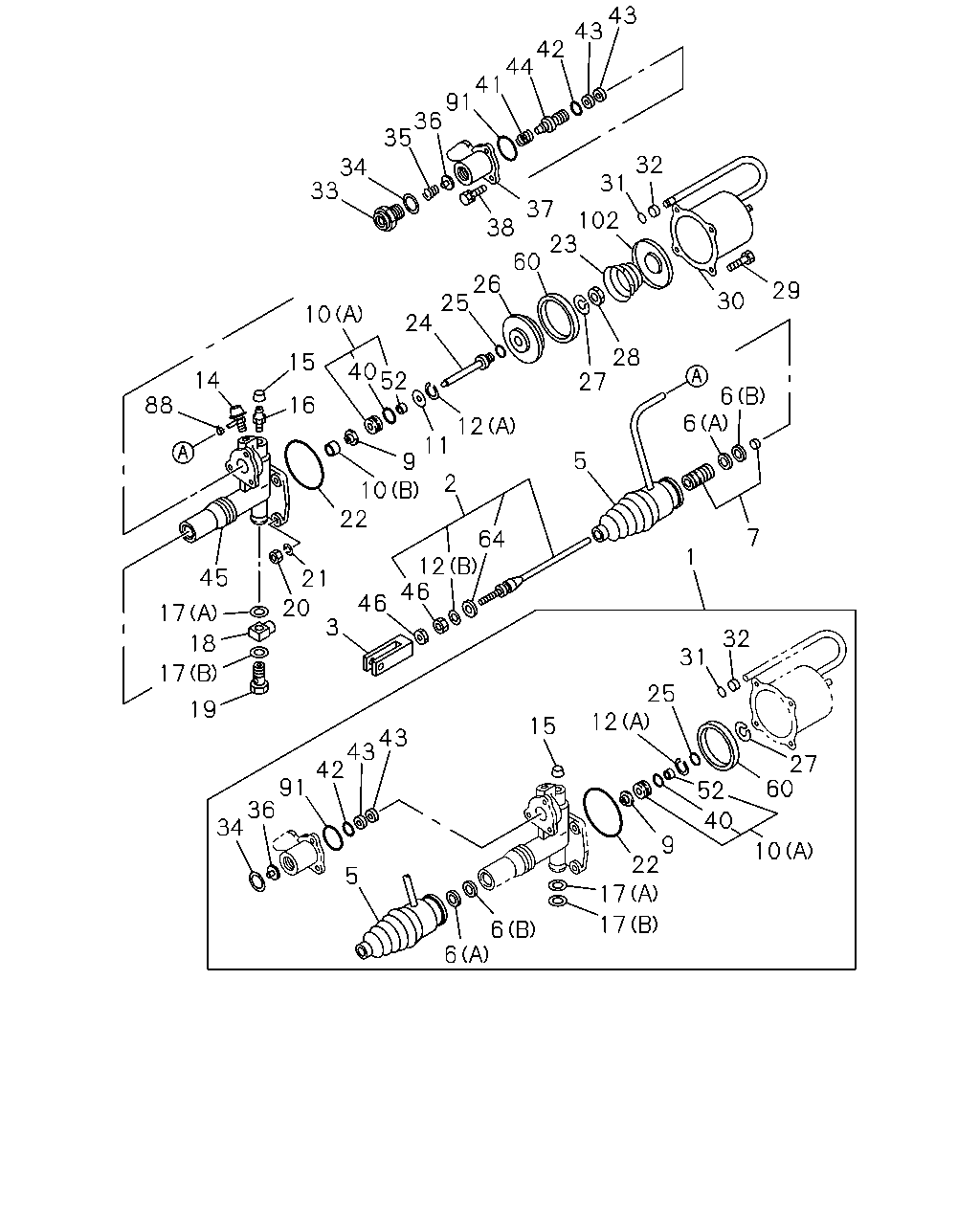

çizim 366054
17 6 6 5 43 43 42 91 36 34 15 12 52 40 10 60 9 22 17 25 31 32 1 19 17 17 18 3 20 46 45 21 46 12 22 64 2 10 9 11 12 5 7 88 14 16 15 27 28 6 6 30 29 32 31 102 23 60 26 25 24 52 40 10 33 34 35 36 91 41 44 42 43 43 38 37 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 1306- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 1306- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 1306- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 1306- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1306- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1306- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 1306- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1306- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1306- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1306- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1306- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1306- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1306- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1306- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1306- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 1306- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1306- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 1306- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1306- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1306- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1306- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1306- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1306- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1306- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1306- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1306- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1306- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1306- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 1306- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1306- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 1306- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1306- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1306- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 1306- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1306- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1306- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1306- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1306- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 1306- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1306- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1306- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1306- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1306- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1306- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1306- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1306- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1306- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1306- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1306- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1306- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1306- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1306- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1306- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1306- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 1306- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 1306- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1306- ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1306- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1306- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 1306- ●
64 WASHER; PUSH ROD
ID=10.5 OD=22 		9-09164-610-0 01 1 1306- ●
88 CLAMP; HOSE,CLU BOOSTER 1-31829-063-0 01 1 1306- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1306- ● ●
102 PLATE; BOOSTER 1-31829-559-0 01 1 1306- ●

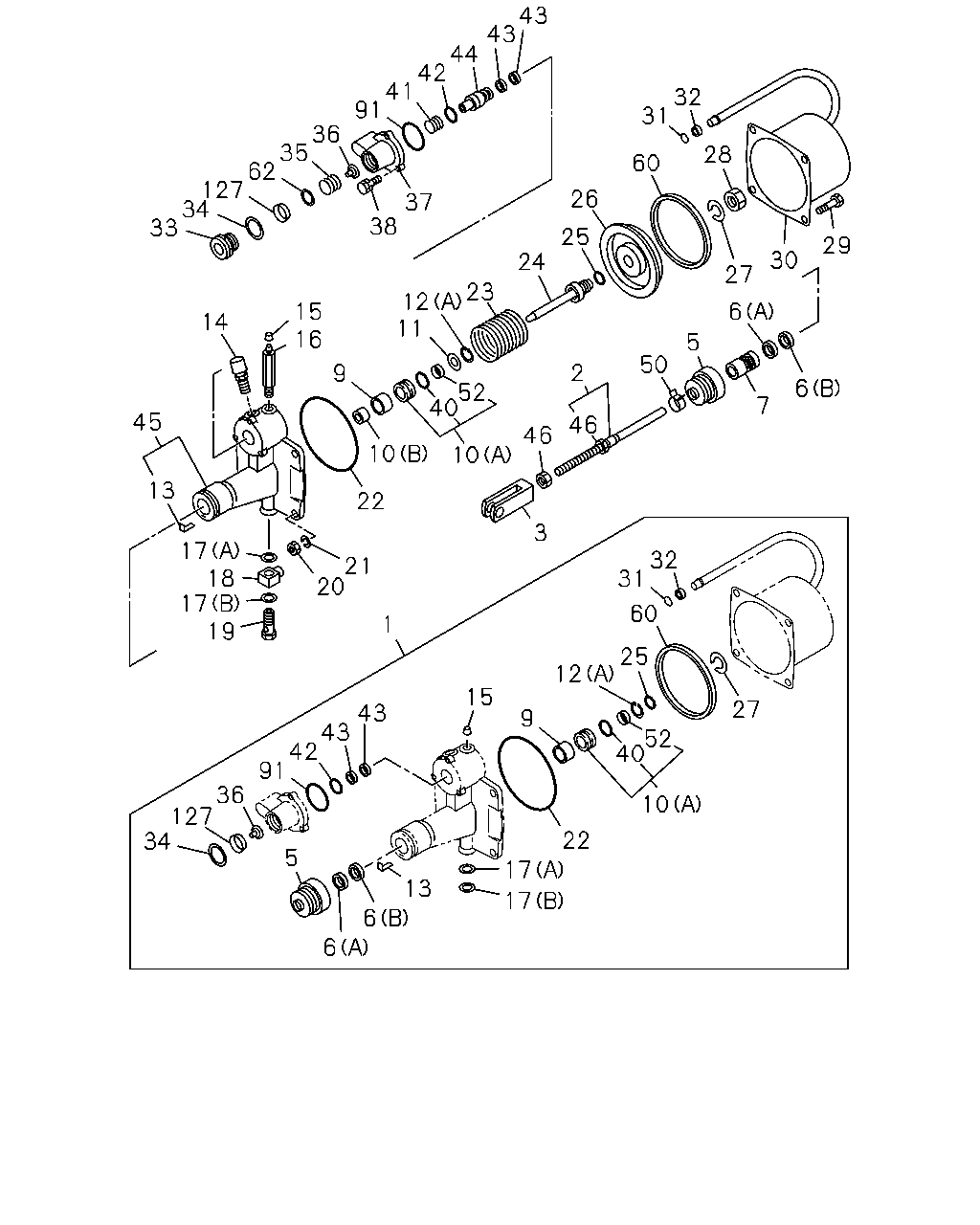

çizim 366589
33 34 127 62 35 36 91 41 42 44 43 43 38 37 14 15 16 45 13 17 17 18 19 9 10 22 20 21 12 11 40 52 23 24 25 26 60 31 32 28 27 30 29 6 5 50 7 6 2 46 46 10 3 34 127 36 91 42 43 43 1 5 6 6 13 15 17 17 9 22 12 31 32 60 25 52 40 10 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 1306- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 1306- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 1306- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 1306- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1306- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1306- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 1306- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1306- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1306- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1306- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1306- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1306- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1306- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1306- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1306- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 1306- ●
13 PIN; SPR 1-31829-109-0 01 1 1306- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1306- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 1306- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1306- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1306- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1306- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1306- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1306- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1306- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1306- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1306- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1306- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1306- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 1306- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1306- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 1306- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1306- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1306- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 1306- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1306- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1306- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1306- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1306- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 1306- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1306- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1306- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1306- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1306- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1306- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1306- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1306- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1306- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1306- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1306- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1306- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1306- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1306- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1306- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1306- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 1306- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 1306- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1306- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1306- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1306- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1306- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 1306- ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1306- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1306- ● ●
127 FILTER; POPPET 1-31829-488-0 01 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
