2-05 — CLUTCH PIPING (#124765) — 103 parça
çizim 362826
24 167 153 56 1 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 1306- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 1306- ● ●
56 BRACKET; FLEX HOSE 8-98151-406-1 01 1 1306- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1393 SERVICED BY L=1400 		1-47428-765-0 01 1 1306- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 1306- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2057 SERVICED BY L=2150 		1-47428-770-0 01 1 1306- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=1974 SERVICED BY L=2150 		1-47428-770-0 01 1 1306-1309 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=2010 SERVICED BY L=2150 		1-47428-770-0 01 1 1310- ● ●
167 BRACKET; UNION 1-71117-183-3 01 1 1306- ● ●

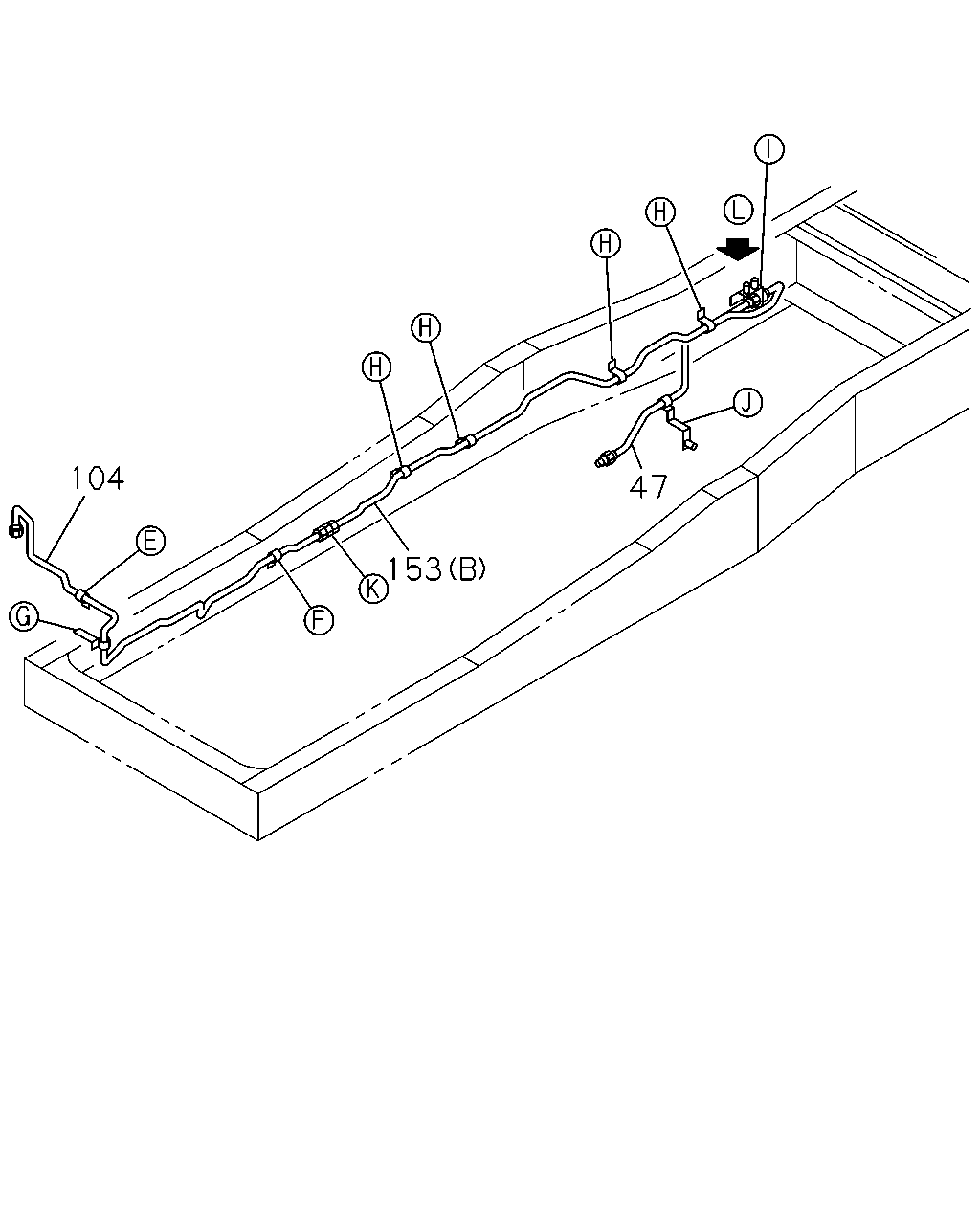

çizim 362830
104 153 47
BalonParca AdiParca NoAdetTipApplied Date A B
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=600 		1-09364-705-0 01 1 1306-1309 ●
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) L=600 		1-09364-705-0 01 1 1306-1309 ●
47 HOSE; FLEX,CLU CONT
MJX16P M/T(Y3Z) L=600 		1-09364-705-0 01 1 1310- ●
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=600 		1-09364-705-0 01 1 1310- ●
47 HOSE; FLEX,CLU CONT
L=600 		1-09364-705-0 01 1 1310- ●
47 HOSE; FLEX,CLU CONT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) L=550 		1-09364-434-0 01 1 1306-1309 ● ●
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=550 		1-09364-434-0 01 1 1306-1309 ●
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=550 		1-09364-434-0 01 1 1310- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1393 SERVICED BY L=1400 		1-47428-765-0 01 1 1306- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 1306- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2057 SERVICED BY L=2150 		1-47428-770-0 01 1 1306- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=1974 SERVICED BY L=2150 		1-47428-770-0 01 1 1306-1309 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=2010 SERVICED BY L=2150 		1-47428-770-0 01 1 1310- ● ●

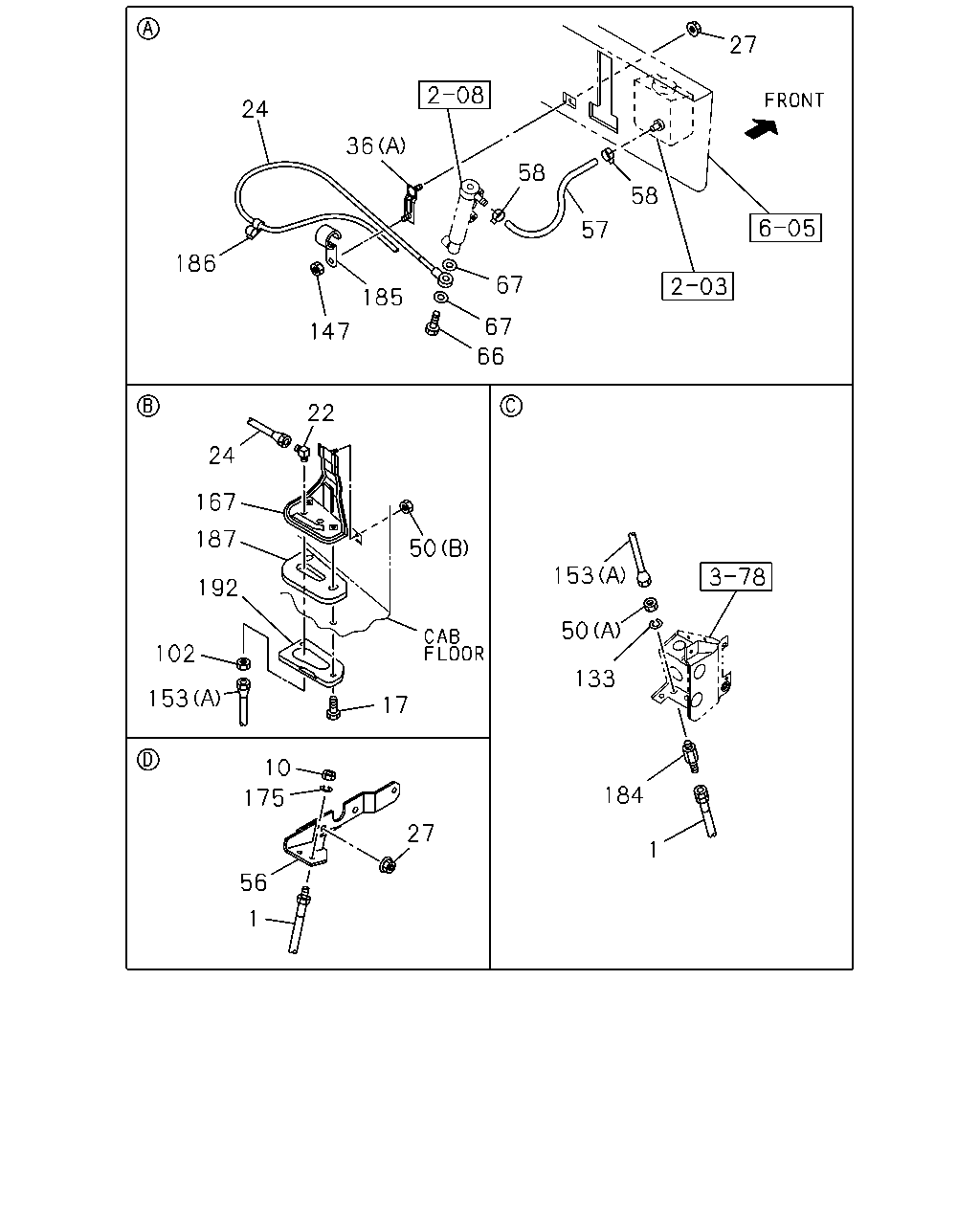

çizim 362984
27 58 67 67 185 147 24 186 66 36 57 58 24 167 187 192 102 153 17 50 153 50 133 184 1 27 56 175 10 22 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 1306- ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1306- ● ●
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 1306- ● ●
22 UNION; CLU PIPE
M14 ELBOW 		0-92125-208-0 01 1 1306- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 1306- ● ●
27 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
27 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306- ● ●
27 NUT; BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 1306- ● ●
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1306- ● ●
36 BRACKET; CLIP
MJT7 M/T<Y9E> (B) 		1-47475-689-0 01 1 1306- ● ●
36 BRACKET; CLIP
MJX16P M/T(Y3Z) (B) L=60 		8-98162-941-0 01 1 1306- ● ●
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 1306- ● ●
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1306- ● ●
56 BRACKET; FLEX HOSE 8-98151-406-1 01 1 1306- ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 1306- ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 1306- ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 1306- ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1306-1312 ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1306- ● ●
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 1306- ● ●
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1306- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 1306- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2057 SERVICED BY L=2150 		1-47428-770-0 01 1 1306- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=1974 SERVICED BY L=2150 		1-47428-770-0 01 1 1306-1309 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=2010 SERVICED BY L=2150 		1-47428-770-0 01 1 1310- ● ●
167 BRACKET; UNION 1-71117-183-3 01 1 1306- ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1306- ● ●
184 UNION; FLEX HOSE
STRAIGHT 2WAY 		1-09654-435-0 01 1 1306- ● ●
185 CLIP; BRKT
ID=9 L=20 		0-95405-308-0 01 1 1306- ● ●
186 HOLDER; CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 1306- ● ●
187 SEAL; BRKT 1-71117-222-0 01 1 1306- ● ●
192 PLATE 1-71117-221-0 01 1 1306- ● ●

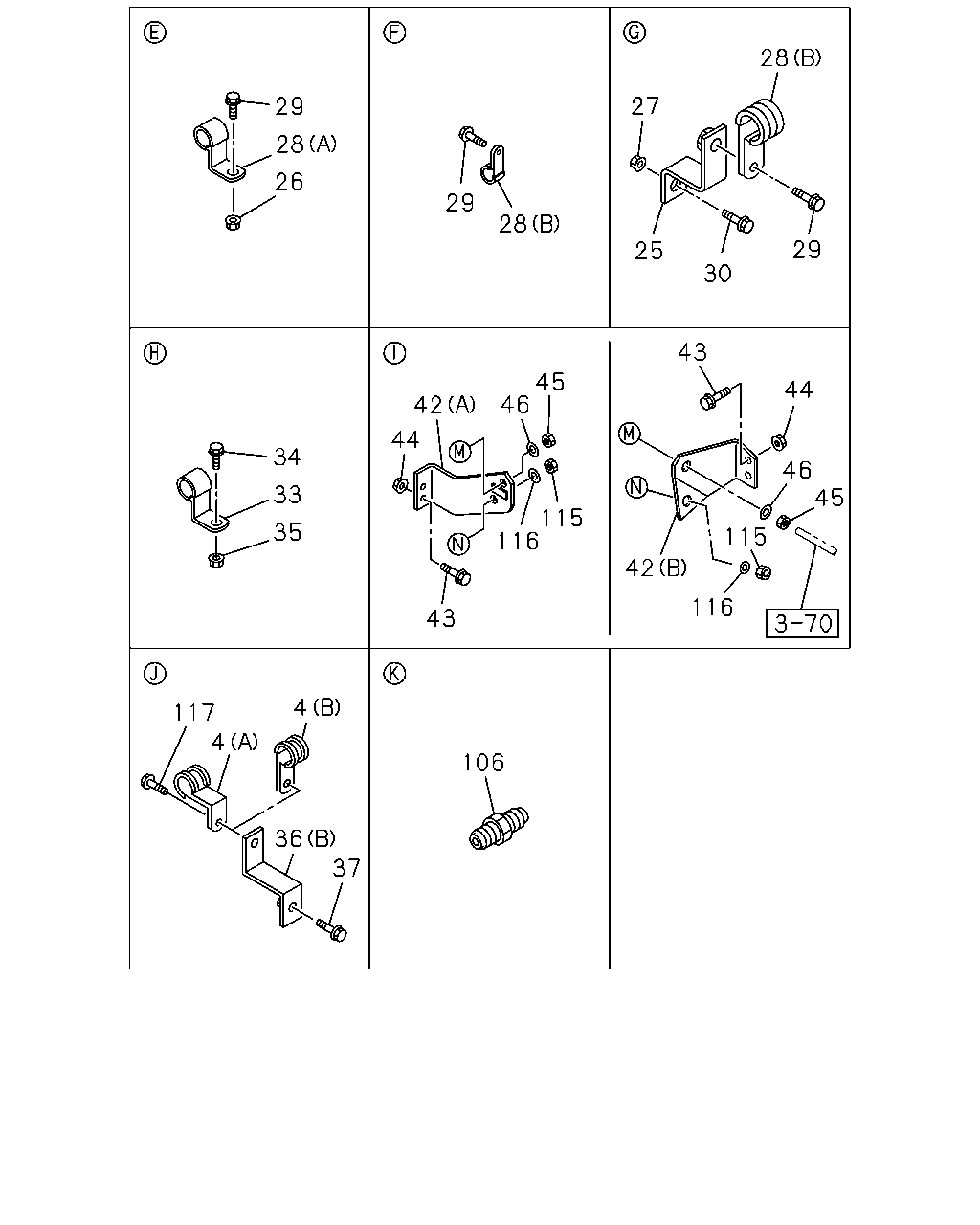

çizim 362988
29 28 29 28 27 26 28 29 25 30 34 35 33 45 46 42 115 116 44 43 43 44 45 46 116 115 42 106 37 36 4 4 117
BalonParca AdiParca NoAdetTipApplied Date A B
4 CLIP; FLEX HOSE,CLU CONT
MJT7S M/T(Y3E) (A) ID=16 H=25 L=25 		1-09701-162-0 01 1 1306- ● ●
4 CLIP; FLEX HOSE,CLU CONT
MJX16P M/T(Y3Z) (B) ID=16 L=28 		1-09700-872-0 01 1 1306- ● ●
25 BRACKET; OIL PIPE 1-46147-101-0 01 1 1306- ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
27 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
27 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306- ● ●
27 NUT; BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 1306- ● ●
28 CLIP; OIL PIPE
(B) ID=9 L=20 		0-95234-835-0 01 1 1306- ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 1306- ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1306- ● ●
29 BOLT; CLIP,OIL PIPE
M8X35 FLANGE 		0-28650-835-0 01 1 1306- ● ●
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1306- ● ●
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 04 1 1306- ● ●
34 BOLT; PIPE CLIP
M8X35 FLANGE 		0-28650-835-0 04 1 1306- ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1306- ● ●
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1306- ● ●
36 BRACKET; CLIP
MJT7 M/T<Y9E> (B) 		1-47475-689-0 01 1 1306- ● ●
36 BRACKET; CLIP
MJX16P M/T(Y3Z) (B) L=60 		8-98162-941-0 01 1 1306- ● ●
37 BOLT; CLIP BRKT
MJT7 M/T<Y9E> M10X20 FLANGE 		0-28151-020-0 01 1 1306- ● ●
37 BOLT; CLIP BRKT
MJX16P M/T(Y3Z) M8X16 FLANGE 		0-28050-816-0 01 1 1306- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
MJT7S M/T(Y3E) (A) 		1-47471-203-0 01 1 1306- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
MJX16P M/T(Y3Z) (B) 		1-47479-812-0 01 1 1306-1309 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
MJX16P M/T(Y3Z) (B) 		8-98251-782-0 01 1 1310- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 1306- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
45 NUT; FLEX HOSE,CLU CONT
MJX16P M/T(Y3Z) M12 		9-09840-280-0 01 1 1306- ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
MJX16P M/T(Y3Z) ID=12.2 		0-91510-512-0 01 1 1306- ● ●
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 1306- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1306- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1306- ● ●
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 1306- ● ●

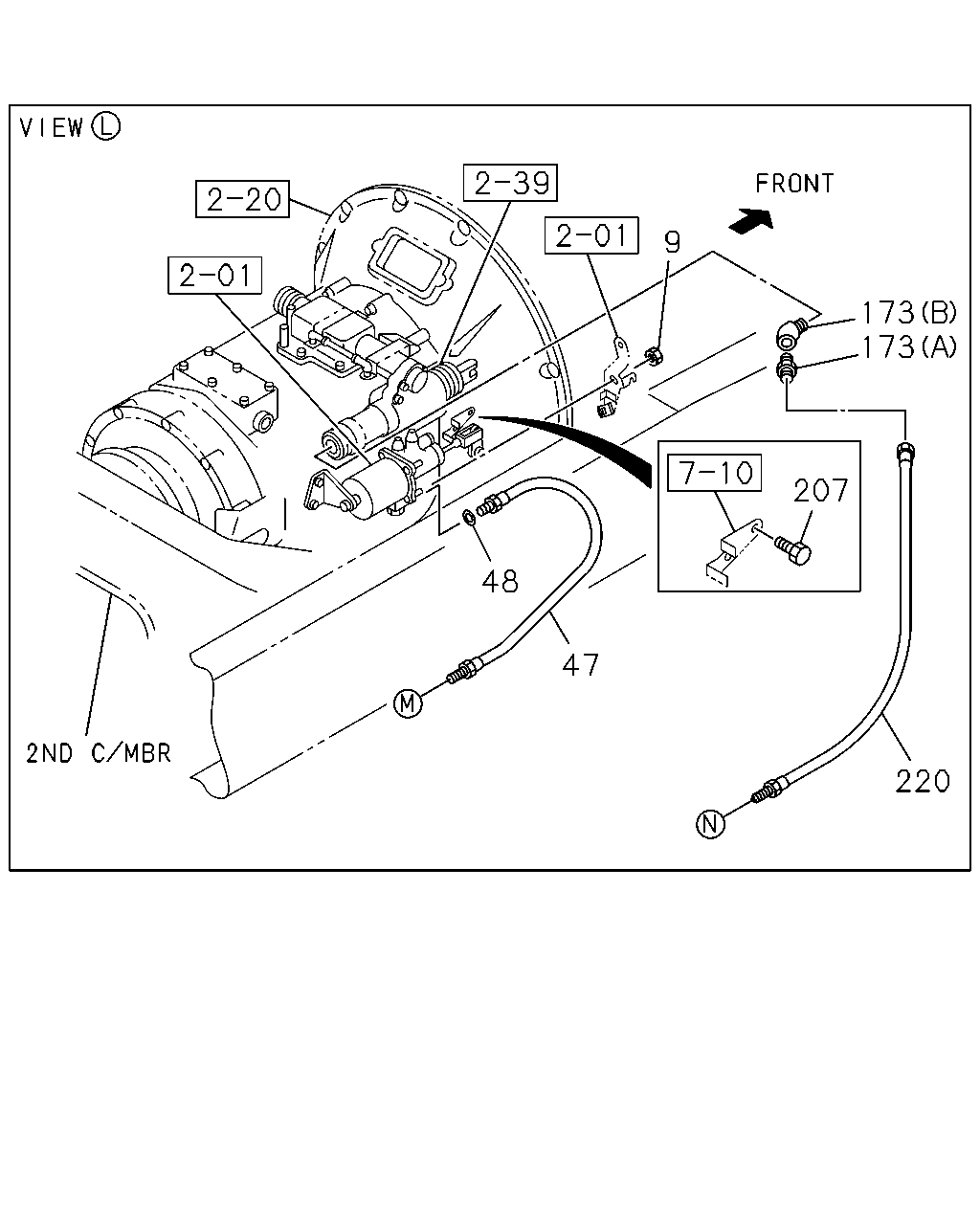

çizim 365729
9 173 220 173 47 207 48
BalonParca AdiParca NoAdetTipApplied Date A B
9 NUT; BRKT,FLEX HOSE
MJT7S M/T(Y3E) M10 FLANGE 		0-91180-210-0 02 1 1306- ● ●
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=600 		1-09364-705-0 01 1 1306-1309 ●
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) L=600 		1-09364-705-0 01 1 1306-1309 ●
47 HOSE; FLEX,CLU CONT
MJX16P M/T(Y3Z) L=600 		1-09364-705-0 01 1 1310- ●
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=600 		1-09364-705-0 01 1 1310- ●
47 HOSE; FLEX,CLU CONT
L=600 		1-09364-705-0 01 1 1310- ●
47 HOSE; FLEX,CLU CONT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) L=550 		1-09364-434-0 01 1 1306-1309 ● ●
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=550 		1-09364-434-0 01 1 1306-1309 ●
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=550 		1-09364-434-0 01 1 1310- ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1306- ● ●
173 CONNECTOR
MJT7S M/T(Y3E) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1306- ● ●
173 CONNECTOR
MJT7S M/T(Y3E) (B) R1/4 & RC1/4 		1-09664-211-0 01 1 1306- ● ●
207 BOLT; CLIP
MJX16P M/T(Y3Z) M10X16 FLANGE 		0-28151-016-0 02 1 1306- ● ●
220 HOSE; FLEX,POWER ASSIST
MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=300 		1-09363-608-0 01 1 1306- ●
220 HOSE; FLEX,POWER ASSIST
MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=350 		1-09363-624-0 01 1 1306- ●
220 HOSE; FLEX,POWER ASSIST
MJT7S M/T(Y3E) L=350 		1-09363-624-0 01 1 1306- ●
220 HOSE; FLEX,POWER ASSIST
MJX16P M/T(Y3Z) L=320 		1-09363-625-0 01 1 1306- ● ●
