Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#124761) — 236 parça

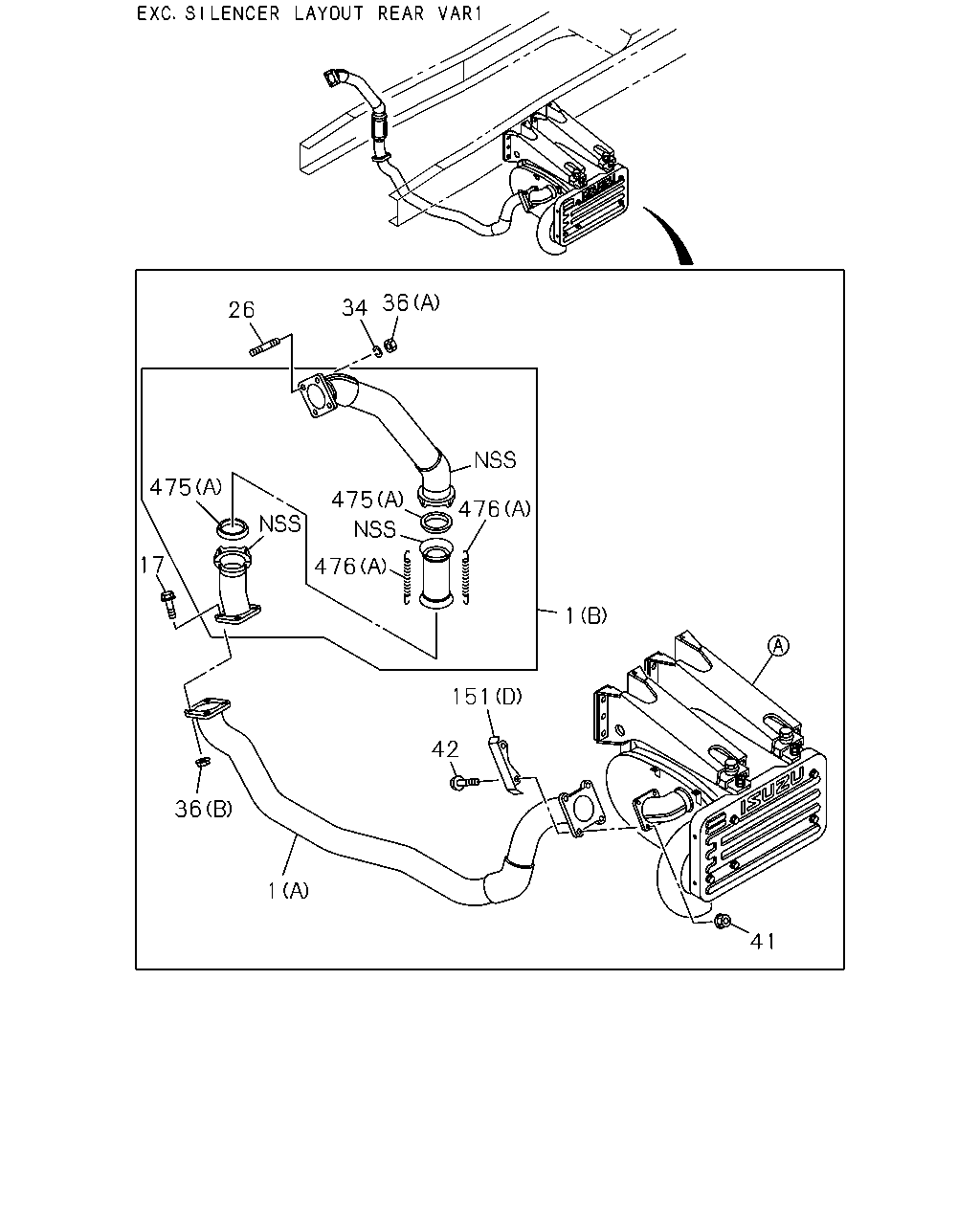

1 151 42 41 1 36 17 475 475 476 476 36 34 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1306-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1306-		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1306-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1306-		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-97644-311-0	01	1	1306-	●	●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97634-143-1	01	1	1306-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (E)	8-97645-640-0	01	1	1306-		●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1306-	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1306-1402	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1306-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1306-	●	●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1306-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1306-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1306-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1306-		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1306-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1306-		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1306-	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1306-		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1306-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97644-313-0	01	1	1306-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97644-314-0	01	1	1306-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1306-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1306-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1306-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1306-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1306-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1306-	●	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1306-	●	●

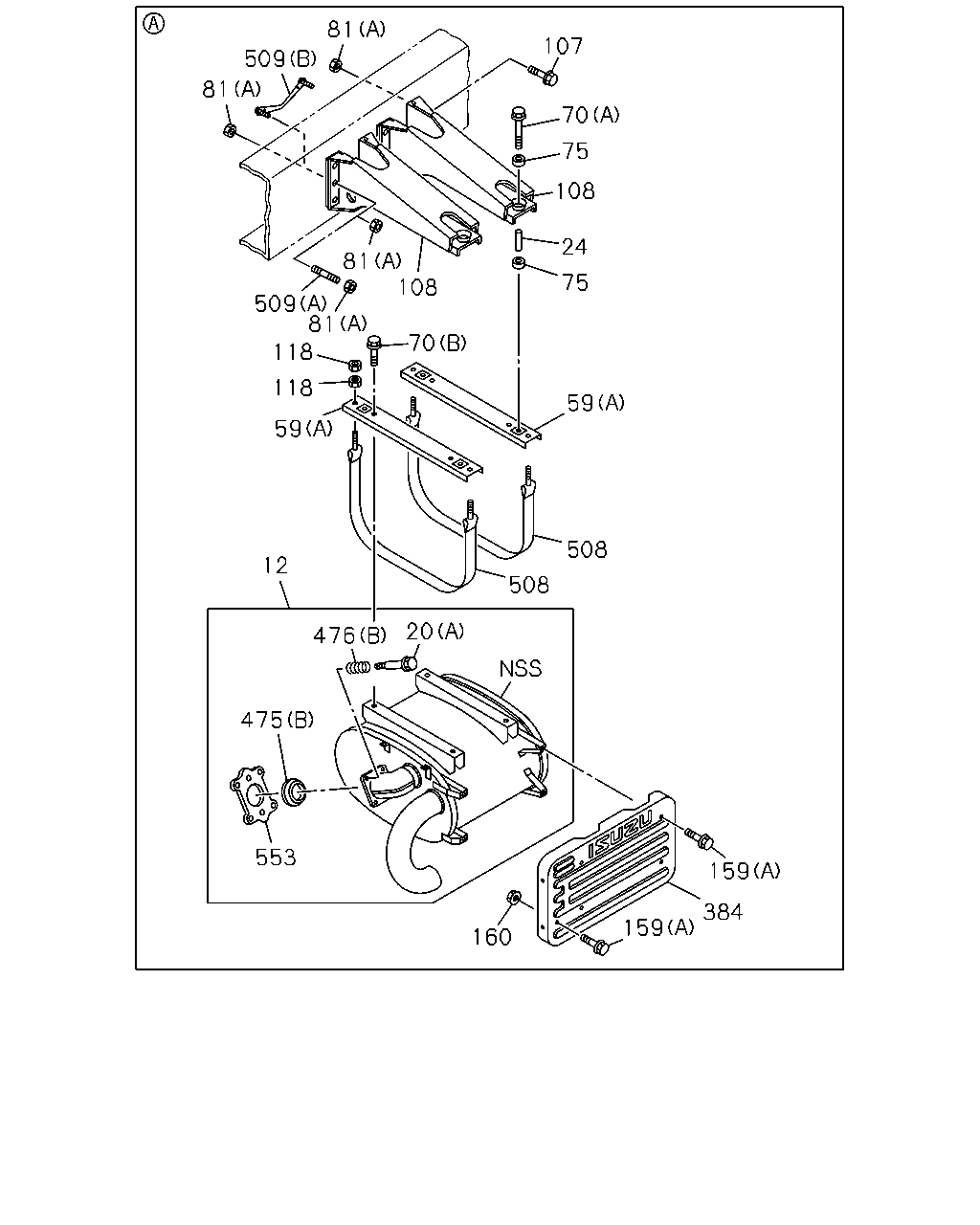

81 509 81 107 70 75 108 24 75 81 108 70 509 118 81 118 59 59 508 508 20 476 12 475 553 160 159 384 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	8-97634-120-1	01	1	1306-	●	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	8-97637-113-1	01	1	1306-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1306-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1306-		●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1306-	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1306-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1306-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1306-	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1306-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1306-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1306-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1306-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1306-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	02	1	1306-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1306-	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1306-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1511-		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	05	1	1306-1510	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	1511-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1306-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1306-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1306-1510		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	04	1	1511-	●	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1306-	●
107	BOLT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1306-		●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1306-	●	●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1306-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> FRONT	1-22134-145-0	01	1	1306-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> FRONT	1-22134-145-0	01	1	1306-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> REAR	1-22134-146-0	01	1	1306-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> REAR	1-22134-146-0	01	1	1306-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28>	1-22134-148-3	02	1	1306-		●
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	1306-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1306-	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1306-	●	●
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1306-	●	●
160	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-556-0	01	1	1306-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1306-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1306-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1306-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1306-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1306-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1306-	●	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1306-	●	●
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-384-0	02	1	1306-	●	●
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X40 L=56	1-09300-123-0	06	1	1306-	●
509	STUD; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) M12X40 L=56	1-09300-123-0	06	1	1306-		●
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X40 L=56	1-09300-123-0	04	1	1306-		●
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22152-152-0	02	1	1306-		●
553	FLANGE; SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1306-	●	●

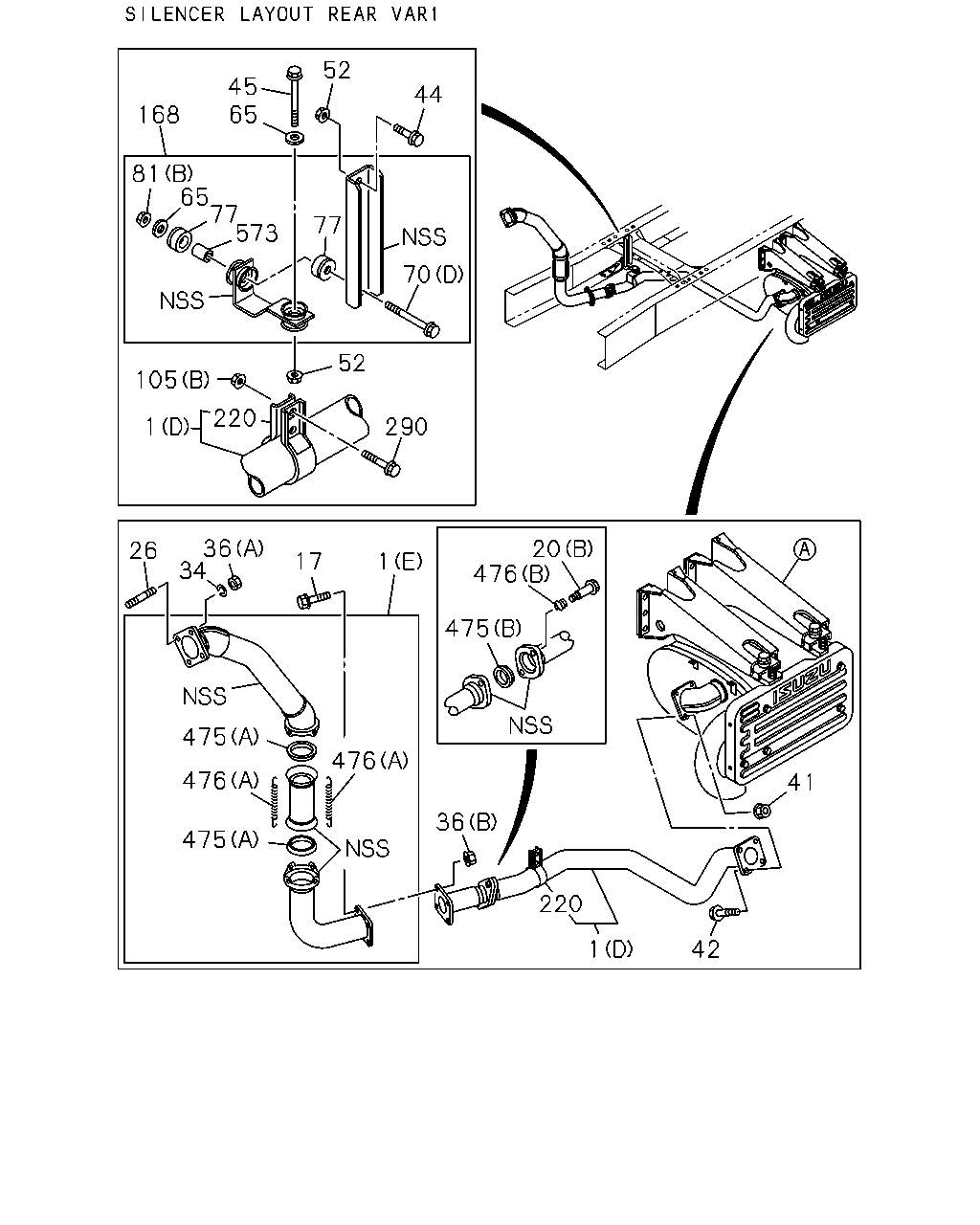

41 42 1 220 36 20 476 475 1 476 475 476 475 17 36 34 26 290 52 220 1 105 70 77 573 77 65 81 44 52 65 45 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1306-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1306-		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1306-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1306-		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-97644-311-0	01	1	1306-	●	●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97634-143-1	01	1	1306-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (E)	8-97645-640-0	01	1	1306-		●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1306-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1306-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1306-		●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1306-1402	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1306-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1306-	●	●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1306-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1306-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1306-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1306-		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1306-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1306-		●
44	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10X35 FLANGE	0-28051-035-0	02	1	1306-		●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1306-	●	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1306-	●	●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1306-		●
65	WASHER; PL SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=32	0-91614-810-0	02	1	1306-		●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1306-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1306-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1306-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1306-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	02	1	1306-		●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1306-	●	●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1306-		●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1511-		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	05	1	1306-1510	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	1511-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1306-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1306-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1306-1510		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	04	1	1511-	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91180-210-0	07	1	1306-	●	●
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M8 FLANGE	0-91180-108-0	02	1	1306-		●
168	BRACKET; EXH PIPE,FRT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28>	8-97633-177-1	01	1	1306-		●
220	CLAMP; EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> D=101.4	1-22133-170-1	01	1	1306-		●
290	BOLT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28650-840-0	02	1	1306-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1306-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1306-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1306-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1306-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1306-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1306-	●	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1306-	●	●
573	TUBE; DIST SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1306-		●

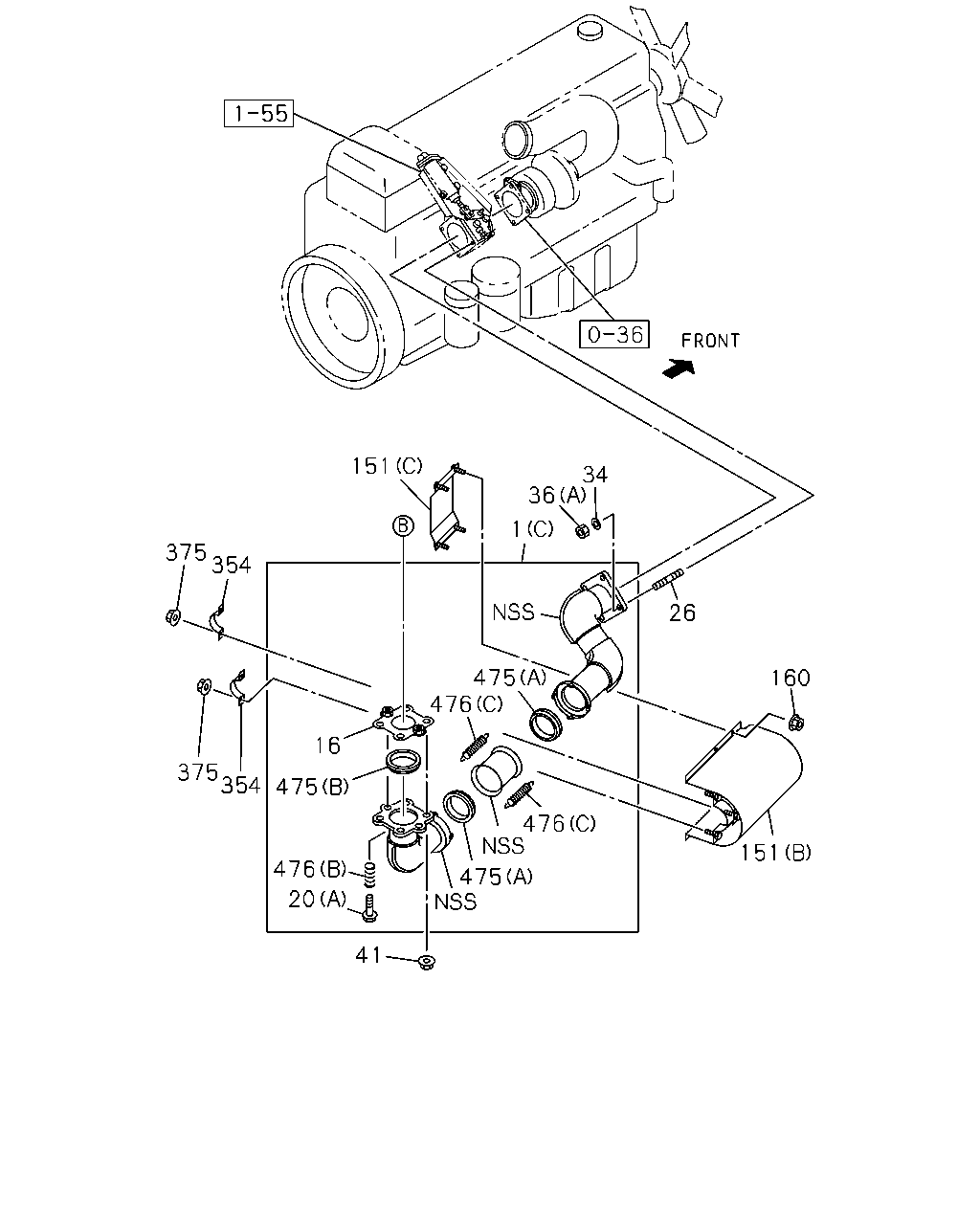

151 375 354 375 354 475 476 20 41 16 475 476 476 475 151 160 26 1 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1306-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1306-		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1306-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1306-		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-97644-311-0	01	1	1306-	●	●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97634-143-1	01	1	1306-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (E)	8-97645-640-0	01	1	1306-		●
16	FLANGE; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1306-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1306-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1306-		●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1306-1402	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1306-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1306-	●	●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1306-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1306-	●	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1306-	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1306-		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1306-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97644-313-0	01	1	1306-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97644-314-0	01	1	1306-	●	●
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1306-	●	●
160	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
354	CLAMP; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28>	8-97632-333-0	02	1	1306-	●	●
375	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1306-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1306-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1306-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1306-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1306-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1306-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1306-	●	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1306-	●	●

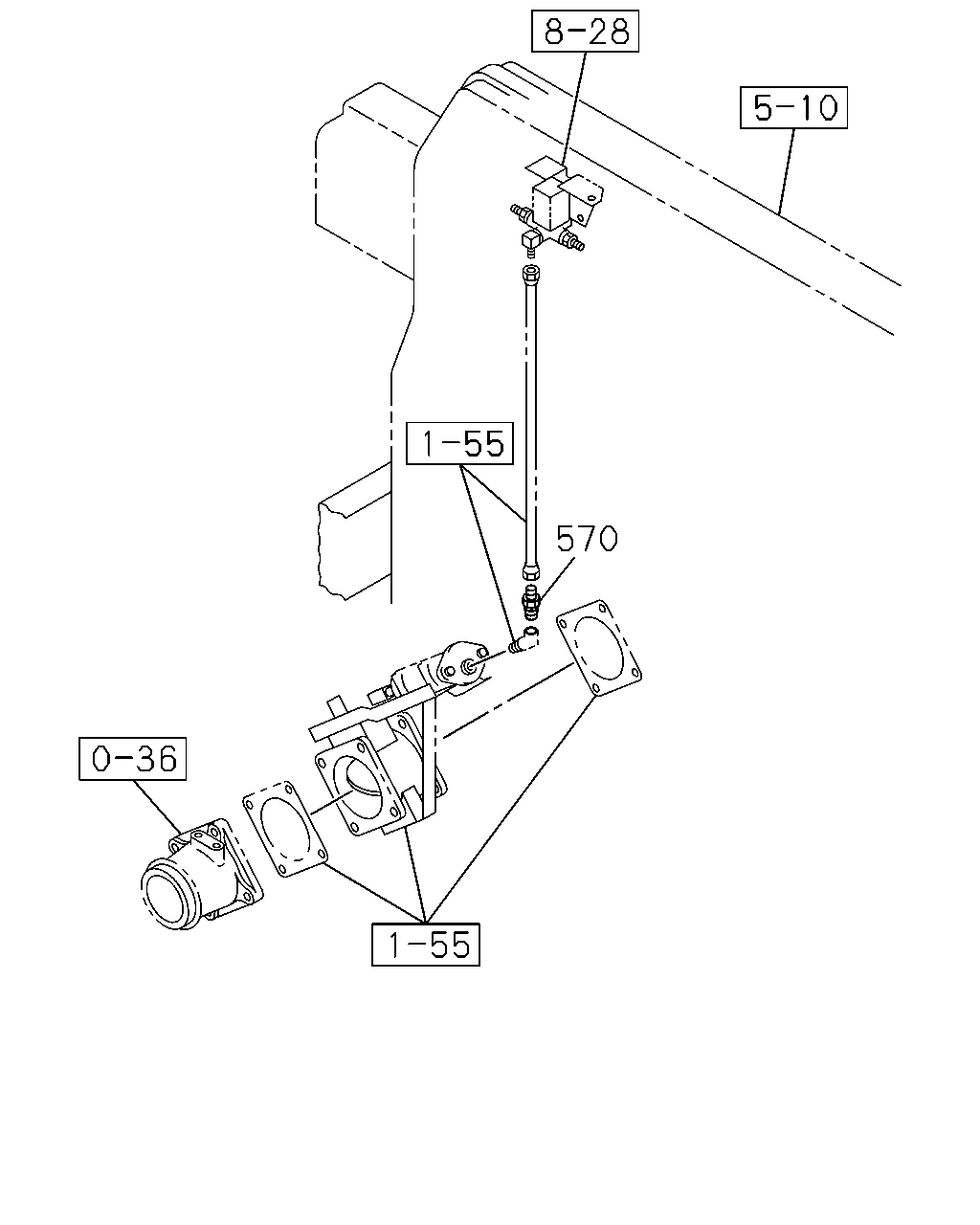

570

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	570	ADAPTER; EXH PIPE M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1306-	●	●

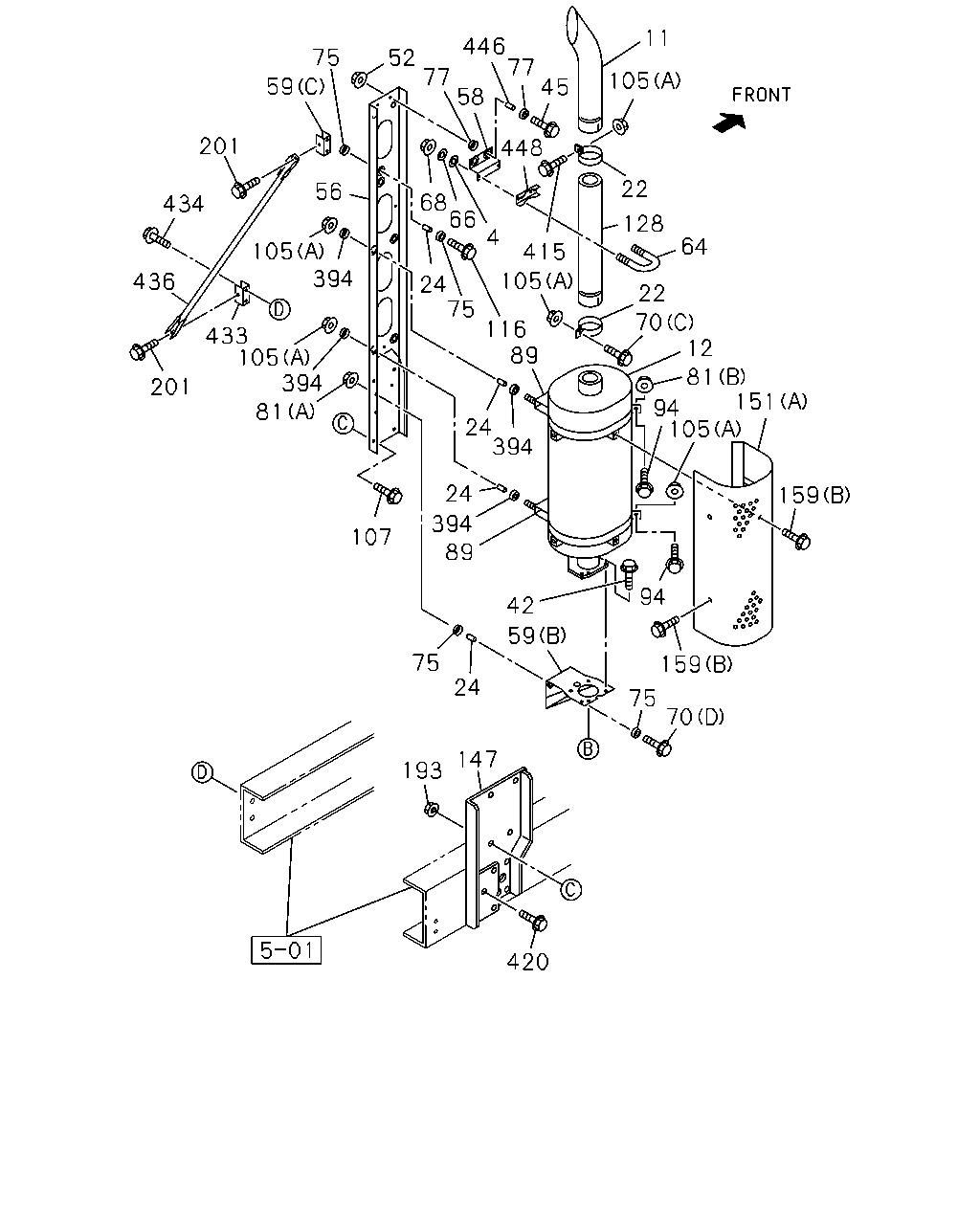

75 59 201 434 436 201 105 433 56 394 105 394 81 107 52 77 58 448 68 66 4 24 75 75 24 193 147 420 70 75 59 42 89 394 24 394 24 446 77 45 415 105 116 89 159 94 159 105 151 81 94 12 70 22 64 128 22 105 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	1306-	●	●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-979-1	01	1	1306-	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	8-97634-120-1	01	1	1306-	●	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	8-97637-113-1	01	1	1306-	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	02	1	1306-1510	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1511-	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1511-	●	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1306-	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1306-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1306-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1306-		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1306-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1306-		●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1306-	●	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1306-	●	●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1306-		●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-335-0	01	1	1306-	●	●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	1306-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1306-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1306-	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1306-	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	1306-	●	●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	1306-	●	●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1306-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1306-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1306-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1306-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1306-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	02	1	1306-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1306-	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1306-	●	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1306-	●	●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1306-		●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1511-		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	05	1	1306-1510	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	1511-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1306-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1306-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1306-1510		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	04	1	1511-	●	●
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-270-0	02	1	1306-	●	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	02	1	1306-	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91180-210-0	07	1	1306-	●	●
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M8 FLANGE	0-91180-108-0	02	1	1306-		●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1306-	●
107	BOLT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1306-		●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1306-	●	●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1306-		●
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1306-	●	●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	1306-	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-342-1	01	1	1306-	●	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1306-	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1306-		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1306-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97644-313-0	01	1	1306-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97644-314-0	01	1	1306-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1306-	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1306-	●	●
193	NUT; BRKT,VERTICAL PIPE SILENCER LAYOUT REAR VAR1<JAZ> SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91180-212-0	04	1	1306-		●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28051-025-0	04	1	1306-	●	●
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	1306-	●	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	01	1	1306-	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	02	1	1306-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X35 FLANGE	0-28061-235-0	02	1	1306-		●
420	BOLT; BRKT,VERTICAL PIPE SILENCER LAYOUT REAR VAR1<JAZ> SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	06	1	1306-		●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97634-890-0	01	1	1306-	●	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	02	1	1306-	●	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	8-97616-276-0	02	1	1306-	●	●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1306-	●	●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
