0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#124747) — 108 parça

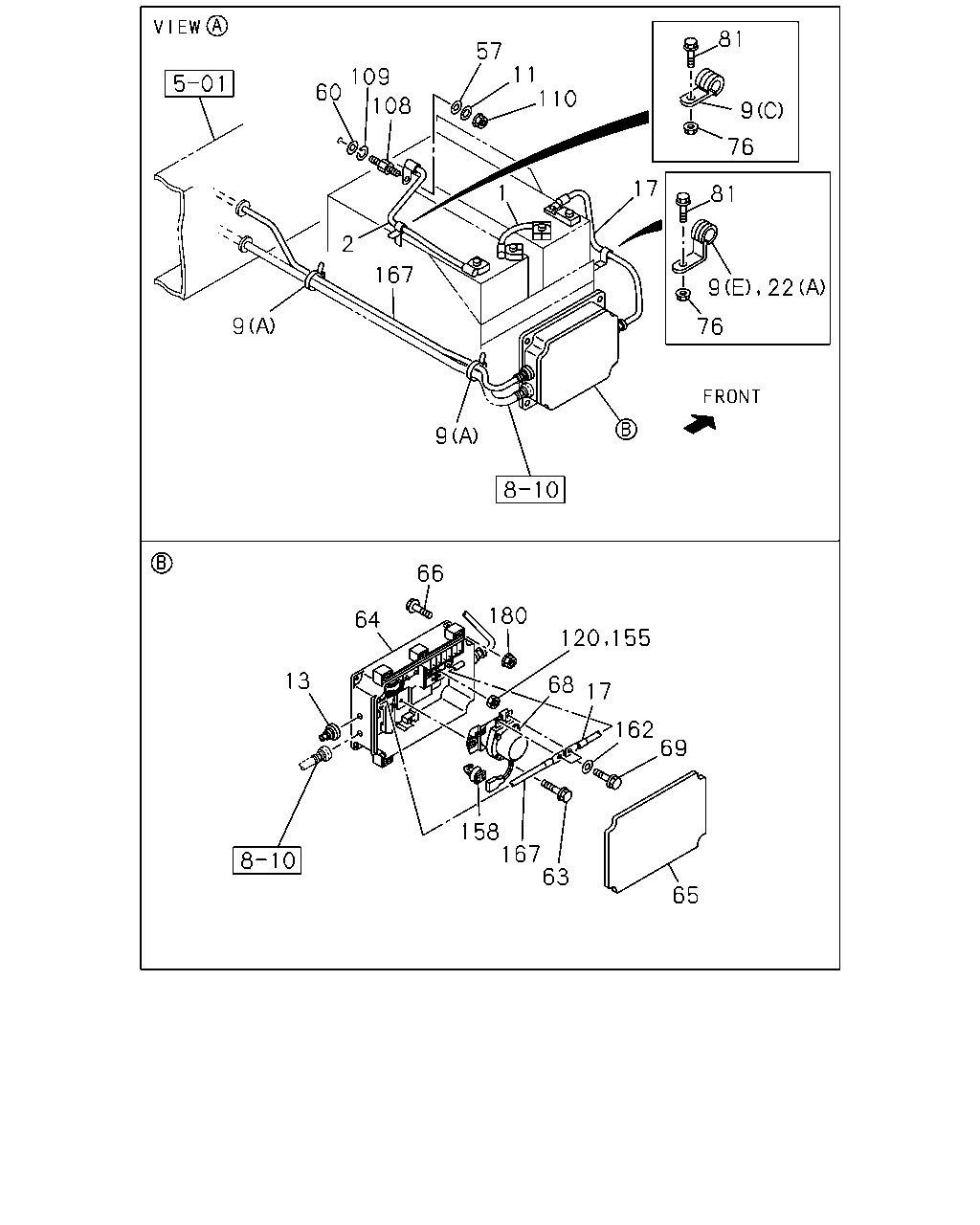

65 69 162 17 68 155 120 63 167 158 180 66 64 13 9 22 9 76 81 76 9 81 17 1 110 11 57 167 2 108 109 60 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	1306-	●	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> L=450	1-82650-389-1	01	1	1306-	●	●
2	CABLE; BATTERY L=710	8-98219-867-0	01	1	1306-	●
2	CABLE; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> L=710	8-98219-867-0	01	1	1306-		●
2	CABLE; BATTERY BATTERY LAYOUT REAR VAR1<NCT> L=640	8-98223-230-0	01	1	1306-		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1306-	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	01	1	1306-		●
9	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	02	1	1306-	●	●
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-	●	●
9	CLIP; BATTERY CABLE (F) ID=21 L=30 H=40	1-09700-991-1	01	1	1306-	●	●
9	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	03	1	1306-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28 H=30	1-09701-110-0	02	1	1306-	●	●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	02	1	1306-		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1306-	●	●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	1306-	●	●
17	CABLE; BATTERY (+) TO RELAY L=480	8-98239-412-0	01	1	1306-	●	●
22	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-	●	●
22	CLIP; BATTERY CABLE (B) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1306-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1306-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1306-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1306-	●	●
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	1306-	●	●
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	1306-	●	●
66	BOLT; COVER,BATTERY RELAY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1306-	●	●
68	RELAY; BATTERY	1-82550-313-0	01	1	1306-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1306-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1306-	●	●
76	NUT; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1306-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1306-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1306-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1306-	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1306-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1306-	●	●
167	CABLE; BATTERY RELAY TO STARTER ENGINE REAR PTO(SV1)	8-98218-185-1	01	1	1306-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. ENGINE REAR PTO(SV1)	8-98240-978-0	01	1	1306-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98240-978-0	01	1	1306-		●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT>	8-98198-306-0	01	1	1306-		●
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1306-	●	●

9 9 18 22 99 99 9 9 22 9 9 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1306-	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	01	1	1306-		●
9	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	02	1	1306-	●	●
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-	●	●
9	CLIP; BATTERY CABLE (F) ID=21 L=30 H=40	1-09700-991-1	01	1	1306-	●	●
9	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	03	1	1306-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28 H=30	1-09701-110-0	02	1	1306-	●	●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	02	1	1306-		●
18	CLIP; BATTERY CABLE ID=21 L=24	8-94176-807-1	01	1	1306-	●	●
22	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-	●	●
22	CLIP; BATTERY CABLE (B) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1306-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 L=25 H=50	1-09701-096-0	02	1	1306-	●	●
99	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	02	1	1306-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1306-	●	●

23 23 78 23 23 23 23 23 61 14 75 10 24 81 100 10 10 24 69 63 66 108 110 12 28 76 101 120 155 180 57 11 162 60 109 77 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1306-	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1306-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	08	1	1306-	●	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
14	BOLT; BRKT CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	01	1	1306-		●
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1306-	●	●
23	BRACKET; CABLE CLIP TO FRAME ENGINE REAR PTO(SV1) (G)	1-82698-628-0	01	1	1306-	●
23	BRACKET; CABLE CLIP TO FRAME EXC. ENGINE REAR PTO(SV1) (F)	1-82698-575-1	01	1	1306-	●
23	BRACKET; CABLE CLIP TO FRAME (F)	1-82698-575-1	01	1	1306-		●
23	BRACKET; CABLE CLIP TO FRAME (C) L=40	1-47478-410-0	01	1	1306-	●	●
23	BRACKET; CABLE CLIP TO FRAME (E)	8-98171-604-0	01	1	1306-	●	●
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82698-557-0	01	1	1306-	●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	1-82698-574-0	01	1	1306-	●	●
23	BRACKET; CABLE CLIP TO FRAME (A)	1-82698-590-0	01	1	1306-	●	●
24	BOLT; BRKT TO FRAME (C) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
24	BOLT; BRKT TO FRAME (B) M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	1306-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1306-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1306-	●	●
61	BRACKET; BATTERY CABLE	8-98147-302-0	01	1	1306-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1306-	●	●
66	BOLT; COVER,BATTERY RELAY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1306-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1306-	●	●
75	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1306-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1306-	●	●
76	NUT; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1306-		●
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	1306-	●	●
78	BRACKET; CLIP BATTERY	1-47476-396-1	01	1	1306-	●
78	BRACKET; CLIP BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>	1-47476-396-1	01	1	1306-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1306-	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1306-	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1306-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1306-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1306-	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1306-	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1306-	●	●

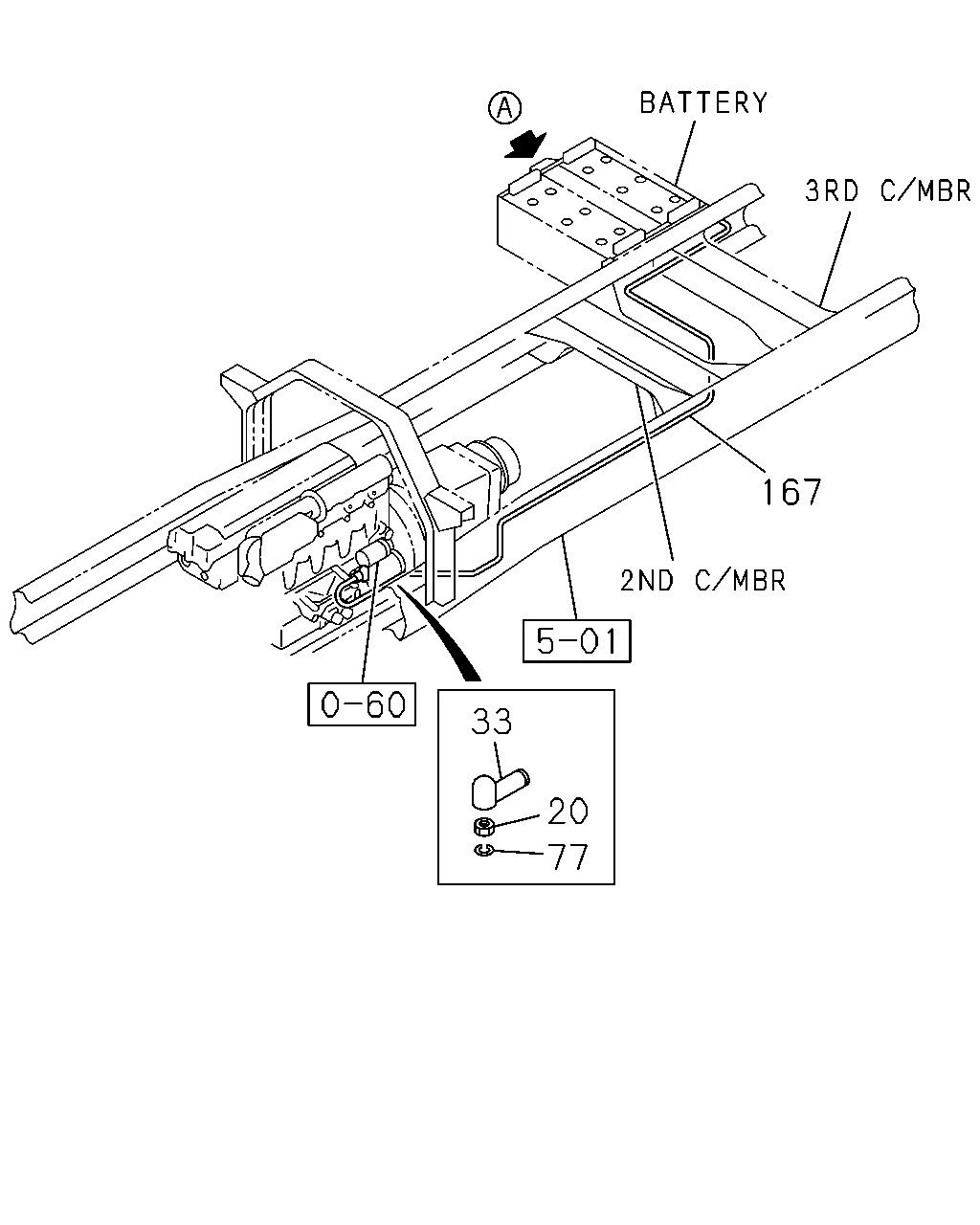

167 33 20 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1306-	●	●
33	CAP; INSULATOR	8-97181-965-0	01	1	1306-	●	●
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	1306-	●	●
167	CABLE; BATTERY RELAY TO STARTER ENGINE REAR PTO(SV1)	8-98218-185-1	01	1	1306-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. ENGINE REAR PTO(SV1)	8-98240-978-0	01	1	1306-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98240-978-0	01	1	1306-		●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT>	8-98198-306-0	01	1	1306-		●

208 208 208 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	1306-	●	●
208	FUSE (B) 80A	1-82516-031-0	01	1	1306-	●	●
208	FUSE (A) 100A	1-82516-032-0	01	1	1306-	●	●
208	FUSE (C) 40A GREEN	8-94468-662-0	05	1	1306-	●	●
