1-41 — FUEL PIPING; CHASSIS (#12470) — 98 parça
çizim 75192
144 102 101 32 97 102 634 35 97 101 100 100 35 634 32 102 32 229 95 41 32 41 227 228 229 228 289 289 38
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(A) L=1200 SERVICED BY L=3000 		0-01260-300-0 01 1 0105-
32 PIPE; DELIVERY,FUEL TANK
(B) L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 0105-
35 PIPE; FUEL TANK,RETURN
L=2300 SERVICED BY L=3000 		0-01260-300-0 01 1 0105-0301
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0108-
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 06 1 0105-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 02 1 0105-0301
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 02 1 0302-
97 BRACKET; CLIP
(C) 		1-47478-539-0 02 1 0105-0503
97 BRACKET; CLIP
(F) L=100 		1-47477-620-1 02 1 0504-
97 BRACKET; CLIP
(A) 		1-47479-247-0 01 1 0105-0408
97 BRACKET; CLIP
(A) 		1-47471-045-0 01 1 0409-
97 BRACKET; CLIP
(D) 		1-47479-248-0 01 1 0105-0111
97 BRACKET; CLIP
(E) 		1-47479-345-0 01 1 0110-0111
97 BRACKET; CLIP
(E) 		1-47479-379-0 01 1 0112-
97 BRACKET; CLIP
FUEL TANK 400L+400L<NAR> (B) 		1-53461-494-1 01 1 0105-
100 CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 05 1 0105-
100 CLIP; FUEL PIPE
(B) ID=15 		1-09700-845-1 01 1 0105-0106
100 CLIP; FUEL PIPE
(B) 		1-09701-299-0 01 1 0107-0301
100 CLIP; FUEL PIPE
(B) 		1-09701-299-0 01 1 0302-
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28680-825-0 05 1 0105-0512
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 05 1 0601-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 06 1 0105-0301
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 06 1 0302-0602
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 06 1 0603-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0110-0111
144 BOLT; CLIP,FUEL PIPE,C/MBR
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0109
144 BOLT; CLIP,FUEL PIPE,C/MBR
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0110-0111
144 BOLT; CLIP,FUEL PIPE,C/MBR
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0110-0111
144 BOLT; CLIP,FUEL PIPE,C/MBR
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0105-0301
144 BOLT; CLIP,FUEL PIPE,C/MBR
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0302-0512
144 BOLT; CLIP,FUEL PIPE,C/MBR
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0601-
227 BRACKET; FUEL SEDIMENTER 1-22518-168-2 01 1 0105-
228 BOLT; BRKT,SEDIMENTER
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0105-0512
228 BOLT; BRKT,SEDIMENTER
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
228 BOLT; BRKT,SEDIMENTER
(A) M10X35 FLANGE 		0-28681-035-0 02 1 0105-0512
228 BOLT; BRKT,SEDIMENTER
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0105-0602
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0105-0602
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603-
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603-
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 02 1 0108-
634 HOSE; RUBBER RETURN
L=2300 SERVICED BY L=3000 		0-01260-300-0 01 1 0302-

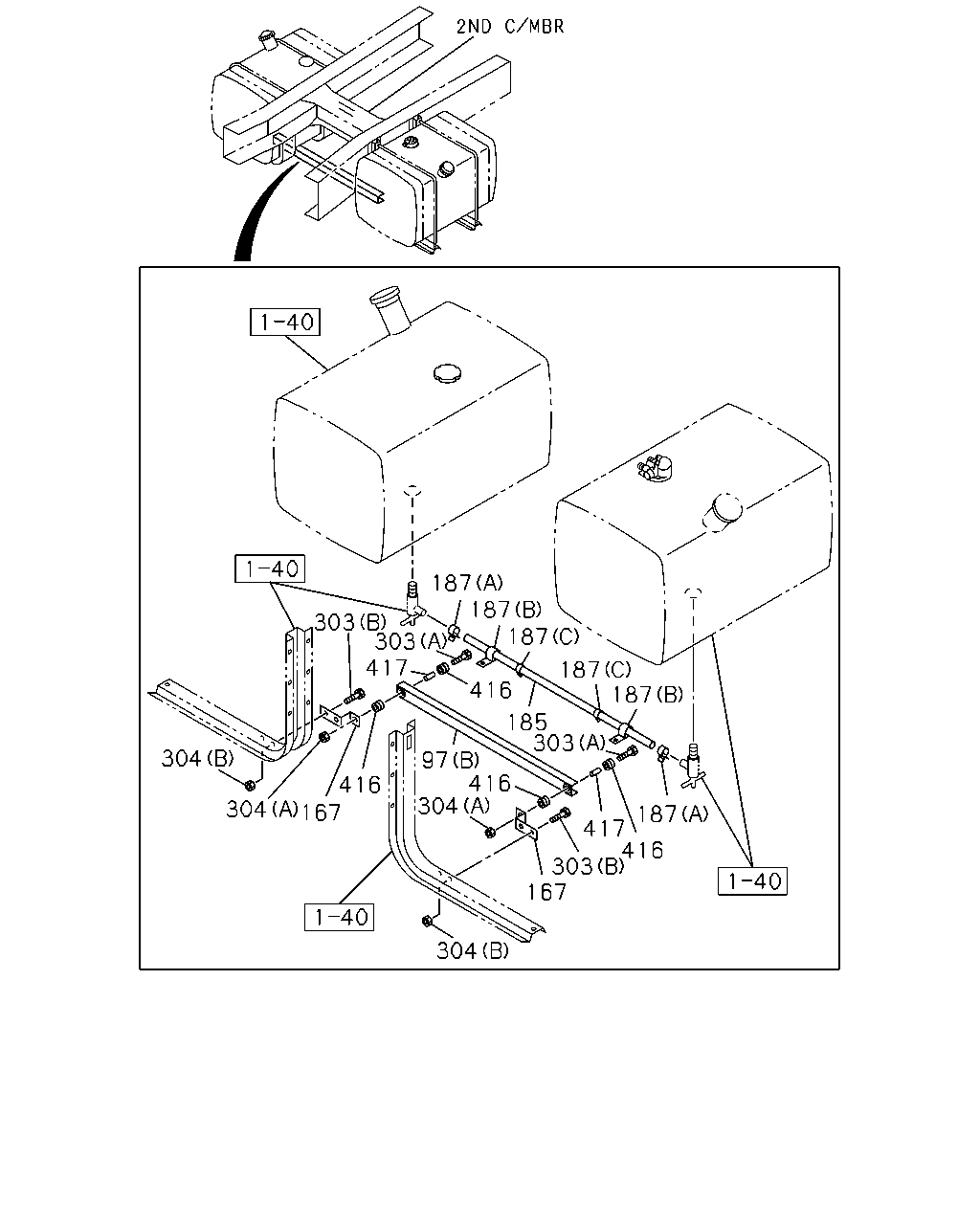

çizim 78475
187 187 187 303 303 417 187 187 416 185 303 304 97 416 304 416 167 304 187 417 416 303 167 304
BalonParca AdiParca NoAdetTipApplied Date
97 BRACKET; CLIP
(C) 		1-47478-539-0 02 1 0105-0503
97 BRACKET; CLIP
(F) L=100 		1-47477-620-1 02 1 0504-
97 BRACKET; CLIP
(A) 		1-47479-247-0 01 1 0105-0408
97 BRACKET; CLIP
(A) 		1-47471-045-0 01 1 0409-
97 BRACKET; CLIP
(D) 		1-47479-248-0 01 1 0105-0111
97 BRACKET; CLIP
(E) 		1-47479-345-0 01 1 0110-0111
97 BRACKET; CLIP
(E) 		1-47479-379-0 01 1 0112-
97 BRACKET; CLIP
FUEL TANK 400L+400L<NAR> (B) 		1-53461-494-1 01 1 0105-
167 BRACKET
FUEL TANK 400L+400L<NAR> 		1-47478-031-0 02 1 0105-
185 PIPE; FUEL TANK TO TANK
FUEL TANK 400L+400L<NAR> L=1800 SERVICED BY L=3000 		0-01262-300-0 01 1 0105-
187 CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 400L+400L<NAR> (A) ID=19 		8-94238-569-0 02 1 0105-
187 CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 400L+400L<NAR> (B) ID=19 H=25 L=25 		9-09917-035-0 02 1 0105-
187 CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 400L+400L<NAR> (C) ID=22 L=52 		9-09917-431-0 02 1 0105-
303 BOLT; BRKT
FUEL TANK 400L+400L<NAR> (A) M10X50 FLANGE 		0-28081-050-0 02 1 0105-0512
303 BOLT; BRKT
FUEL TANK 400L+400L<NAR> (A) M10X50 FLANGE 		0-28051-050-0 02 1 0601-
303 BOLT; BRKT
FUEL TANK 400L+400L<NAR> (B) M8X25 FLANGE 		0-28680-825-0 04 1 0105-0512
303 BOLT; BRKT
FUEL TANK 400L+400L<NAR> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
304 NUT; BRKT
FUEL TANK 400L+400L<NAR> (B) M8 FLANGE 		0-91150-108-0 04 1 0105-0602
304 NUT; BRKT
FUEL TANK 400L+400L<NAR> (B) M8 FLANGE 		0-91180-108-0 04 1 0603-
304 NUT; BRKT
FUEL TANK 400L+400L<NAR> (A) M10 FLANGE 		0-91150-210-0 02 1 0105-0602
304 NUT; BRKT
FUEL TANK 400L+400L<NAR> (A) M10 FLANGE 		0-91180-210-0 02 1 0603-
416 RUBBER; SUPPORT
FUEL TANK 400L+400L<NAR> OD=40 		1-22159-094-0 04 1 0105-
417 TUBE; DISTANCE,BRKT
FUEL TANK 400L+400L<NAR> L=22 		9-22159-024-0 02 1 0105-

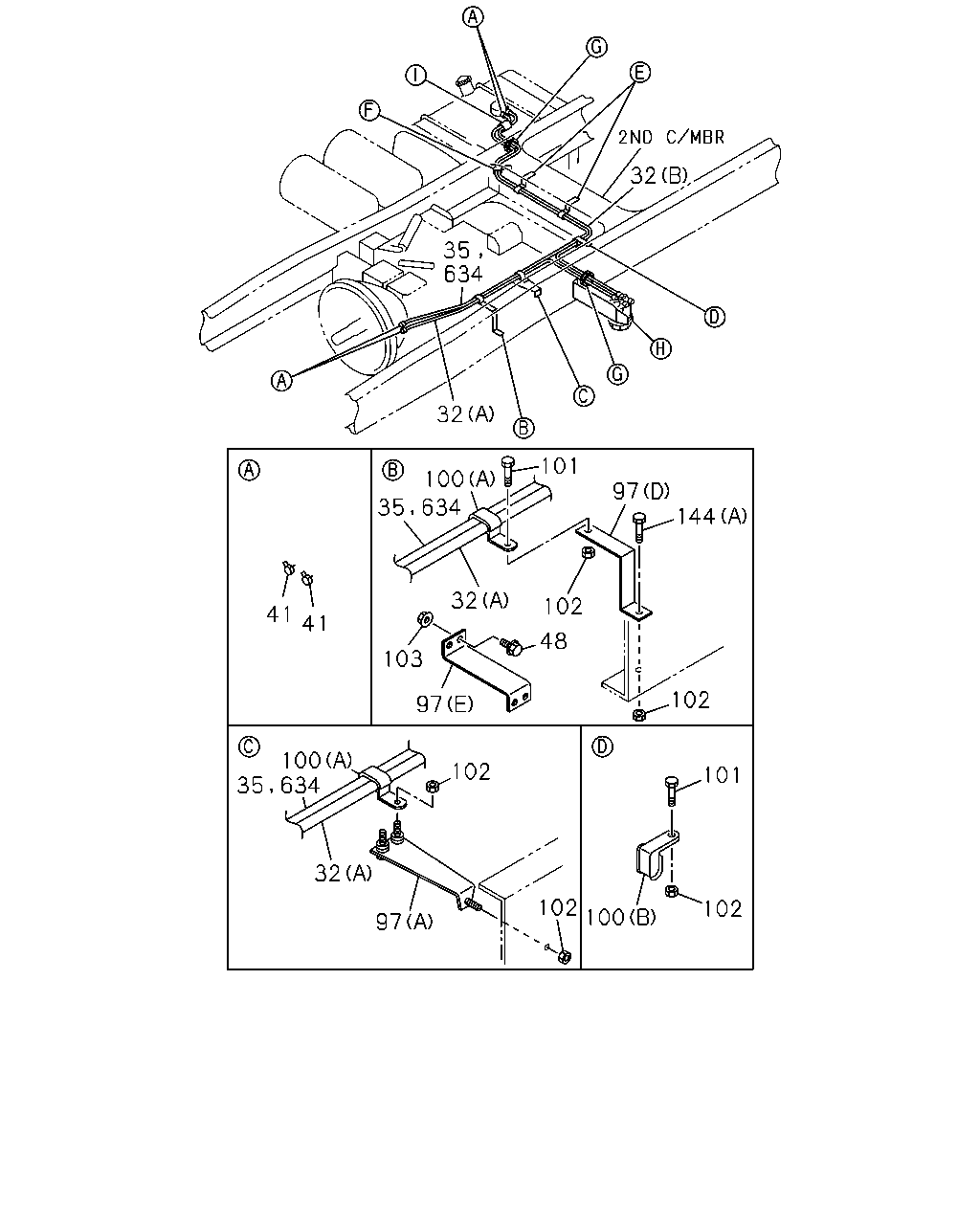

çizim 78812
32 35 634 32 101 100 97 144 32 102 41 41 48 103 102 97 100 102 101 32 102 102 100 97 35 634 35 634
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(A) L=1200 SERVICED BY L=3000 		0-01260-300-0 01 1 0105-
32 PIPE; DELIVERY,FUEL TANK
(B) L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 0105-
35 PIPE; FUEL TANK,RETURN
L=2300 SERVICED BY L=3000 		0-01260-300-0 01 1 0105-0301
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 06 1 0105-
48 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0112-0512
48 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
97 BRACKET; CLIP
(C) 		1-47478-539-0 02 1 0105-0503
97 BRACKET; CLIP
(F) L=100 		1-47477-620-1 02 1 0504-
97 BRACKET; CLIP
(A) 		1-47479-247-0 01 1 0105-0408
97 BRACKET; CLIP
(A) 		1-47471-045-0 01 1 0409-
97 BRACKET; CLIP
(D) 		1-47479-248-0 01 1 0105-0111
97 BRACKET; CLIP
(E) 		1-47479-345-0 01 1 0110-0111
97 BRACKET; CLIP
(E) 		1-47479-379-0 01 1 0112-
97 BRACKET; CLIP
FUEL TANK 400L+400L<NAR> (B) 		1-53461-494-1 01 1 0105-
100 CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 05 1 0105-
100 CLIP; FUEL PIPE
(B) ID=15 		1-09700-845-1 01 1 0105-0106
100 CLIP; FUEL PIPE
(B) 		1-09701-299-0 01 1 0107-0301
100 CLIP; FUEL PIPE
(B) 		1-09701-299-0 01 1 0302-
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28680-825-0 05 1 0105-0512
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 05 1 0601-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 06 1 0105-0301
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 06 1 0302-0602
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 06 1 0603-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0110-0111
103 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0112-0602
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603-
144 BOLT; CLIP,FUEL PIPE,C/MBR
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0109
144 BOLT; CLIP,FUEL PIPE,C/MBR
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0110-0111
144 BOLT; CLIP,FUEL PIPE,C/MBR
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0110-0111
144 BOLT; CLIP,FUEL PIPE,C/MBR
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0105-0301
144 BOLT; CLIP,FUEL PIPE,C/MBR
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0302-0512
144 BOLT; CLIP,FUEL PIPE,C/MBR
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0601-
634 HOSE; RUBBER RETURN
L=2300 SERVICED BY L=3000 		0-01260-300-0 01 1 0302-
