◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11533 - CYH LHD EURO2 WITH REFLECTOR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#124699) — 306 parça
çizim 363913
375 342 342 335 334
BalonParca AdiParca NoAdetTipApplied Date
334 BRACKET 8-98212-895-0 01 1 1306-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1306-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 1306-
342 BRACKET; HARNESS CAB MTG
(B) 		8-98240-938-0 01 1 1306-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1306-
çizim 365158
16 51 470 305 228 208 171 16 305 206 104 14 194 102 48 16 14 194 1 1 1 178 178 178 530 208 16 51 142
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(C) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1306-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1306-
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=50 		5-09360-835-0 01 1 1306-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1306-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1306-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1306-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1306-
16 CLIP; HARNESS
(X) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1306-
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1306-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1306-
16 CLIP; HARNESS
(J) ID=28 L=58 		1-09700-400-0 02 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 1306-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1306-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 1306-
16 CLIP; HARNESS
(N) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1306-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1306-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1306-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1306-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 1306-
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 02 1 1306-
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 01 1 1306-
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 01 1 1306-
16 CLIP; HARNESS
(I) ID=13-18 L=26 		1-09709-293-0 04 1 1306-
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306-
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-
16 CLIP; HARNESS
(R) L=140 		5-09707-031-1 03 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (R) L=140 		5-09707-031-1 03 1 1306-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1306-
16 CLIP; HARNESS
(W) ID=19 H=70 L=25 		8-97360-209-0 01 1 1306-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 08 1 1306-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1306-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (X) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (X) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) ID=16 L=40 		0-95235-576-0 02 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 06 1 1306-1506
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 03 1 1507-
48 CLIP; FRAME HARNESS
(D) ID=11 H=30 L=17 		1-09700-113-0 01 1 1306-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1306-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1306-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1306-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1306-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=26 		1-09709-293-0 03 1 1306-
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=26 		1-09709-296-0 02 1 1306-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1306-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 1306-
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 1511-1511
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> L=140 		5-09707-031-1 02 1 1306-
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 02 1 1306-
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 03 1 1306-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1306-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1306-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1306-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 01 1 1306-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1306-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 1306-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 05 1 1306-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 1306-
208 CLIP; HARNESS,MAG VLV
(A) L=250 		5-09707-030-1 01 1 1306-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180 		1-09707-162-1 01 1 1306-
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 1306-
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 03 1 1306-
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 1306-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 04 1 1306-
470 CLIP; HARNESS,LICENSE LAMP
WHEEL BASE 7400MM(74W) (B) ID=11 L=41 		1-09700-403-0 01 1 1306-
530 SEAL; HARNESS
180X40 		1-72498-019-1 12 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 1306-
530 SEAL; HARNESS
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 180X40 		1-72498-019-1 01 1 1306-

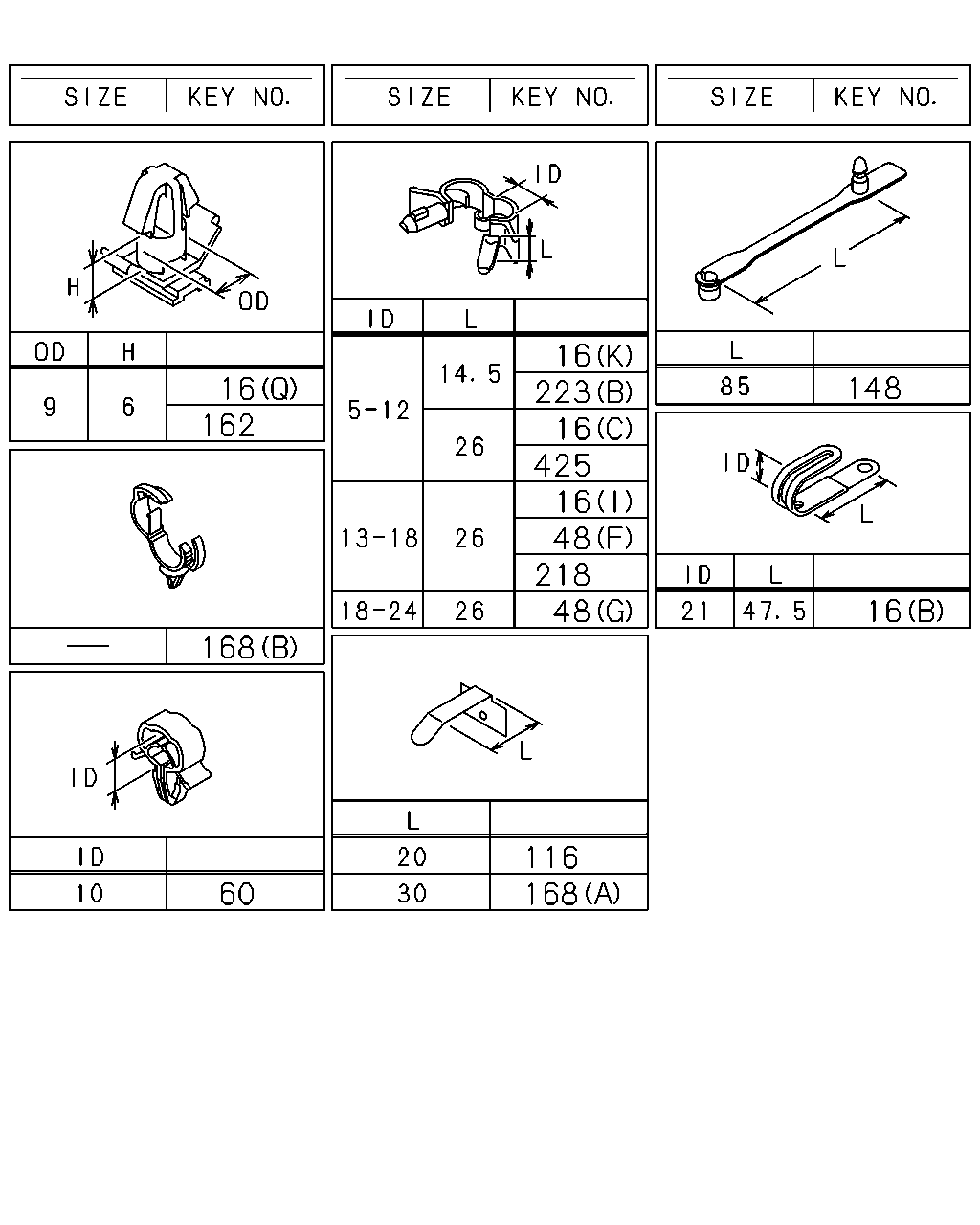

çizim 365279
16 162 168 60 116 168 48 218 48 16 425 16 223 16 148 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1306-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1306-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1306-
16 CLIP; HARNESS
(X) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1306-
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1306-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1306-
16 CLIP; HARNESS
(J) ID=28 L=58 		1-09700-400-0 02 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 1306-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1306-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 1306-
16 CLIP; HARNESS
(N) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1306-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1306-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1306-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1306-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 1306-
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 02 1 1306-
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 01 1 1306-
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 01 1 1306-
16 CLIP; HARNESS
(I) ID=13-18 L=26 		1-09709-293-0 04 1 1306-
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306-
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-
16 CLIP; HARNESS
(R) L=140 		5-09707-031-1 03 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (R) L=140 		5-09707-031-1 03 1 1306-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1306-
16 CLIP; HARNESS
(W) ID=19 H=70 L=25 		8-97360-209-0 01 1 1306-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 08 1 1306-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1306-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (X) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (X) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) ID=16 L=40 		0-95235-576-0 02 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 06 1 1306-1506
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 03 1 1507-
48 CLIP; FRAME HARNESS
(D) ID=11 H=30 L=17 		1-09700-113-0 01 1 1306-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1306-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1306-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1306-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1306-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=26 		1-09709-293-0 03 1 1306-
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=26 		1-09709-296-0 02 1 1306-
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 1306-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 1306-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 1306-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1306-
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 1306-
168 CLIP; DASH HARNESS
HEATER & DEFROSTER(C41) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 1306-
218 CLIP; BAND,RR COMB
ID=13-18 L=26 		1-09709-293-0 06 1 1306-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1306-
425 CLIP; MODULATOR
ID=5-12 L=26 		1-09709-289-0 02 1 1306-

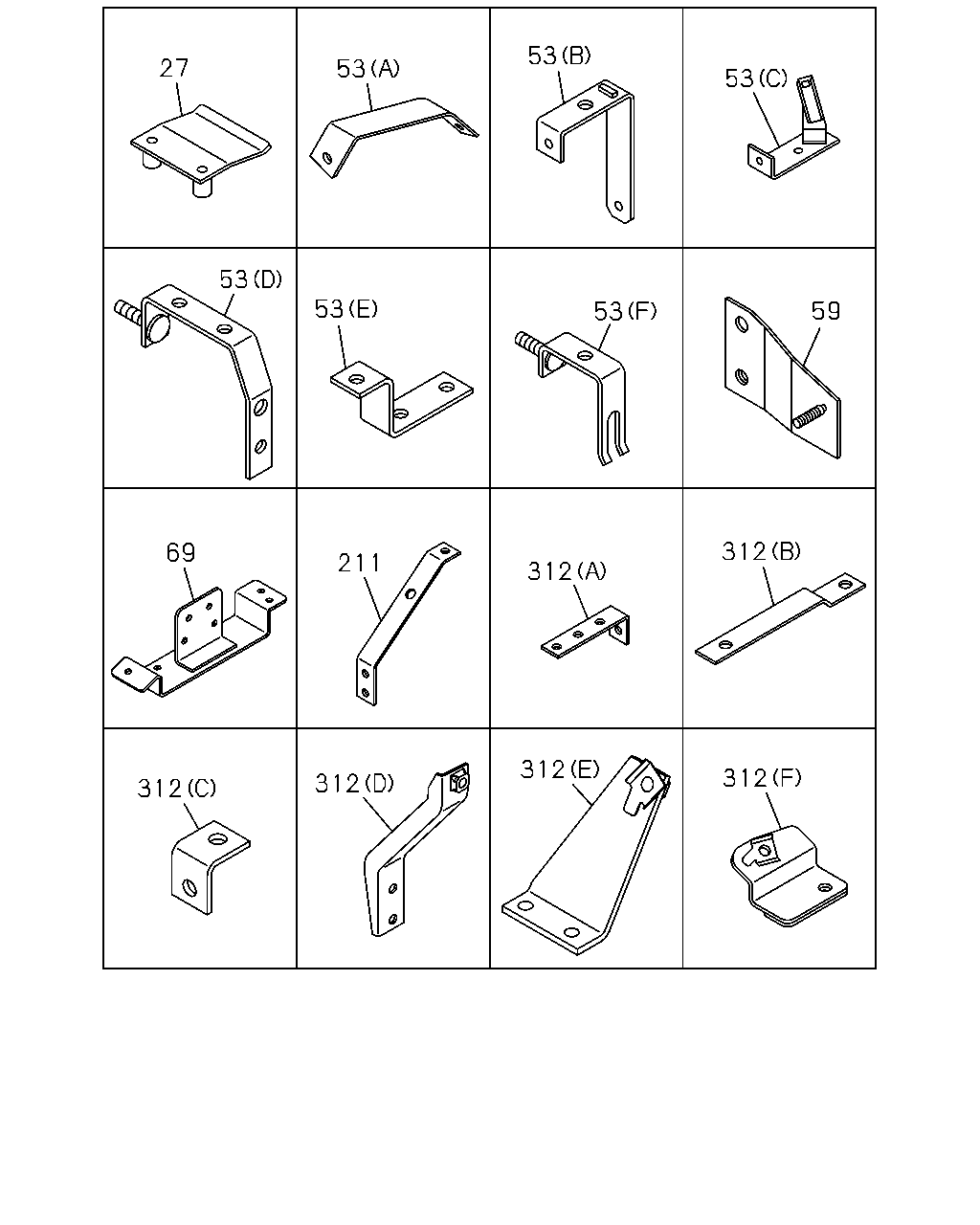

çizim 365339
312 312 312 312 312 312 211 69 59 53 53 53 53 53 53 27
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE 8-98201-145-0 01 1 1306-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1306-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1306-
53 BRACKET; HARNESS
(D) 		1-47479-800-0 01 1 1306-
53 BRACKET; HARNESS
(E) 		8-98124-778-0 01 1 1306-
53 BRACKET; HARNESS
(B) 		8-98212-499-0 01 1 1306-
53 BRACKET; HARNESS
(C) 		8-98212-500-1 01 1 1306-
53 BRACKET; HARNESS
WHEEL BASE 6500MM(65W) (F) 		1-47479-381-2 01 1 1306-
59 BRACKET; FRAME HARNESS 8-98061-135-1 01 1 1306-
59 BRACKET; FRAME HARNESS
BURRS AND SHARP EDGES 		8-98201-144-0 01 1 1306-
69 BRACKET; CLIP 8-98171-829-0 01 1 1306-
211 BRACKET; AXLE HARNESS 1-47479-430-0 02 1 1306-
312 BRACKET; CLIP HARNESS
(C) 		1-47477-694-0 02 1 1306-
312 BRACKET; CLIP HARNESS
(A) L=120 H=35 		1-82698-088-0 01 1 1306-
312 BRACKET; CLIP HARNESS
(D) 		8-97636-868-1 02 1 1306-
312 BRACKET; CLIP HARNESS
(B) 		8-98201-136-0 01 1 1306-
312 BRACKET; CLIP HARNESS
(E) 		8-98225-560-0 01 1 1306-
312 BRACKET; CLIP HARNESS
(F) 		8-98233-397-0 01 1 1306-

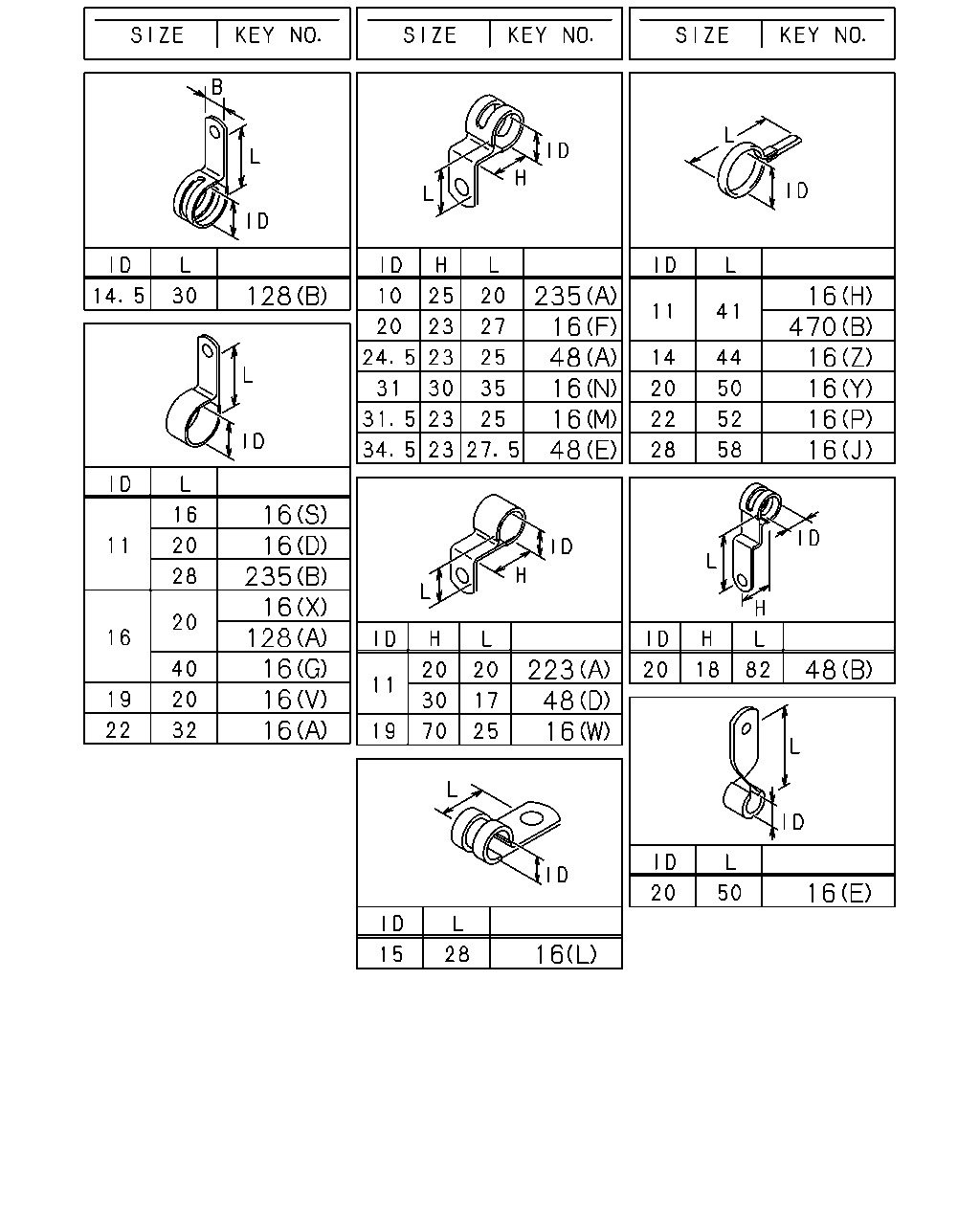

çizim 365355
16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 128 235 128 235 48 48 223 48 48 470
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1306-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1306-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1306-
16 CLIP; HARNESS
(X) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1306-
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1306-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1306-
16 CLIP; HARNESS
(J) ID=28 L=58 		1-09700-400-0 02 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 1306-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1306-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 1306-
16 CLIP; HARNESS
(N) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1306-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1306-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1306-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1306-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 1306-
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 02 1 1306-
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 01 1 1306-
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 01 1 1306-
16 CLIP; HARNESS
(I) ID=13-18 L=26 		1-09709-293-0 04 1 1306-
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306-
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-
16 CLIP; HARNESS
(R) L=140 		5-09707-031-1 03 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (R) L=140 		5-09707-031-1 03 1 1306-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1306-
16 CLIP; HARNESS
(W) ID=19 H=70 L=25 		8-97360-209-0 01 1 1306-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 08 1 1306-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1306-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (X) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (X) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) ID=16 L=40 		0-95235-576-0 02 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 06 1 1306-1506
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 03 1 1507-
48 CLIP; FRAME HARNESS
(D) ID=11 H=30 L=17 		1-09700-113-0 01 1 1306-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1306-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1306-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1306-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1306-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=26 		1-09709-293-0 03 1 1306-
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=26 		1-09709-296-0 02 1 1306-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1306-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1306-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1306-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJT7S M/T(Y3E) (A) ID=10 H=25 L=20 		1-09700-519-0 01 1 1306-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJX16P M/T(Y3Z) (B) ID=11 L=28 		9-09917-544-0 01 1 1306-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 04 1 1306-
470 CLIP; HARNESS,LICENSE LAMP
WHEEL BASE 7400MM(74W) (B) ID=11 L=41 		1-09700-403-0 01 1 1306-

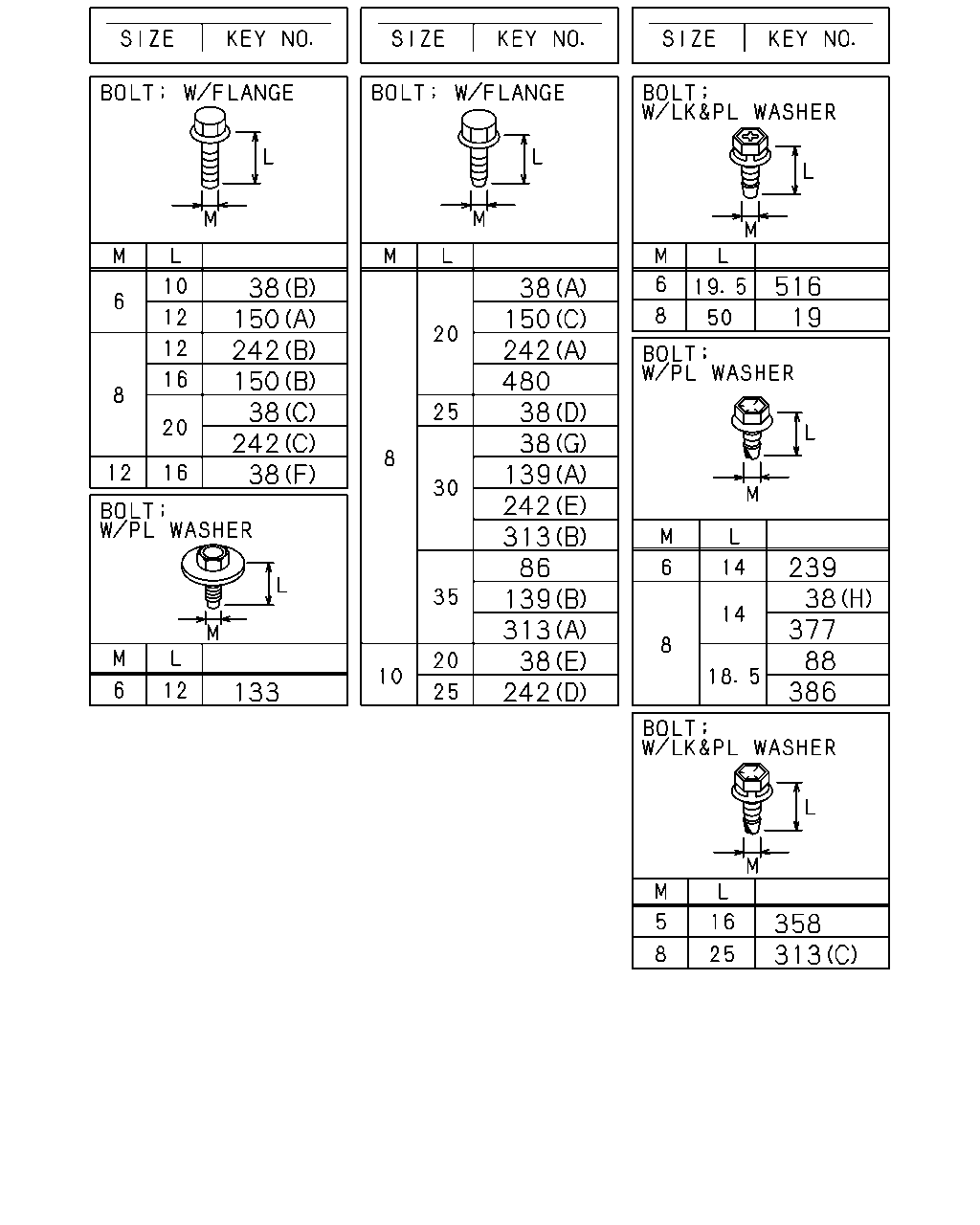

çizim 365410
133 38 242 38 150 242 150 38 38 242 313 139 86 313 242 139 38 38 480 242 150 38 19 516 88 386 377 38 239 358 313
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; PROTECTOR
M8X50 W/LK&PL WASHER 		0-50640-850-0 02 1 1306-
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1306-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28650-830-0 04 1 1306-
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28650-830-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28650-830-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28650-830-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1306-
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (A) M8X20 FLANGE 		0-28650-820-0 05 1 1306-
86 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1306-
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1306-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1306-
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1306-
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 04 1 1306-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1306-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1306-
150 BOLT; CLIP
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1306-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1306-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1306-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
242 BOLT; BRKT,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28651-025-0 01 1 1306-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
313 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 1306-
313 BOLT; BRKT
(C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1306-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1306-
377 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1306-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1306-
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1306-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
çizim 365853
423 515 515 294 219 524 515 340 119
BalonParca AdiParca NoAdetTipApplied Date
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1306-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1306-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 1306-
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 1306-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306-
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1306-1306
294 NUT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 05 1 1307-
294 NUT
M8 FLANGE 		0-91180-108-0 05 1 1306-1306
294 NUT
WHEEL BASE 7400MM(74W) M8 FLANGE 		0-91180-108-0 04 1 1307-
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1307-
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1306-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 1306-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1306-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1306-
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1306-
515 NUT; BRKT
(C) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 06 1 1306-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
