1 |

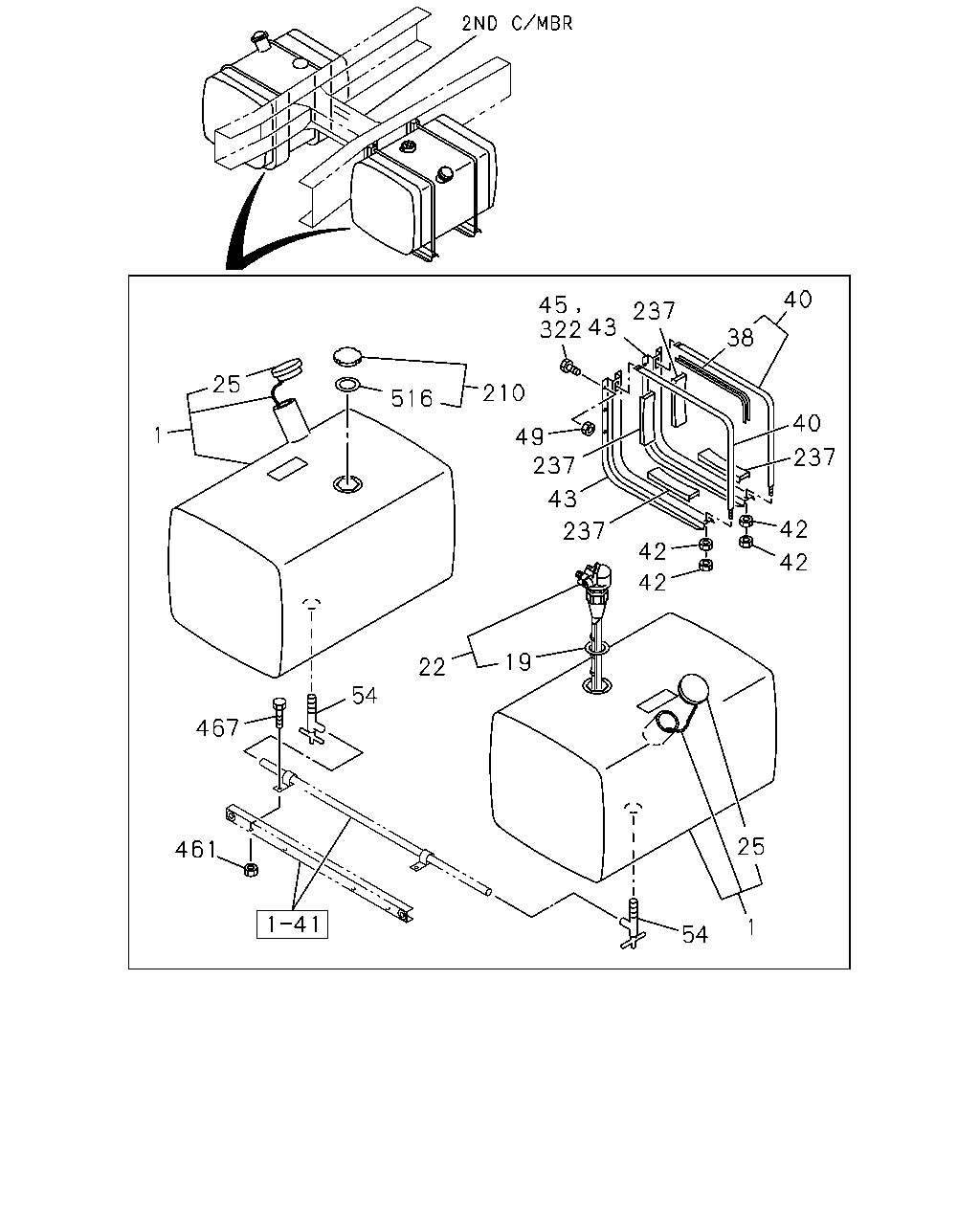

TANK; FUEL
FUEL TANK 400L+400L<NAR>
1020X680X625 400L
|
1-87411-168-0 |
02 |
1 |
0105- |
| |
1 |

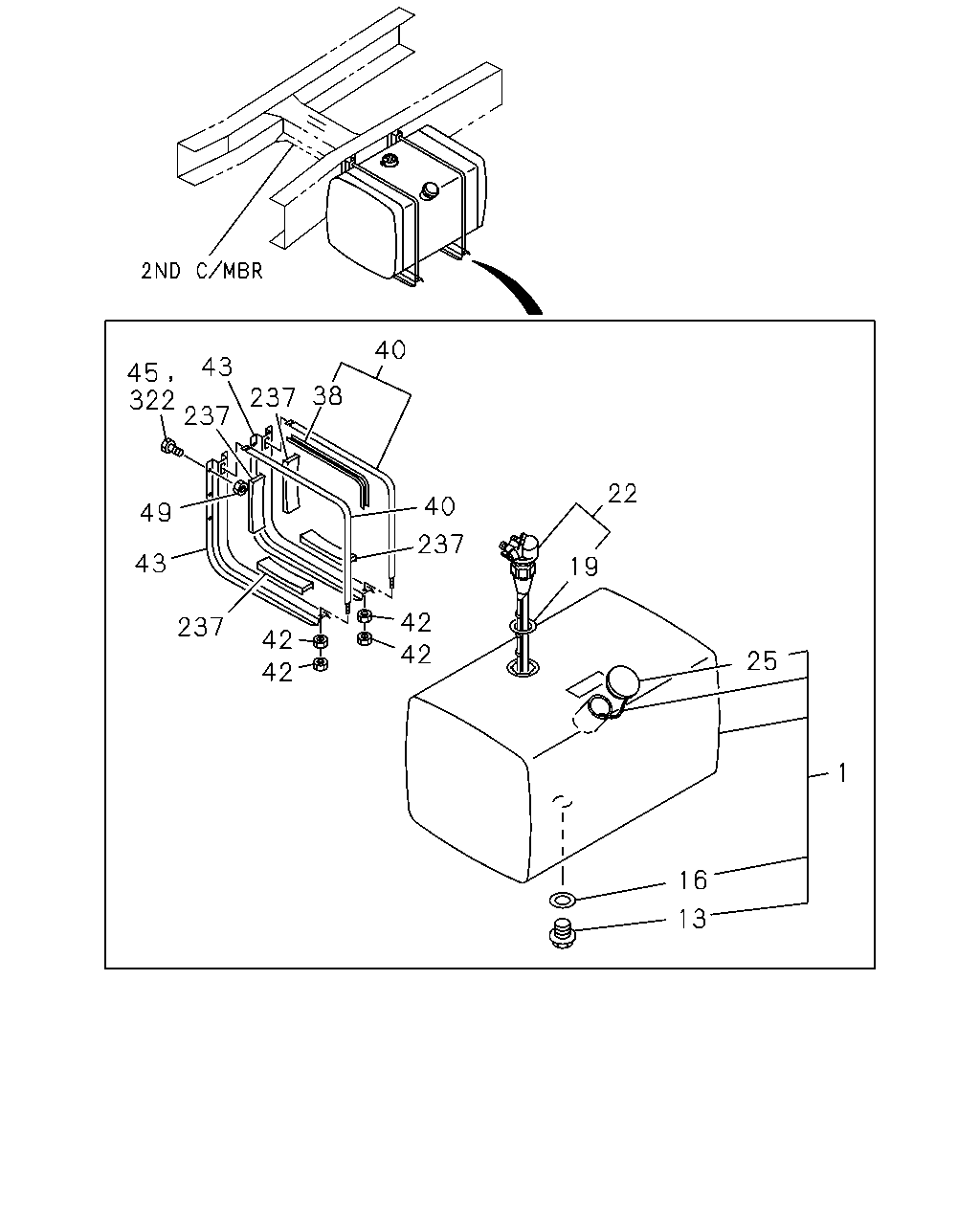

TANK; FUEL
FUEL TANK 400L<SDH>
1020X680X625 400L
|
1-87411-168-0 |
01 |
1 |
0105- |
| |
19 |
GASKET; FUEL TANK UNIT
ID=58
|
1-83149-005-0 |
01 |
1 |
0105- |
| |
22 |
UNIT; FUEL TANK
|
1-83141-132-0 |
01 |
1 |
0105- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
|
1-22440-056-0 |
01 |
1 |
0105- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L+400L<NAR>
|
1-22440-056-0 |
02 |
1 |
0105- |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 400L<SDH>
L=1156
|
1-22553-039-1 |
02 |
1 |
0105- |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 400L+400L<NAR>
L=1156
|
1-22553-039-1 |
04 |
1 |
0105- |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH>
L=1205
|
1-22550-227-2 |
02 |
1 |
0105- |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L+400L<NAR>
L=1205
|
1-22550-227-2 |
04 |
1 |
0105- |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 400L<SDH>
M10
|
9-09110-510-0 |
04 |
1 |
0105-0512 |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 400L<SDH>
M10
|
0-91110-510-0 |
04 |
1 |
0601- |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 400L+400L<NAR>
M10
|
9-09110-510-0 |
08 |
1 |
0105-0512 |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 400L+400L<NAR>
M10
|
0-91110-510-0 |
08 |
1 |
0601- |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 400L<SDH>
|
1-53461-525-1 |
02 |
1 |
0105- |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 400L+400L<NAR>
|
1-53461-525-1 |
04 |
1 |
0105- |
| |
45 |
BOLT; BRKT,FUEL TANK
FUEL TANK 400L<SDH>
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0105-0302 |
| |
45 |
BOLT; BRKT,FUEL TANK
FUEL TANK 400L+400L<NAR>
M12X40 FLANGE
|
0-28681-240-0 |
24 |
1 |
0105-0302 |
| |
49 |
NUT; BRKT
FUEL TANK 400L<SDH>
M12
|
9-99110-512-0 |
08 |
1 |
0105-0302 |
| |
49 |
NUT; BRKT
FUEL TANK 400L<SDH>
M12
|
9-99110-512-0 |
06 |
1 |
0303-0512 |
| |
49 |
NUT; BRKT
FUEL TANK 400L<SDH>
M12
|
0-91110-512-0 |
06 |
1 |
0601- |
| |
49 |
NUT; BRKT
FUEL TANK 400L+400L<NAR>
M12
|
9-99110-512-0 |
14 |
1 |
0105-0512 |
| |
49 |
NUT; BRKT
FUEL TANK 400L+400L<NAR>
M12
|
0-91110-512-0 |
14 |
1 |
0601- |
| |
54 |
COCK ASM; FUEL TANK
FUEL TANK 400L+400L<NAR>
|
1-09680-085-0 |
02 |
1 |
0105- |
| |
210 |
CAP; FUEL TANK
FUEL TANK 400L+400L<NAR>
|
1-22411-076-0 |
01 |
1 |
0105- |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 400L<SDH>
|
1-22553-037-0 |
04 |
1 |
0105- |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 400L+400L<NAR>
|
1-22553-037-0 |
08 |
1 |
0105- |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 400L+400L<NAR>
M12X35 FLANGE
|
0-28081-235-0 |
24 |
1 |
0303-0512 |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 400L+400L<NAR>
M12X35 FLANGE
|
0-28051-235-0 |
24 |
1 |
0601- |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 400L<SDH>
M12X35 FLANGE
|
0-28081-235-0 |
12 |
1 |
0303-0512 |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 400L<SDH>
M12X35 FLANGE
|
0-28051-235-0 |
12 |
1 |
0601- |
| |
461 |
NUT; CLIP,FUEL PIPE
FUEL TANK 400L+400L<NAR>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0105-0602 |
| |
461 |
NUT; CLIP,FUEL PIPE
FUEL TANK 400L+400L<NAR>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
467 |
BOLT
FUEL TANK 400L+400L<NAR>
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0105-0512 |
| |
467 |
BOLT
FUEL TANK 400L+400L<NAR>
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
| |
516 |
GASKET; CAP
FUEL TANK 400L+400L<NAR>
ID=58
|
1-83149-005-0 |
01 |
1 |
0105- |
