◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11533 - CYH LHD EURO2 WITH REFLECTOR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#124689) — 96 parça

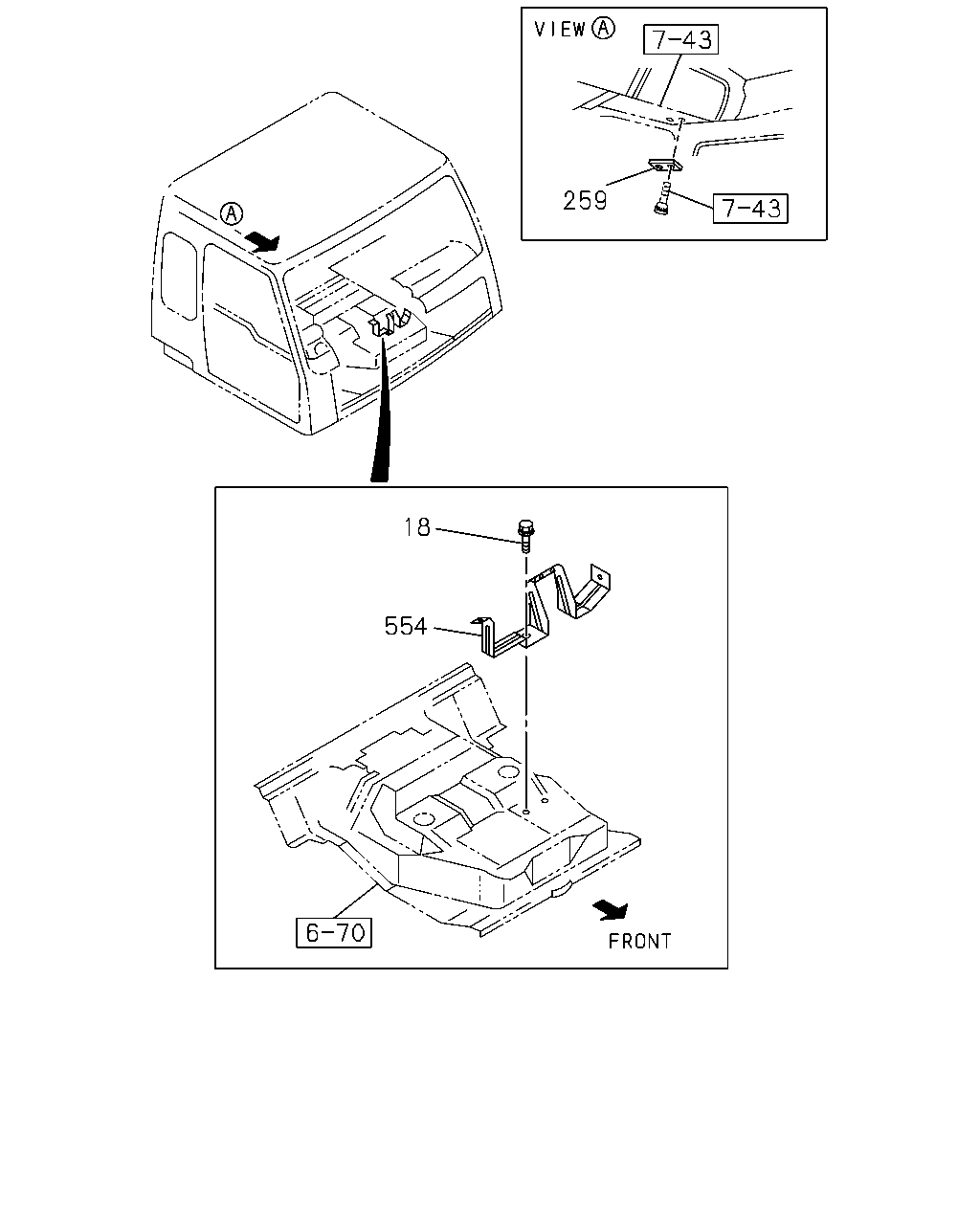

çizim 363420
259 18 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306-
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 1306-
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 1306-

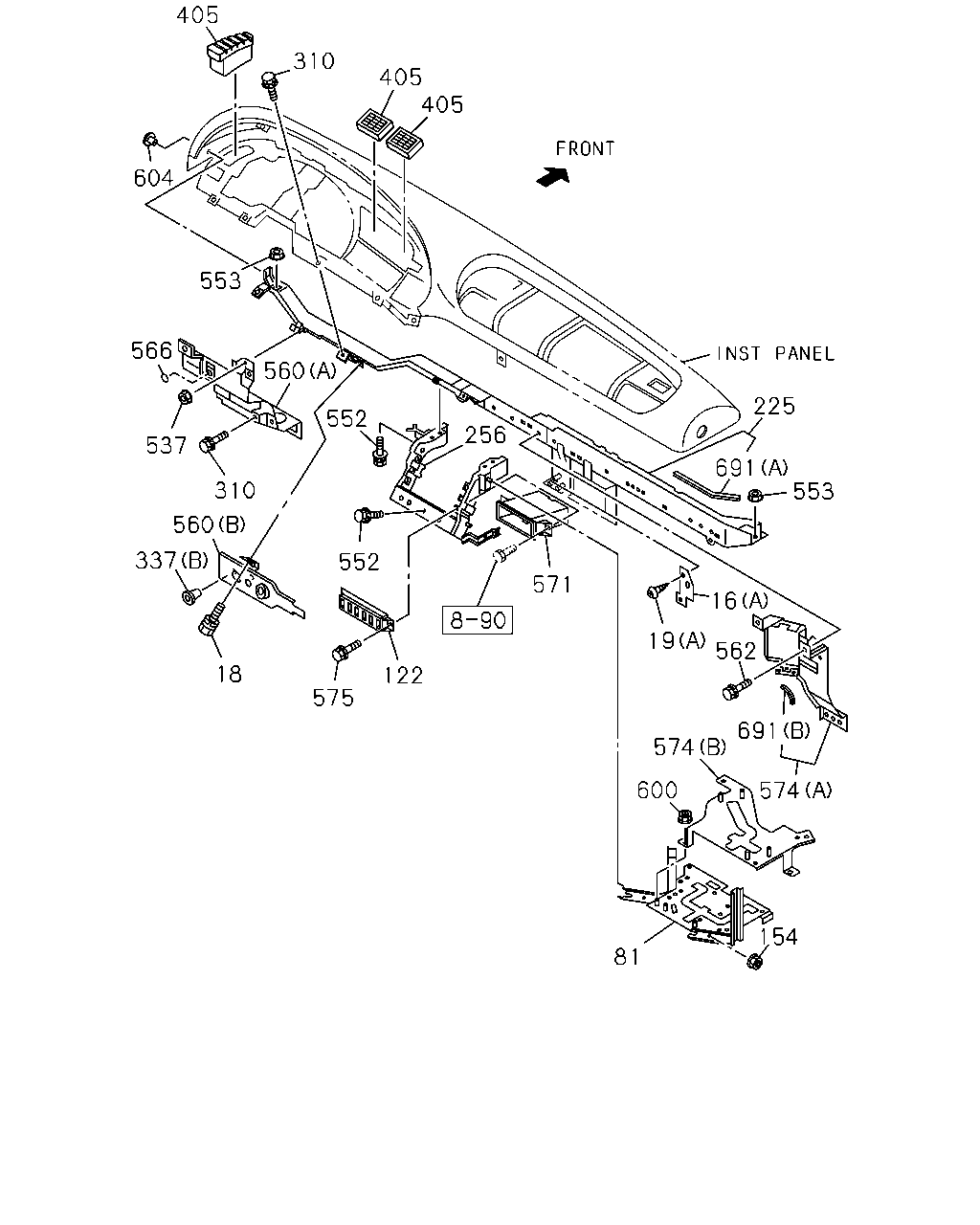

çizim 364971
405 310 405 405 225 553 691 16 562 691 19 574 574 154 81 600 571 552 122 575 256 552 560 553 566 604 337 18 310 537 560
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1306-
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1306-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1306-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1306-
81 BRACKET; ELEC CONT UNIT 8-98217-886-1 01 1 1306-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1306-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1306-
225 FRAME; FACIA 1-65671-727-5 01 1 1306-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 1306-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1306-
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 1306-1405
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-72438-124-2 03 1 1406-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1306-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1306-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1306-
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 1306-
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 1306-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1306-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1306-
560 BRACKET
(A) 		1-65681-243-0 01 1 1306-
560 BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-65671-787-2 01 1 1306-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
566 PLUG; HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306-
571 BEZEL; POCKET 1-72438-151-3 01 1 1306-
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 1306-
574 PANEL; RELAY BOX
(A) 		1-73907-737-2 01 1 1306-
574 PANEL; RELAY BOX
CAB SUSPENSION-FULL FLOATING(SMK) (B) 		8-98183-937-0 01 1 1306-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
600 NUT; PANEL
CAB SUSPENSION-FULL FLOATING(SMK) M6 FLANGE 		0-91180-106-0 03 1 1306-
604 CLIP; INST PAD 1-09983-123-0 01 1 1306-
691 FINISHER; HARNESS PROTECTOR
(A) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1306-
691 FINISHER; HARNESS PROTECTOR
(B) L=50 		8-94270-377-1 01 1 1306-

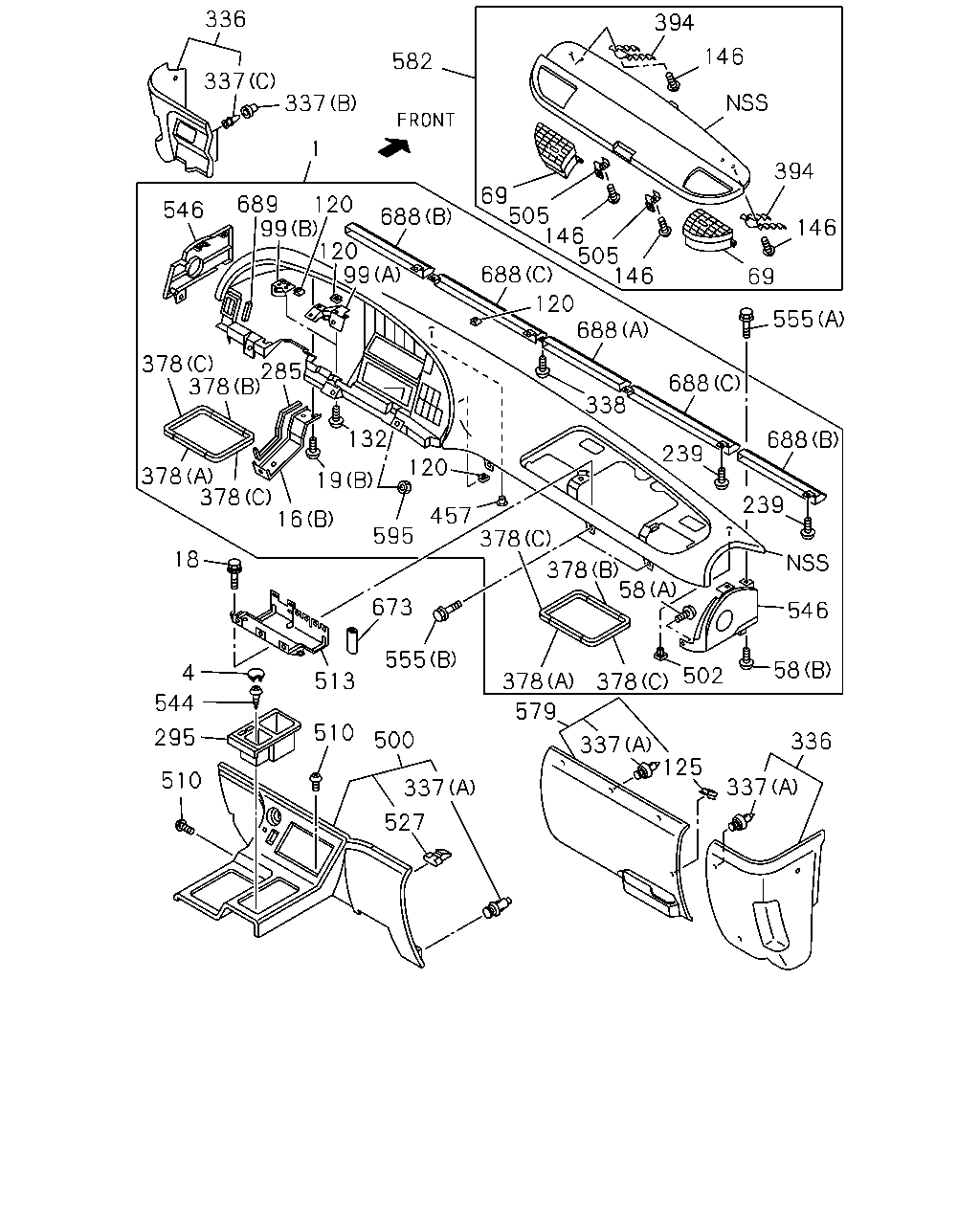

çizim 367330
336 582 337 337 546 689 120 394 146 1 69 146 505 146 505 69 146 394 688 688 688 120 688 688 120 99 99 338 239 239 546 58 336 337 125 337 378 502 378 579 58 378 378 457 595 378 378 285 16 19 378 18 513 673 4 544 295 510 510 500 337 527 120 132 555 378 555
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST 1-72317-370-2 01 1 1306-
4 COVER; INST PNL 1-72537-106-0 01 1 1306-
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1306-
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1306-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1306-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1306-
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		0-71040-310-0 01 1 1306-
58 SCREW; INST PANEL
(B) M5X12 TAPPING 		9-07076-512-0 06 1 1306-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 1306-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 1306-
99 BRACKET; METER MTG,INST PNL
(A) 		1-72317-361-1 01 1 1306-
99 BRACKET; METER MTG,INST PNL
(B) 		1-72317-362-2 01 1 1306-
120 NUT; SPIRE,INST PNL
M5 		1-09984-196-0 09 1 1306-
125 CLIP; INST PANEL 8-97217-066-0 01 1 1306-
132 SCREW; BRKT,INST PANEL
M5X12 TAPPING 		9-07076-512-0 04 1 1306-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1306-
239 SCREW; DEFROSTER
M5X12 TAPPING 		9-07076-512-0 10 1 1306-
285 FINISHER; INST PANEL
L=190 SERVICED BY L=314 		8-94262-845-0 02 1 1306-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 1306-
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 1306-
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 1306-
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 1306-1405
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-72438-124-2 03 1 1406-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1306-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1306-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1306-
338 SCREW; COVER
M5X12 TAPPING 		9-07076-512-0 02 1 1306-
378 SEAL; INST PANEL
(A) 		1-72437-672-2 02 1 1306-
378 SEAL; INST PANEL
(B) 		1-72437-673-0 02 1 1306-
378 SEAL; INST PANEL
(C) 		1-72437-674-0 04 1 1306-
394 HOLDER; PANEL 1-72558-048-0 02 1 1306-
457 PLATE; INST PANEL 1-72317-363-2 08 1 1306-
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 1306-1405
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-72437-642-1 01 1 1406-
502 GROMMET; SCREW,CENTER,CLUSTER 8-94430-318-1 04 1 1306-
505 LOCK; LID 1-72558-024-2 02 1 1306-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1306-
513 BRACKET; RELAY 8-97865-168-3 01 1 1306-
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 1306-1405
527 CLIP; INST CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97217-066-0 05 1 1406-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1306-
546 PANEL; INST,SUB 1-72317-355-4 01 1 1306-
546 PANEL; INST,SUB 1-72317-354-4 01 1 1306-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1306-
579 COVER; INST PNL 1-72438-195-1 01 1 1306-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 1306-
595 NUT; HOOK 1-72418-013-0 06 1 1306-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1306-
688 NOZZLE; DEFROSTER
(A) 		1-76377-184-1 01 1 1306-
688 NOZZLE; DEFROSTER
(B) 		1-76378-352-1 01 1 1306-
688 NOZZLE; DEFROSTER
(C) 		1-76378-381-3 01 1 1306-
688 NOZZLE; DEFROSTER
(B) 		1-76378-335-2 01 1 1306-
688 NOZZLE; DEFROSTER
(C) 		1-76378-378-6 01 1 1306-
689 SEAL; INST 1-72317-364-0 01 1 1306-
