Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10870 - CXZ(51) RHD AUSTRALIA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

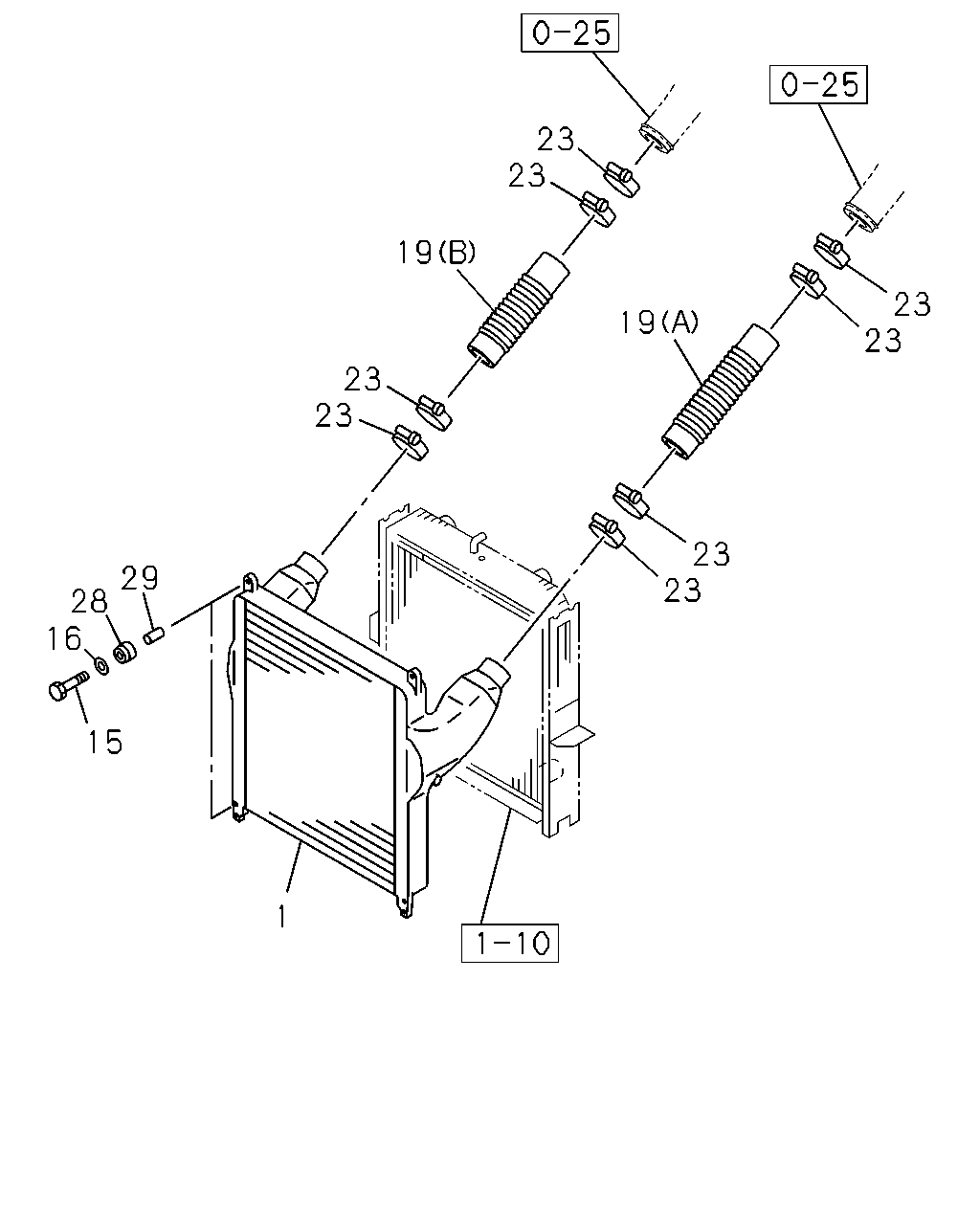

1-35 — CHARGE AIR COOLER
(#12468) — 16 parça
23
23
19
23
23
19
23
23
23
23
29
28
16
15
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
1-14431-057-1
01
1
0105-0406
1
COOLER; CHARGE AIR
1-14431-055-5
01
1
0407-
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
0-28080-835-0
02
1
0105-0406
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
1-21469-151-0
04
1
0407-
15
BOLT; CHARGE AIR COOLER
M8X50 FLANGE
0-28080-850-0
02
1
0105-0406
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
08
1
0105-0406
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09361-088-0
01
1
0105-0301
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09361-103-0
01
1
0302-0406
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-089-1
01
1
0407-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-089-1
01
1
0105-0301
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-102-1
01
1
0302-0406
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09361-088-0
01
1
0407-
23
CLIP; HOSE
ID=87-116
1-09707-144-0
08
1
0105-0306
23
CLIP; HOSE
ID=87-113
1-09707-199-0
08
1
0307-
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
0105-0406
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
0105-0406
