◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11533 - CYH LHD EURO2 WITH REFLECTOR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#124664) — 175 parça

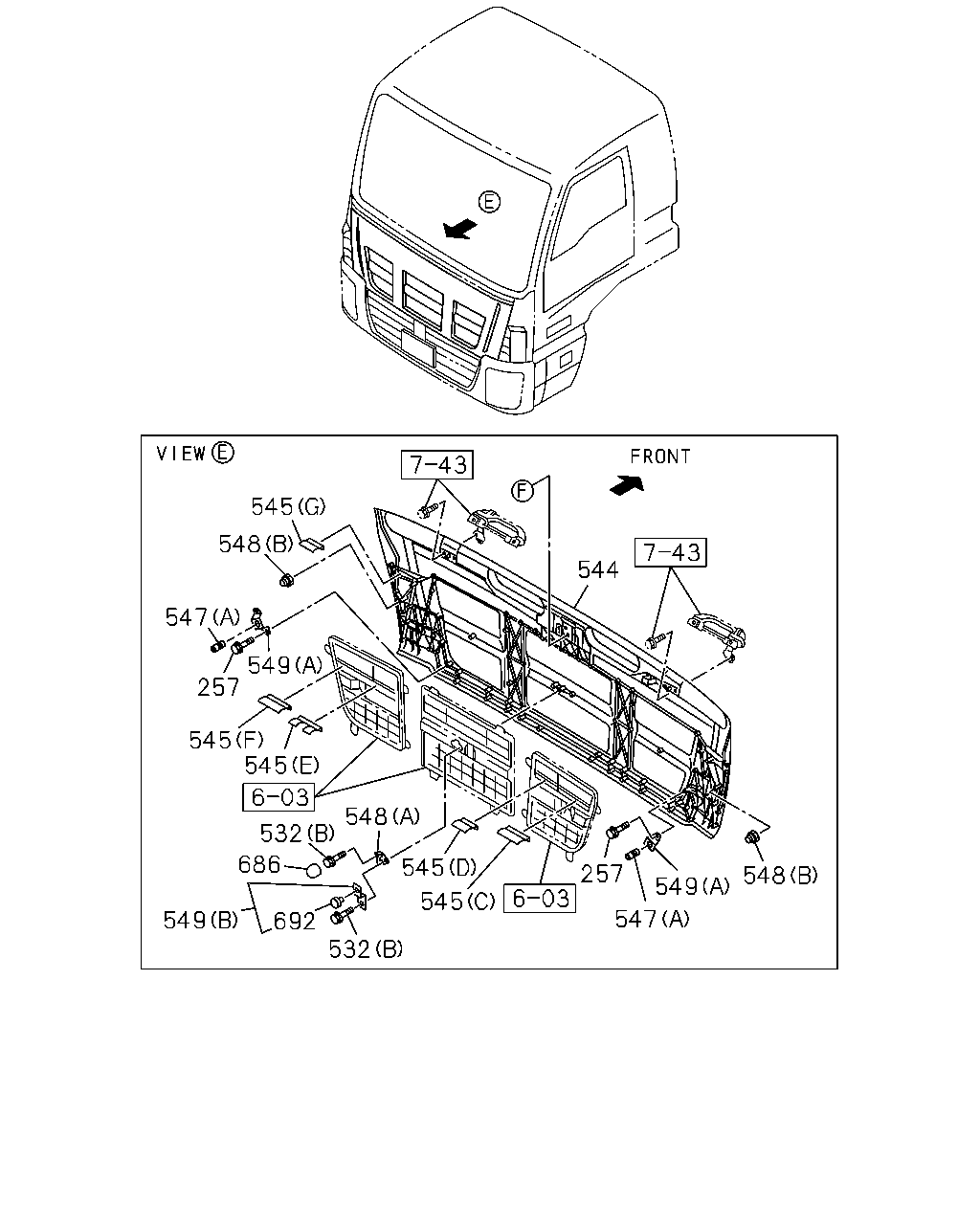

çizim 364902
545 544 549 547 548 257 545 545 548 532 686 692 532 549 545 545 257 547 548 549
BalonParca AdiParca NoAdetTipApplied Date
257 BOLT; BRKT
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 1306-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1306-
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1306-
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1306-
544 LID; FRT
WHITE 		8-97423-354-1 01 1 1306-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1306-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1306-
545 SEAL; FRT LID
(C) 		8-98133-467-0 01 1 1306-
545 SEAL; FRT LID
(D) 		8-98133-468-0 01 1 1306-
545 SEAL; FRT LID
(E) 		8-98133-469-0 01 1 1306-
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1306-
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1306-
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1306-
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 1306-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 1306-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 1306-
549 BRACKET; STOPPER,FRT LID
(B) 		8-98274-092-0 01 1 1411-
549 BRACKET; STOPPER,FRT LID
(A) 		8-98135-101-0 02 1 1306-
686 CAP; BOLT 8-98217-298-0 01 1 1306-1410
692 BUFFER 8-98251-459-0 01 1 1411-

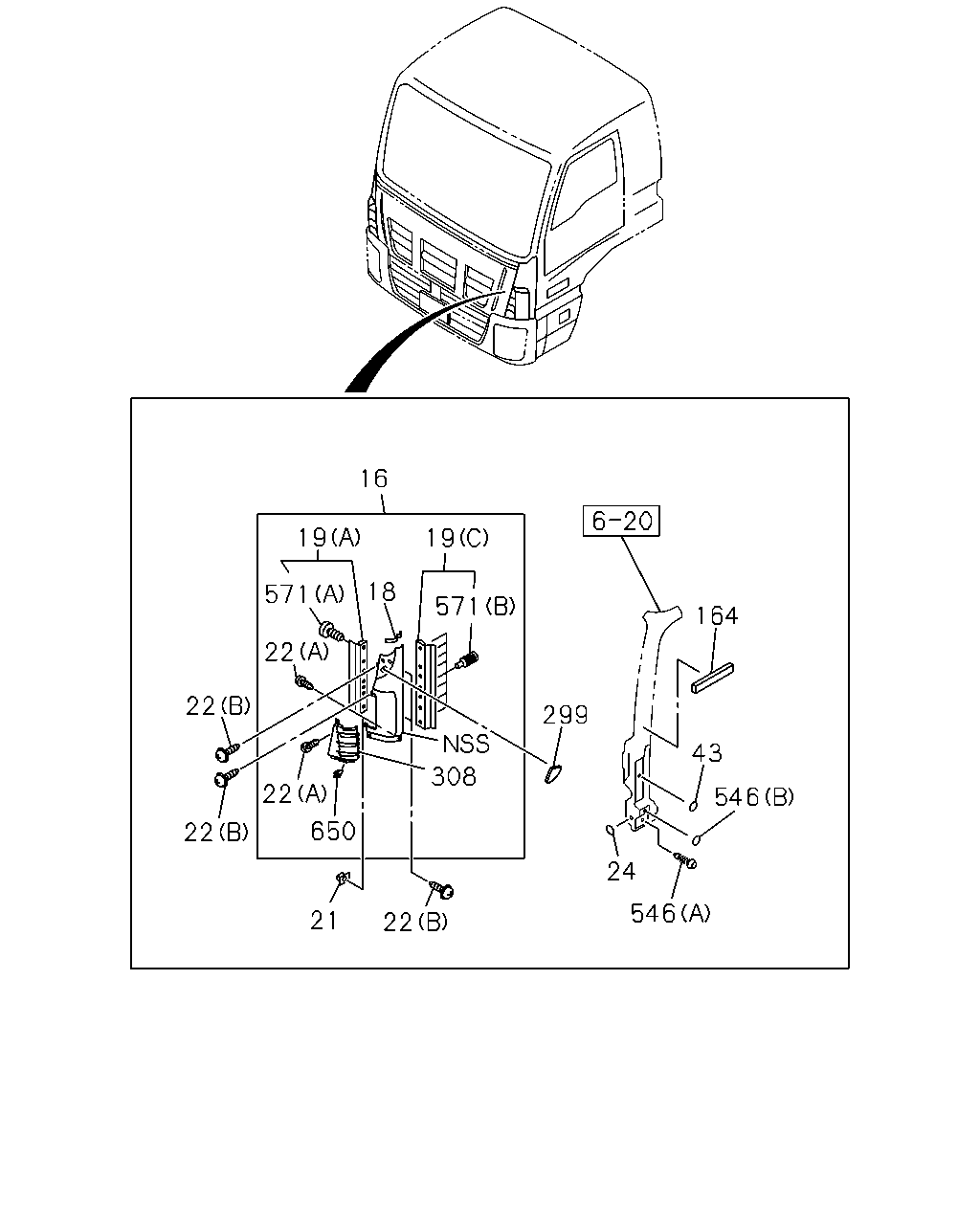

çizim 364905
546 546 43 24 164 299 308 22 21 650 22 22 22 22 571 18 571 19 19 16
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		8-97417-875-2 01 1 1306-
16 PANEL; FRONT,SIDE
WHITE 		8-97417-867-2 01 1 1306-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 1306-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 1306-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 1306-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-434-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-433-0 01 1 1306-
21 GROMMET; SCREW,FRT SIDE PANEL
D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 1306-
22 SCREW; FRT PANEL SIDE
(A) M5X16 W/PL WASHER 		1-09981-532-0 04 1 1306-
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1306-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 05 1 1306-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 1306-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 1306-
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97423-349-1 01 1 1306-
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97423-348-1 01 1 1306-
299 COVER; FRT PANEL SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97424-991-1 01 1 1306-
299 COVER; FRT PANEL SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97424-988-1 01 1 1306-
299 COVER; FRT PANEL SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97424-990-1 01 1 1306-
299 COVER; FRT PANEL SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97424-987-1 01 1 1306-
308 PLATE; FRT PANEL
BODY COLOR ARC WHITE(729) WHITE 		8-97417-907-1 01 1 1306-
308 PLATE; FRT PANEL
BODY COLOR ARC WHITE(729) WHITE 		8-97417-899-1 01 1 1306-
308 PLATE; FRT PANEL
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97425-015-1 01 1 1306-
308 PLATE; FRT PANEL
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97425-009-1 01 1 1306-
308 PLATE; FRT PANEL
BODY COLOR MARINE BLUE(890) BLUE 		8-97425-013-1 01 1 1306-
308 PLATE; FRT PANEL
BODY COLOR MARINE BLUE(890) BLUE 		8-97425-007-1 01 1 1306-
546 PLUG; DUMMY HOLE
(A) OD=16 L=11 		1-76378-155-0 02 1 1306-
546 PLUG; DUMMY HOLE
(B) OD=25 BLACK 		1-76798-019-0 04 1 1306-
571 CLIP; SEAL
(A) 		1-09987-228-0 20 1 1306-
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 1306-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 1306-
650 NUT; SPIRE
M5 		1-09984-162-0 04 1 1306-

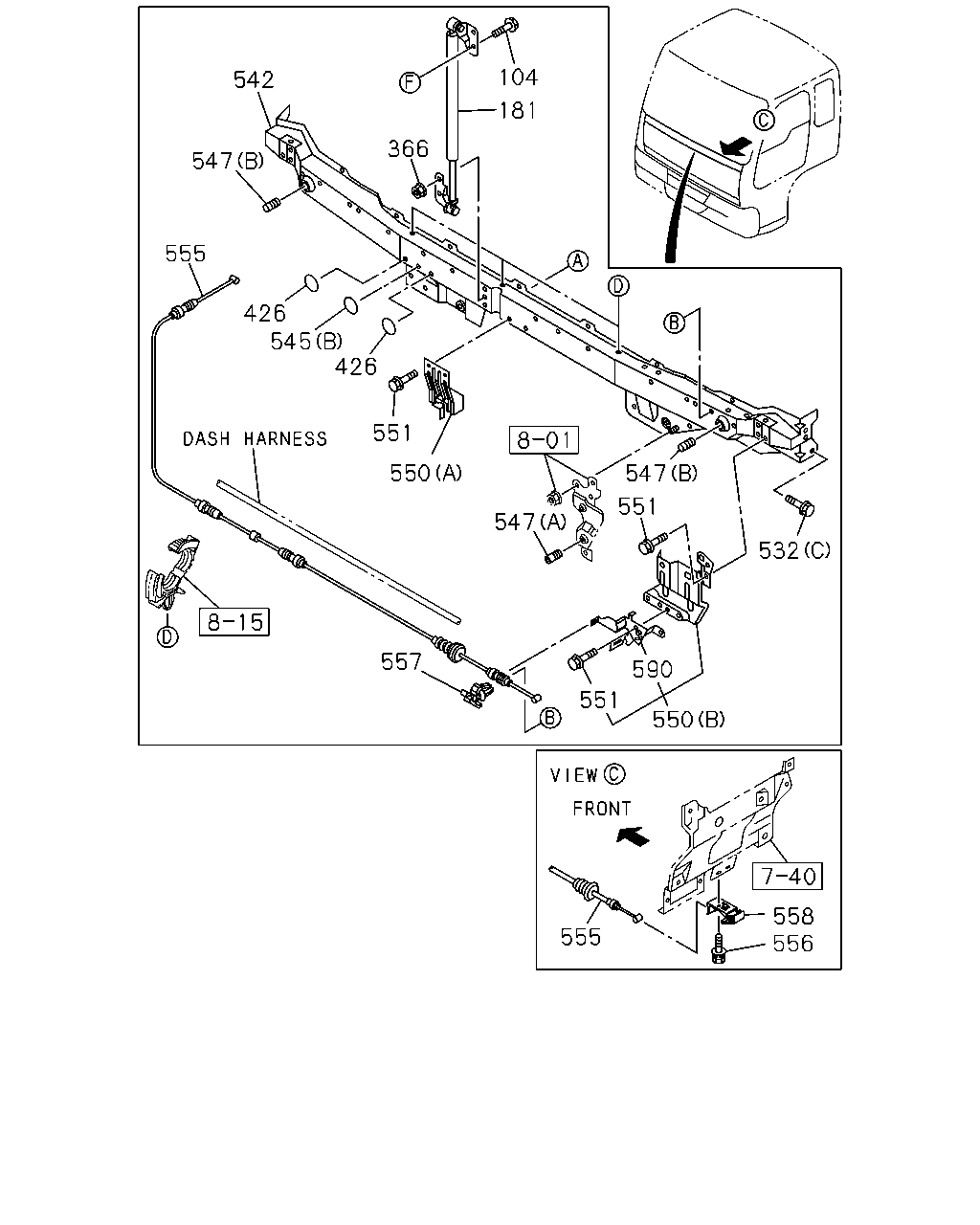

çizim 364926
181 104 366 542 547 555 426 545 426 551 550 557 551 555 556 558 550 590 532 547 551 547
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 1306-
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 1306-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 1306-
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 1306-
426 GASKET
OD=25 BLACK 		1-76798-019-0 11 1 1306-
426 GASKET
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1306-
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1306-
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1306-
542 RAIL; FRT MOUNTING 1-61470-722-1 01 1 1306-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1306-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1306-
545 SEAL; FRT LID
(C) 		8-98133-467-0 01 1 1306-
545 SEAL; FRT LID
(D) 		8-98133-468-0 01 1 1306-
545 SEAL; FRT LID
(E) 		8-98133-469-0 01 1 1306-
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1306-
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1306-
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1306-
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 1306-
550 LOCK ASM; FRT LID
(A) 		8-98174-767-0 01 1 1306-
550 LOCK ASM; FRT LID
(B) 		8-98199-538-0 01 1 1306-
550 LOCK ASM; FRT LID
(B) 		8-98199-537-0 01 1 1306-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 1306-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1306-
555 CABLE; FRT LID
L=2612 		1-79347-008-1 01 1 1306-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 1306-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 05 1 1306-
558 LEVER; FRT LID 8-97865-110-0 01 1 1306-
590 LOCK; FRT LID 1-79318-007-5 01 1 1306-
590 LOCK; FRT LID 1-79318-006-3 01 1 1306-

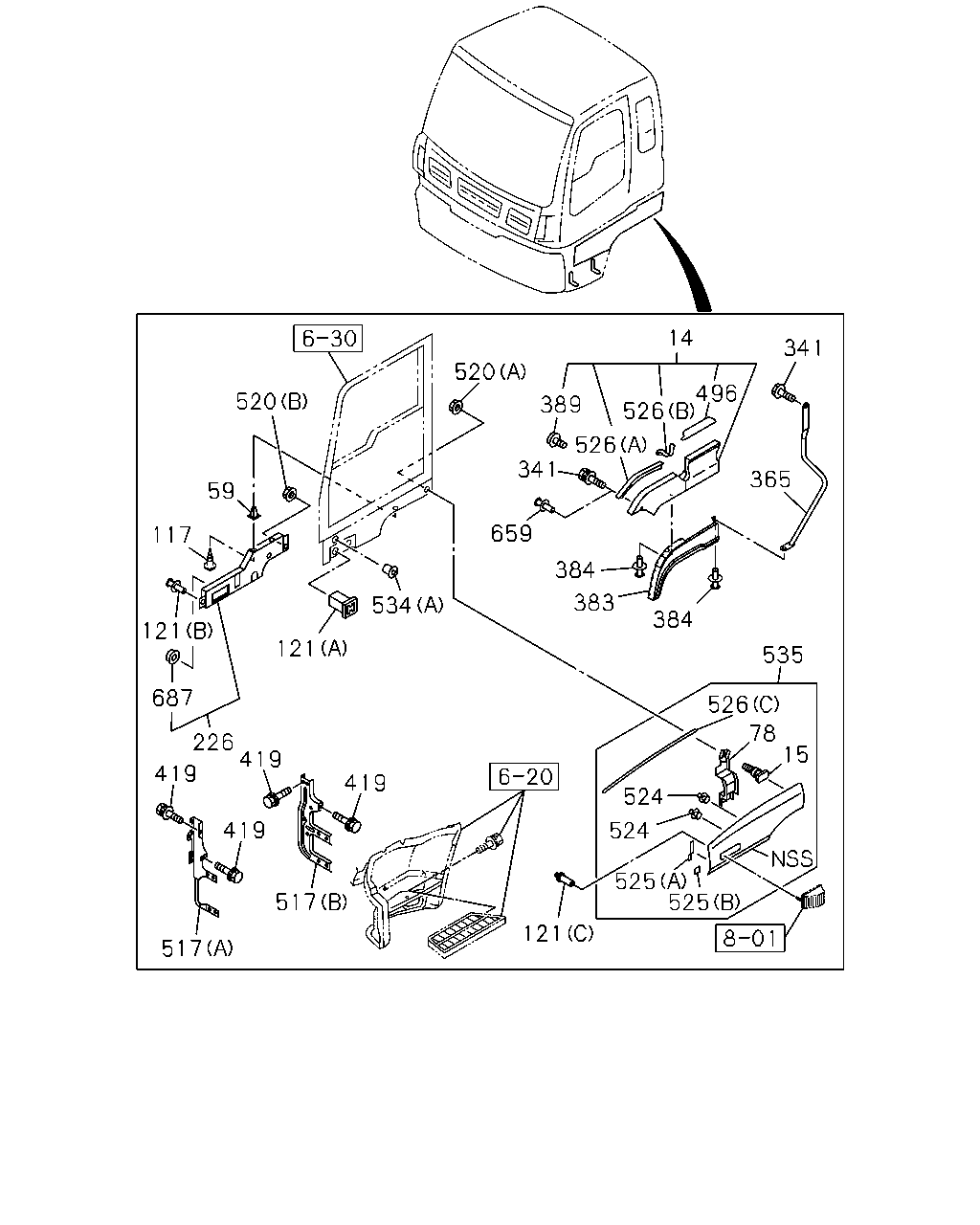

çizim 365837
525 525 524 524 15 78 526 535 121 517 419 419 419 517 419 687 121 121 534 117 59 520 384 383 384 659 341 365 341 520 526 389 496 526 14 226
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
BODY COLOR ARC WHITE(729) 		8-98154-745-1 01 1 1306-
14 FENDER; FRT
BODY COLOR ARC WHITE(729) 		8-98154-744-1 01 1 1306-
14 FENDER; FRT
BODY COLOR GOLDEN YELLOW(904) 		8-98155-611-0 01 1 1306-
14 FENDER; FRT
BODY COLOR GOLDEN YELLOW(904) 		8-98155-610-0 01 1 1306-
14 FENDER; FRT
BODY COLOR MARINE BLUE(890) 		8-98155-611-0 01 1 1306-
14 FENDER; FRT
BODY COLOR MARINE BLUE(890) 		8-98155-610-0 01 1 1306-
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 1306-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 1306-
78 BRACKET; FENDER 1-71267-215-0 01 1 1306-
78 BRACKET; FENDER 1-71267-214-0 01 1 1306-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 1306-
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 1306-
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1306-
121 GROMMET; FENDER
(C) 		8-98111-356-0 02 1 1306-1306
226 PROTECTOR; FRT 8-98109-134-1 01 1 1306-1306
226 PROTECTOR; FRT 8-98234-710-0 01 1 1307-
226 PROTECTOR; FRT 8-98109-132-1 01 1 1306-1306
226 PROTECTOR; FRT 8-98234-709-0 01 1 1307-
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 1306-
365 SUPPORT; FENDER 8-98120-232-0 01 1 1306-
365 SUPPORT; FENDER 8-98120-231-0 01 1 1306-
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 1306-
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 1306-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 13 1 1306-
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 1306-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1306-
496 RUBBER; STEP 1-71998-862-2 01 1 1306-
496 RUBBER; STEP 1-71998-861-2 01 1 1306-
517 SUPPORT; STEP PANEL
(A) 		8-98125-815-1 01 1 1306-
517 SUPPORT; STEP PANEL
(B) 		8-98125-817-2 01 1 1306-
517 SUPPORT; STEP PANEL
(B) 		8-98125-816-2 01 1 1306-
517 SUPPORT; STEP PANEL
(A) 		8-98133-279-0 01 1 1306-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1306-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 1306-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 1306-
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 1306-
525 SEAL; FENDER
(B) 10X30 		8-97631-981-0 02 1 1306-
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 1306-
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 1306-
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 1306-
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 1306-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1306-
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1306-
535 FENDER; BLISTER
WHITE 		8-98234-067-0 01 1 1306-
535 FENDER; BLISTER
WHITE 		8-98234-066-0 01 1 1306-
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 1306-
687 COVER; FENDER 8-98234-587-0 02 1 1307-

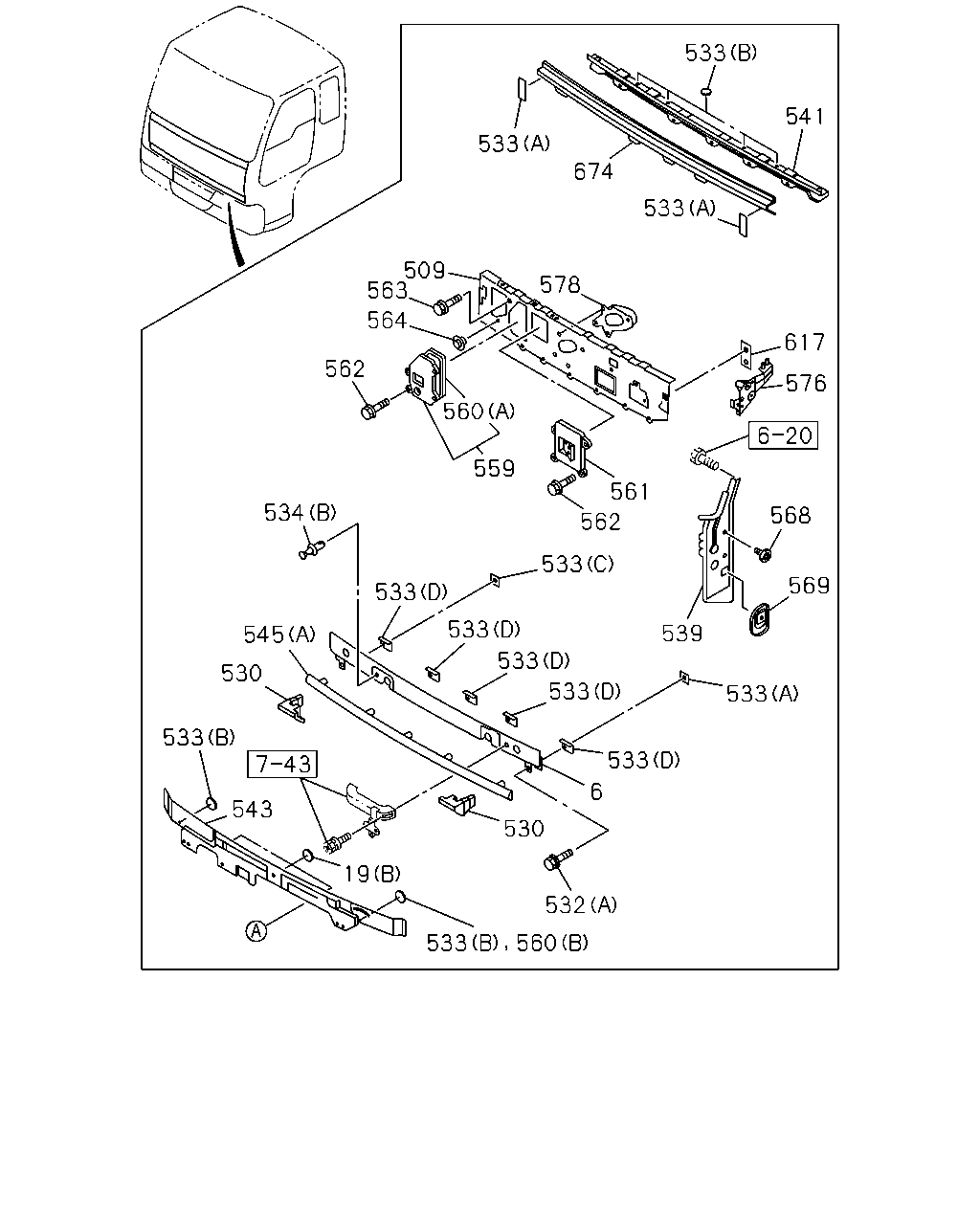

çizim 366992
541 533 533 674 533 509 578 563 564 617 576 568 569 533 539 533 562 561 559 560 562 534 533 533 533 533 533 545 530 533 543 19 533 560 532 530 6
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 8-98199-551-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 1306-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-434-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-433-0 01 1 1306-
509 PANEL; DASH 8-98198-669-0 01 1 1306-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 1306-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 1306-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1306-
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1306-
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1306-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 1306-
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-3 02 1 1306-
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 1306-
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 1306-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1306-
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1306-
539 CLOSING; PILLAR 1-61480-763-1 01 1 1306-
539 CLOSING; PILLAR 1-61480-762-1 01 1 1306-
541 PANEL; FRONT,INNER 1-61470-700-1 01 1 1306-
543 CLOSING; FRT MTG RAIL 1-61470-726-0 01 1 1306-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1306-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1306-
545 SEAL; FRT LID
(C) 		8-98133-467-0 01 1 1306-
545 SEAL; FRT LID
(D) 		8-98133-468-0 01 1 1306-
545 SEAL; FRT LID
(E) 		8-98133-469-0 01 1 1306-
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1306-
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1306-
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 1306-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 1306-
560 SEAL; COVER
HEATER & DEFROSTER(C41) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1306-
561 COVER; HEATER CORE 1-71998-993-2 01 1 1306-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1306-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 1306-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 1306-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 1306-
568 PATCH; INST REINF 1-61480-675-2 02 1 1306-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 1306-
569 PATCH; LWR GRIP 1-61480-772-0 01 1 1306-
576 FRAME; INST SIDE 1-62280-201-2 01 1 1306-
576 FRAME; INST SIDE 1-62280-200-2 01 1 1306-
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 1306-
617 SEAL; DASH 1-61281-497-1 02 1 1306-
674 PANEL; UPR 1-61470-699-2 01 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
