◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10870 - CXZ(51) RHD AUSTRALIA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#12466) — 28 parça

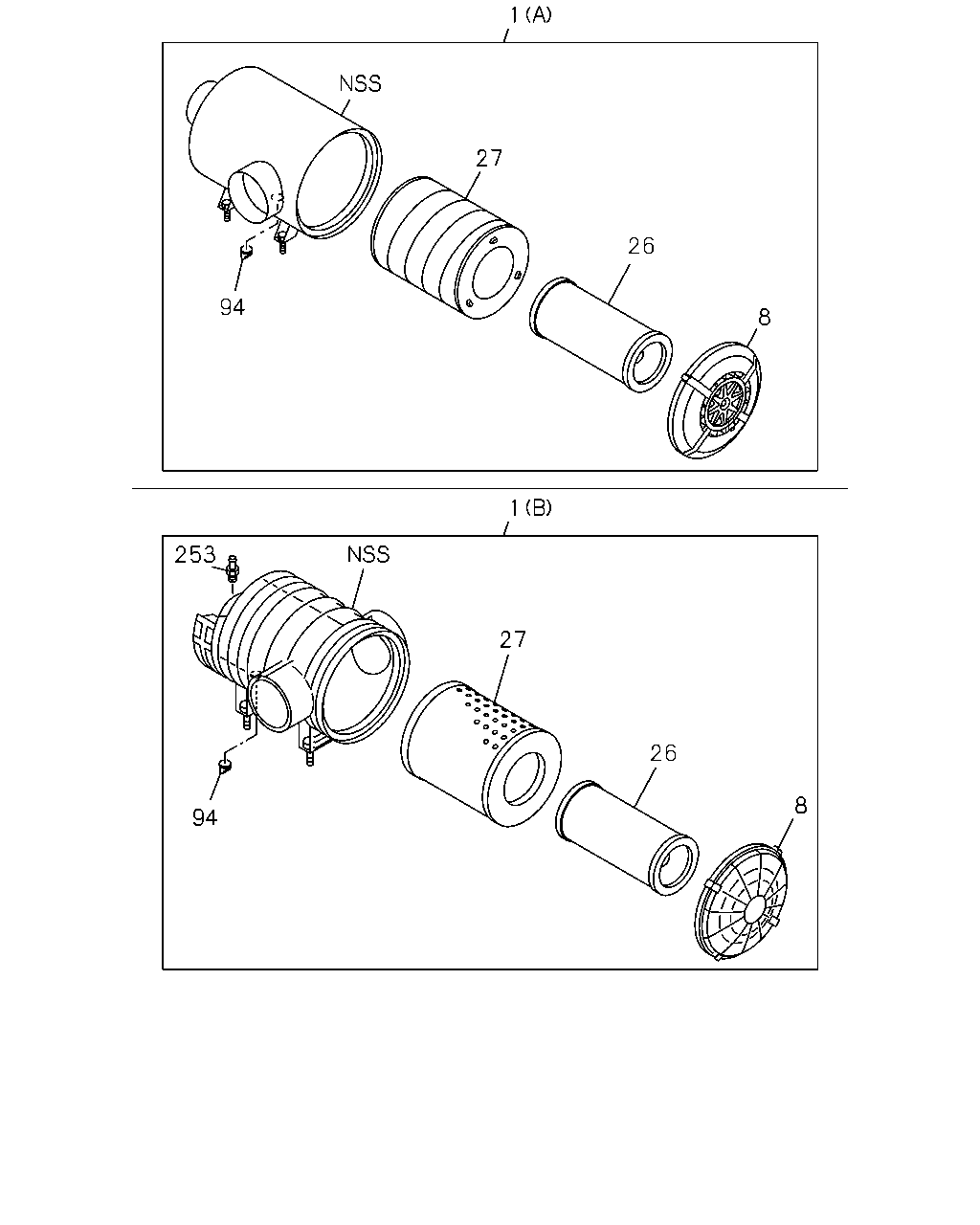

çizim 21370
1 27 26 94 8 1 253 27 26 8 94
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
(A) 		1-14210-821-0 01 1 0105-0308
1 CLEANER ASM; AIR
(B) 		1-14210-832-0 01 1 0309-
8 COVER ASM; ACL 1-14212-132-0 01 1 0105-0308
8 COVER ASM; ACL 1-14212-129-0 01 1 0309-
26 FILTER; ACL,INNER 1-14215-220-0 01 1 0105-0308
26 FILTER; ACL,INNER 1-14215-217-0 01 1 0309-
27 FILTER; ACL,OUTER 1-14215-213-0 01 1 0105-0308
27 FILTER; ACL,OUTER 1-14215-203-0 01 1 0309-
94 VALVE; VACUATOR 1-14219-192-0 01 1 0105-0308
94 VALVE; VACUATOR 1-14219-251-0 01 1 0309-
253 NIPPLE 1-14219-252-0 01 1 0309-

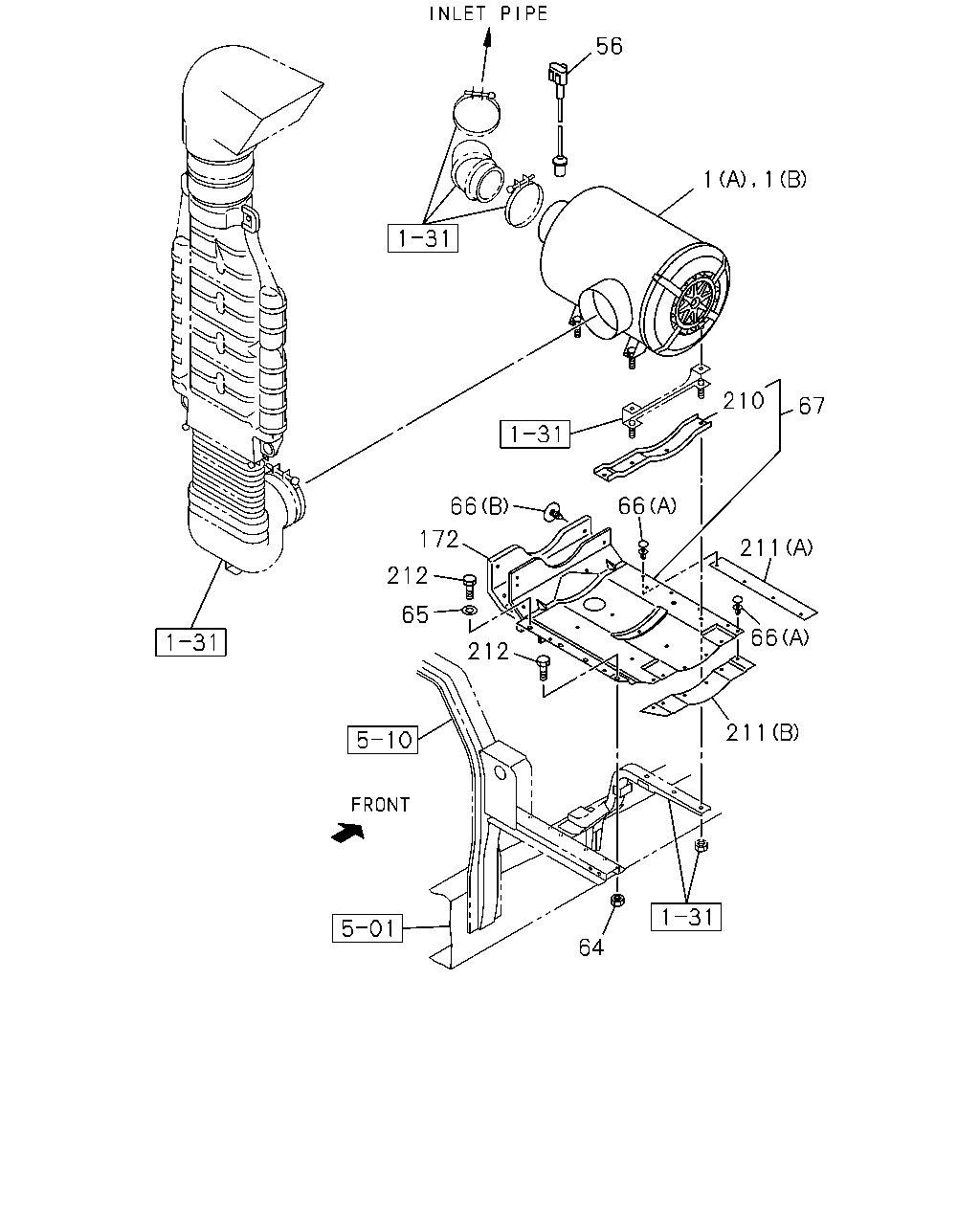

çizim 80837
56 1 1 210 67 66 66 172 211 212 212 65 66 211 64
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
(A) 		1-14210-821-0 01 1 0105-0308
1 CLEANER ASM; AIR
(B) 		1-14210-832-0 01 1 0309-
56 SWITCH; ACL 1-81530-016-0 01 1 0105-
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 0105-0602
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 0105-0402
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 0403-
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 0105-
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 0105-
67 COVER; ACL 1-53419-304-0 01 1 0105-0308
67 COVER; ACL 1-53419-281-3 01 1 0309-
172 INSULATOR; NOISE 1-53446-780-1 01 1 0105-
210 BRACKET; ACL MTG 1-53419-283-0 02 1 0105-
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0105-
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0105-
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 0105-0512
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
