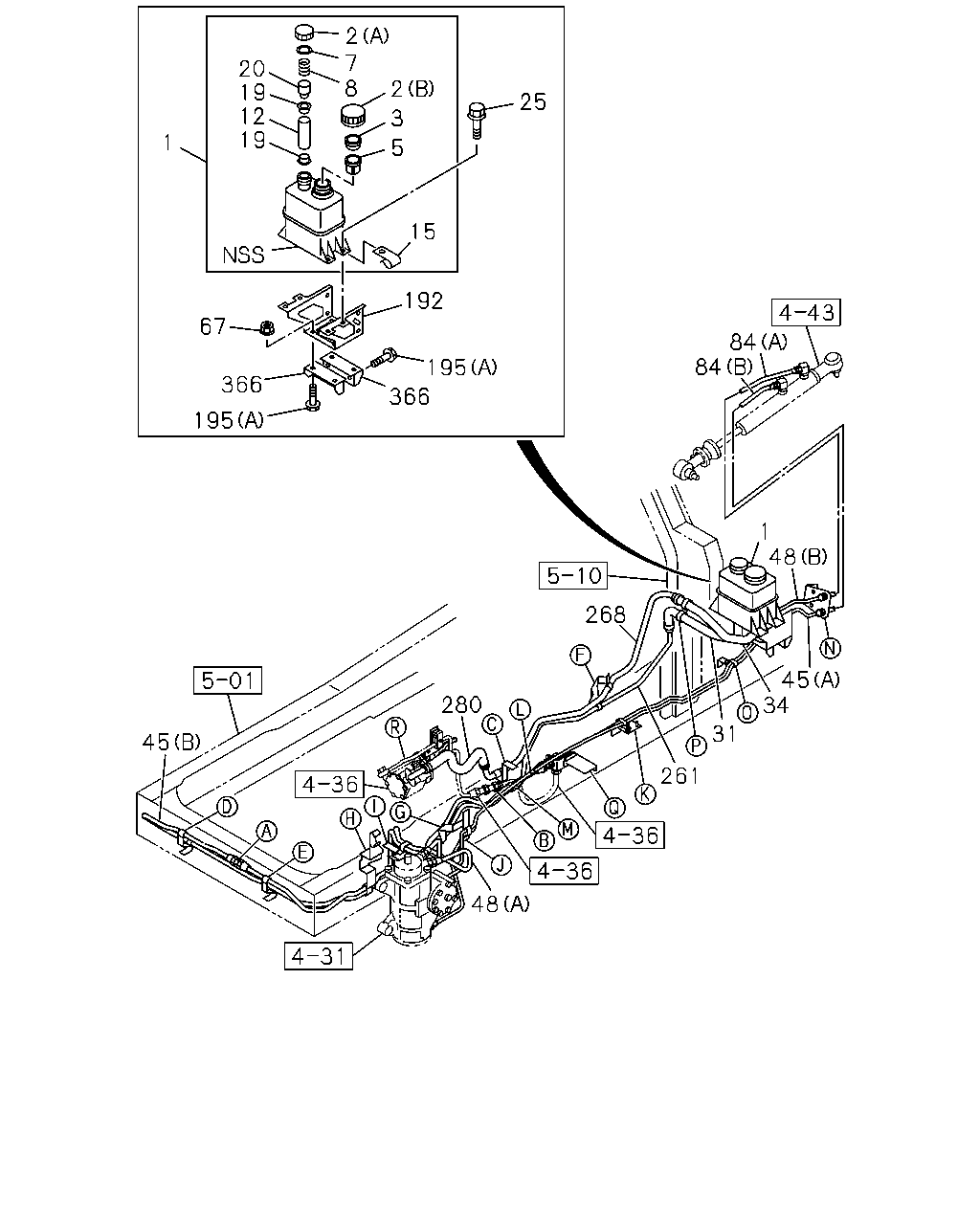

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#124645) — 159 parça

1 20 19 12 19 67 366 195 15 2 7 8 2 3 5 25 192 195 366 45 280 48 268 261 31 34 45 48 1 84 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1306-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1306-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1306-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1306-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1306-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1306-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1306-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1306-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1306-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1306-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1306-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1306-
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1306-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1306-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98224-869-0	01	1	1306-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98246-081-0	01	1	1306-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98233-229-0	01	1	1306-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98234-010-0	01	1	1306-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1306-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1306-
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1306-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1306-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1306-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1306-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1306-
261	PIPE; OIL,UNION TO HOSE	8-98233-230-0	01	1	1306-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98226-736-0	01	1	1306-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1306-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1306-

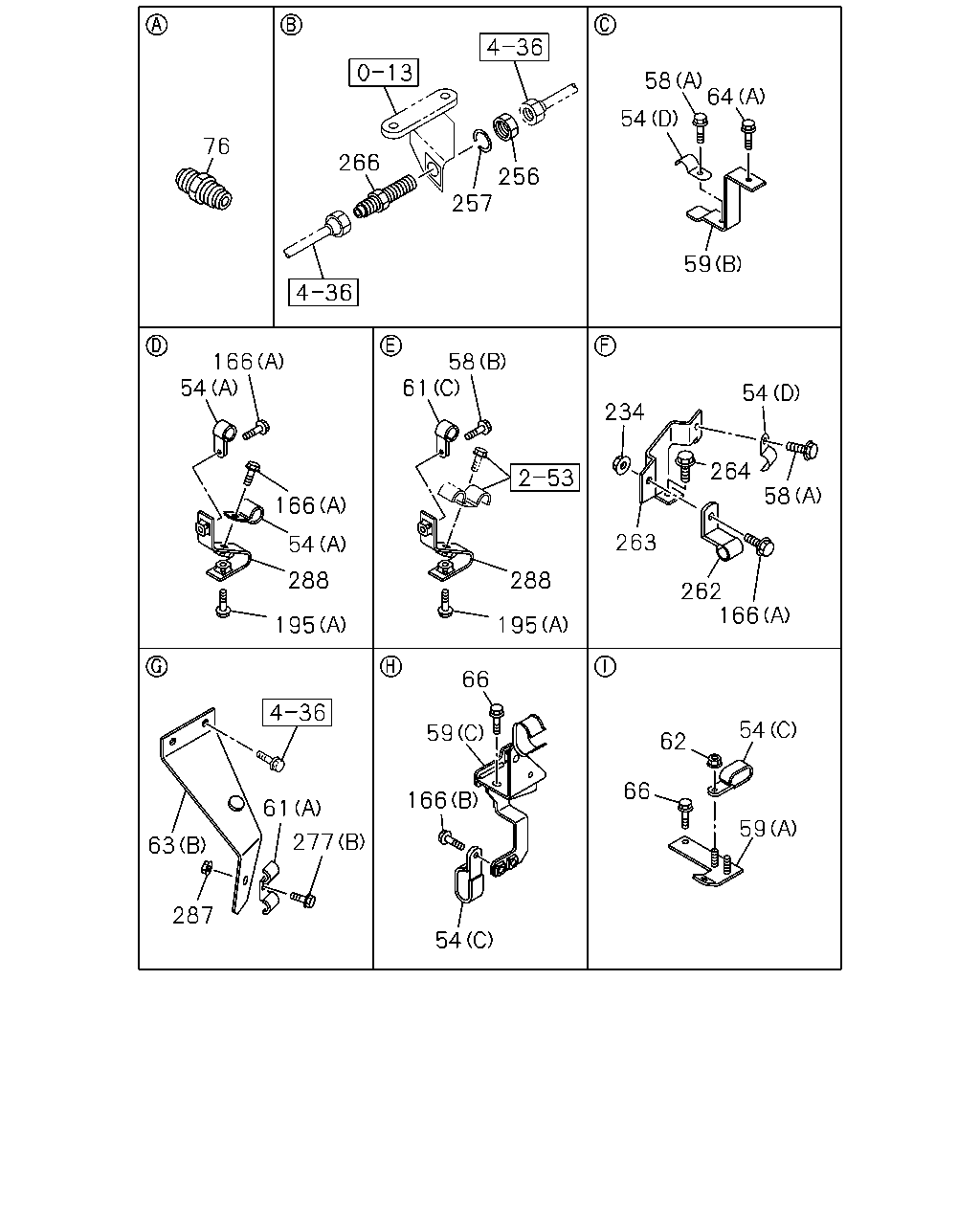

63 54 58 67 58 54 63 62 79 287 61 277 79 63 54 62 62 54 63 58 79 238 84 81 238 45 48 84 239 64 81 238

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98224-869-0	01	1	1306-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98246-081-0	01	1	1306-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98233-229-0	01	1	1306-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98234-010-0	01	1	1306-
54	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1306-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-235-0	03	1	1306-
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	1306-
54	CLIP; OIL PIPE (D) ID=23.6 L=35	1-09700-634-0	02	1	1306-
54	CLIP; OIL PIPE (E) ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	1306-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1306-
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	02	1	1306-
58	BOLT; CLIP (A) M10X25 FLANGE	0-28651-025-0	02	1	1306-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	1306-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1306-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1306-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1306-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1306-
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	1306-
63	BRACKET; CLIP,P/S (C)	1-47471-364-1	01	1	1306-
63	BRACKET; CLIP,P/S (D) L=40	1-47478-410-0	01	1	1306-
63	BRACKET; CLIP,P/S (A)	8-98199-774-0	01	1	1306-
63	BRACKET; CLIP,P/S (E)	8-98238-529-0	01	1	1306-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1306-
64	BOLT; CLIP BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1306-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
79	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	05	1	1306-
79	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1306-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	1306-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1306-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1306-
238	NUT; FLEX HOSE (A) M20	0-91111-520-0	02	1	1306-
238	NUT; FLEX HOSE (B) M8 FLANGE	0-91180-108-0	02	1	1306-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1306-
239	BRACKET; FLEX HOSE (B)	1-47479-146-0	01	1	1306-
239	BRACKET; FLEX HOSE (C)	8-98144-458-1	01	1	1306-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1306-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1306-

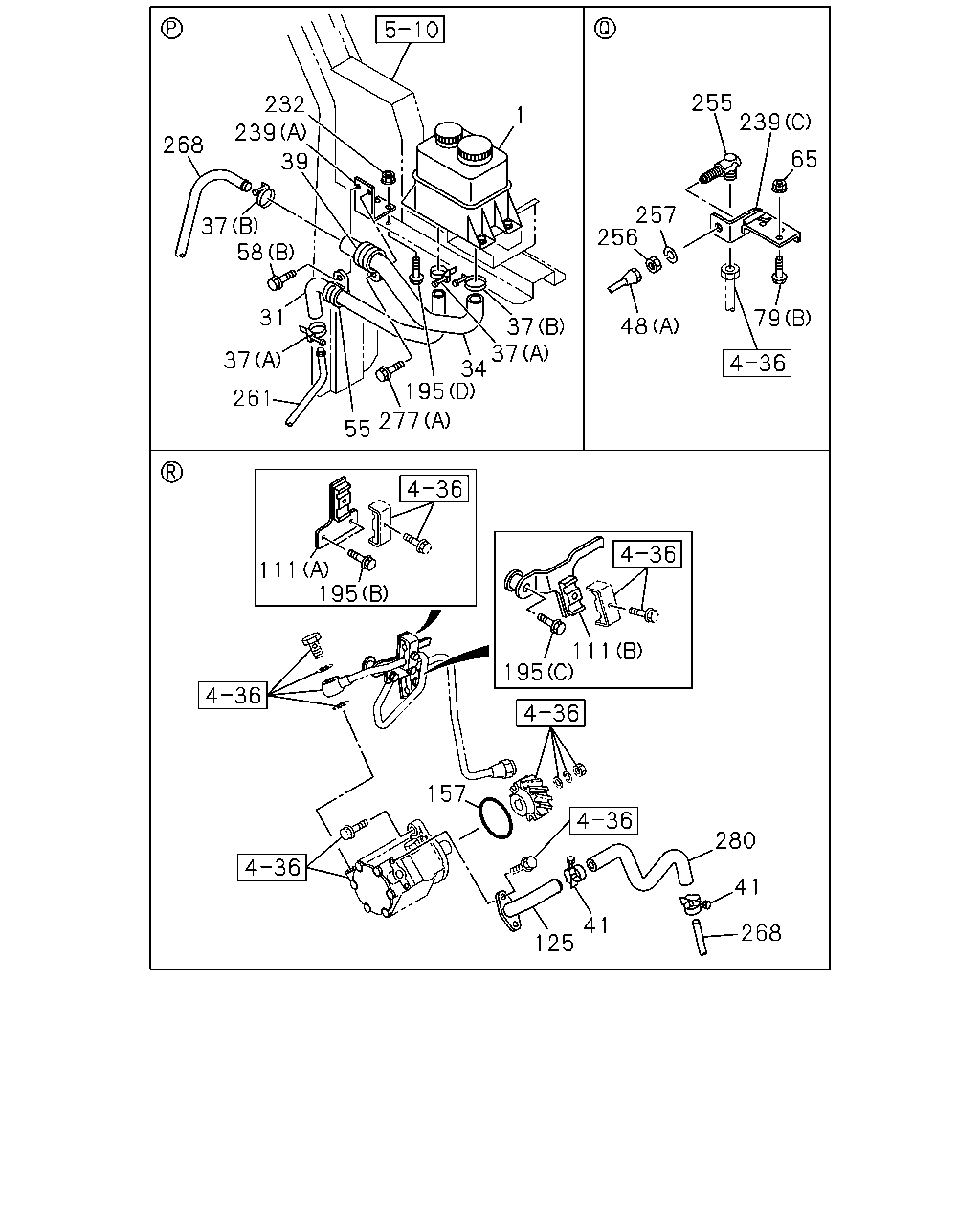

232 239 268 37 58 31 37 261 39 55 277 195 34 1 37 37 255 257 256 239 79 48 65 111 195 157 195 111 125 41 41 280 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1306-
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1306-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1306-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1306-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1306-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1306-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1306-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98233-229-0	01	1	1306-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98234-010-0	01	1	1306-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1306-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1306-
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	02	1	1306-
58	BOLT; CLIP (A) M10X25 FLANGE	0-28651-025-0	02	1	1306-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
79	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	05	1	1306-
79	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1306-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1306-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1306-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1306-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1306-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1306-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1306-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1306-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1306-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1306-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1306-
239	BRACKET; FLEX HOSE (B)	1-47479-146-0	01	1	1306-
239	BRACKET; FLEX HOSE (C)	8-98144-458-1	01	1	1306-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	1306-
256	NUT; UNION M22	0-91111-522-0	01	1	1306-
256	NUT; UNION M22	0-91111-522-0	01	1	1306-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1306-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1306-
261	PIPE; OIL,UNION TO HOSE	8-98233-230-0	01	1	1306-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98226-736-0	01	1	1306-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1306-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1306-

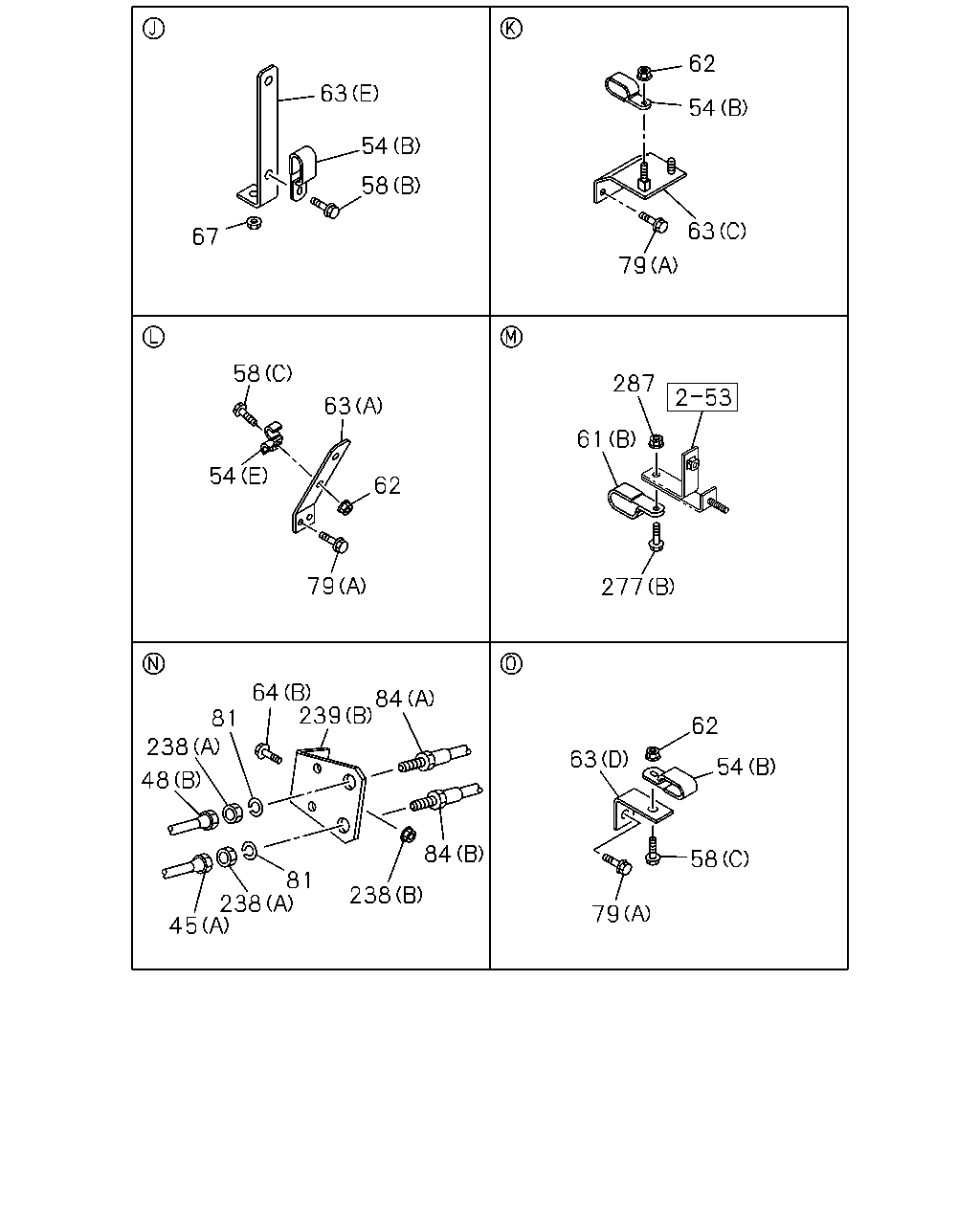

76 266 257 256 59 54 58 64 166 54 166 54 288 195 61 58 288 195 234 54 264 263 58 262 166 54 59 62 66 54 166 59 66 61 277 287 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1306-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-235-0	03	1	1306-
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	1306-
54	CLIP; OIL PIPE (D) ID=23.6 L=35	1-09700-634-0	02	1	1306-
54	CLIP; OIL PIPE (E) ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	1306-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1306-
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	02	1	1306-
58	BOLT; CLIP (A) M10X25 FLANGE	0-28651-025-0	02	1	1306-
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-145-0	01	1	1306-
59	BRACKET; CLIP,OIL PIPE (A)	8-98224-867-0	01	1	1306-
59	BRACKET; CLIP,OIL PIPE (C)	8-98239-922-0	01	1	1306-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	1306-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1306-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1306-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1306-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1306-
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	1306-
63	BRACKET; CLIP,P/S (C)	1-47471-364-1	01	1	1306-
63	BRACKET; CLIP,P/S (D) L=40	1-47478-410-0	01	1	1306-
63	BRACKET; CLIP,P/S (A)	8-98199-774-0	01	1	1306-
63	BRACKET; CLIP,P/S (E)	8-98238-529-0	01	1	1306-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1306-
64	BOLT; CLIP BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1306-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1306-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1306-
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1306-
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1306-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1306-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1306-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1306-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1306-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1306-
256	NUT; UNION M22	0-91111-522-0	01	1	1306-
256	NUT; UNION M22	0-91111-522-0	01	1	1306-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1306-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1306-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1306-
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	1306-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1306-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1306-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1306-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1306-
288	BRACKET; CLIP,P/S	1-47479-521-0	02	1	1306-
