Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#124641) — 860 parça

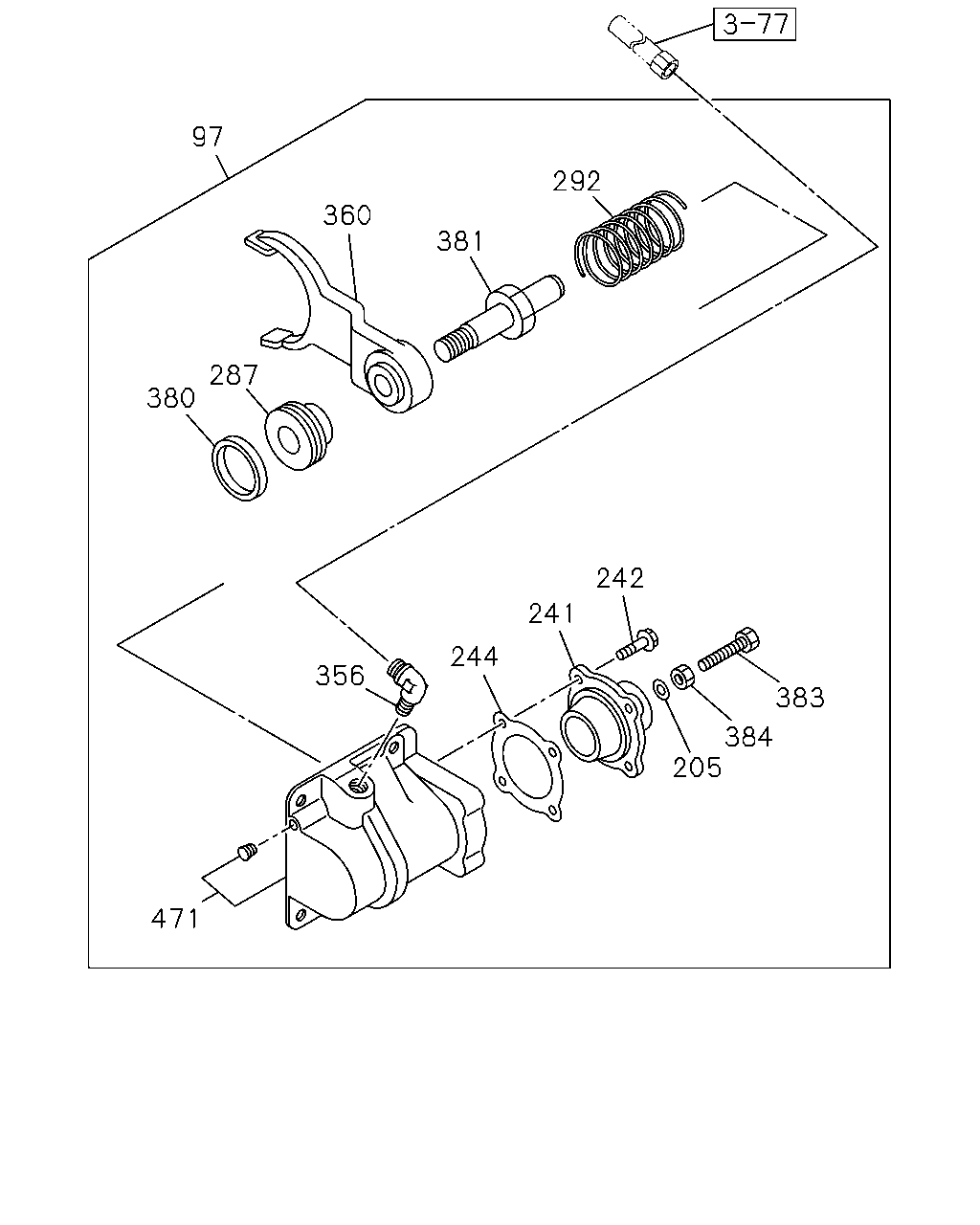

292 97 360 287 381 380 356 471 244 242 241 205 383 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	1306-	●	●	●	●
205	WASHER; PL ID=10.5 OD=18	9-09160-510-0	01	1	1306-	●	●	●	●
241	COVER; SHIFT HSG	1-48266-012-1	01	1	1306-	●	●	●	●
242	BOLT; COVER M8X20	0-20800-820-0	04	1	1306-	●	●	●	●
244	GASKET; COVER	1-48269-062-0	01	1	1306-	●	●	●	●
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	1306-	●	●	●	●
292	SPRING; PISTON	1-48265-007-0	01	1	1306-	●	●	●	●
356	NIPPLE; SHIFT UNIT M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1306-	●	●	●	●
360	FORK; SHIFT	1-48269-066-0	01	1	1306-	●	●	●	●
380	GASKET; PISTON	1-48269-064-0	01	1	1306-	●	●	●	●
381	ROD; SHIFT	1-48263-005-0	01	1	1306-	●	●	●	●
383	BOLT; SET,SHIFT UNIT M10X45	0-20801-045-0	01	1	1306-	●	●	●	●
384	NUT; LK,SHIFT UNIT M10	9-09111-410-0	01	1	1306-	●	●	●	●
471	CYLINDER ASM; SHIFT UNIT	1-48269-261-0	01	1	1306-	●	●	●	●

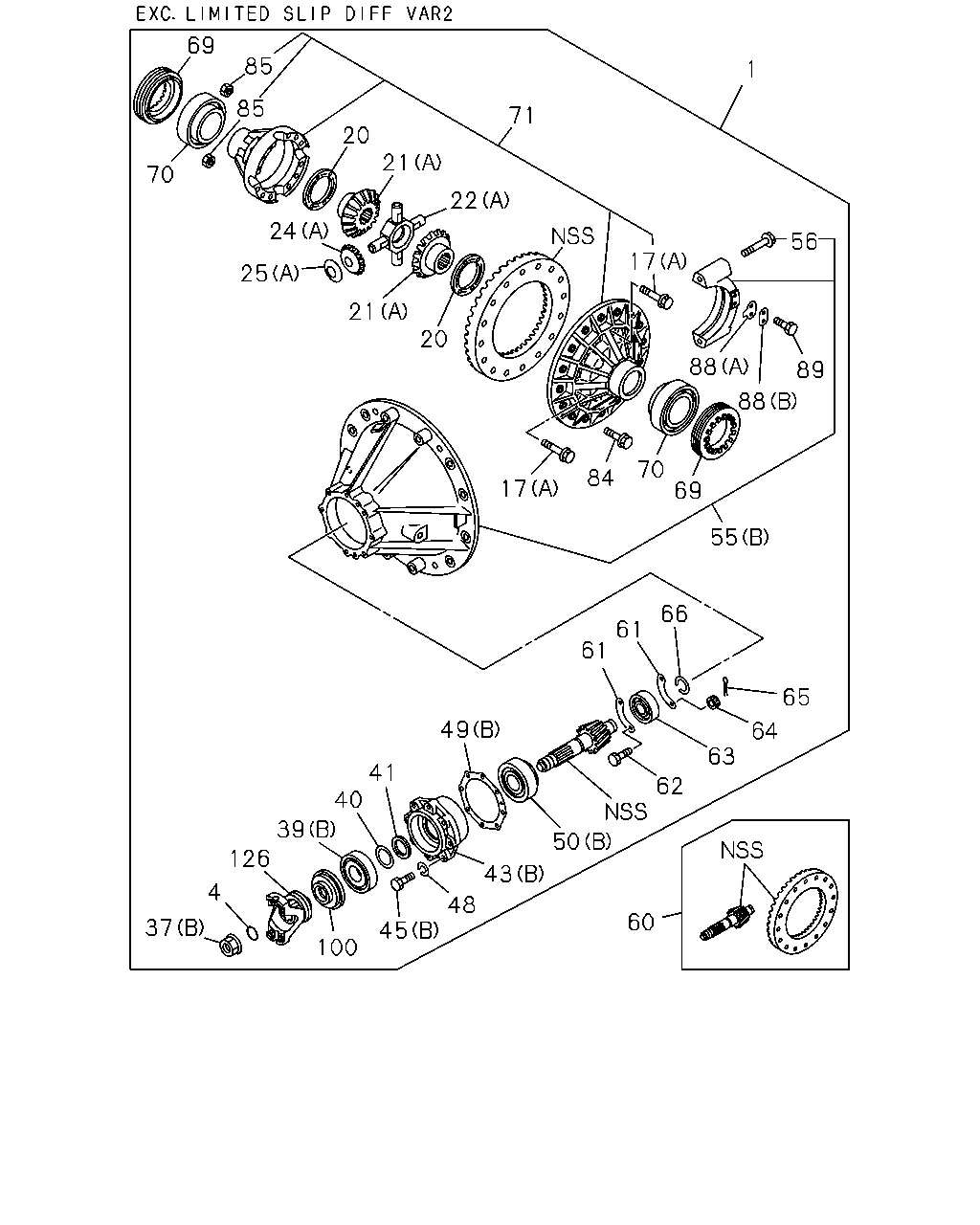

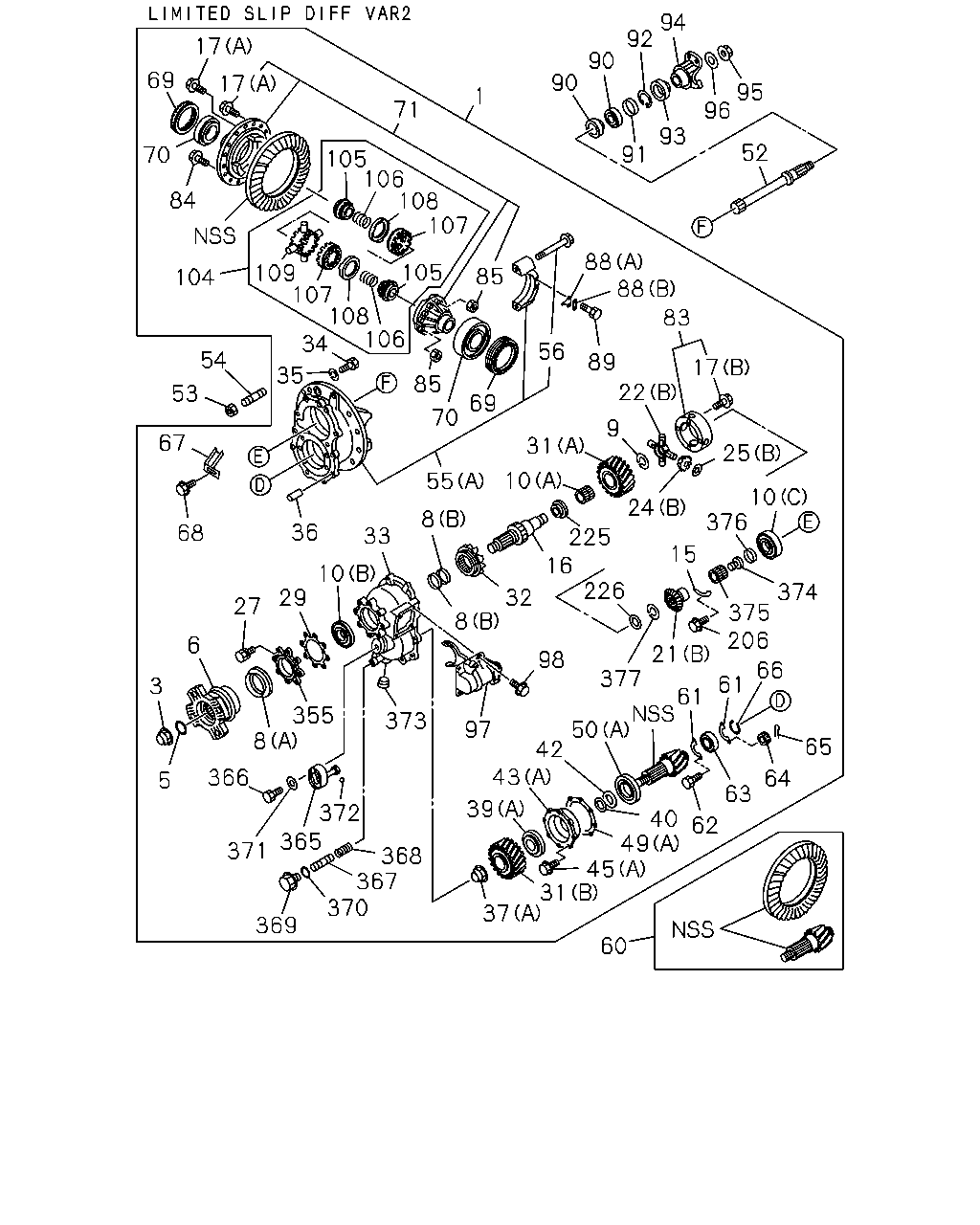

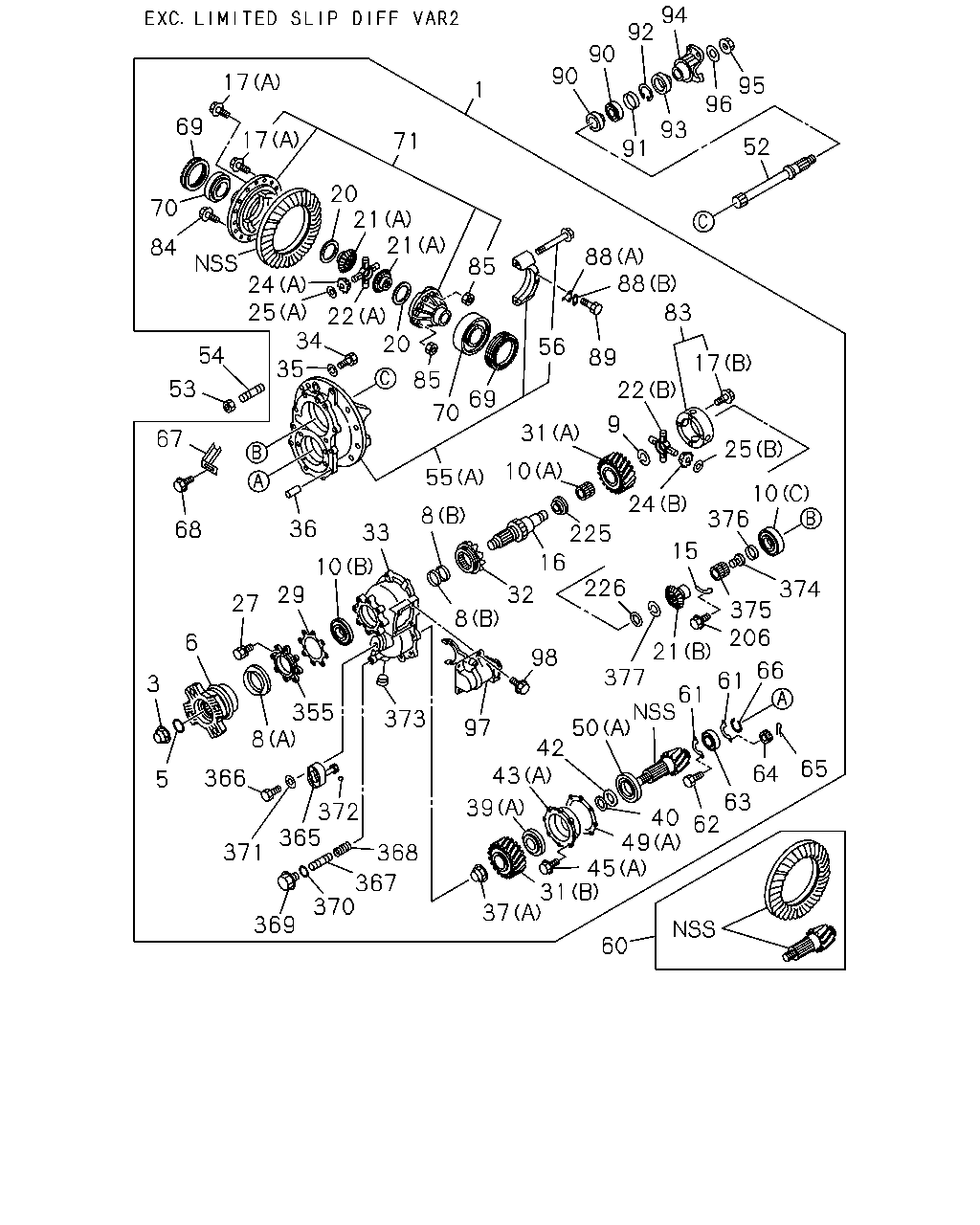

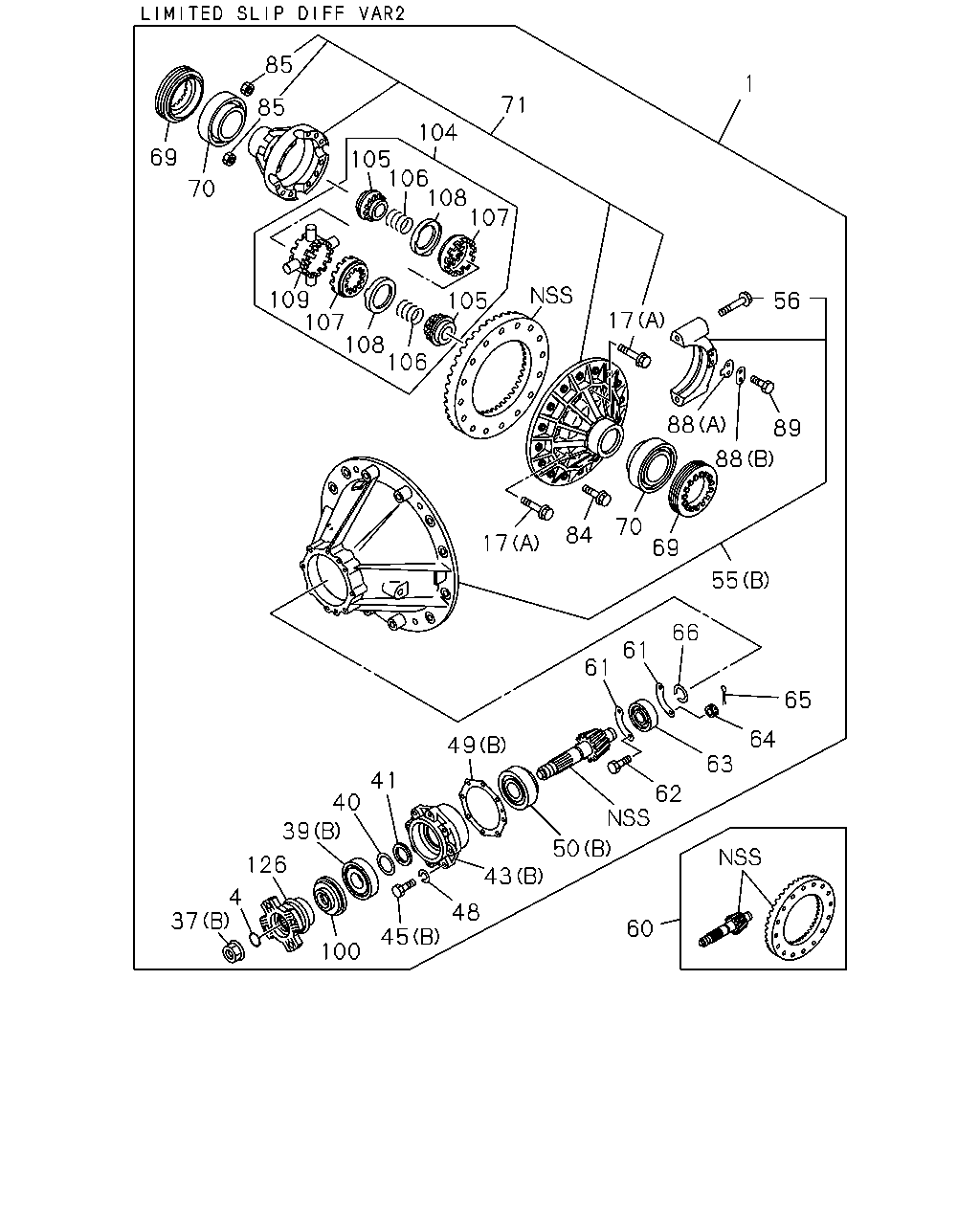

1 71 69 70 85 85 20 24 25 21 21 20 22 17 17 70 84 55 69 88 88 89 56 65 66 61 61 64 63 62 60 50 49 41 40 39 126 4 37 100 48 45 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7	1-41002-547-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7	1-41002-561-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7	1-41001-393-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7	1-41002-443-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41003-558-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8	1-41003-563-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41002-108-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8	1-41002-119-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8	1-41001-394-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41002-761-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8	1-41003-555-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8	1-41003-560-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	1306-			●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41002-110-0	01	1	1306-			●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9	1-41003-559-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41003-564-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9	1-41002-514-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41002-515-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41001-396-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9	1-41002-445-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9	1-41003-557-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9	1-41003-562-0	01	1	1306-				●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	08	1	1306-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8	1-41562-112-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8	1-41562-112-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9	1-41562-113-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9	1-41562-113-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0	1-41562-114-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0	1-41562-114-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1	1-41562-115-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1	1-41562-115-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2	1-41562-116-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2	1-41562-116-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3	1-41562-117-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3	1-41562-117-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4	1-41562-118-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4	1-41562-118-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	1306-			●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-169-0	01	1	1306-	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-151-0	02	1	1306-	●	●		●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-151-0	02	1	1306-	●	●		●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-151-0	02	1	1306-			●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-151-0	02	1	1306-			●
22	SPIDER; DIFF PINION (B)	1-41521-049-2	01	1	1306-	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=35	1-41521-037-2	01	1	1306-	●	●		●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=35	1-41521-037-2	01	1	1306-	●	●		●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	1306-			●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	1306-			●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-055-0	04	1	1306-	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-053-0	04	1	1306-	●	●		●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-053-0	04	1	1306-	●	●		●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-053-0	04	1	1306-			●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-053-0	04	1	1306-			●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	1306-	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6	1-41552-017-0	04	1	1306-	●	●		●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6	1-41552-017-0	04	1	1306-	●	●		●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	1306-			●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	1306-			●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1306-	●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-3	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-075-0	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	1-09812-076-1	01	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	1306-	●	●	●	●
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	1306-	●	●	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	1306-	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	1306-	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	1306-	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (B) NSK	1-09812-073-1	01	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (B) JTEKT	1-09812-074-3	01	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	1306-	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	1306-	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	1306-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1306-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1306-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/7	1-41210-476-0	01	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/7	1-41210-604-0	01	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8	1-41210-546-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8	1-41210-606-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8	1-41210-477-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8	1-41210-605-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/8	1-41210-478-0	01	1	1306-			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/8	1-41210-607-0	01	1	1306-			●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9	1-41210-627-0	01	1	1306-				●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41210-608-0	01	1	1306-1501				●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9	1-41210-608-0	01	1	1306-1501				●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> 41/9	1-41210-608-0	01	1	1502-				●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41210-626-0	01	1	1306-1501				●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> 41/9	1-41210-626-0	01	1	1502-				●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9	1-41210-479-0	01	1	1306-				●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1306-	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1306-	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1306-	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1306-	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1306-	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1306-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1306-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1306-	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1306-	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1306-	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1306-	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1306-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	1306-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1306-	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1306-	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1306-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	1306-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	1306-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	1306-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	1306-				●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1306-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1306-	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1306-	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1306-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1306-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1306-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	1306-	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-336-0	01	1	1306-1501	●		●
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-37245-336-0	01	1	1306-1501		●		●
126	COUPLING; DRIVING PINION	1-37245-336-0	01	1	1502-	●	●	●	●
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF VAR2<G86>	1-37245-343-0	01	1	1306-1501		●		●

69 70 85 85 104 105 106 108 107 71 1 17 105 56 89 88 88 55 69 70 84 17 106 108 107 109 65 64 63 62 50 43 48 45 100 37 4 126 39 40 41 49 61 61 66 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7	1-41002-547-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7	1-41002-561-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7	1-41001-393-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7	1-41002-443-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41003-558-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8	1-41003-563-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41002-108-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8	1-41002-119-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8	1-41001-394-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41002-761-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8	1-41003-555-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8	1-41003-560-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	1306-			●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41002-110-0	01	1	1306-			●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9	1-41003-559-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41003-564-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9	1-41002-514-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41002-515-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41001-396-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9	1-41002-445-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9	1-41003-557-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9	1-41003-562-0	01	1	1306-				●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	08	1	1306-	●	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1306-	●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-3	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-075-0	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	1-09812-076-1	01	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	1306-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	1306-	●	●	●	●
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	1306-	●	●	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	1306-	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	1306-	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	1306-	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (B) NSK	1-09812-073-1	01	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (B) JTEKT	1-09812-074-3	01	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	1306-	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	1306-	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	1306-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1306-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1306-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/7	1-41210-476-0	01	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/7	1-41210-604-0	01	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8	1-41210-546-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8	1-41210-606-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8	1-41210-477-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8	1-41210-605-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/8	1-41210-478-0	01	1	1306-			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/8	1-41210-607-0	01	1	1306-			●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9	1-41210-627-0	01	1	1306-				●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41210-608-0	01	1	1306-1501				●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9	1-41210-608-0	01	1	1306-1501				●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> 41/9	1-41210-608-0	01	1	1502-				●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41210-626-0	01	1	1306-1501				●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> 41/9	1-41210-626-0	01	1	1502-				●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9	1-41210-479-0	01	1	1306-				●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1306-	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1306-	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1306-	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1306-	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1306-	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1306-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1306-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1306-	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1306-	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1306-	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1306-	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1306-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	1306-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1306-	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1306-	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1306-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	1306-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	1306-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	1306-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	1306-				●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1306-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1306-	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1306-	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1306-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1306-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1306-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	1306-	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-023-0	01	1	1306-	●	●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-023-0	01	1	1306-	●	●		●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> Z=24	1-41539-028-0	02	1	1306-	●	●		●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> Z=24	1-41539-028-0	02	1	1306-	●	●		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-41535-004-0	02	1	1306-	●	●		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-41535-004-0	02	1	1306-	●	●		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-006-0	02	1	1306-	●	●		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-006-0	02	1	1306-	●	●		●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-024-0	02	1	1306-	●	●		●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-024-0	02	1	1306-	●	●		●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41539-027-0	01	1	1306-	●	●		●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41539-027-0	01	1	1306-	●	●		●
126	COUPLING; DRIVING PINION	1-37245-336-0	01	1	1306-1501	●		●
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-37245-336-0	01	1	1306-1501		●		●
126	COUPLING; DRIVING PINION	1-37245-336-0	01	1	1502-	●	●	●	●
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF VAR2<G86>	1-37245-343-0	01	1	1306-1501		●		●

94 92 95 52 93 91 90 90 1 71 17 69 70 20 17 84 54 53 68 67 36 27 6 3 5 355 29 33 8 55 85 20 22 25 24 96 88 85 21 31 70 69 8 16 32 10 226 225 24 9 22 89 56 25 376 374 375 206 21 377 50 66 61 61 65 64 63 60 45 43 97 373 372 368 367 370 369 371 366 365 42 40 98 49 62 10 17 83 88 15 31 37 39 8 10 21 34 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7	1-41002-547-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7	1-41002-561-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7	1-41001-393-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7	1-41002-443-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41003-558-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8	1-41003-563-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41002-108-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8	1-41002-119-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8	1-41001-394-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41002-761-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8	1-41003-555-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8	1-41003-560-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	1306-			●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41002-110-0	01	1	1306-			●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9	1-41003-559-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41003-564-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9	1-41002-514-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41002-515-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41001-396-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9	1-41002-445-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9	1-41003-557-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9	1-41003-562-0	01	1	1306-				●
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	1306-	●	●	●	●
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	1306-	●	●	●	●
6	FLANGE ASM; INPUT SHAFT	1-37245-343-0	01	1	1306-	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (A)	1-09625-323-0	01	1	1306-	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (B)	1-41349-145-0	02	1	1306-	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09588-192-0	01	1	1306-	●	●	●	●
10	BEARING; INPUT SHAFT (A) JTEKT	1-09811-346-0	01	1	1306-	●	●	●	●
10	BEARING; INPUT SHAFT (A) NSK	1-09811-347-0	01	1	1306-	●	●	●	●
10	BEARING; INPUT SHAFT (B) NSK	1-09812-094-0	01	1	1306-	●	●	●	●
10	BEARING; INPUT SHAFT (C) JTEKT	1-09812-182-0	01	1	1306-	●	●	●	●
10	BEARING; INPUT SHAFT (C) NSK	1-09812-183-0	01	1	1306-	●	●	●	●
10	BEARING; INPUT SHAFT (B) JTEKT	1-09812-198-0	01	1	1306-	●	●	●	●
15	CATCHER; OIL	1-41129-007-0	01	1	1306-	●	●	●	●
16	SHAFT ASM; INPUT	1-41341-025-0	01	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	08	1	1306-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8	1-41562-112-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8	1-41562-112-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9	1-41562-113-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9	1-41562-113-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0	1-41562-114-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0	1-41562-114-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1	1-41562-115-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1	1-41562-115-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2	1-41562-116-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2	1-41562-116-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3	1-41562-117-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3	1-41562-117-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4	1-41562-118-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4	1-41562-118-0	AR	1	1306-	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	1306-			●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	1306-			●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-169-0	01	1	1306-	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-151-0	02	1	1306-	●	●		●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-151-0	02	1	1306-	●	●		●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-151-0	02	1	1306-			●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-151-0	02	1	1306-			●
22	SPIDER; DIFF PINION (B)	1-41521-049-2	01	1	1306-	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=35	1-41521-037-2	01	1	1306-	●	●		●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=35	1-41521-037-2	01	1	1306-	●	●		●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	1306-			●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	1306-			●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-055-0	04	1	1306-	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-053-0	04	1	1306-	●	●		●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-053-0	04	1	1306-	●	●		●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-053-0	04	1	1306-			●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-053-0	04	1	1306-			●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	1306-	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6	1-41552-017-0	04	1	1306-	●	●		●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6	1-41552-017-0	04	1	1306-	●	●		●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	1306-			●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	1306-			●
27	BOLT; BRG RET M12X35 W/LK WASHER	0-50551-235-0	08	1	1306-	●	●	●	●
29	SHIM; BRG RET T=0.30	1-41349-146-0	AR	1	1306-	●	●	●	●
29	SHIM; BRG RET T=0.40	1-41349-147-0	AR	1	1306-	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41349-148-0	AR	1	1306-	●	●	●	●
29	SHIM; BRG RET T=1.000	1-41349-149-0	AR	1	1306-	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-044-0	01	1	1306-	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-029-0	01	1	1306-	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41355-038-0	01	1	1306-	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-024-1	01	1	1306-	●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23851-440-0	10	1	1306-	●	●	●	●
35	WASHER; CASE TO CARRIER ID=14.2	0-91510-814-0	10	1	1306-	●	●	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	1306-	●	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1306-	●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-3	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-075-0	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	1-09812-076-1	01	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-237-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-238-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-239-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-240-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.40	1-41229-241-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.60	1-41229-242-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.80	1-41229-243-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=9.00	1-41229-244-0	AR	1	1306-	●	●	●	●
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	1306-	●	●	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	1306-	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	1306-	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (B) NSK	1-09812-073-1	01	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (B) JTEKT	1-09812-074-3	01	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	1306-	●	●	●	●
52	SHAFT; OUTPUT	1-41343-020-0	01	1	1306-	●	●	●	●
53	NUT; FINAL DRIVE SET M16	0-91110-516-0	01	1	1306-	●	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	01	1	1306-	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	1306-	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	1306-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1306-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1306-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/7	1-41210-476-0	01	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/7	1-41210-604-0	01	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8	1-41210-546-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8	1-41210-606-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8	1-41210-477-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8	1-41210-605-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/8	1-41210-478-0	01	1	1306-			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/8	1-41210-607-0	01	1	1306-			●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9	1-41210-627-0	01	1	1306-				●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41210-608-0	01	1	1306-1501				●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9	1-41210-608-0	01	1	1306-1501				●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> 41/9	1-41210-608-0	01	1	1502-				●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41210-626-0	01	1	1306-1501				●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> 41/9	1-41210-626-0	01	1	1502-				●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9	1-41210-479-0	01	1	1306-				●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1306-	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1306-	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1306-	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1306-	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1306-	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1306-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1306-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1306-	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1306-	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1306-	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1306-	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1306-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	1306-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	1306-	●	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-008-0	01	1	1306-	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1306-	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1306-	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1306-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	1306-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	1306-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	1306-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	1306-				●
83	CAGE ASM; DIFF	1-41510-224-0	01	1	1306-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1306-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1306-	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1306-	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1306-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1306-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1306-	●	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	1306-	●	●	●	●
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-069-0	02	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	1306-	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	1306-	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	1306-	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	1306-	●	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	1306-	●	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	1306-	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	1306-	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28151-050-0	01	1	1306-	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28751-025-0	03	1	1306-	●	●	●	●
206	BOLT; OIL CATCHER M8X12 FLANGE	8-94479-696-1	02	1	1306-	●	●	●	●
225	WASHER; THRUST T=5.9	1-41552-024-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.0	1-41552-025-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.1	1-41552-026-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.2	1-41552-027-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.3	1-41552-028-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.4	1-41552-029-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.5	1-41552-030-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.6	1-41552-031-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.7	1-41552-032-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.8	1-41552-033-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.9	1-41552-034-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=7.0	1-41552-035-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=7.1	1-41552-036-2	AR	1	1306-	●	●	●	●
226	WASHER; THRUST	1-41562-267-0	01	1	1306-	●	●	●	●
355	RETAINER; BRG	1-41227-016-0	01	1	1306-	●	●	●	●
365	PUMP ASM; OIL	1-41381-008-1	01	1	1306-	●	●	●	●
366	BOLT; PUMP M8X40	0-10805-840-0	04	1	1306-	●	●	●	●
367	STRAINER; OIL PUMP	1-41383-003-0	01	1	1306-	●	●	●	●
368	SPRING; STRAINER	1-09580-504-0	01	1	1306-	●	●	●	●
369	PLUG; STRAINER M24X17 FLANGE	1-09604-023-0	01	1	1306-	●	●	●	●
370	GASKET; STRAINER ID=26.8	1-09623-058-0	01	1	1306-	●	●	●	●
371	WASHER; LK,PUMP ID=8.2	0-91510-808-0	04	1	1306-	●	●	●	●
372	BALL; CASE	9-00097-517-0	01	1	1306-	●	●	●	●
373	PLUG; CASE PT1/4	1-09605-019-0	01	1	1306-	●	●	●	●
374	PLUG; INPUT SHAFT	1-09609-020-1	01	1	1306-	●	●	●	●
375	BEARING; SIDE GEAR JTEKT	1-09811-348-0	01	1	1306-	●	●	●	●
375	BEARING; SIDE GEAR NSK	1-09811-362-0	01	1	1306-	●	●	●	●
376	SPACER; BRG,SIDE GEAR	1-41349-150-0	01	1	1306-	●	●	●	●
377	RING; SNAP,BRG,SIDE GEAR	1-09587-091-0	01	1	1306-	●	●	●	●

94 95 92 90 90 91 93 96 52 1 71 17 69 17 70 84 88 85 88 17 83 22 89 25 376 10 374 375 206 66 65 64 63 62 40 49 45 31 37 39 368 367 370 369 105 107 108 106 105 107 106 85 55 70 69 10 31 225 24 15 226 21 61 377 61 98 50 42 43 97 373 372 365 371 366 355 8 6 3 5 27 68 53 67 54 36 29 33 10 8 16 32 56 34 35 104 109 108 60 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7	1-41002-547-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7	1-41002-561-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7	1-41001-393-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7	1-41002-443-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41003-558-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8	1-41003-563-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41002-108-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8	1-41002-119-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8	1-41001-394-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41002-761-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8	1-41003-555-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8	1-41003-560-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	1306-			●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41002-110-0	01	1	1306-			●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9	1-41003-559-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41003-564-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9	1-41002-514-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41002-515-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41001-396-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9	1-41002-445-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9	1-41003-557-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9	1-41003-562-0	01	1	1306-				●
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	1306-	●	●	●	●
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	1306-	●	●	●	●
6	FLANGE ASM; INPUT SHAFT	1-37245-343-0	01	1	1306-	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (A)	1-09625-323-0	01	1	1306-	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (B)	1-41349-145-0	02	1	1306-	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09588-192-0	01	1	1306-	●	●	●	●
10	BEARING; INPUT SHAFT (A) JTEKT	1-09811-346-0	01	1	1306-	●	●	●	●
10	BEARING; INPUT SHAFT (A) NSK	1-09811-347-0	01	1	1306-	●	●	●	●
10	BEARING; INPUT SHAFT (B) NSK	1-09812-094-0	01	1	1306-	●	●	●	●
10	BEARING; INPUT SHAFT (C) JTEKT	1-09812-182-0	01	1	1306-	●	●	●	●
10	BEARING; INPUT SHAFT (C) NSK	1-09812-183-0	01	1	1306-	●	●	●	●
10	BEARING; INPUT SHAFT (B) JTEKT	1-09812-198-0	01	1	1306-	●	●	●	●
15	CATCHER; OIL	1-41129-007-0	01	1	1306-	●	●	●	●
16	SHAFT ASM; INPUT	1-41341-025-0	01	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	1306-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	08	1	1306-	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-169-0	01	1	1306-	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-151-0	02	1	1306-	●	●		●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-151-0	02	1	1306-	●	●		●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-151-0	02	1	1306-			●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-151-0	02	1	1306-			●
22	SPIDER; DIFF PINION (B)	1-41521-049-2	01	1	1306-	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=35	1-41521-037-2	01	1	1306-	●	●		●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=35	1-41521-037-2	01	1	1306-	●	●		●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	1306-			●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	1306-			●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-055-0	04	1	1306-	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-053-0	04	1	1306-	●	●		●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-053-0	04	1	1306-	●	●		●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-053-0	04	1	1306-			●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-053-0	04	1	1306-			●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	1306-	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6	1-41552-017-0	04	1	1306-	●	●		●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6	1-41552-017-0	04	1	1306-	●	●		●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	1306-			●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	1306-			●
27	BOLT; BRG RET M12X35 W/LK WASHER	0-50551-235-0	08	1	1306-	●	●	●	●
29	SHIM; BRG RET T=0.30	1-41349-146-0	AR	1	1306-	●	●	●	●
29	SHIM; BRG RET T=0.40	1-41349-147-0	AR	1	1306-	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41349-148-0	AR	1	1306-	●	●	●	●
29	SHIM; BRG RET T=1.000	1-41349-149-0	AR	1	1306-	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-044-0	01	1	1306-	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-029-0	01	1	1306-	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41355-038-0	01	1	1306-	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-024-1	01	1	1306-	●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23851-440-0	10	1	1306-	●	●	●	●
35	WASHER; CASE TO CARRIER ID=14.2	0-91510-814-0	10	1	1306-	●	●	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	1306-	●	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1306-	●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-3	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-075-0	01	1	1306-	●	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	1-09812-076-1	01	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1306-	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-237-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-238-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-239-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-240-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.40	1-41229-241-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.60	1-41229-242-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.80	1-41229-243-0	AR	1	1306-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=9.00	1-41229-244-0	AR	1	1306-	●	●	●	●
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	1306-	●	●	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	1306-	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	1306-	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	1306-	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (B) NSK	1-09812-073-1	01	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (B) JTEKT	1-09812-074-3	01	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	1306-	●	●	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	1306-	●	●	●	●
52	SHAFT; OUTPUT	1-41343-020-0	01	1	1306-	●	●	●	●
53	NUT; FINAL DRIVE SET M16	0-91110-516-0	01	1	1306-	●	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	01	1	1306-	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	1306-	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	1306-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1306-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1306-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/7	1-41210-476-0	01	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/7	1-41210-604-0	01	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8	1-41210-546-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8	1-41210-606-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8	1-41210-477-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8	1-41210-605-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/8	1-41210-478-0	01	1	1306-			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/8	1-41210-607-0	01	1	1306-			●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9	1-41210-627-0	01	1	1306-				●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41210-608-0	01	1	1306-1501				●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9	1-41210-608-0	01	1	1306-1501				●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> 41/9	1-41210-608-0	01	1	1502-				●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9	1-41210-626-0	01	1	1306-1501				●
60	GEAR SET; FINAL DRIVE,RR FINAL DRIVE GEAR HARD FINISH<BDU> 41/9	1-41210-626-0	01	1	1502-				●
60	GEAR SET; FINAL DRIVE,RR EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9	1-41210-479-0	01	1	1306-				●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1306-	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	1306-	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1306-	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	1306-	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1306-	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	1306-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1306-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	1306-	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1306-	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1306-	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1306-	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1306-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	1306-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	1306-	●	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-008-0	01	1	1306-	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1306-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1306-	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1306-	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1306-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	1306-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	1306-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	1306-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	1306-				●
83	CAGE ASM; DIFF	1-41510-224-0	01	1	1306-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1306-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	1306-	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1306-	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1306-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1306-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1306-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1306-	●	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	1306-	●	●	●	●
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-069-0	02	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	1306-	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	1306-	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	1306-	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	1306-	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	1306-	●	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	1306-	●	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	1306-	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	1306-	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28151-050-0	01	1	1306-	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28751-025-0	03	1	1306-	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-023-0	01	1	1306-	●	●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-023-0	01	1	1306-	●	●		●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> Z=24	1-41539-028-0	02	1	1306-	●	●		●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> Z=24	1-41539-028-0	02	1	1306-	●	●		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-41535-004-0	02	1	1306-	●	●		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-41535-004-0	02	1	1306-	●	●		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-006-0	02	1	1306-	●	●		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-006-0	02	1	1306-	●	●		●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-024-0	02	1	1306-	●	●		●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-024-0	02	1	1306-	●	●		●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41539-027-0	01	1	1306-	●	●		●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41539-027-0	01	1	1306-	●	●		●
206	BOLT; OIL CATCHER M8X12 FLANGE	8-94479-696-1	02	1	1306-	●	●	●	●
225	WASHER; THRUST T=5.9	1-41552-024-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.0	1-41552-025-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.1	1-41552-026-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.2	1-41552-027-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.3	1-41552-028-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.4	1-41552-029-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.5	1-41552-030-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.6	1-41552-031-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.7	1-41552-032-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.8	1-41552-033-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=6.9	1-41552-034-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=7.0	1-41552-035-2	AR	1	1306-	●	●	●	●
225	WASHER; THRUST T=7.1	1-41552-036-2	AR	1	1306-	●	●	●	●
226	WASHER; THRUST	1-41562-267-0	01	1	1306-	●	●	●	●
355	RETAINER; BRG	1-41227-016-0	01	1	1306-	●	●	●	●
365	PUMP ASM; OIL	1-41381-008-1	01	1	1306-	●	●	●	●
366	BOLT; PUMP M8X40	0-10805-840-0	04	1	1306-	●	●	●	●
367	STRAINER; OIL PUMP	1-41383-003-0	01	1	1306-	●	●	●	●
368	SPRING; STRAINER	1-09580-504-0	01	1	1306-	●	●	●	●
369	PLUG; STRAINER M24X17 FLANGE	1-09604-023-0	01	1	1306-	●	●	●	●
370	GASKET; STRAINER ID=26.8	1-09623-058-0	01	1	1306-	●	●	●	●
371	WASHER; LK,PUMP ID=8.2	0-91510-808-0	04	1	1306-	●	●	●	●
372	BALL; CASE	9-00097-517-0	01	1	1306-	●	●	●	●
373	PLUG; CASE PT1/4	1-09605-019-0	01	1	1306-	●	●	●	●
374	PLUG; INPUT SHAFT	1-09609-020-1	01	1	1306-	●	●	●	●
375	BEARING; SIDE GEAR JTEKT	1-09811-348-0	01	1	1306-	●	●	●	●
375	BEARING; SIDE GEAR NSK	1-09811-362-0	01	1	1306-	●	●	●	●
376	SPACER; BRG,SIDE GEAR	1-41349-150-0	01	1	1306-	●	●	●	●
377	RING; SNAP,BRG,SIDE GEAR	1-09587-091-0	01	1	1306-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
