4-01 — PROPELLER SHAFT (#124637) — 291 parça
çizim 363397
78 1 9 8 79 80 74 71 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (C) L=1615 		1-37125-302-0 01 1 1306- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=874 		8-98030-327-0 01 1 1306- ●
1 SHAFT; PROP
(A) L=874 		8-98030-327-0 01 1 1306- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=870 		8-98145-460-0 01 1 1306- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (E) L=1950 		8-98145-465-0 01 1 1306- ●
1 SHAFT; PROP
(C) L=940 		1-37125-337-0 01 1 1306- ●
1 SHAFT; PROP
(B) L=1499 		8-98030-328-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 02 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1306- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1306- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1306- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1306- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16X45 		1-09042-030-0 02 1 1306- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1306- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P115 PROP SHAFT(C5X) (A) ID=17 		1-09503-241-1 02 1 1306- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P130 PROP SHAFT(BEE) (B) ID=15 		0-91614-614-0 02 1 1306- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16 SLOTTED 		8-98049-689-0 02 1 1306- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1306- ● ●

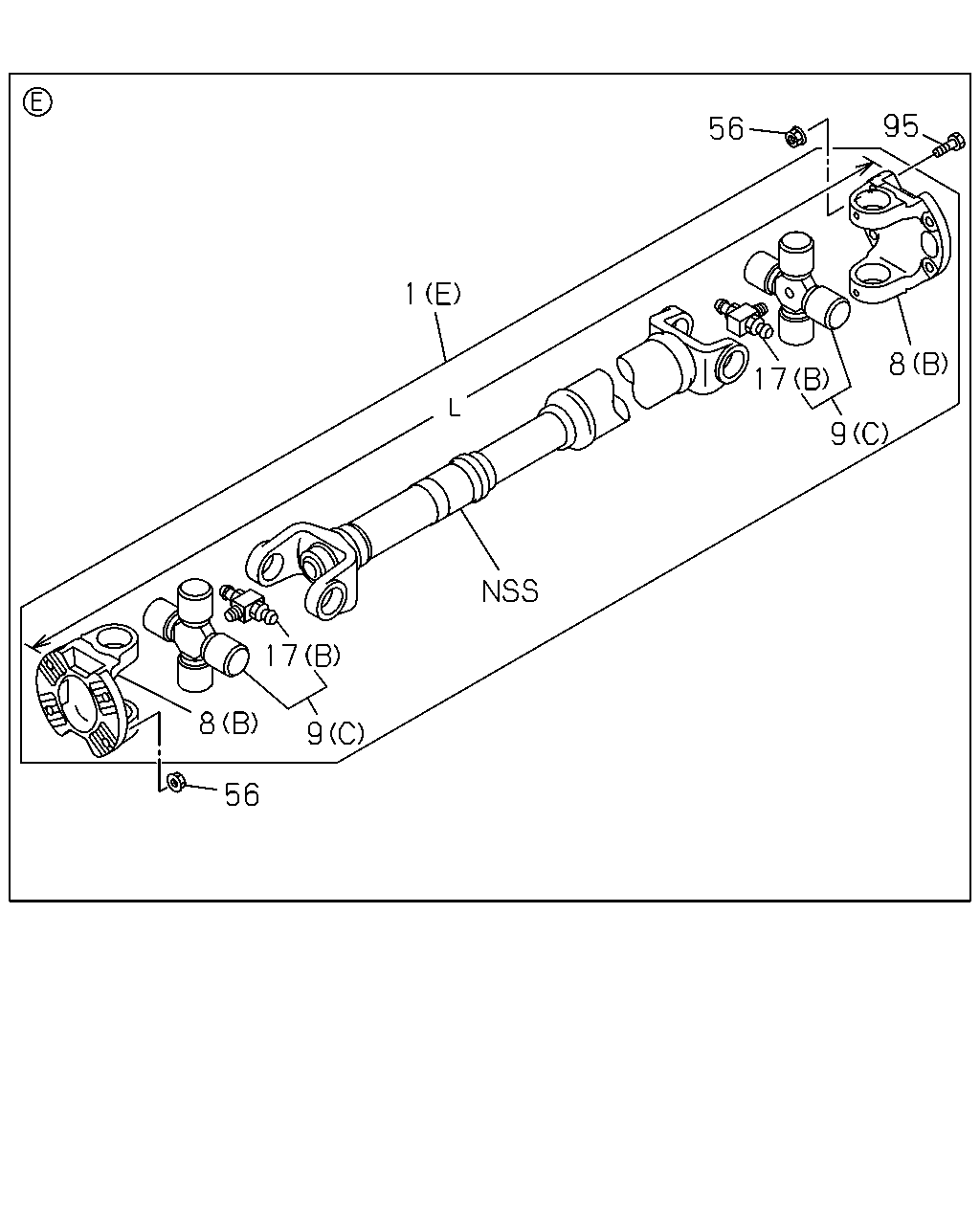

çizim 363431
95 56 8 1 17 9 9 17 8 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (C) L=1615 		1-37125-302-0 01 1 1306- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=874 		8-98030-327-0 01 1 1306- ●
1 SHAFT; PROP
(A) L=874 		8-98030-327-0 01 1 1306- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=870 		8-98145-460-0 01 1 1306- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (E) L=1950 		8-98145-465-0 01 1 1306- ●
1 SHAFT; PROP
(C) L=940 		1-37125-337-0 01 1 1306- ●
1 SHAFT; PROP
(B) L=1499 		8-98030-328-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 02 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1306- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1306- ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1306- ● ●

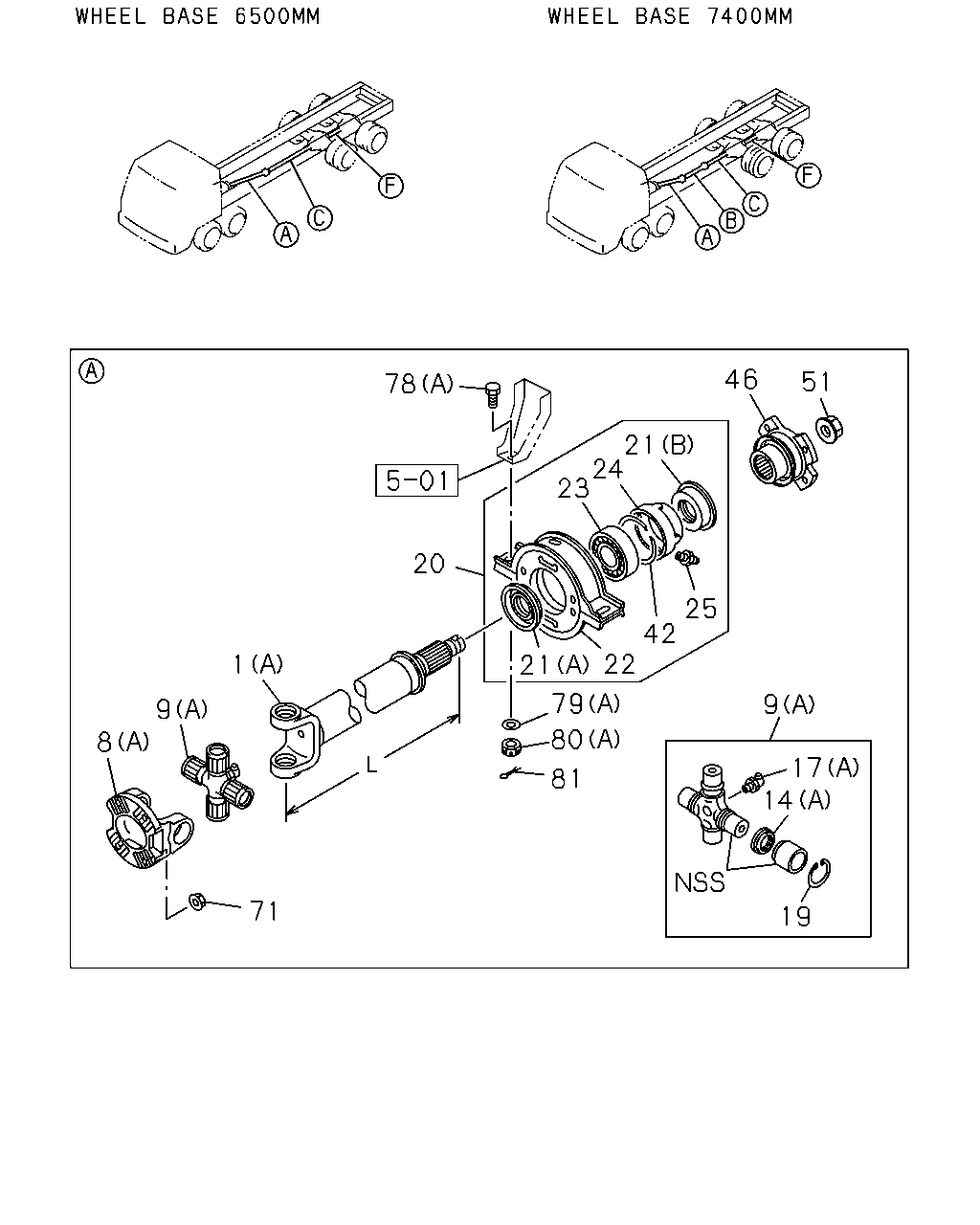

çizim 364393
8 9 1 71 20 78 81 80 79 21 22 42 25 23 24 21 46 51 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (C) L=1615 		1-37125-302-0 01 1 1306- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=874 		8-98030-327-0 01 1 1306- ●
1 SHAFT; PROP
(A) L=874 		8-98030-327-0 01 1 1306- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=870 		8-98145-460-0 01 1 1306- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (E) L=1950 		8-98145-465-0 01 1 1306- ●
1 SHAFT; PROP
(C) L=940 		1-37125-337-0 01 1 1306- ●
1 SHAFT; PROP
(B) L=1499 		8-98030-328-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 02 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1306- ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 1306- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1306- ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1306- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1306- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1306- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1306- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 08 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 04 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 08 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 04 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1306- ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-1 01 1 1306- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1306- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1306- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (A) OD=114 		1-09625-222-1 01 1 1306- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1306- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1306- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (B) OD=106 		1-09625-622-0 01 1 1306- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1306- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1306- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 1306- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1306- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1306- ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 1306- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1306- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1306- ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 1306- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1306- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1306- ●
25 NIPPLE; GREASE,CENTER BRG
P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 1306- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1306- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1306- ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-1 01 1 1306- ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1306- ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1306- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 1306- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1306- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1306- ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 1306- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1306- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1306- ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1306- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16X45 		1-09042-030-0 02 1 1306- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1306- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P115 PROP SHAFT(C5X) (A) ID=17 		1-09503-241-1 02 1 1306- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P130 PROP SHAFT(BEE) (B) ID=15 		0-91614-614-0 02 1 1306- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16 SLOTTED 		8-98049-689-0 02 1 1306- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1306- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P115 PROP SHAFT(C5X) OD=3.7 L=25 		0-81124-025-0 02 1 1306- ● ●

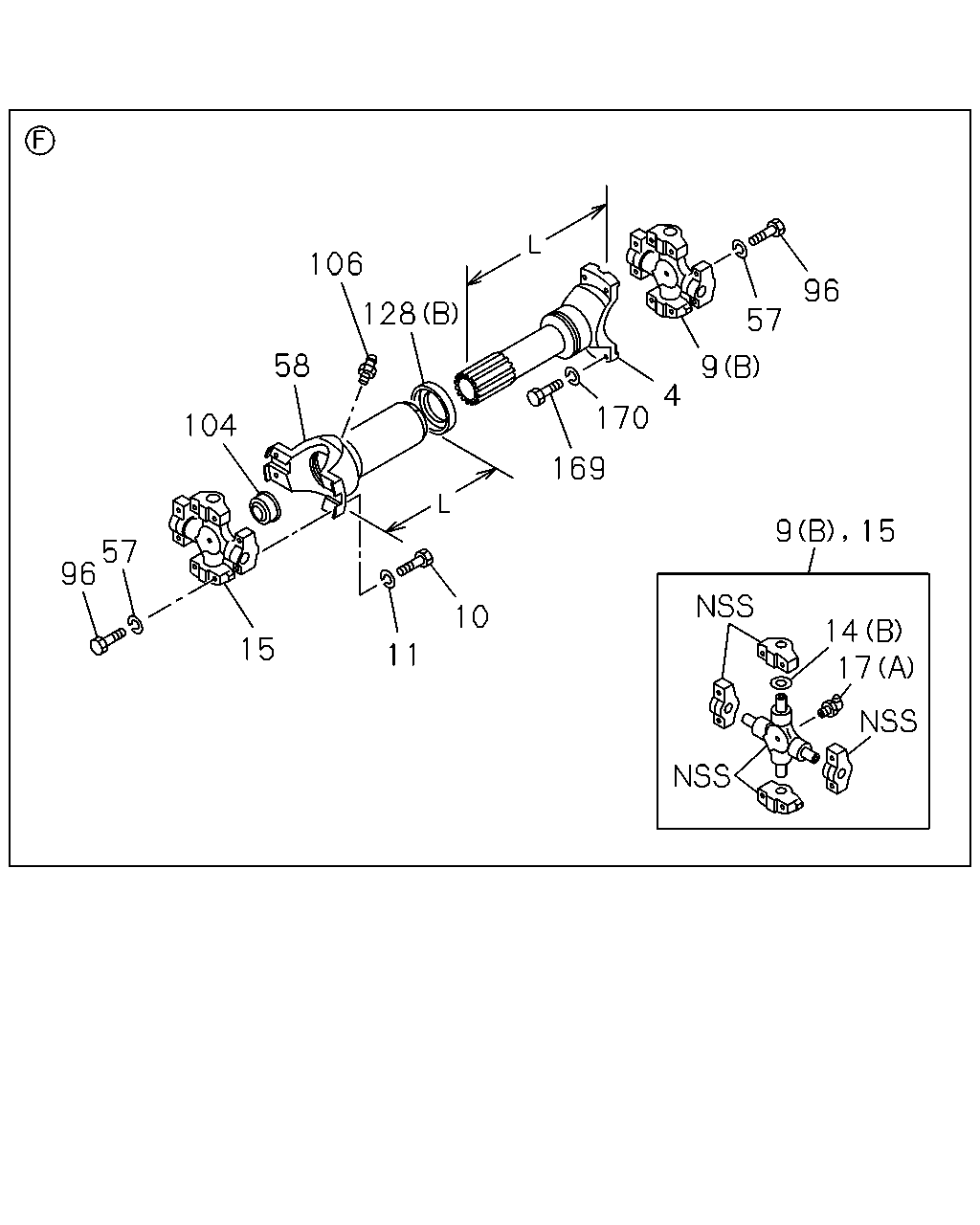

çizim 364437
106 96 4 9 57 170 15 169 10 11 15 57 96 104 128 58 9 14 17
BalonParca AdiParca NoAdetTipApplied Date A B
4 SHAFT; PROP
L=418 		1-37171-129-3 01 1 1306- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1306- ● ●
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 1306- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1306- ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 1306- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1306- ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1306- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1306- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1306- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1306- ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1306- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1306- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1306- ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1306- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1306- ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) 		1-09600-049-0 01 1 1306- ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1306- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1306- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1306- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1306- ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 1306- ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1306- ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1306- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1306- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1306- ● ●

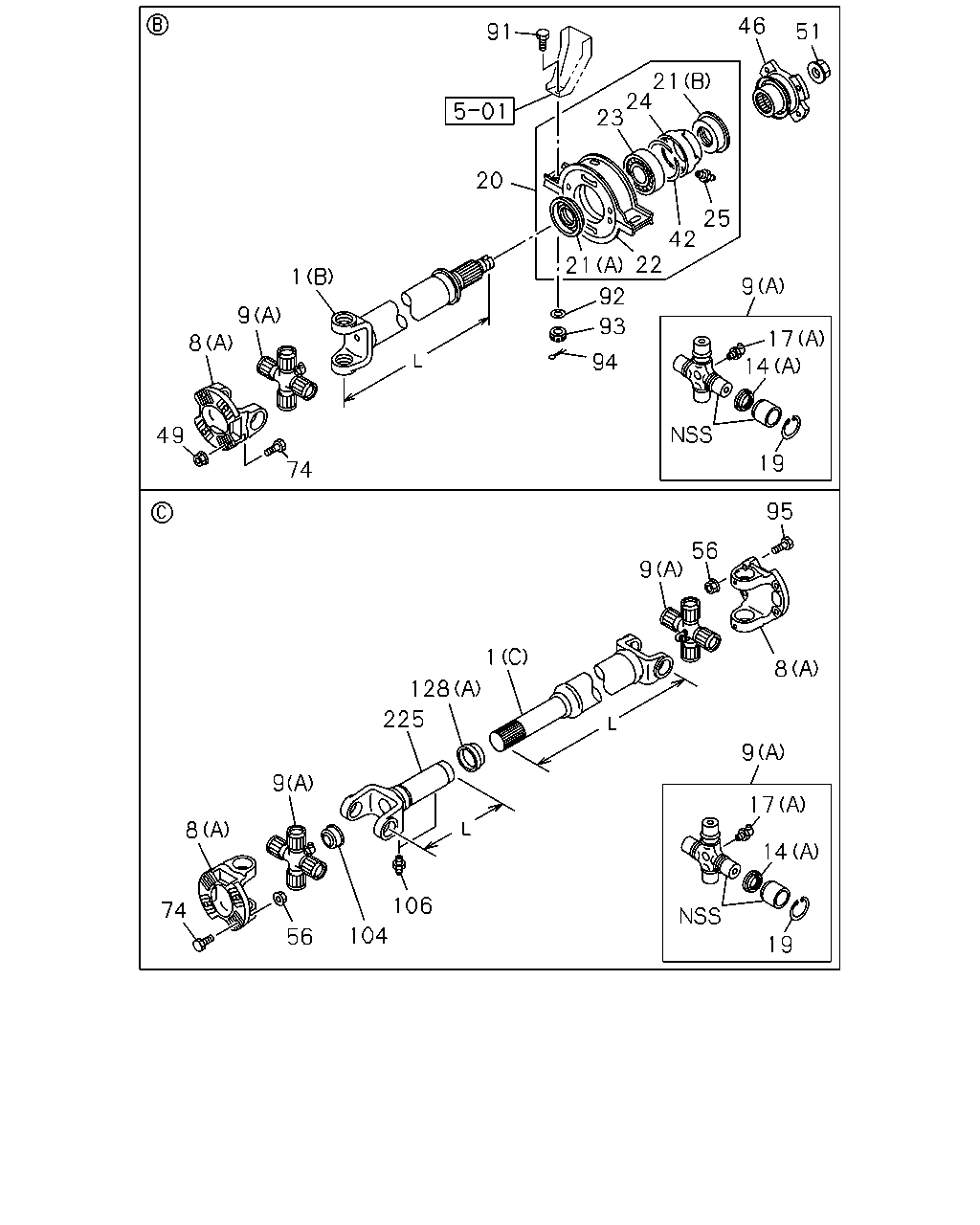

çizim 366639
91 21 23 24 46 51 25 22 21 42 9 17 19 14 94 93 92 95 56 9 8 9 17 14 19 106 104 56 74 8 9 225 1 128 1 74 8 9 49 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (C) L=1615 		1-37125-302-0 01 1 1306- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=874 		8-98030-327-0 01 1 1306- ●
1 SHAFT; PROP
(A) L=874 		8-98030-327-0 01 1 1306- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=870 		8-98145-460-0 01 1 1306- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (E) L=1950 		8-98145-465-0 01 1 1306- ●
1 SHAFT; PROP
(C) L=940 		1-37125-337-0 01 1 1306- ●
1 SHAFT; PROP
(B) L=1499 		8-98030-328-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 02 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1306- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1306- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1306- ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 1306- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1306- ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1306- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1306- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1306- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1306- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 08 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 04 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 08 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 04 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1306- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1306- ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-1 01 1 1306- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1306- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1306- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (A) OD=114 		1-09625-222-1 01 1 1306- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1306- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1306- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (B) OD=106 		1-09625-622-0 01 1 1306- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1306- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1306- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 1306- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1306- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1306- ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 1306- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1306- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1306- ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 1306- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1306- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1306- ●
25 NIPPLE; GREASE,CENTER BRG
P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 1306- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1306- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1306- ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-1 01 1 1306- ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1306- ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1306- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 1306- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1306- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1306- ●
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1306- ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 1306- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1306- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1306- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1306- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1306- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1306- ●
91 BOLT; HOLDER SET,CTR BRG
P115 PROP SHAFT(C5X) M16X45 		1-09042-030-0 02 1 1306- ●
92 WASHER; LK,HOLDER SET,CTR BRG
P115 PROP SHAFT(C5X) ID=17 		1-09503-241-1 02 1 1306- ●
93 NUT; HOLDER SET,CTR BRG
P115 PROP SHAFT(C5X) M16 SLOTTED 		8-98049-689-0 02 1 1306- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P115 PROP SHAFT(C5X) OD=3.7 L=25 		0-81124-025-0 02 1 1306- ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1306- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1306- ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) 		1-09600-049-0 01 1 1306- ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1306- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1306- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1306- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1306- ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 1306- ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1306- ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1306- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT(C5X) L=339 		1-37241-140-0 01 1 1306- ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
