Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#124635) — 341 parça

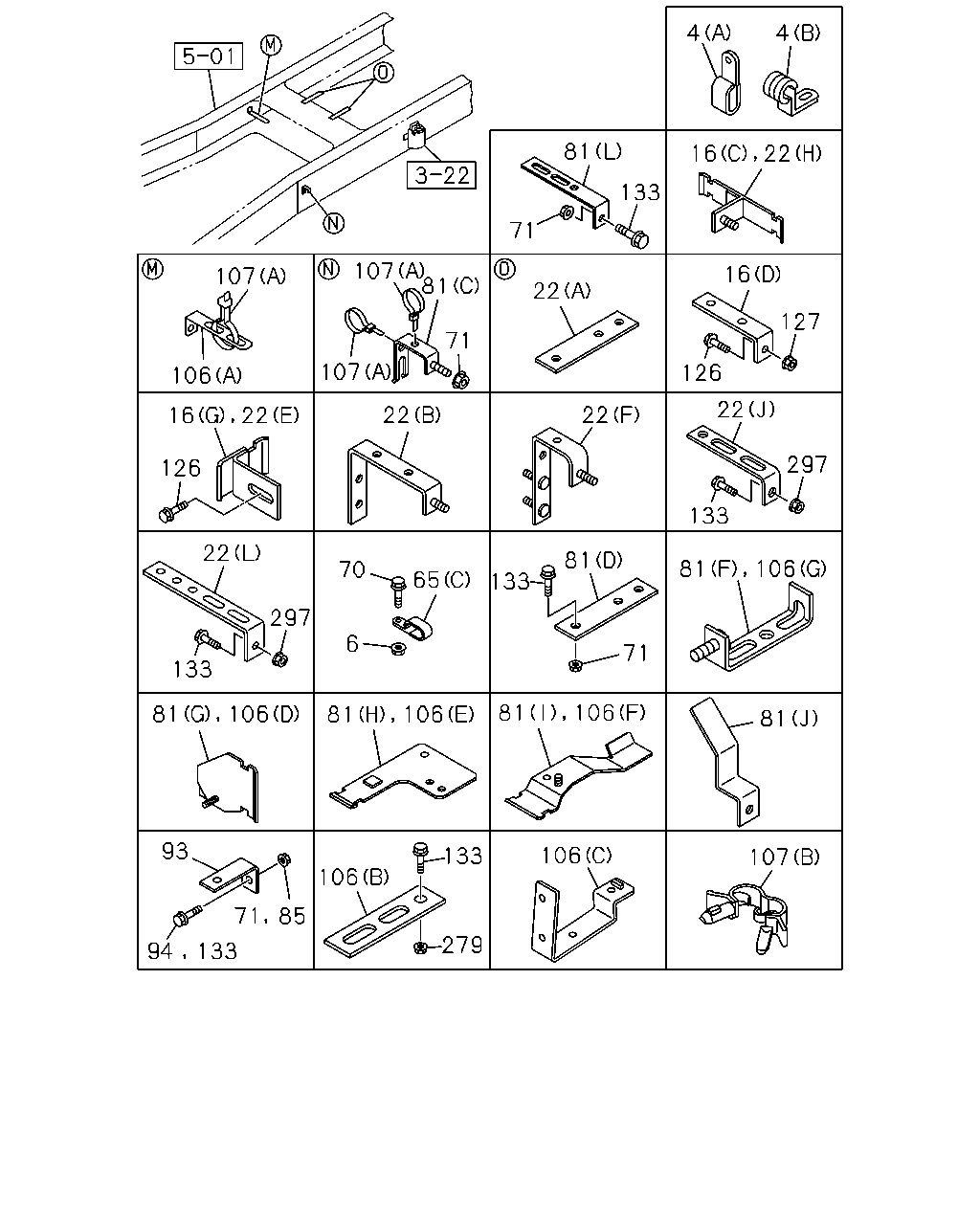

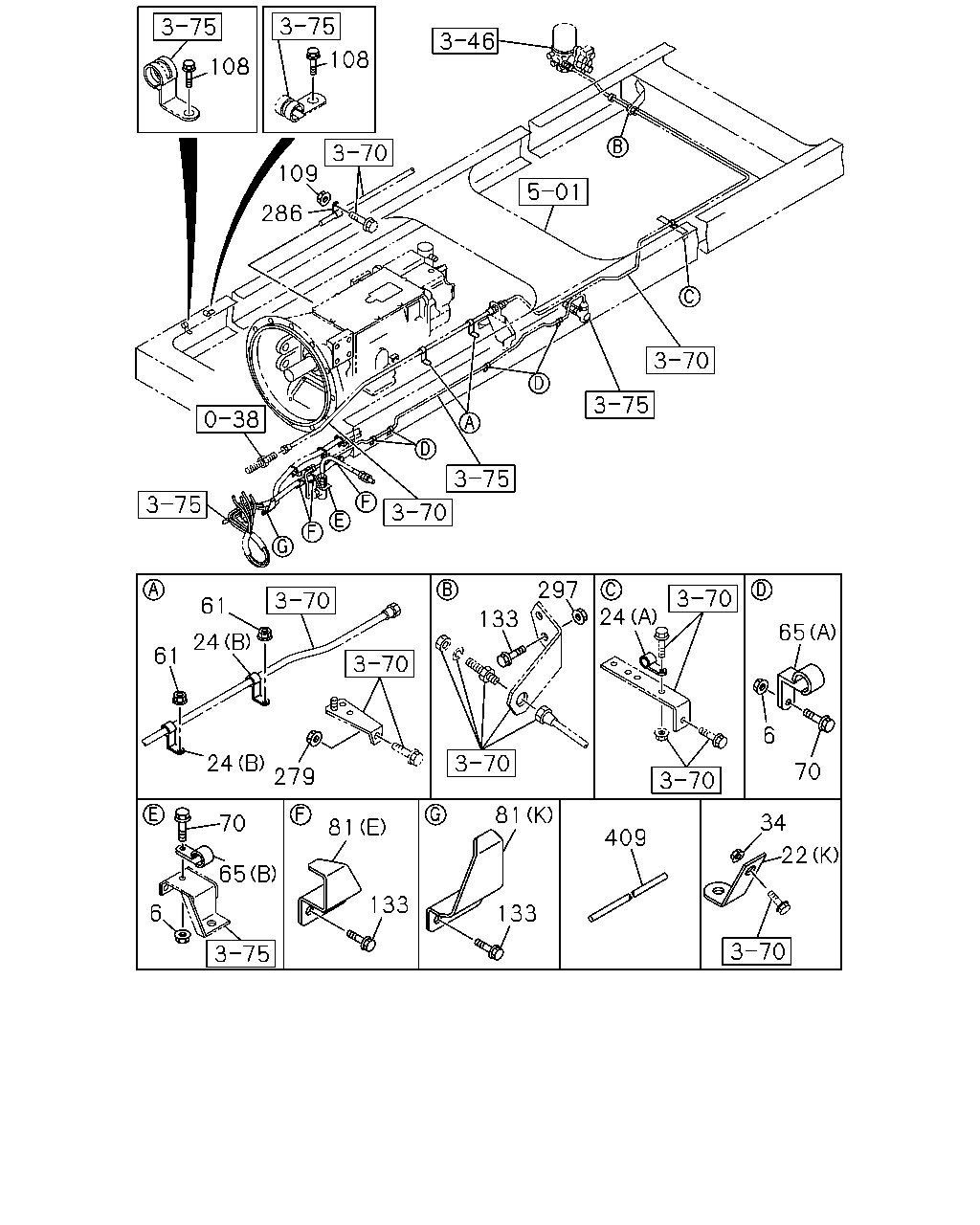

108 109 286 61 24 61 24 279 133 297 108 70 65 6 81 133 133 81 409 24 65 6 70 34 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	1306-
22	BRACKET; CLIP (A) L=150	1-47471-217-0	02	1	1306-
22	BRACKET; CLIP (K)	1-47477-571-3	01	1	1306-
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	1306-
22	BRACKET; CLIP (C)	1-47479-546-0	01	1	1306-
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	1306-
22	BRACKET; CLIP (I)	1-47479-722-1	01	1	1306-
22	BRACKET; CLIP (L) L=160 H=30	1-47479-759-0	03	1	1306-
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1306-
22	BRACKET; CLIP (G)	1-47479-898-0	01	1	1306-
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1306-
22	BRACKET; CLIP (J)	1-47479-754-0	01	1	1306-
22	BRACKET; CLIP WHEEL BASE 6500MM(65W) (E)	1-47479-693-0	02	1	1306-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W) (E)	1-47479-693-0	03	1	1306-
24	CLIP; PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1306-
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1306-
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1306-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1306-
65	CLIP; AIR PIPE (B) ID=13 L=20	0-95235-236-0	01	1	1306-
65	CLIP; AIR PIPE (C) ID=13X2 L=20	0-95325-235-0	01	1	1306-
65	CLIP; AIR PIPE (C) ID=16X2 L=20	0-95325-535-0	01	1	1306-
65	CLIP; AIR PIPE (A) ID=12 H=24 L=20	1-09700-605-0	03	1	1306-
70	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	04	1	1306-
70	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	04	1	1306-
81	BRACKET; CLIP (L) L=100 H=30	1-47477-645-2	01	1	1306-
81	BRACKET; CLIP (L) L=100 H=30	1-47477-645-2	01	1	1306-
81	BRACKET; CLIP (D) L=130	1-47478-959-0	02	1	1306-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1306-
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1306-
81	BRACKET; CLIP (H)	8-98052-412-0	01	1	1306-
81	BRACKET; CLIP (I)	8-98052-414-0	01	1	1306-
81	BRACKET; CLIP (F)	8-98061-758-0	02	1	1306-
81	BRACKET; CLIP (K)	8-98199-561-0	01	1	1306-
81	BRACKET; CLIP (E)	8-98199-562-1	03	1	1306-
81	BRACKET; CLIP (J)	8-98238-524-0	01	1	1306-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1306-
81	BRACKET; CLIP MJT7S M/T(Y3E) (C)	1-47479-381-2	01	1	1306-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	03	1	1306-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1306-
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-
108	BOLT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1306-
108	BOLT; TUBE CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1306-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1306-
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	0-91180-108-0	01	1	1306-
109	NUT; TUBE CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	0-91180-108-0	01	1	1306-
109	NUT; TUBE CLIP MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1306-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	1306-
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	1306-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	11	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	06	1	1306-
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1306-
133	BOLT; BRKT WHEEL BASE 7400MM(74W) M8X30 FLANGE	0-28650-830-0	03	1	1306-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1306-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
279	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1306-
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) ID=15 L=28	1-09701-216-0	01	1	1306-
286	CLIP; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) ID=18 L=28	1-09701-067-0	01	1	1306-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
297	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	12	1	1306-
297	NUT; BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	13	1	1306-
409	TUBE; DISTANCE TRANSMISSION CONTROL CABLE TYPE(C1A) L=22	9-22159-024-0	01	1	1306-

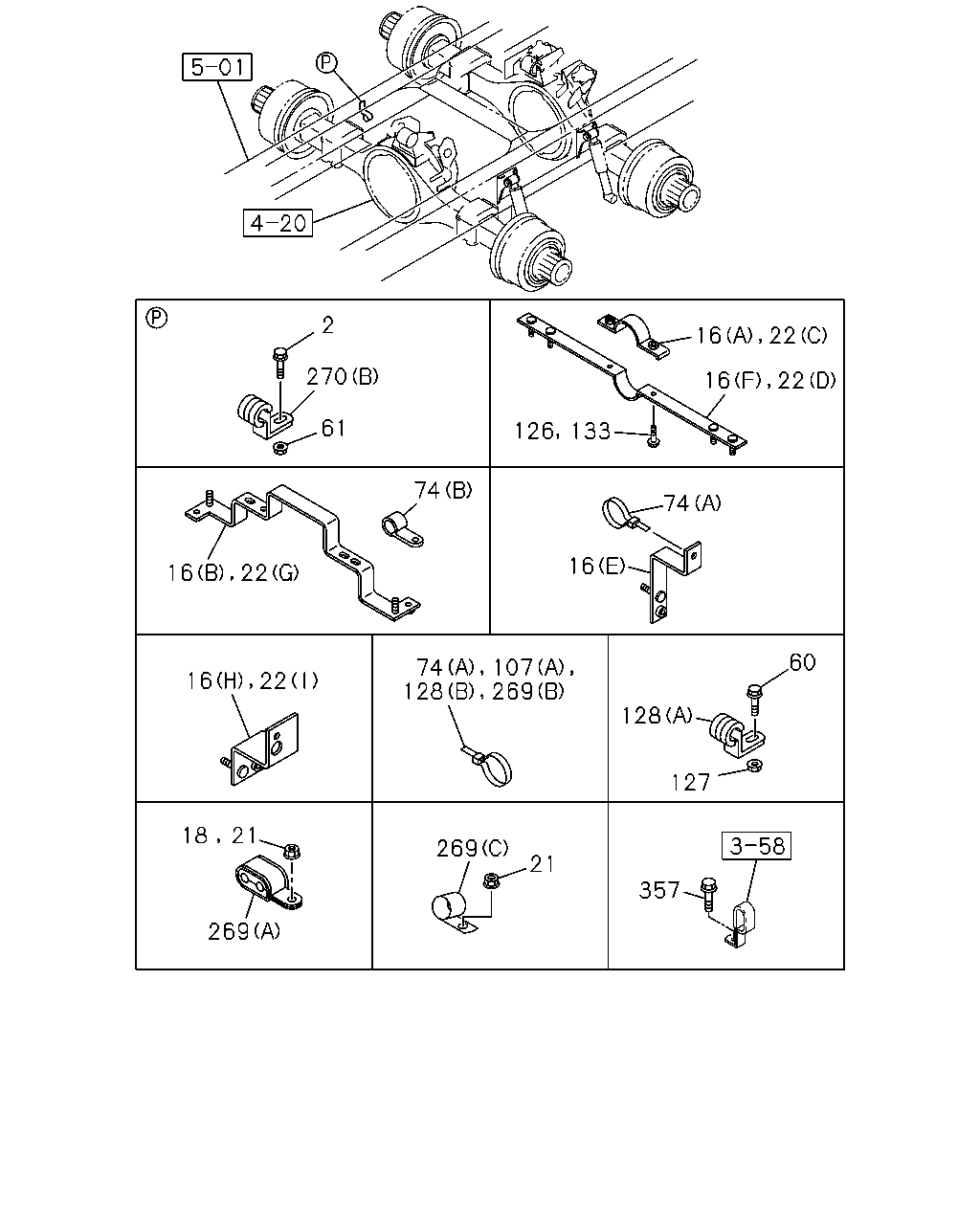

16 22 22 16 133 126 2 270 61 74 74 16 22 16 16 22 74 107 269 128 128 127 60 357 269 21 269 21 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1306-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1306-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1306-
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1306-
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1306-
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1306-
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1306-
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	1306-
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1306-
16	BRACKET; PIPE CLIP WHEEL BASE 6500MM(65W) (G)	1-47479-693-0	02	1	1306-
16	BRACKET; PIPE CLIP WHEEL BASE 7400MM(74W) (G)	1-47479-693-0	03	1	1306-
18	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	1306-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1306-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	1306-
22	BRACKET; CLIP (A) L=150	1-47471-217-0	02	1	1306-
22	BRACKET; CLIP (K)	1-47477-571-3	01	1	1306-
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	1306-
22	BRACKET; CLIP (C)	1-47479-546-0	01	1	1306-
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	1306-
22	BRACKET; CLIP (I)	1-47479-722-1	01	1	1306-
22	BRACKET; CLIP (L) L=160 H=30	1-47479-759-0	03	1	1306-
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1306-
22	BRACKET; CLIP (G)	1-47479-898-0	01	1	1306-
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1306-
22	BRACKET; CLIP (J)	1-47479-754-0	01	1	1306-
22	BRACKET; CLIP WHEEL BASE 6500MM(65W) (E)	1-47479-693-0	02	1	1306-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W) (E)	1-47479-693-0	03	1	1306-
60	BOLT; CLIP FIX M8X25 FLANGE	0-28650-825-0	02	1	1306-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1306-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1306-
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1306-
74	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	02	1	1306-
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	1306-
74	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	20	1	1306-
74	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W) (A) L=350	1-09707-183-0	24	1	1306-
107	CLIP; NYLON TUBE (C) ID=35 L=33	1-09700-945-0	02	1	1306-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1306-
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 L=28	1-09701-216-0	01	1	1306-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 L=28	1-09701-216-0	01	1	1306-
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1306-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1306-
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
126	BOLT; CLIP BRKT WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1306-
126	BOLT; CLIP BRKT WHEEL BASE 7400MM(74W) M8X30 FLANGE	0-28650-830-0	03	1	1306-
127	NUT; CLIP BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	04	1	1306-
127	NUT; CLIP BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	05	1	1306-
128	CLIP; NYLON TUBE (A) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-
128	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (B) L=350	1-09707-183-0	10	1	1306-
128	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W) (B) L=350	1-09707-183-0	14	1	1306-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	11	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	06	1	1306-
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1306-
133	BOLT; BRKT WHEEL BASE 7400MM(74W) M8X30 FLANGE	0-28650-830-0	03	1	1306-
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1306-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	1306-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	1306-
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	1306-
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1306-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	1306-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1306-
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	1306-

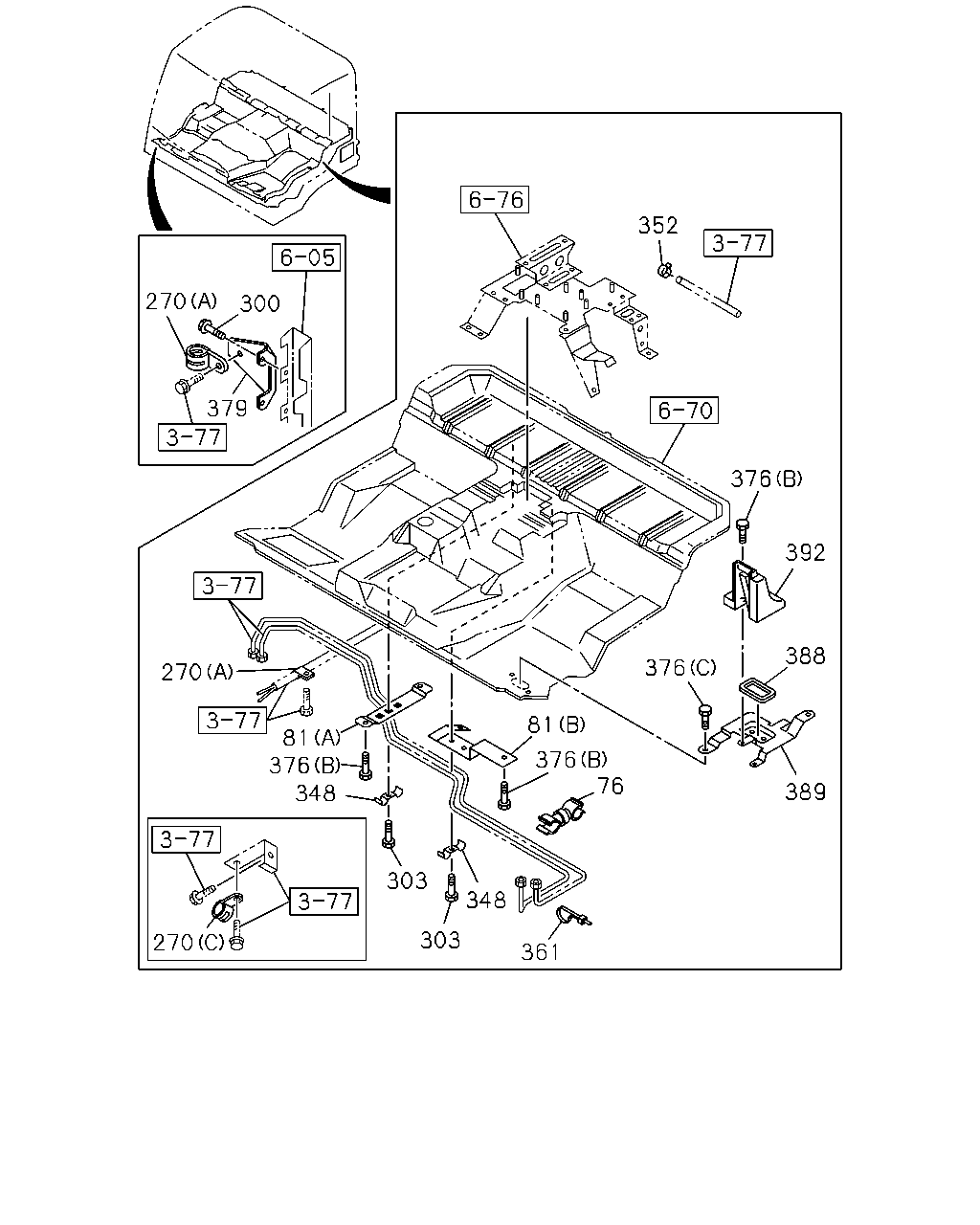

300 270 379 270 81 376 348 270 352 376 392 388 389 376 81 376 76 303 348 361 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	02	1	1306-
81	BRACKET; CLIP (L) L=100 H=30	1-47477-645-2	01	1	1306-
81	BRACKET; CLIP (L) L=100 H=30	1-47477-645-2	01	1	1306-
81	BRACKET; CLIP (D) L=130	1-47478-959-0	02	1	1306-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1306-
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1306-
81	BRACKET; CLIP (H)	8-98052-412-0	01	1	1306-
81	BRACKET; CLIP (I)	8-98052-414-0	01	1	1306-
81	BRACKET; CLIP (F)	8-98061-758-0	02	1	1306-
81	BRACKET; CLIP (K)	8-98199-561-0	01	1	1306-
81	BRACKET; CLIP (E)	8-98199-562-1	03	1	1306-
81	BRACKET; CLIP (J)	8-98238-524-0	01	1	1306-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1306-
81	BRACKET; CLIP MJT7S M/T(Y3E) (C)	1-47479-381-2	01	1	1306-
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1306-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	1306-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1306-
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	1306-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	1306-
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	03	1	1306-
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1306-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1306-
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	1306-
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	1306-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1306-
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1306-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	1306-
388	SEAL L=215	1-79738-794-1	01	1	1306-
389	BRACKET; UNION	1-79738-790-1	01	1	1306-
392	COVER; BRKT	1-73996-264-1	01	1	1306-

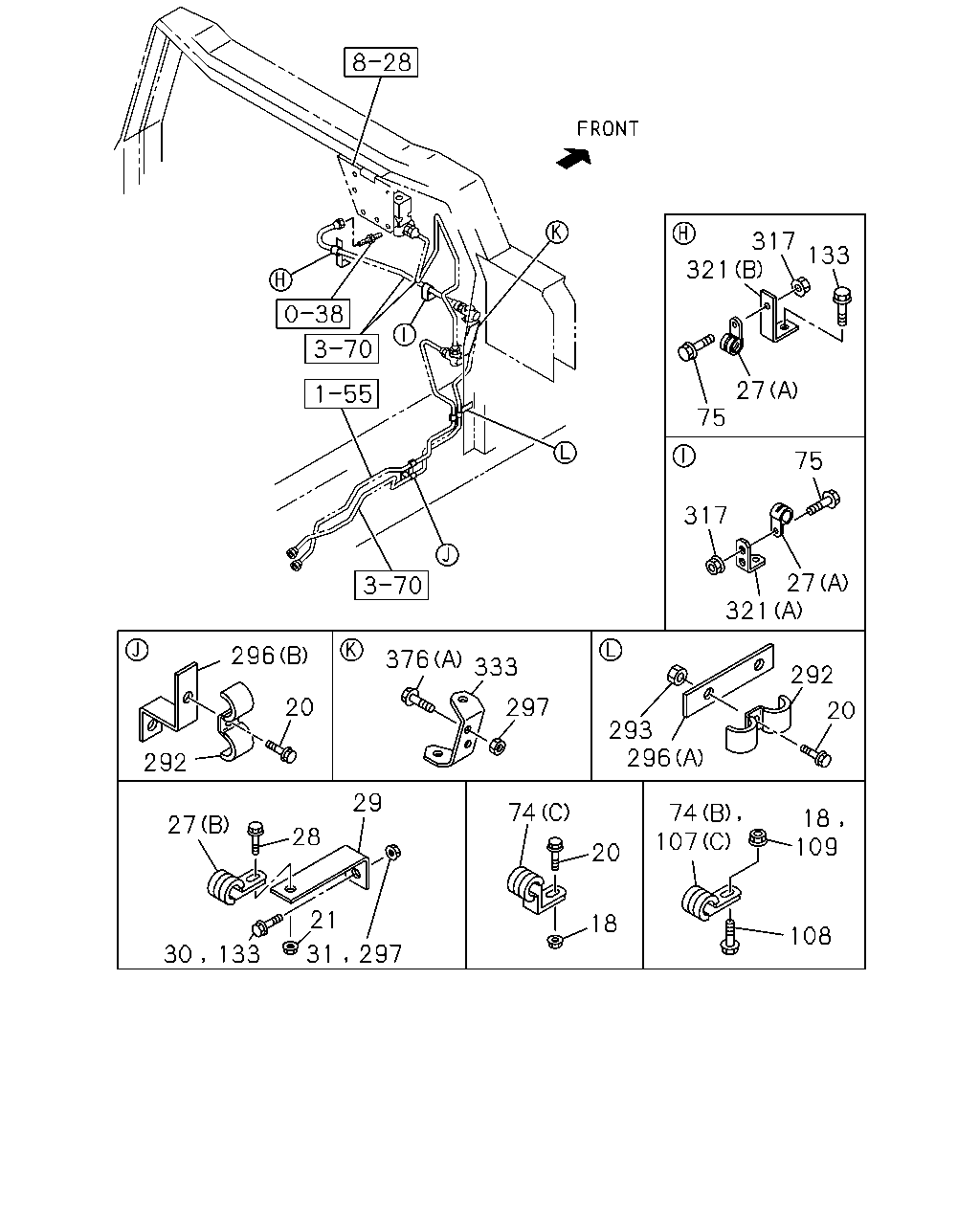

321 317 133 27 75 75 317 27 321 292 20 296 293 297 333 376 20 296 292 27 28 29 21 30 133 31 297 74 20 18 74 107 18 109 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	1306-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1306-
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1306-
20	BOLT; CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1306-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	1306-
27	CLIP; FLEX HOSE (B) ID=26 L=27	1-09701-006-0	01	1	1306-
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	1306-
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	01	1	1306-
29	BRACKET; CLIP,AIR PIPE L=145 B=25	1-47479-123-0	01	1	1306-
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1306-
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1306-
74	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	02	1	1306-
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	1306-
74	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	20	1	1306-
74	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W) (A) L=350	1-09707-183-0	24	1	1306-
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1306-
107	CLIP; NYLON TUBE (C) ID=35 L=33	1-09700-945-0	02	1	1306-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1306-
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 L=28	1-09701-216-0	01	1	1306-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 L=28	1-09701-216-0	01	1	1306-
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1306-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1306-
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	03	1	1306-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1306-
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-
108	BOLT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1306-
108	BOLT; TUBE CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1306-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1306-
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	0-91180-108-0	01	1	1306-
109	NUT; TUBE CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	0-91180-108-0	01	1	1306-
109	NUT; TUBE CLIP MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1306-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	1306-
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	1306-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	11	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	06	1	1306-
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1306-
133	BOLT; BRKT WHEEL BASE 7400MM(74W) M8X30 FLANGE	0-28650-830-0	03	1	1306-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	1306-
293	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1306-
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	1306-
296	BRACKET; CLIP (B) L=85 H=40	1-47476-676-0	01	1	1306-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
297	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	12	1	1306-
297	NUT; BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	13	1	1306-
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1306-
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	1306-
321	BRACKET; CLIP MJX16P M/T(Y3Z) (A)	1-47477-337-1	01	1	1306-
333	BRACKET; BRK AIR PIPE	1-47477-045-0	01	1	1306-
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	1306-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1306-
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1306-

107 106 107 107 71 81 22 4 4 81 71 133 16 22 16 126 127 16 22 126 22 22 22 133 297 22 297 133 70 65 6 133 81 81 106 81 106 81 106 81 106 81 93 94 133 71 85 279 133 106 106 107 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE (A) ID=16X2 L=20	0-95325-535-0	01	1	1306-
4	CLIP; AIR PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	1306-
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	1306-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1306-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1306-
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1306-
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1306-
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1306-
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1306-
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	1306-
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1306-
16	BRACKET; PIPE CLIP WHEEL BASE 6500MM(65W) (G)	1-47479-693-0	02	1	1306-
16	BRACKET; PIPE CLIP WHEEL BASE 7400MM(74W) (G)	1-47479-693-0	03	1	1306-
22	BRACKET; CLIP (A) L=150	1-47471-217-0	02	1	1306-
22	BRACKET; CLIP (K)	1-47477-571-3	01	1	1306-
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	1306-
22	BRACKET; CLIP (C)	1-47479-546-0	01	1	1306-
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	1306-
22	BRACKET; CLIP (I)	1-47479-722-1	01	1	1306-
22	BRACKET; CLIP (L) L=160 H=30	1-47479-759-0	03	1	1306-
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1306-
22	BRACKET; CLIP (G)	1-47479-898-0	01	1	1306-
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1306-
22	BRACKET; CLIP (J)	1-47479-754-0	01	1	1306-
22	BRACKET; CLIP WHEEL BASE 6500MM(65W) (E)	1-47479-693-0	02	1	1306-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W) (E)	1-47479-693-0	03	1	1306-
65	CLIP; AIR PIPE (B) ID=13 L=20	0-95235-236-0	01	1	1306-
65	CLIP; AIR PIPE (C) ID=13X2 L=20	0-95325-235-0	01	1	1306-
65	CLIP; AIR PIPE (C) ID=16X2 L=20	0-95325-535-0	01	1	1306-
65	CLIP; AIR PIPE (A) ID=12 H=24 L=20	1-09700-605-0	03	1	1306-
70	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	04	1	1306-
70	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	04	1	1306-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1306-
71	NUT; BRKT MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1306-
81	BRACKET; CLIP (L) L=100 H=30	1-47477-645-2	01	1	1306-
81	BRACKET; CLIP (L) L=100 H=30	1-47477-645-2	01	1	1306-
81	BRACKET; CLIP (D) L=130	1-47478-959-0	02	1	1306-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1306-
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1306-
81	BRACKET; CLIP (H)	8-98052-412-0	01	1	1306-
81	BRACKET; CLIP (I)	8-98052-414-0	01	1	1306-
81	BRACKET; CLIP (F)	8-98061-758-0	02	1	1306-
81	BRACKET; CLIP (K)	8-98199-561-0	01	1	1306-
81	BRACKET; CLIP (E)	8-98199-562-1	03	1	1306-
81	BRACKET; CLIP (J)	8-98238-524-0	01	1	1306-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1306-
81	BRACKET; CLIP MJT7S M/T(Y3E) (C)	1-47479-381-2	01	1	1306-
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	1306-
93	BRACKET; PIPE CLIP L=75	1-47478-323-0	01	1	1306-
93	BRACKET; PIPE CLIP L=95	1-82699-085-0	02	1	1306-
94	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	03	1	1306-
106	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	1306-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	1306-
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	1306-
106	BRACKET; TUBE CLIP (E)	8-98052-408-0	01	1	1306-1412
106	BRACKET; TUBE CLIP (E)	8-98297-188-0	01	1	1501-
106	BRACKET; TUBE CLIP (F)	8-98052-410-0	01	1	1306-
106	BRACKET; TUBE CLIP (G)	8-98061-758-0	01	1	1306-
106	BRACKET; TUBE CLIP (C)	8-98224-856-1	01	1	1306-
107	CLIP; NYLON TUBE (C) ID=35 L=33	1-09700-945-0	02	1	1306-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1306-
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 L=28	1-09701-216-0	01	1	1306-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 L=28	1-09701-216-0	01	1	1306-
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1306-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1306-
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
126	BOLT; CLIP BRKT WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1306-
126	BOLT; CLIP BRKT WHEEL BASE 7400MM(74W) M8X30 FLANGE	0-28650-830-0	03	1	1306-
127	NUT; CLIP BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	04	1	1306-
127	NUT; CLIP BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	05	1	1306-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	11	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	06	1	1306-
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1306-
133	BOLT; BRKT WHEEL BASE 7400MM(74W) M8X30 FLANGE	0-28650-830-0	03	1	1306-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1306-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
279	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1306-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
297	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	12	1	1306-
297	NUT; BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	13	1	1306-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
