◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11533 - CYH LHD EURO2 WITH REFLECTOR ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#124632) — 207 parça

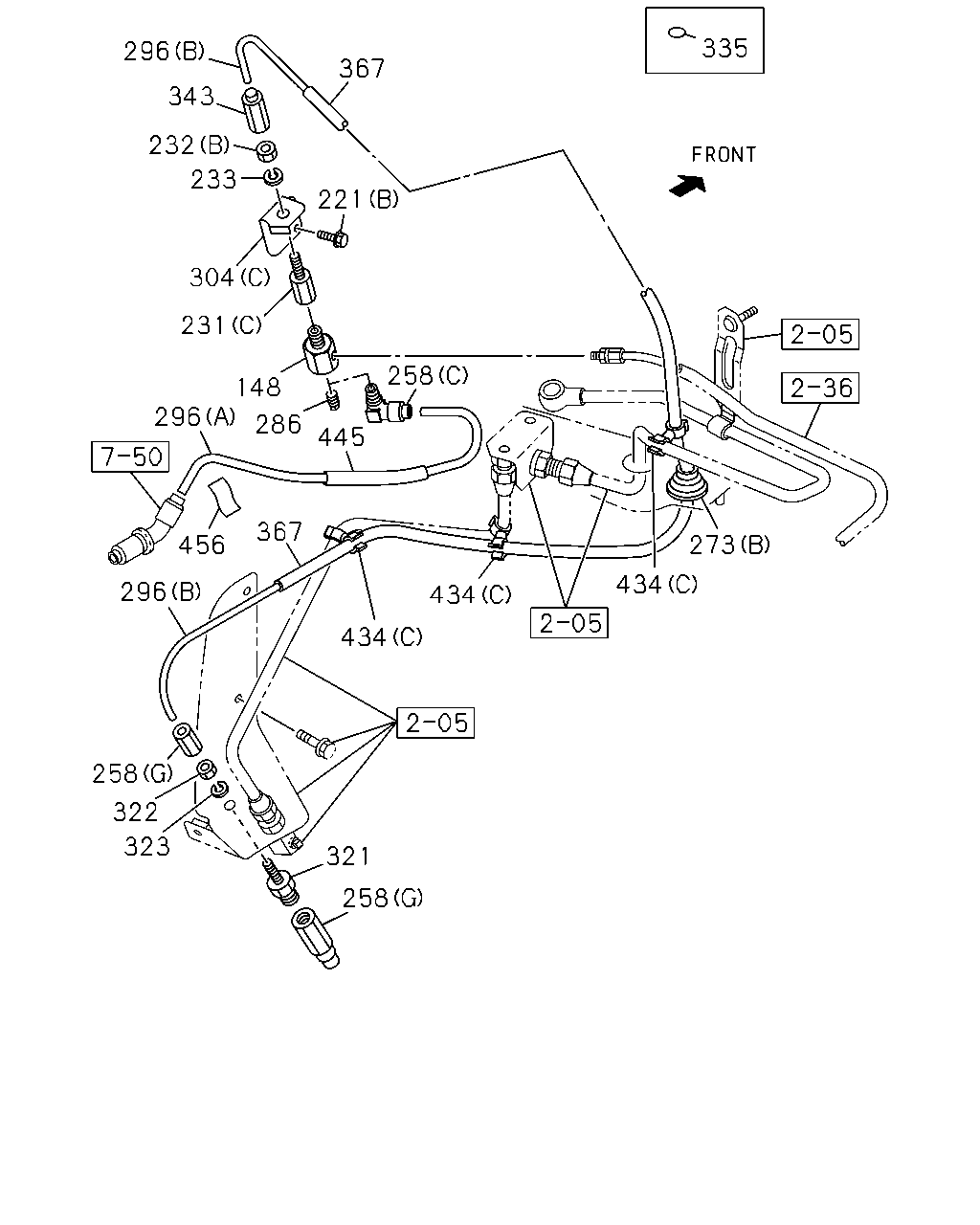

çizim 364374
258 321 323 322 258 434 296 456 434 273 434 367 296 148 286 445 258 335 367 296 343 232 233 221 304 231
BalonParca AdiParca NoAdetTipApplied Date
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) 		8-94338-417-0 01 1 1306-
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 1306-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 1306-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
232 NUT; UNION,AIR PIPE
(A) M10 		0-91110-510-0 01 1 1306-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 H=8 		1-09400-029-0 01 1 1306-
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) M10 H=8 		1-09400-029-0 01 1 1306-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1306-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 1306-
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) ID=10.2 		0-91510-510-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1306-
273 GROMMET
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09332-102-0 01 1 1306-
273 GROMMET
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (B) 		1-09332-102-0 01 1 1306-
286 PLUG; AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) 		9-09204-510-0 01 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1306-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 1306-
304 BRACKET; UNION
(B) 		8-98207-960-0 01 1 1306-
304 BRACKET; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-71117-210-0 01 1 1306-
304 BRACKET; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (C) 		1-71117-210-0 01 1 1306-
321 JOINT; FLEX HOSE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		0-92113-306-0 01 1 1306-
321 JOINT; FLEX HOSE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) M12 L=66.5 		0-92113-306-0 01 1 1306-
322 NUT; JOINT,FLEX HOSE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 1306-
322 NUT; JOINT,FLEX HOSE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) M12 		9-09840-280-0 01 1 1306-
323 WASHER; LK,JOINT
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		0-91510-512-0 01 1 1306-
323 WASHER; LK,JOINT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) ID=12.2 		0-91510-512-0 01 1 1306-
335 SEAL; UNION
MJT7S M/T(Y3E) RIGID SEAT W/ARM REST(SGC) OD=30 BLACK 		1-76798-035-0 01 1 1306-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1306-
343 UNION; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1306-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) 		1-09660-796-1 01 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1306-
434 CLIP
(B) L=350 		1-09707-183-0 01 1 1306-
434 CLIP
(A) ID=10 & 10 		1-09709-221-0 01 1 1306-
434 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-
434 CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1306-
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-1 01 1 1306-
çizim 364464
434 337 232 330 337 231 330 232 343 297 343 231 334 372 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-418-2 01 1 1306-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 1306-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 1306-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
232 NUT; UNION,AIR PIPE
(A) M10 		0-91110-510-0 01 1 1306-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 H=8 		1-09400-029-0 01 1 1306-
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) M10 H=8 		1-09400-029-0 01 1 1306-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1306-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1306-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 1306-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1306-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 1306-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1306-
343 UNION; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1306-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) 		1-09660-796-1 01 1 1306-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1306-
434 CLIP
(B) L=350 		1-09707-183-0 01 1 1306-
434 CLIP
(A) ID=10 & 10 		1-09709-221-0 01 1 1306-
434 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-
434 CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-

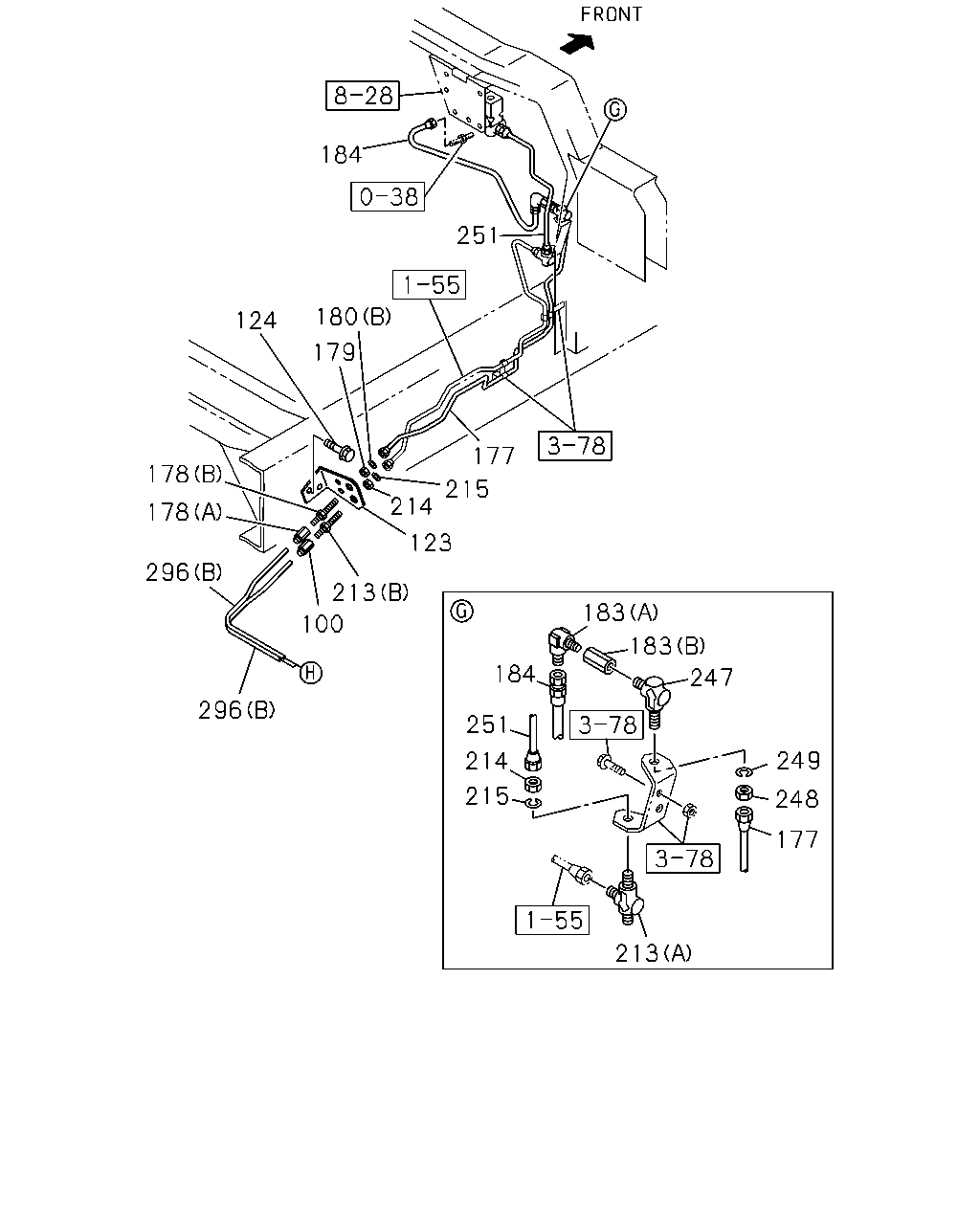

çizim 364465
184 251 179 124 178 178 296 100 213 214 123 215 177 296 183 183 184 247 251 214 215 249 248 177 213 180
BalonParca AdiParca NoAdetTipApplied Date
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1306-
123 BRACKET; UNION 1-47479-146-0 01 1 1306-
124 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1306-
177 PIPE; AIR,UNION TO UNION
L=1003 SERVICED BY L=1100 		1-47428-815-0 01 1 1306-
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1306-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1306-
179 NUT; UNION
M12 		9-09840-280-0 01 1 1306-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 1306-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 01 1 1306-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 01 1 1306-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1306-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1306-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1306-
213 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1306-
213 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 1306-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1306-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1306-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1306-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1306-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1306-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1306-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1306-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1306-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-

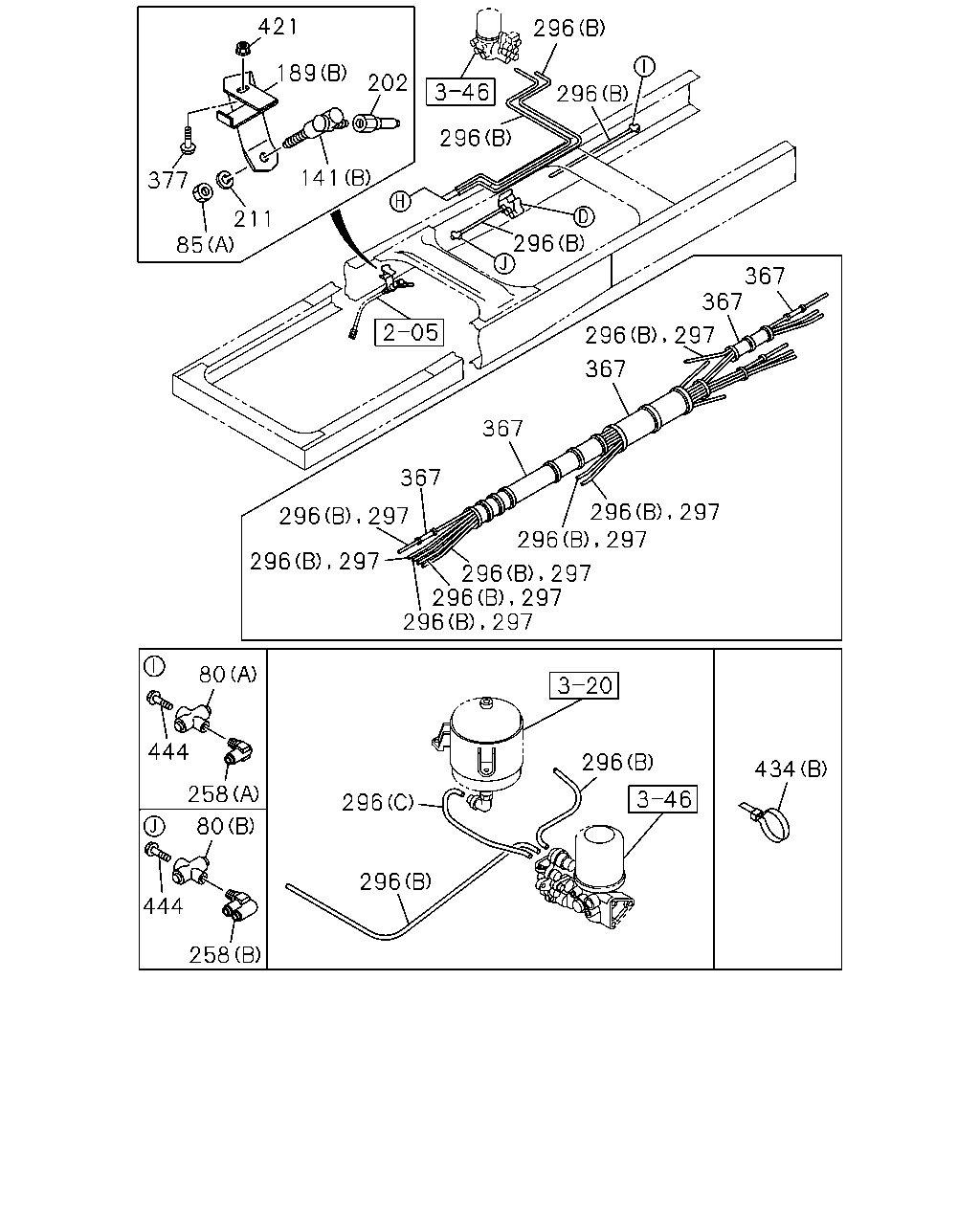

çizim 365742
421 189 202 296 296 296 296 141 211 377 85 367 296 297 367 367 367 367 296 296 297 297 297 296 296 296 296 296 297 297 297 296 434 296 296 258 444 80 258 444 80 297
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
(B) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1306-
80 UNION; 3 WAY
MJX16P M/T(Y3Z) (A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1306-
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1306-
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1306-
85 NUT; UNION
MJX16P M/T(Y3Z) (A) M12 		0-91111-512-0 01 1 1306-
141 UNION; FLEX HOSE
(A) M22 & M30 STRAIGHT 		1-09664-237-1 01 1 1306-
141 UNION; FLEX HOSE
(A) M22 & M30 STRAIGHT 		1-09664-237-1 01 1 1306-
141 UNION; FLEX HOSE
MJX16P M/T(Y3Z) (B) M12 ELBOW 		0-92125-006-0 01 1 1306-
189 BRACKET; FLEX HOSE
(A) 		8-98144-753-0 01 1 1306-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (B) 		8-98246-507-0 01 1 1306-
202 ADAPTER
MJX16P M/T(Y3Z) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
211 WASHER; LK,UNION
MJX16P M/T(Y3Z) ID=12.2 		0-91510-812-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1306-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1306-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1306-
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 01 1 1306-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
421 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 1306-
434 CLIP
(B) L=350 		1-09707-183-0 01 1 1306-
434 CLIP
(A) ID=10 & 10 		1-09709-221-0 01 1 1306-
434 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-
434 CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-
444 BOLT; UNION
M8X30 FLANGE 		0-28650-830-0 01 1 1306-
444 BOLT; UNION
MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 01 1 1306-

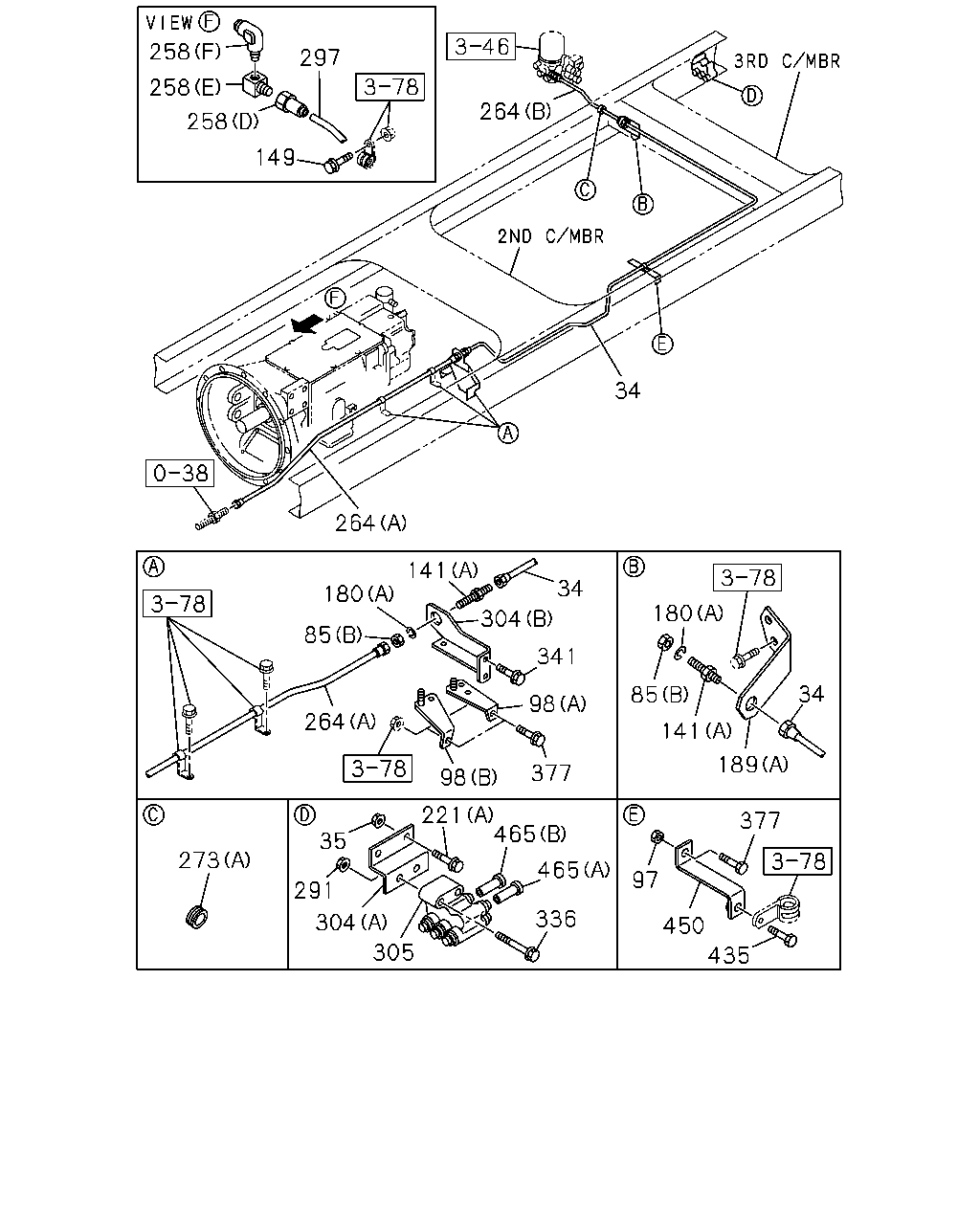

çizim 366807
258 258 258 149 297 264 264 180 141 85 304 341 98 377 98 264 221 291 273 304 305 336 465 465 180 85 141 189 34 377 450 97 34 435 34 35
BalonParca AdiParca NoAdetTipApplied Date
34 PIPE; AIR
L=1237 		8-98207-961-0 01 1 1306-
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1306-
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1306-
85 NUT; UNION
MJX16P M/T(Y3Z) (A) M12 		0-91111-512-0 01 1 1306-
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1306-
98 BRACKET; AIR PIPE
(B) 		1-47471-283-0 01 1 1306-
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 1306-
141 UNION; FLEX HOSE
(A) M22 & M30 STRAIGHT 		1-09664-237-1 01 1 1306-
141 UNION; FLEX HOSE
(A) M22 & M30 STRAIGHT 		1-09664-237-1 01 1 1306-
141 UNION; FLEX HOSE
MJX16P M/T(Y3Z) (B) M12 ELBOW 		0-92125-006-0 01 1 1306-
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
149 BOLT; TUBE CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X50 FLANGE 		0-28050-850-0 01 1 1306-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 1306-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 01 1 1306-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 01 1 1306-
189 BRACKET; FLEX HOSE
(A) 		8-98144-753-0 01 1 1306-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (B) 		8-98246-507-0 01 1 1306-
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
258 CONNECTOR; NYLON TUBE
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
264 HOSE; FLEX
(A) L=980 		1-09363-872-0 01 1 1306-
264 HOSE; FLEX
(B) L=880 		1-09363-920-0 01 1 1306-
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1306-
273 GROMMET
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09332-102-0 01 1 1306-
273 GROMMET
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (B) 		1-09332-102-0 01 1 1306-
291 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1306-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1306-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 1306-
304 BRACKET; UNION
(B) 		8-98207-960-0 01 1 1306-
304 BRACKET; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-71117-210-0 01 1 1306-
304 BRACKET; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (C) 		1-71117-210-0 01 1 1306-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1306-
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1306-
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1306-
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1306-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1306-
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 01 1 1306-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
450 BRACKET; CLIP 1-46147-101-0 01 1 1306-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1306-
465 PLUG
MJT7S M/T(Y3E) CAB SUSPENSION-FULL FLOATING(SMK) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1306-
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1306-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
