3-22 — AIR CONTROL PARTS (#124624) — 134 parça

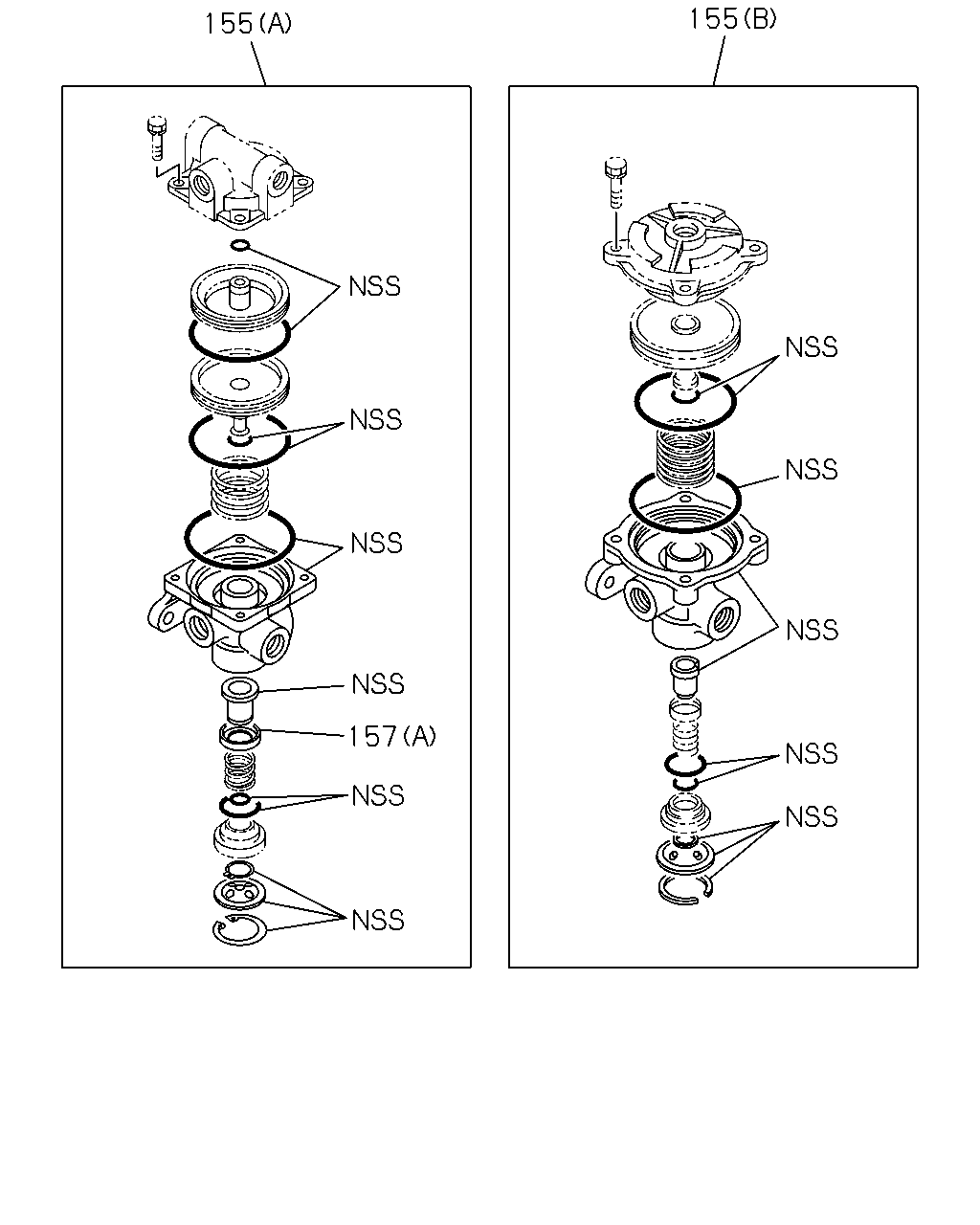

çizim 363301
155 157 155
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 02 1 1306-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 1306-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 1306-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-035-0 01 1 1306-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1306-
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1306-
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1306-
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1306-
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1306-
çizim 363303
216 262 158 157 13 45
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE 8-98170-207-0 02 1 1306-
45 VALVE; QUICK RELEASE 8-98170-207-0 02 1 1306-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1306-
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1306-
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1306-
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1306-
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1306-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1306-
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1306-
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1306-
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1306-
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1306-
216 REPAIR KIT; QUICK RELEASE VLV 8-98171-596-0 02 1 1306-
216 REPAIR KIT; QUICK RELEASE VLV 8-98171-596-0 02 1 1306-
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1306-
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1306-

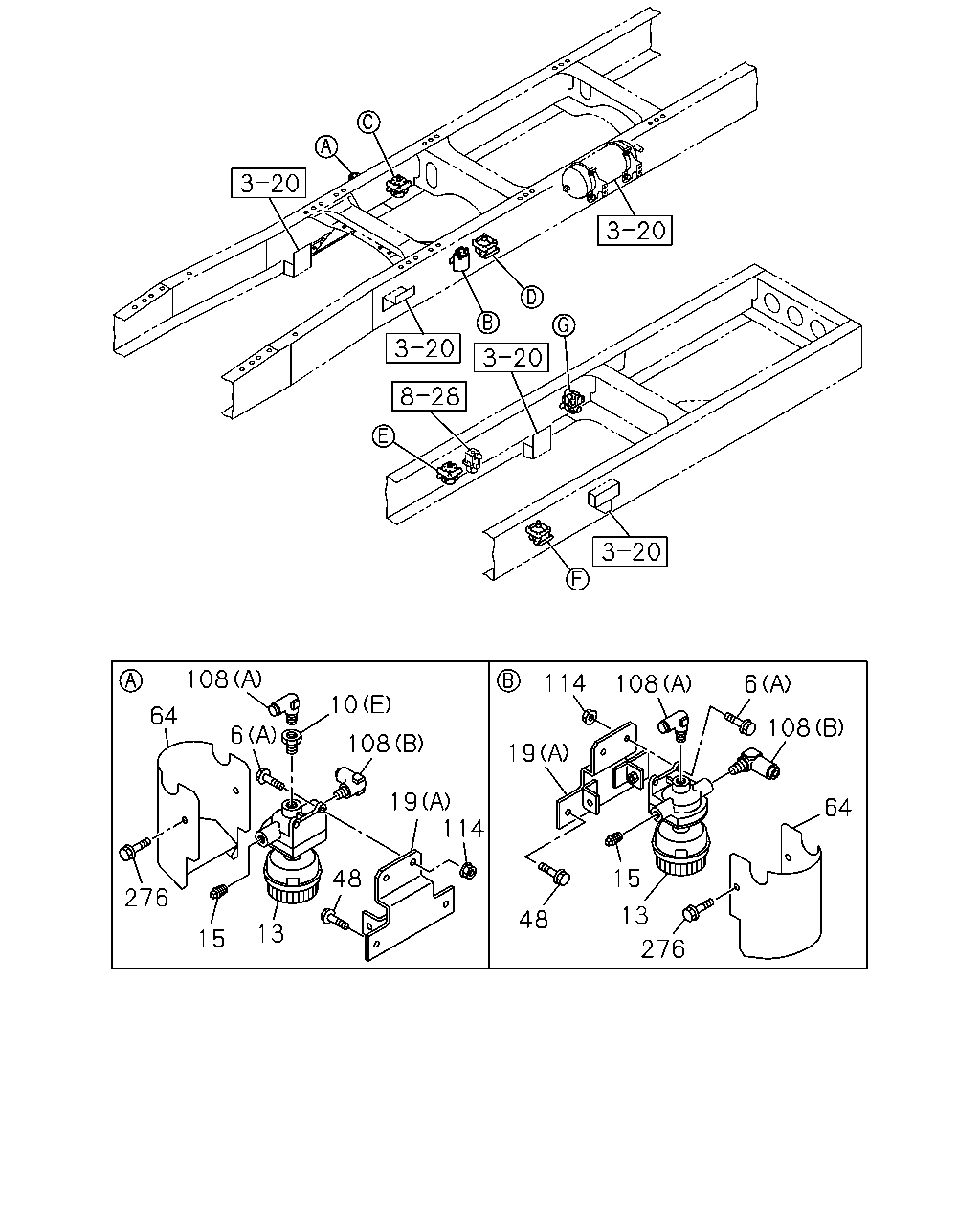

çizim 364079
108 64 276 6 10 108 19 114 48 13 15 114 108 19 6 108 48 15 13 276 64
BalonParca AdiParca NoAdetTipApplied Date
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1306-
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1306-
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1306-
10 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1306-
10 CONNECTOR
(E) PT3/8 		1-09664-210-0 01 1 1306-
10 CONNECTOR
(D) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 1306-
13 VALVE ASM; QUICK RELEASE 8-98170-207-0 02 1 1306-
15 PLUG; VALVE
PT3/8 		9-09204-517-0 02 1 1306-
19 BRACKET; QUICK RELEASE VLV
(A) 		1-47471-014-0 02 1 1306-
19 BRACKET; QUICK RELEASE VLV
(B) 		1-47471-390-0 02 1 1306-
48 BOLT; QUICK RELEASE VLV
M8X35 FLANGE 		0-28650-835-0 04 1 1306-
64 PROTECTOR; QUICK RELEASE VALVE 8-98043-421-0 02 1 1306-
108 CONNECTOR; ELBOW
(B) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1306-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1306-
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 04 1 1306-
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 04 1 1306-

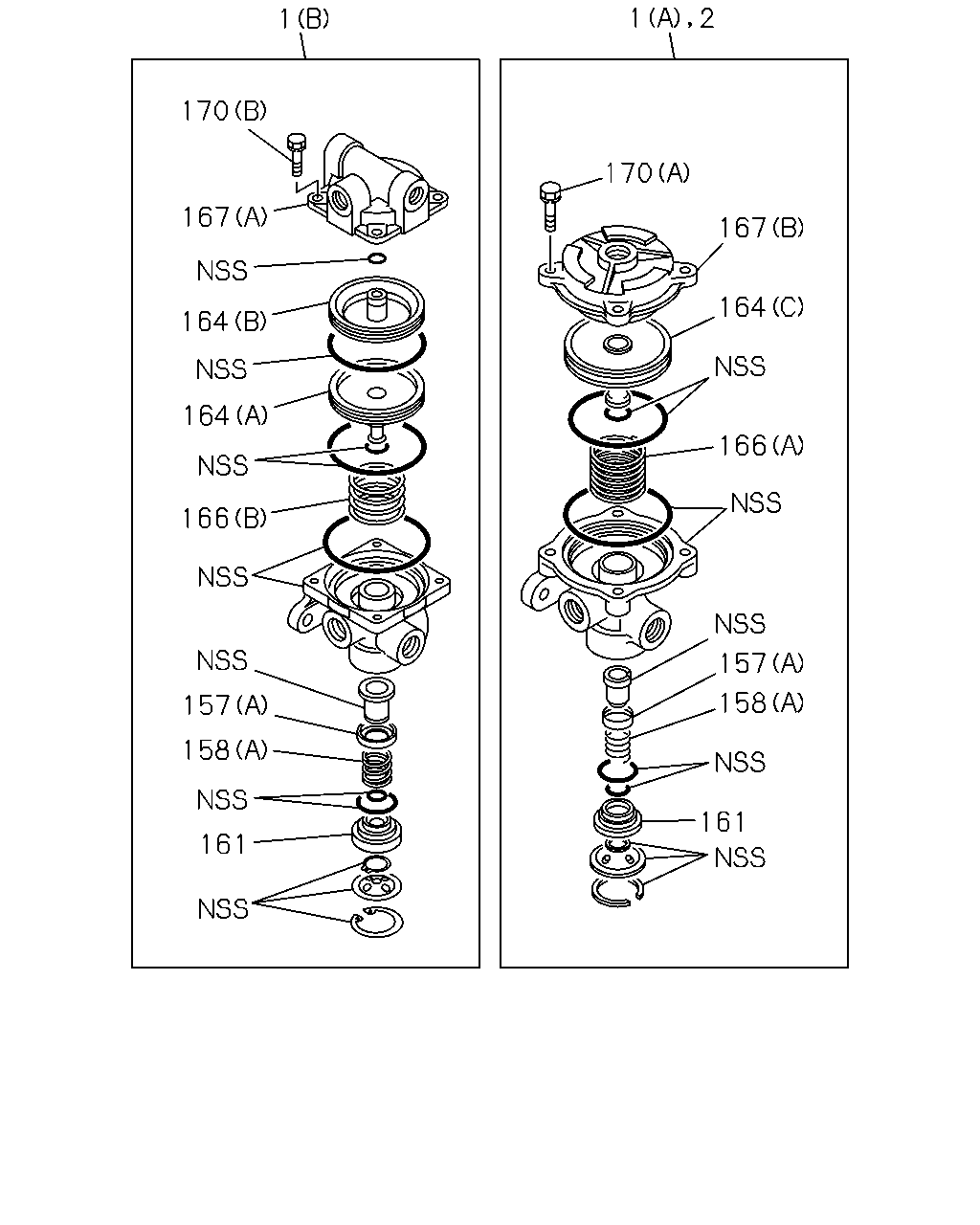

çizim 364203
1 2 170 167 164 166 157 158 161 161 158 157 166 164 164 167 170 1
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR
(A) 		1-48210-875-0 01 1 1306-
1 VALVE; RELAY RWD RR
(B) 		1-48240-041-1 01 1 1306-
2 VALVE; RELAY 1-48210-875-0 01 1 1306-
2 VALVE; RELAY 1-48210-875-0 02 1 1306-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1306-
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1306-
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1306-
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1306-
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1306-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1306-
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1306-
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1306-
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1306-
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1306-
161 GUIDE; VALVE 1-48129-014-0 01 1 1306-
161 GUIDE; VALVE 1-48129-014-0 02 1 1306-
161 GUIDE; VALVE 1-48129-014-0 02 1 1306-
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 1306-
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 1306-
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 02 1 1306-
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1306-
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1306-
166 SPRING; PISTON
(A) 		1-47819-090-0 02 1 1306-
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1306-
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1306-
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 1306-
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 1306-
167 COVER; VALVE
(B) 		1-48219-070-0 02 1 1306-
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1306-
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1306-
167 COVER; VALVE
(C) 		8-98043-421-0 02 1 1306-
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 08 1 1306-
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1306-
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1306-
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 1306-

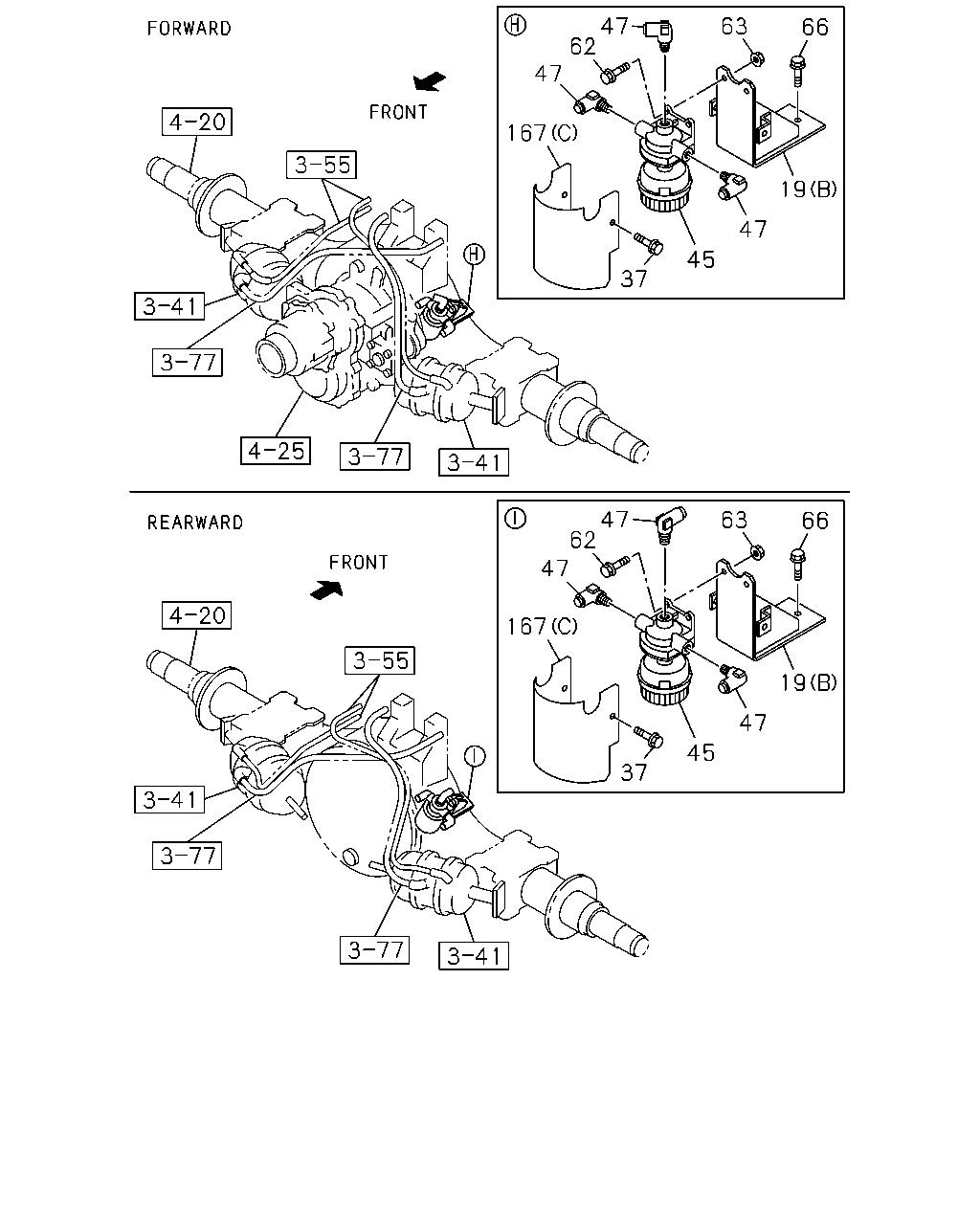

çizim 364210
47 63 66 19 47 45 37 167 47 62 47 167 62 47 37 47 45 19 66 63
BalonParca AdiParca NoAdetTipApplied Date
19 BRACKET; QUICK RELEASE VLV
(A) 		1-47471-014-0 02 1 1306-
19 BRACKET; QUICK RELEASE VLV
(B) 		1-47471-390-0 02 1 1306-
37 BOLT; COVER
M8X10 FLANGE 		0-28050-810-0 04 1 1306-
45 VALVE; QUICK RELEASE 8-98170-207-0 02 1 1306-
47 CONNECTOR; RELAY VLV,CONT
DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1306-
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 04 1 1306-
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28651-035-0 02 1 1306-
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 04 1 1306-
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 1306-
66 BOLT; BRKT,RELAY VLV RR
M8X16 FLANGE 		0-28050-816-0 04 1 1306-
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 1306-
167 COVER; VALVE
(B) 		1-48219-070-0 02 1 1306-
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1306-
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1306-
167 COVER; VALVE
(C) 		8-98043-421-0 02 1 1306-

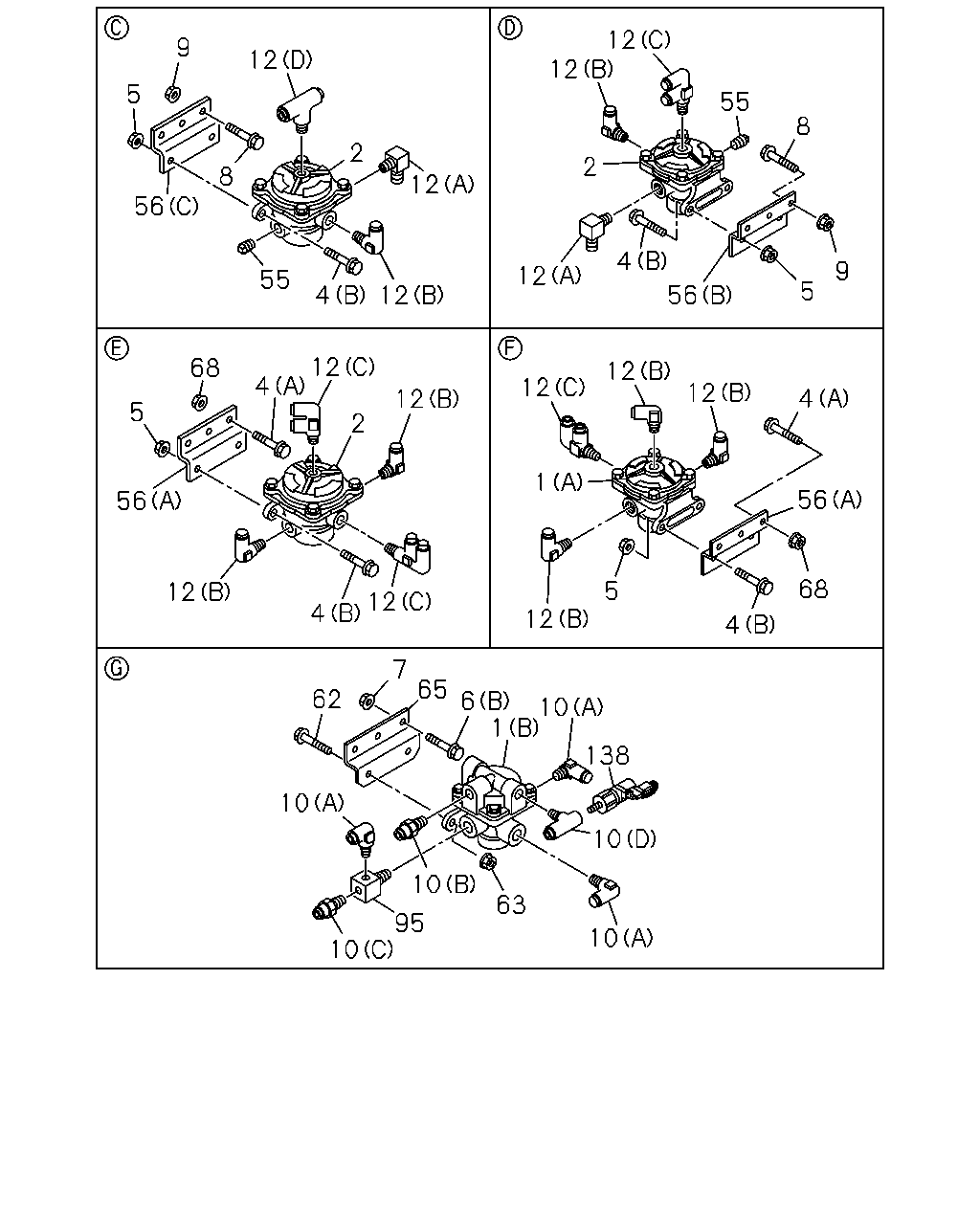

çizim 367089
9 5 56 8 12 2 55 12 4 12 68 5 4 12 12 2 56 12 4 12 12 12 12 4 1 56 5 12 4 68 12 12 55 8 2 12 4 56 5 9 62 7 65 6 10 10 95 10 63 1 10 138 10 10
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR
(A) 		1-48210-875-0 01 1 1306-
1 VALVE; RELAY RWD RR
(B) 		1-48240-041-1 01 1 1306-
2 VALVE; RELAY 1-48210-875-0 01 1 1306-
2 VALVE; RELAY 1-48210-875-0 02 1 1306-
4 BOLT; RELAY VLV TO BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 1306-
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 1306-
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1306-
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1306-
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1306-
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1306-
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1306-
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1306-
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 1306-
8 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1306-
9 NUT
M10 FLANGE 		0-91180-210-0 04 1 1306-
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1306-
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1306-
10 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1306-
10 CONNECTOR
(E) PT3/8 		1-09664-210-0 01 1 1306-
10 CONNECTOR
(D) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 1306-
12 CONNECTOR; RELAY VLV
(A) M22 & PT3/8 ELBOW 		1-09650-440-0 02 1 1306-
12 CONNECTOR; RELAY VLV
(D) DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 1306-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1306-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1306-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1306-
12 CONNECTOR; RELAY VLV
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1306-
12 CONNECTOR; RELAY VLV
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1306-
12 CONNECTOR; RELAY VLV
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1306-
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 02 1 1306-
56 BRACKET; RELAY VLV
(C) 		1-47478-233-0 01 1 1306-
56 BRACKET; RELAY VLV
(A) 		1-47479-328-0 01 1 1306-
56 BRACKET; RELAY VLV
(A) 		1-47479-328-0 01 1 1306-
56 BRACKET; RELAY VLV
(B) 		8-98174-437-0 01 1 1306-
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 04 1 1306-
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28651-035-0 02 1 1306-
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 04 1 1306-
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 1306-
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 1306-
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 1306-
95 UNION; AIR VLV
PT3/8 3WAY 		1-09661-300-0 01 1 1306-
138 SWITCH; RELAY VALVE
STAMP 2.0 		8-98010-856-2 01 1 1306-
