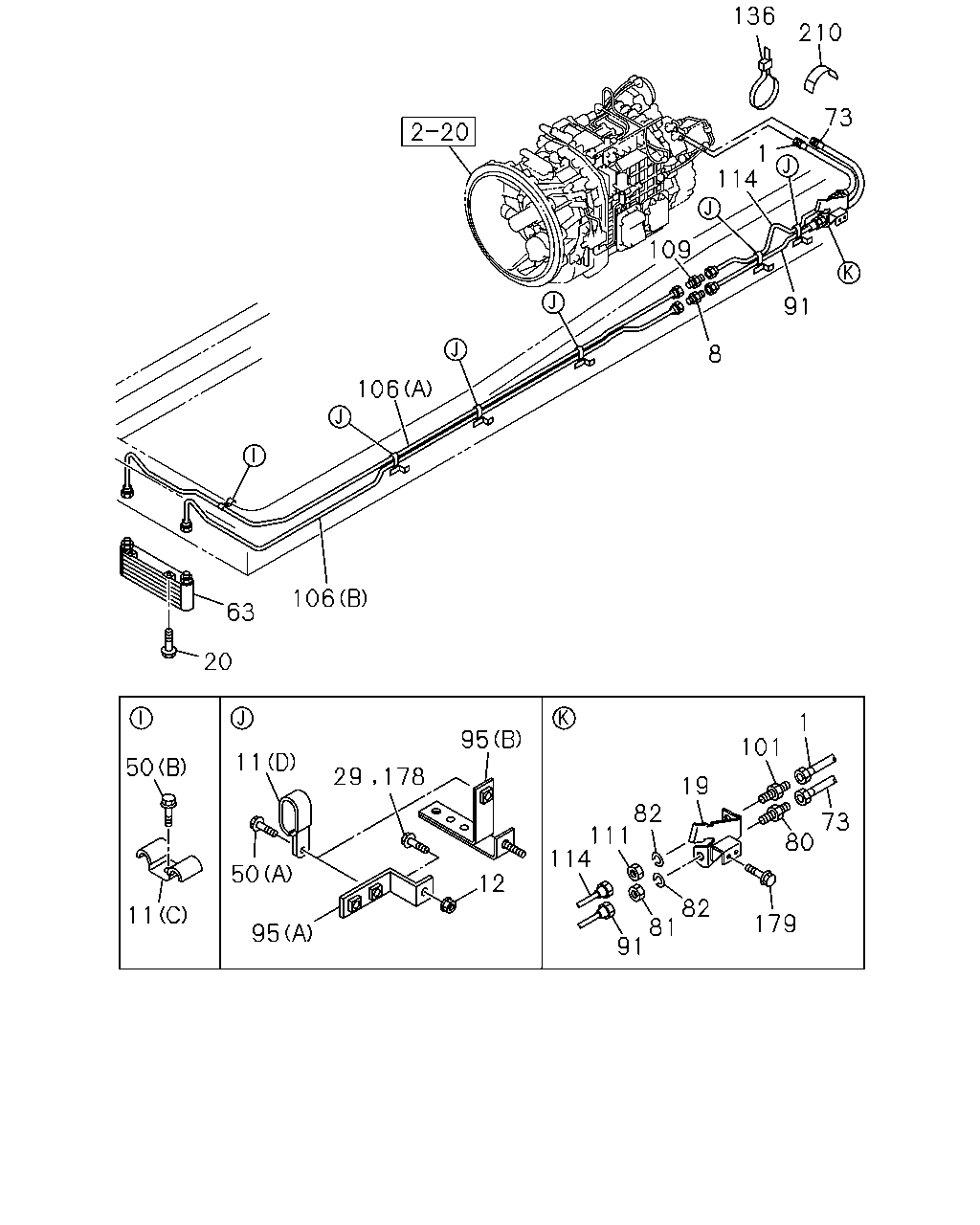

2-53 — TRANSMISSION OIL COOLER SYSTEM (#124616) — 96 parça

50 11 12 109 8 50 11 11 50 12 95 50 11 19 179 73 1 48 117 77 76 91 114 116 95 50 11 178 29 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1306-
1	HOSE; ATF MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1306-
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1306-
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1306-
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11X2 L=20	0-95325-035-0	01	1	1306-
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11X2 L=20	0-95325-035-0	04	1	1306-
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1306-
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1306-
11	CLIP; PIPE MJX16P M/T(Y3Z) (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1306-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47471-245-0	01	1	1306-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	8-98225-107-0	01	1	1306-
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
48	NUT; BRKT MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	02	1	1306-
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1306-
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1306-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1306-
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1306-
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1306-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=901	8-98169-418-0	01	1	1306-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98241-423-0	01	1	1306-
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1306-
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1306-
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1306-
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=854	8-98169-419-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=947	8-98234-639-0	01	1	1306-
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1306-
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1306-
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-

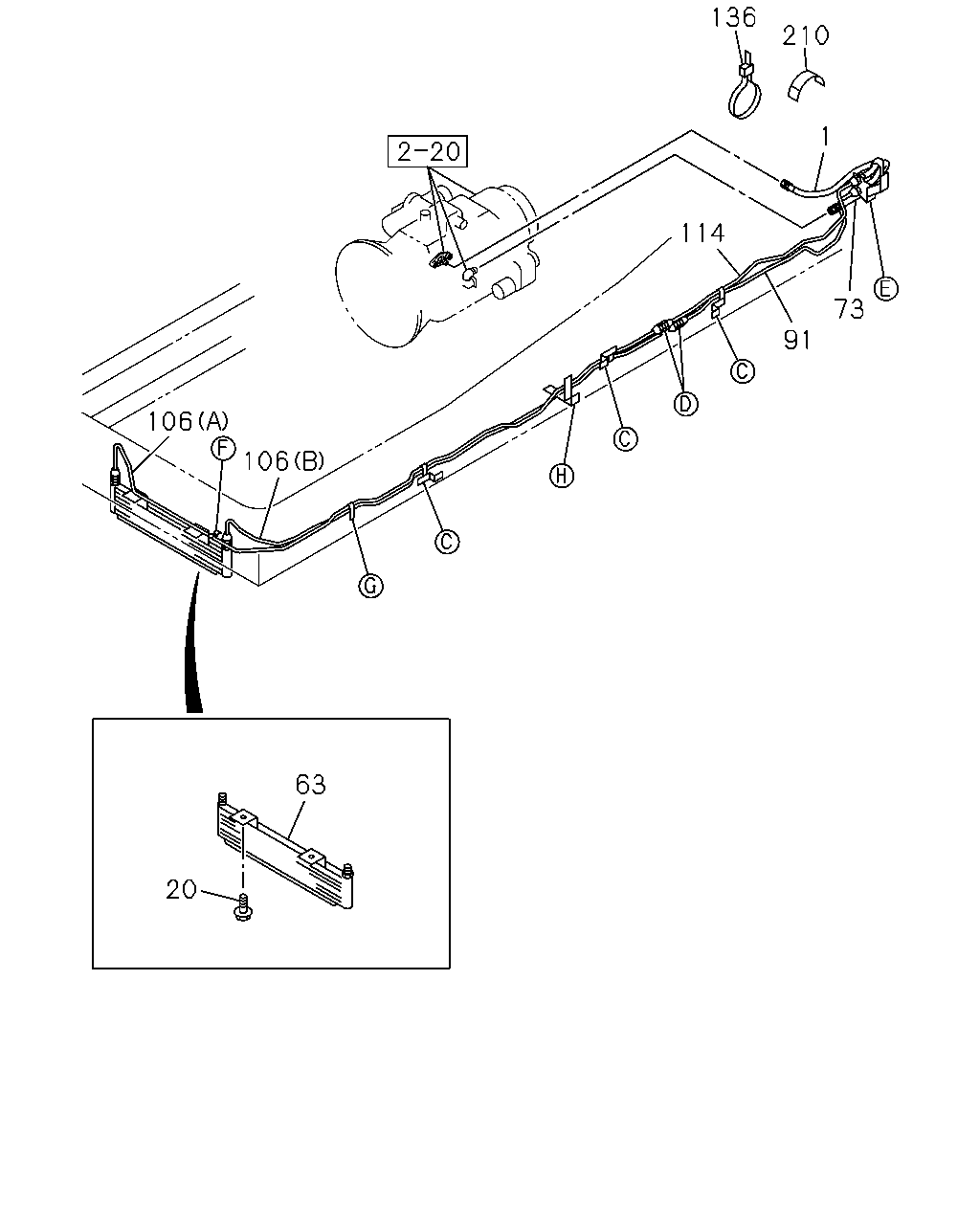

210 73 1 136 114 91 8 109 106 1 106 63 20 50 11 11 50 95 29 178 12 95 111 114 91 179 82 81 82 101 73 80 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1306-
1	HOSE; ATF MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1306-
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1306-
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1306-
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11X2 L=20	0-95325-035-0	01	1	1306-
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11X2 L=20	0-95325-035-0	04	1	1306-
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1306-
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1306-
11	CLIP; PIPE MJX16P M/T(Y3Z) (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1306-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47471-245-0	01	1	1306-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	8-98225-107-0	01	1	1306-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1306-
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1306-
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1306-1405
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-
63	COOLER; OIL MJX16P M/T(Y3Z)	8-98240-507-0	01	1	1306-
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1306-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1306-
80	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1306-
81	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1306-
82	WASHER; LK,UNION MJX16P M/T(Y3Z) ID=22.5	0-91510-522-0	02	1	1306-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=901	8-98169-418-0	01	1	1306-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98241-423-0	01	1	1306-
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1306-
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1306-
101	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B)	8-98234-007-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A)	8-98234-008-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B)	8-98234-655-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (A)	8-98234-656-0	01	1	1306-
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1306-
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1306-
111	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=854	8-98169-419-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=947	8-98234-639-0	01	1	1306-
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1306-
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1306-
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1306-
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1306-

114 91 73 210 136 1 106 106 20 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1306-
1	HOSE; ATF MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1306-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1306-
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1306-1405
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-
63	COOLER; OIL MJX16P M/T(Y3Z)	8-98240-507-0	01	1	1306-
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1306-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1306-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=901	8-98169-418-0	01	1	1306-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98241-423-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B)	8-98234-007-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A)	8-98234-008-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B)	8-98234-655-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (A)	8-98234-656-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=854	8-98169-419-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=947	8-98234-639-0	01	1	1306-
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1306-
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1306-
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1306-
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1306-
