2-07 — CLUTCH BOOSTER; MINIPACK (#124604) — 128 parça

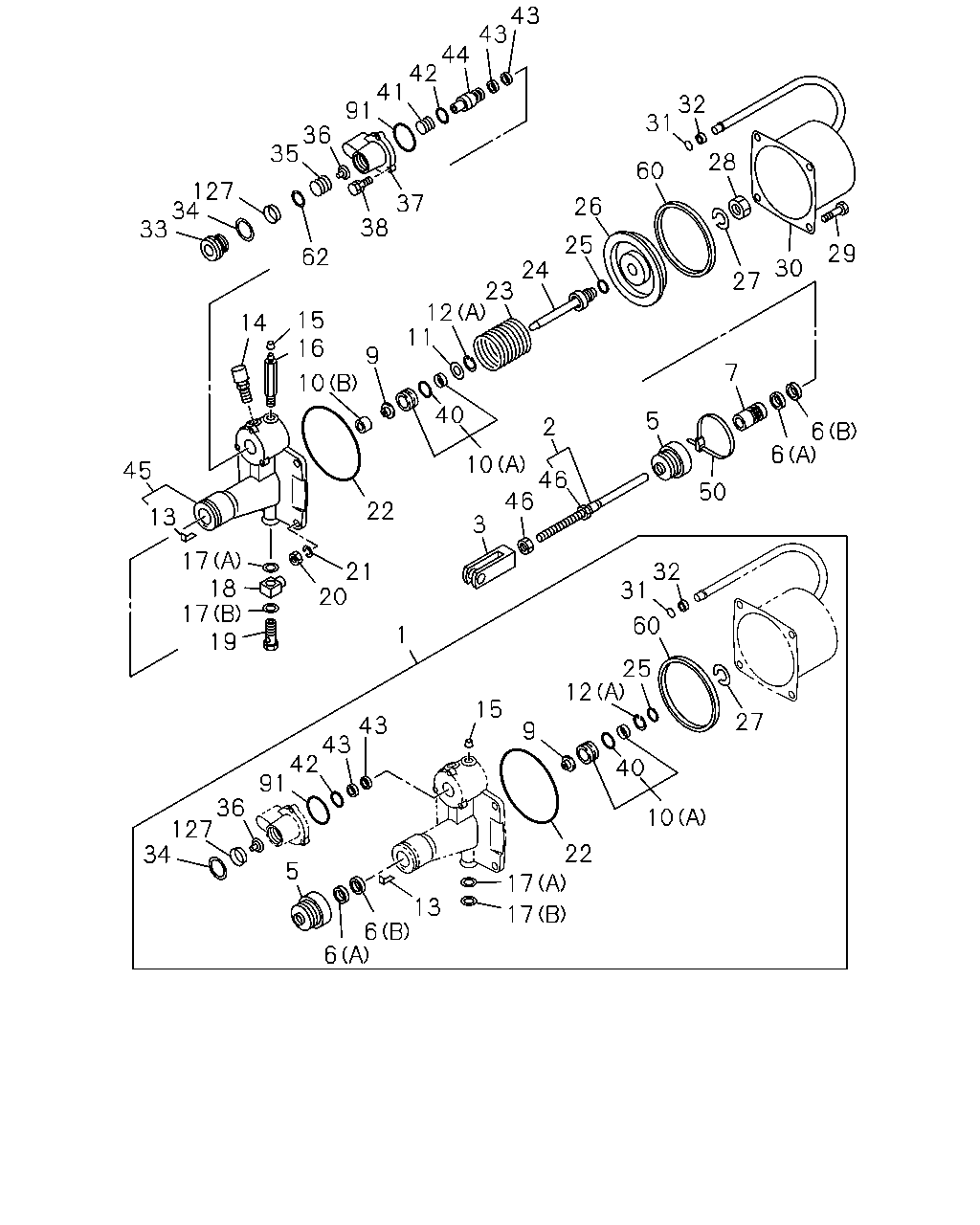

çizim 365600
33 34 127 35 36 91 41 42 44 43 43 62 38 37 14 15 45 16 10 13 17 17 18 19 20 22 21 9 11 12 40 23 24 25 26 60 31 32 28 27 30 29 10 3 46 46 2 5 7 50 6 6 34 127 36 91 42 5 6 6 43 43 13 15 17 17 9 22 12 10 40 25 31 60 32 27 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 1306- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 1306- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 1306- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 1306- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1306- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1306- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 1306- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1306- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1306- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1306- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1306- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1306- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1306- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1306- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1306- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 1306- ●
13 PIN; SPR 1-31829-109-0 01 1 1306- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1306- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 1306- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1306- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1306- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1306- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1306- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1306- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1306- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1306- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1306- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1306- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1306- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 1306- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1306- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 1306- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1306- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1306- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 1306- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1306- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1306- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1306- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1306- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 1306- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1306- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1306- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1306- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1306- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1306- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1306- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1306- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1306- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1306- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1306- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1306- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1306- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1306- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1306- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1306- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 1306- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 1306- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1306- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1306- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1306- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 1306- ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1306- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1306- ● ●
127 FILTER; POPPET 1-31829-488-0 01 1 1306- ●

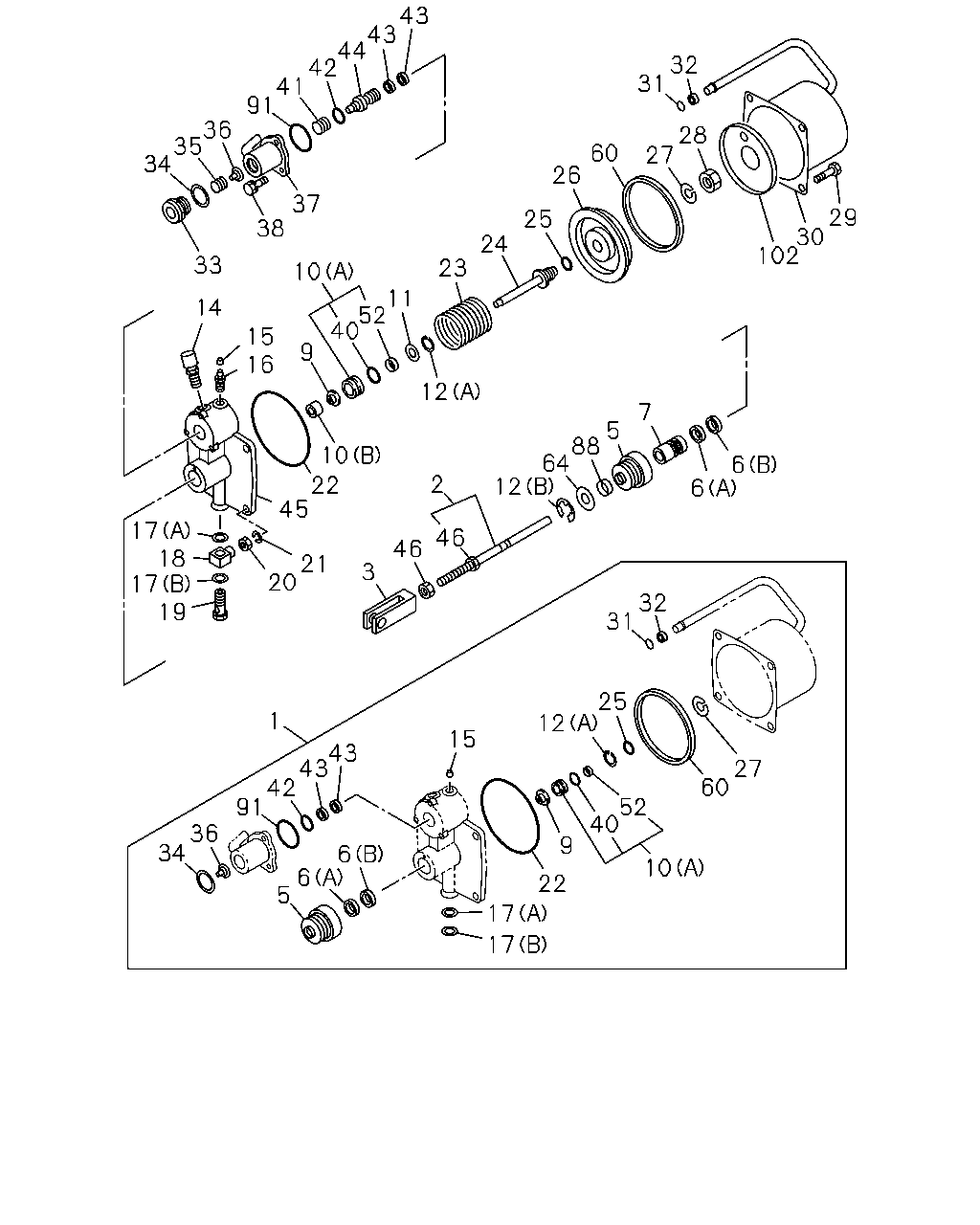

çizim 366326
6 6 27 60 32 31 25 12 52 10 40 9 22 17 17 15 6 6 5 43 43 42 91 36 34 1 7 5 88 64 12 2 46 46 3 21 20 45 19 17 17 22 10 12 16 15 14 33 40 52 11 10 9 23 24 25 26 60 102 30 29 28 27 31 32 43 43 44 42 41 91 36 35 34 37 38 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 1306- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 1306- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 1306- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 1306- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1306- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1306- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 1306- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1306- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1306- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1306- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1306- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1306- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1306- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1306- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1306- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 1306- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1306- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 1306- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1306- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1306- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1306- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1306- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1306- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1306- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1306- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1306- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1306- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1306- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 1306- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1306- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 1306- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1306- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1306- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 1306- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1306- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1306- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1306- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1306- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 1306- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1306- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1306- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1306- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1306- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1306- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1306- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1306- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1306- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1306- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1306- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1306- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1306- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1306- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1306- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1306- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 1306- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 1306- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1306- ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1306- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1306- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 1306- ●
64 WASHER; PUSH ROD
ID=10.5 OD=22 		9-09164-610-0 01 1 1306- ●
88 CLAMP; HOSE,CLU BOOSTER 1-31829-063-0 01 1 1306- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1306- ● ●
102 PLATE; BOOSTER 1-31829-559-0 01 1 1306- ●
