2 |

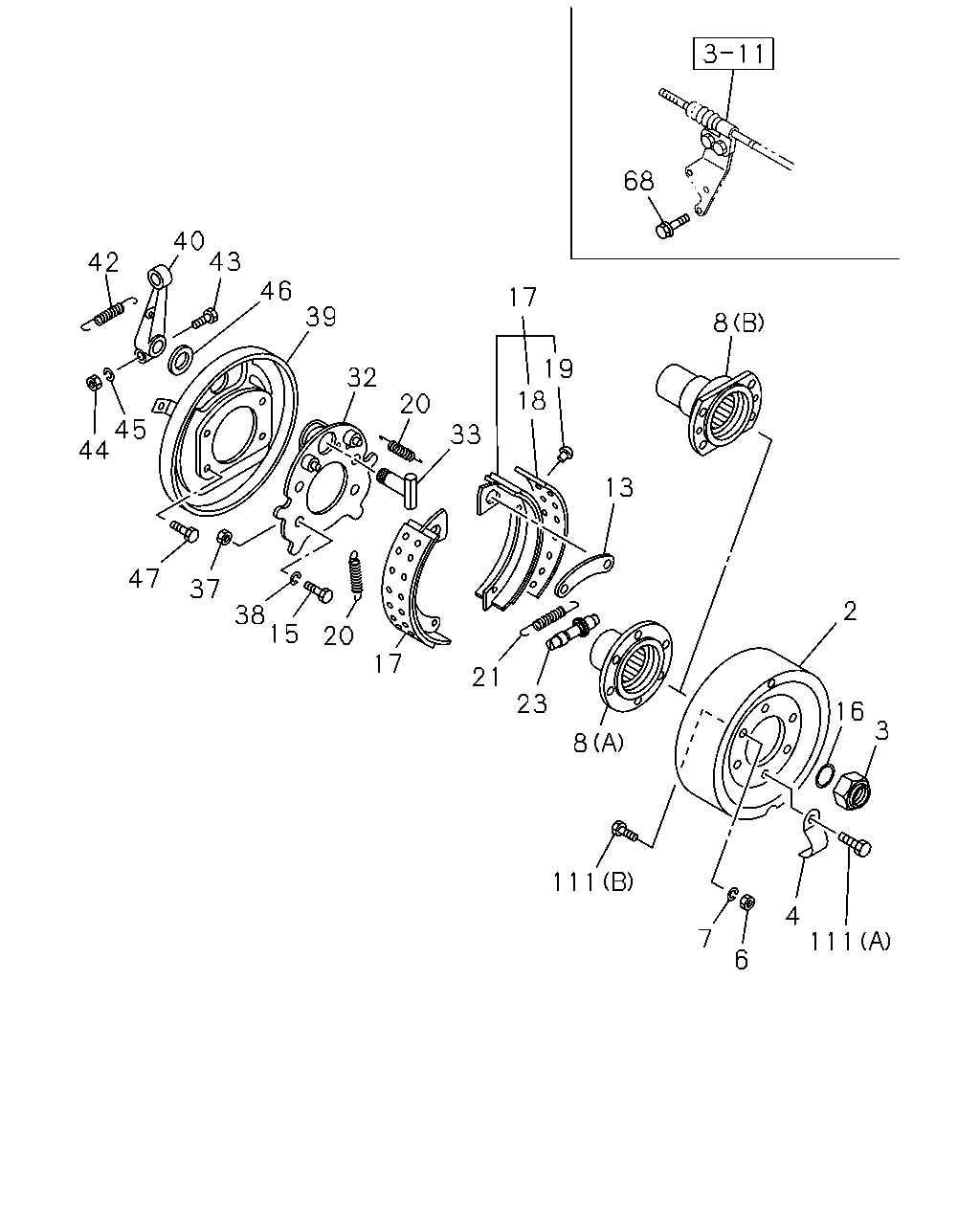

DRUM; PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
1-46211-019-0 |
01 |
1 |
9202- |
● |
|
| |
2 |
DRUM; PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
1-46211-026-1 |
01 |
1 |
9306- |
|
● |
| |
3 |
NUT; LK
PARKING BRAKE DRUM 10"<B1T>
M36 FLANGE
|
1-09449-063-0 |
01 |
1 |
9202- |
● |
|
| |
4 |
COVER; ADJ HOLE
PARKING BRAKE DRUM 10"<B1T>
|
1-46219-030-0 |
02 |
1 |
9202- |
● |
|
| |
4 |
COVER; ADJ HOLE
PARKING BRAKE DRUM 10"<B1T>
|
1-46219-019-0 |
02 |
1 |
9306- |
|
● |
| |
6 |
NUT; FLANGE
PARKING BRAKE DRUM 10"<B1T>
M16
|
9-99110-516-0 |
02 |
1 |
9306- |
|
● |
| |
7 |
WASHER; LK,FLANGE
PARKING BRAKE DRUM 10"<B1T>
ID=16.2
|
9-09150-516-0 |
02 |
1 |
9306- |
|
● |
| |
8 |
FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
(A)
|
1-37243-235-0 |
01 |
1 |
9202- |
● |
|
| |
8 |
FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
(B)
|
1-37243-272-1 |
01 |
1 |
9306- |
|
● |
| |
13 |
BRACE; PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
9-46239-002-0 |
01 |
1 |
9202- |
● |
● |
| |
15 |
BOLT; FLANGE
PARKING BRAKE DRUM 10"<B1T>
M16X55
|
1-46219-039-0 |
04 |
1 |
9202- |
● |
● |
| |
16 |
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T).
PARKING BRAKE DRUM 10"<B1T>
ID=47 T=5
|
1-09623-380-0 |
01 |
1 |
9202- |
● |
|
| |
17 |
SHOE; PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
1-46220-009-0 |
02 |
1 |
9202-9411 |
● |
● |
| |
17 |
SHOE; PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
1-46220-022-0 |
02 |
1 |
9412- |
● |
● |
| |
18 |
LINING; BRK,PARKING
PARKING BRAKE DRUM 10"<B1T>
|
1-46225-006-0 |
02 |
1 |
9202-9411 |
● |
● |
| |
18 |
LINING; BRK,PARKING
PARKING BRAKE DRUM 10"<B1T>
|
1-46225-023-0 |
02 |
1 |
9412- |
● |
● |
| |
19 |
RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
1-09732-012-0 |
32 |
1 |
9202- |
● |
● |
| |
20 |
SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
9-09942-434-0 |
02 |
1 |
9202- |
● |
● |
| |
21 |
SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 10"<B1T>
|
9-09942-516-0 |
01 |
1 |
9202- |
● |
● |
| |
23 |
SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 10"<B1T>
|
1-46240-003-0 |
01 |
1 |
9202- |
● |
● |
| |
32 |
PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
1-46213-039-0 |
01 |
1 |
9202- |
● |
|
| |
32 |
PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
1-46213-096-0 |
01 |
1 |
9306- |
|
● |
| |
33 |
SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
1-46251-006-0 |
01 |
1 |
9202- |
● |
● |
| |
37 |
NUT; SUPPORT PLATE
PARKING BRAKE DRUM 10"<B1T>
M14
|
9-99110-514-0 |
04 |
1 |
9202-9207 |
● |
|
| |
37 |
NUT; SUPPORT PLATE
PARKING BRAKE DRUM 10"<B1T>
M14 FLANGE
|
1-09440-047-0 |
04 |
1 |
9208-9310 |
● |
|
| |
37 |
NUT; SUPPORT PLATE
PARKING BRAKE DRUM 10"<B1T>
M14 FLANGE
|
1-09440-048-0 |
04 |
1 |
9311- |
● |
|
| |
38 |
WASHER; LK,SUPPORT PLATE
PARKING BRAKE DRUM 10"<B1T>
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9202-9207 |
● |
|
| |
38 |
WASHER; LK,SUPPORT PLATE
PARKING BRAKE DRUM 10"<B1T>
ID=16.2
|
9-09150-516-0 |
04 |
1 |
9306- |
|
● |
| |
39 |
COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
1-46213-038-0 |
01 |
1 |
9202- |
● |
|
| |
39 |
COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
1-46213-093-0 |
01 |
1 |
9306- |
|
● |
| |
40 |
LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 10"<B1T>
|
1-46252-013-0 |
01 |
1 |
9202- |
● |
● |
| |
42 |
SPRING; RETURN,LEVER
PARKING BRAKE DRUM 10"<B1T>
|
1-09583-104-0 |
01 |
1 |
9202-9404 |
● |
|
| |
42 |
SPRING; RETURN,LEVER
PARKING BRAKE DRUM 10"<B1T>
|
1-09583-104-0 |
01 |
1 |
9405- |
● |
● |
| |
42 |
SPRING; RETURN,LEVER
PARKING BRAKE DRUM 10"<B1T>
|
1-09583-128-0 |
01 |
1 |
9306-9404 |
|
● |
| |
43 |
BOLT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"<B1T>
|
9-01041-040-0 |
01 |
1 |
9202-9204 |
● |
|
| |
43 |
BOLT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"<B1T>
|
0-10811-040-0 |
01 |
1 |
9205- |
● |
● |
| |
44 |
NUT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"<B1T>
M10
|
9-09111-410-0 |
01 |
1 |
9202- |
● |
● |
| |
45 |
WASHER; LK,LEVER TO CM/SHF
PARKING BRAKE DRUM 10"<B1T>
ID=10.2
|
9-09150-010-0 |
01 |
1 |
9202- |
● |
● |
| |
46 |
WASHER; LEVER
PARKING BRAKE DRUM 10"<B1T>
|
9-09855-362-0 |
01 |
1 |
9202- |
● |
● |
| |
47 |
BOLT; SUPPORT PLATE
PARKING BRAKE DRUM 10"<B1T>
M16X40
|
9-09804-155-0 |
04 |
1 |
9306-9312 |
|
● |
| |
47 |
BOLT; SUPPORT PLATE
PARKING BRAKE DRUM 10"<B1T>
M16X40
|
0-20801-640-0 |
04 |
1 |
9401- |
|
● |
| |
68 |
BOLT; BRKT,PARKING BRK CONT
PARKING BRAKE DRUM 10"<B1T>
M10X22 FLANGE
|
0-28181-022-0 |
03 |
1 |
9306- |
|
● |
| |
111 |
BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"<B1T>
(A)
M8X20 W/LK WASHER
|
9-01900-820-0 |
02 |
1 |
9202-9204 |
● |
|
| |
111 |
BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"<B1T>
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9205- |
● |
● |
| |
111 |
BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"<B1T>
(B)
M16X30
|
0-20801-630-0 |
02 |
1 |
9306- |
|
● |
