1-50 — EXHAUST PIPE AND SILENCER (#124599) — 143 parça

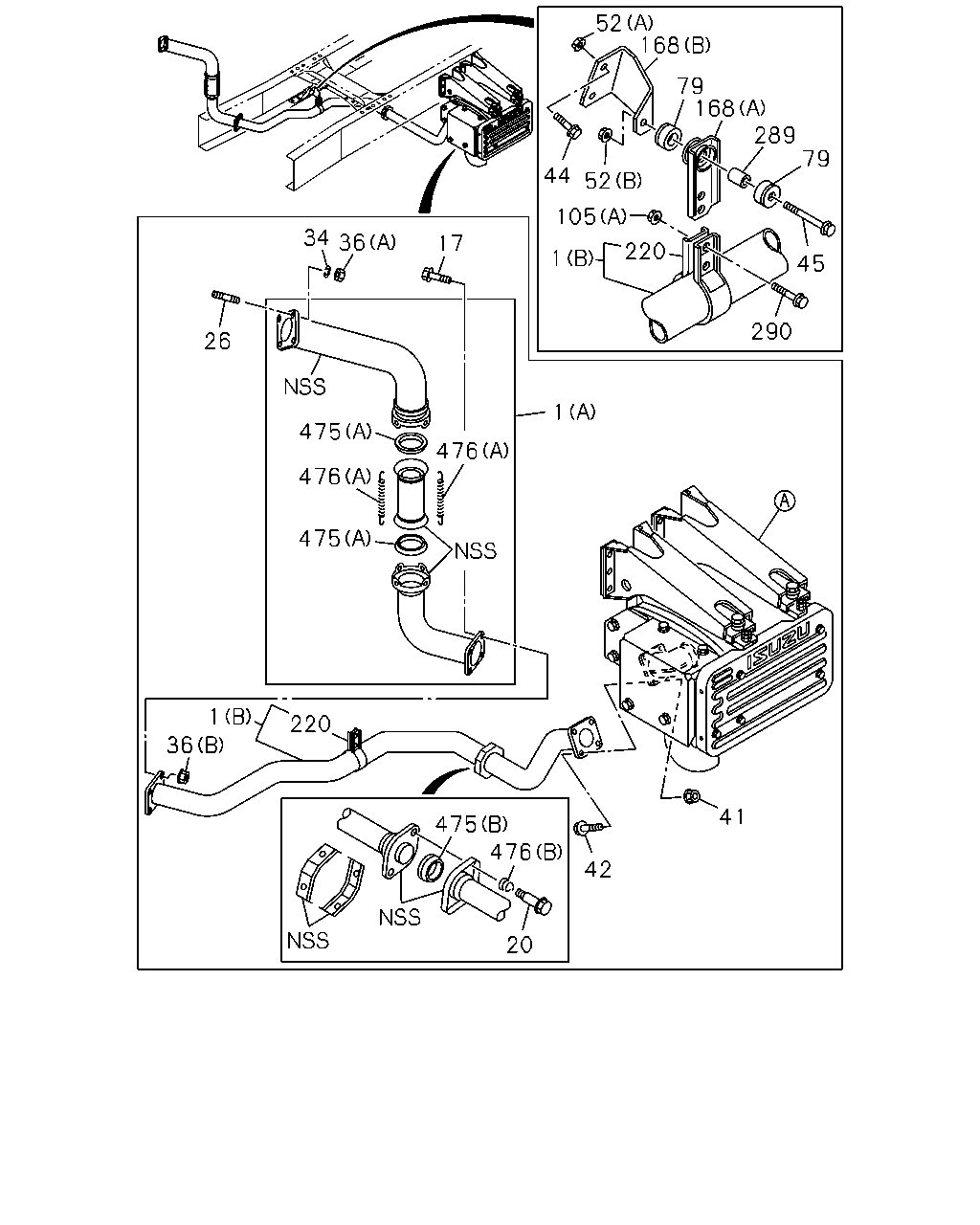

41 42 476 475 20 220 1 36 475 476 475 476 1 290 45 79 289 168 79 168 52 44 1 52 105 220 17 36 34 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-97644-311-0	01	1	1306-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97635-956-1	01	1	1306-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97644-024-0	01	1	1306-
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1306-
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	02	1	1306-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M10X49.8	8-97039-586-0	02	1	1306-
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1306-1402
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1306-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1306-
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1306-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1306-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1306-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1306-
44	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M8X30 FLANGE	0-28050-830-0	02	1	1306-
45	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M10X50 FLANGE	0-28051-050-0	01	1	1306-
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1306-
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (A) M8 FLANGE	0-91180-108-0	02	1	1306-
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (B) M10 FLANGE	0-91180-210-0	01	1	1306-
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1306-
79	SUPPORT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> OD=40	1-22159-094-0	02	1	1306-
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> (A) M8 FLANGE	0-91180-108-0	02	1	1306-
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	07	1	1306-
168	BRACKET; EXH PIPE,FRT SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22131-780-0	01	1	1306-
168	BRACKET; EXH PIPE,FRT SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-22134-213-0	01	1	1306-
220	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> D=101.4	1-22133-170-1	01	1	1306-
289	COLLAR; DIST,SUPPORT RUBBER SILENCER LAYOUT REAR VAR1<JAZ> L=22	9-22159-024-0	01	1	1306-
290	BOLT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> M8X40 FLANGE	0-28650-840-0	02	1	1306-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1306-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	1306-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1306-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1306-
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1306-

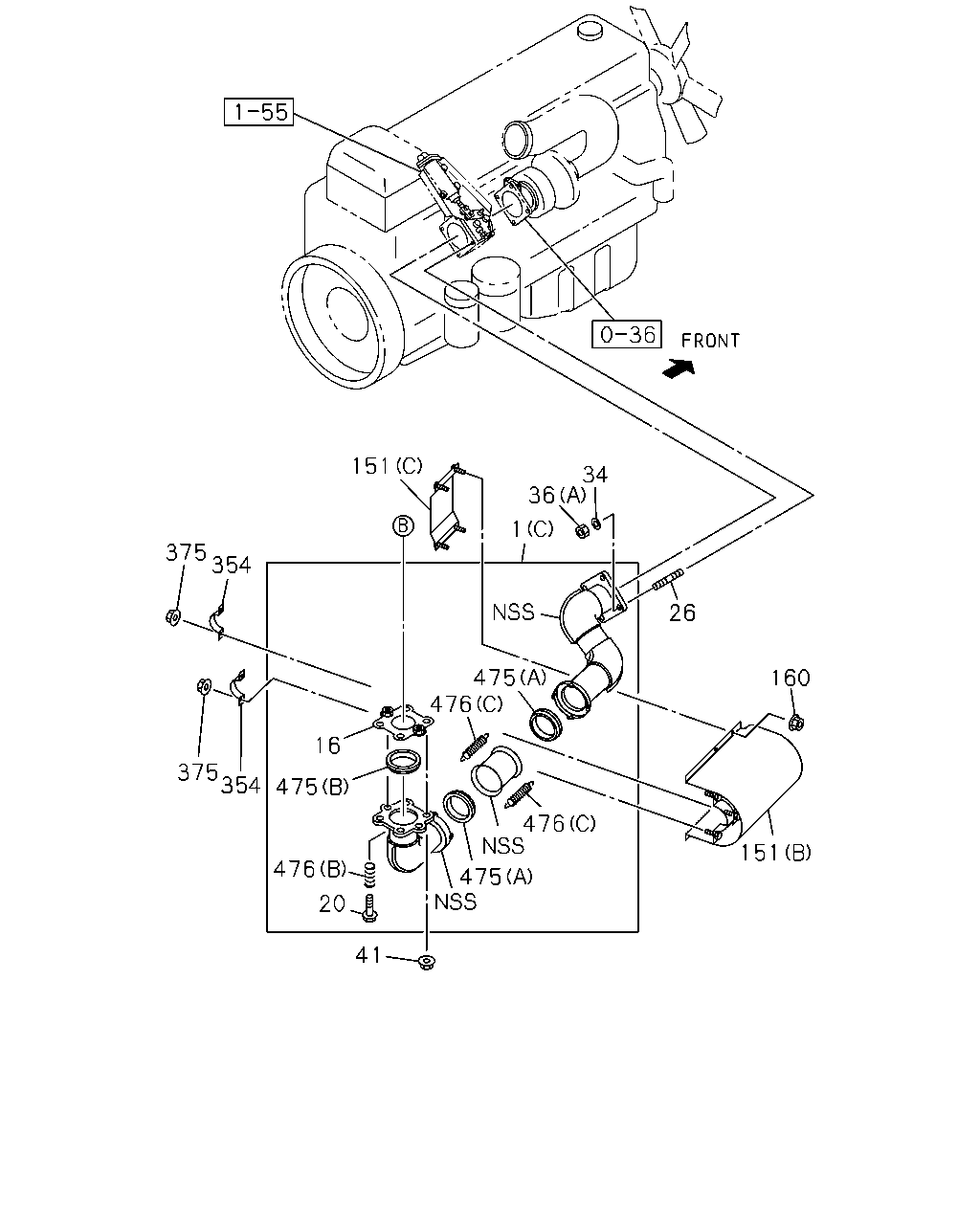

34 36 1 26 160 151 475 476 476 475 20 476 41 475 16 354 375 354 375 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-97644-311-0	01	1	1306-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97635-956-1	01	1	1306-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97644-024-0	01	1	1306-
16	FLANGE; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1306-
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	02	1	1306-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M10X49.8	8-97039-586-0	02	1	1306-
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1306-1402
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1306-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1306-
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1306-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1306-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1306-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97644-313-0	01	1	1306-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97644-314-0	01	1	1306-
160	NUT; HEAT PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> M8 FLANGE	0-91180-108-0	01	1	1306-
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1306-
354	CLAMP; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28>	8-97632-333-0	02	1	1306-
375	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1306-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1306-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	1306-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1306-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1306-
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1306-

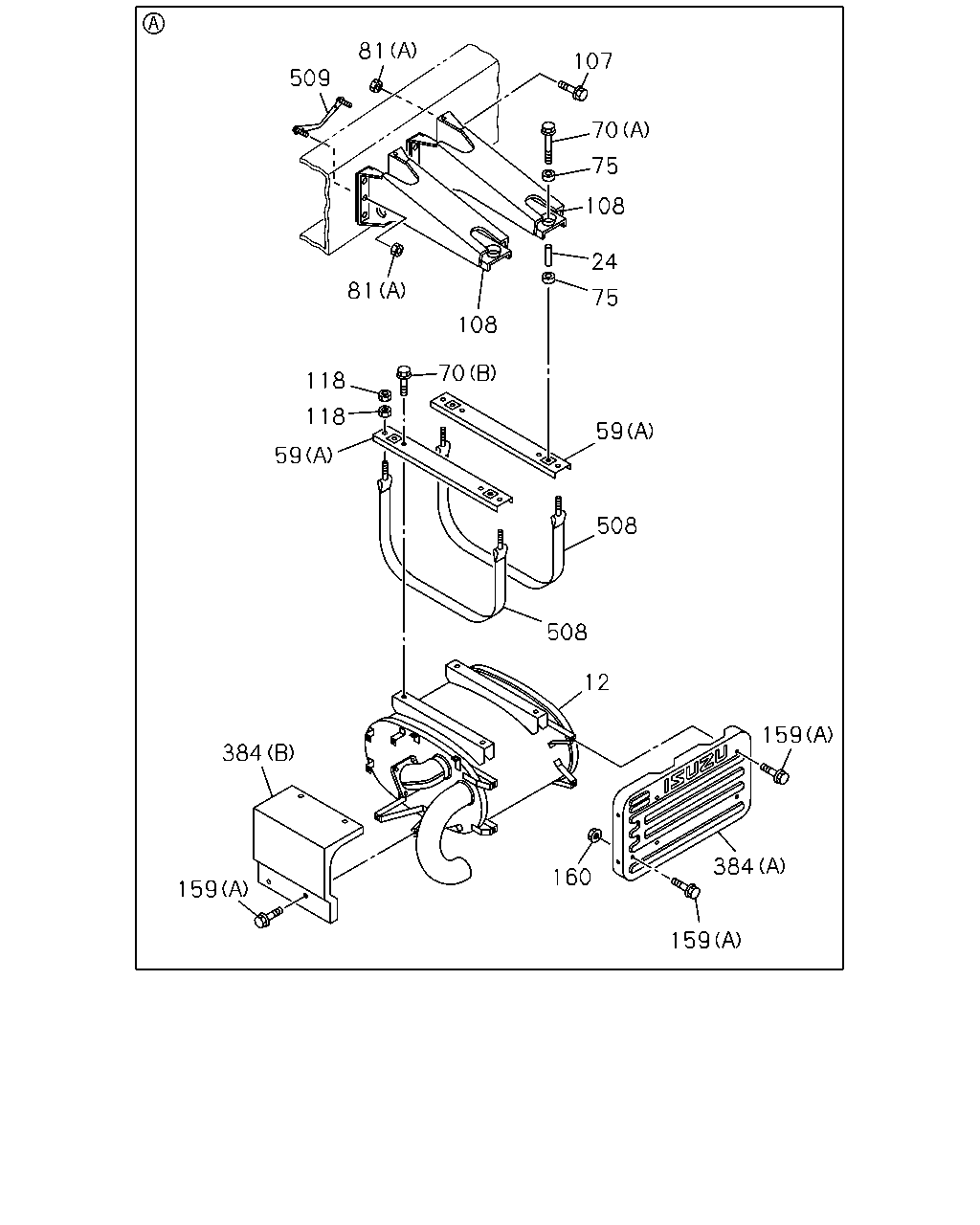

159 384 159 160 12 159 384 508 508 59 75 24 108 75 70 107 59 118 118 70 108 81 81 509

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	8-97634-120-1	01	1	1306-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	8-97632-553-0	01	1	1306-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1306-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1306-
59	BRACKET; EXH SILENCER,FRT SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22134-147-1	02	1	1306-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1306-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-550-0	01	1	1306-
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X35 FLANGE	0-28051-035-0	04	1	1306-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1306-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1306-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1306-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1306-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1306-
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (A) M12 FLANGE	0-91180-212-0	12	1	1306-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	05	1	1306-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1306-
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1306-
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	09	1	1306-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ>	1-22134-148-3	02	1	1306-
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	1306-
159	BOLT; HEAT PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	09	1	1306-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1306-
160	NUT; HEAT PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> M8 FLANGE	0-91180-108-0	01	1	1306-
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1306-
384	PROTECTOR; HEAT SILENCER MTG SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22119-556-0	01	1	1306-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97620-772-0	01	1	1306-
508	BAND; EXHAUST SILENCER SILENCER LAYOUT REAR VAR1<JAZ>	1-22159-384-0	02	1	1306-
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M12X40 L=56	1-09300-123-0	03	1	1306-

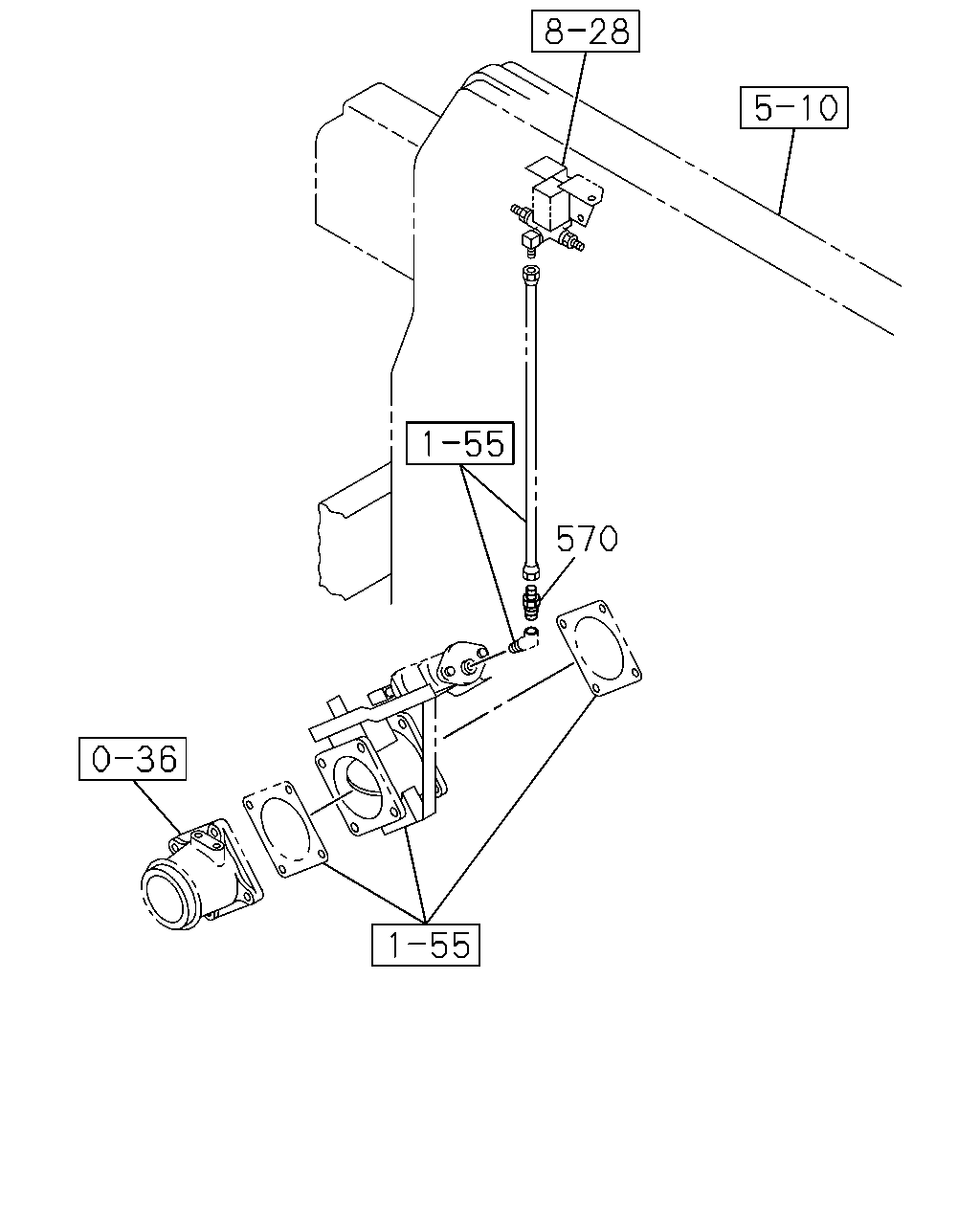

570

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	570	ADAPTER; EXH PIPE M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1306-

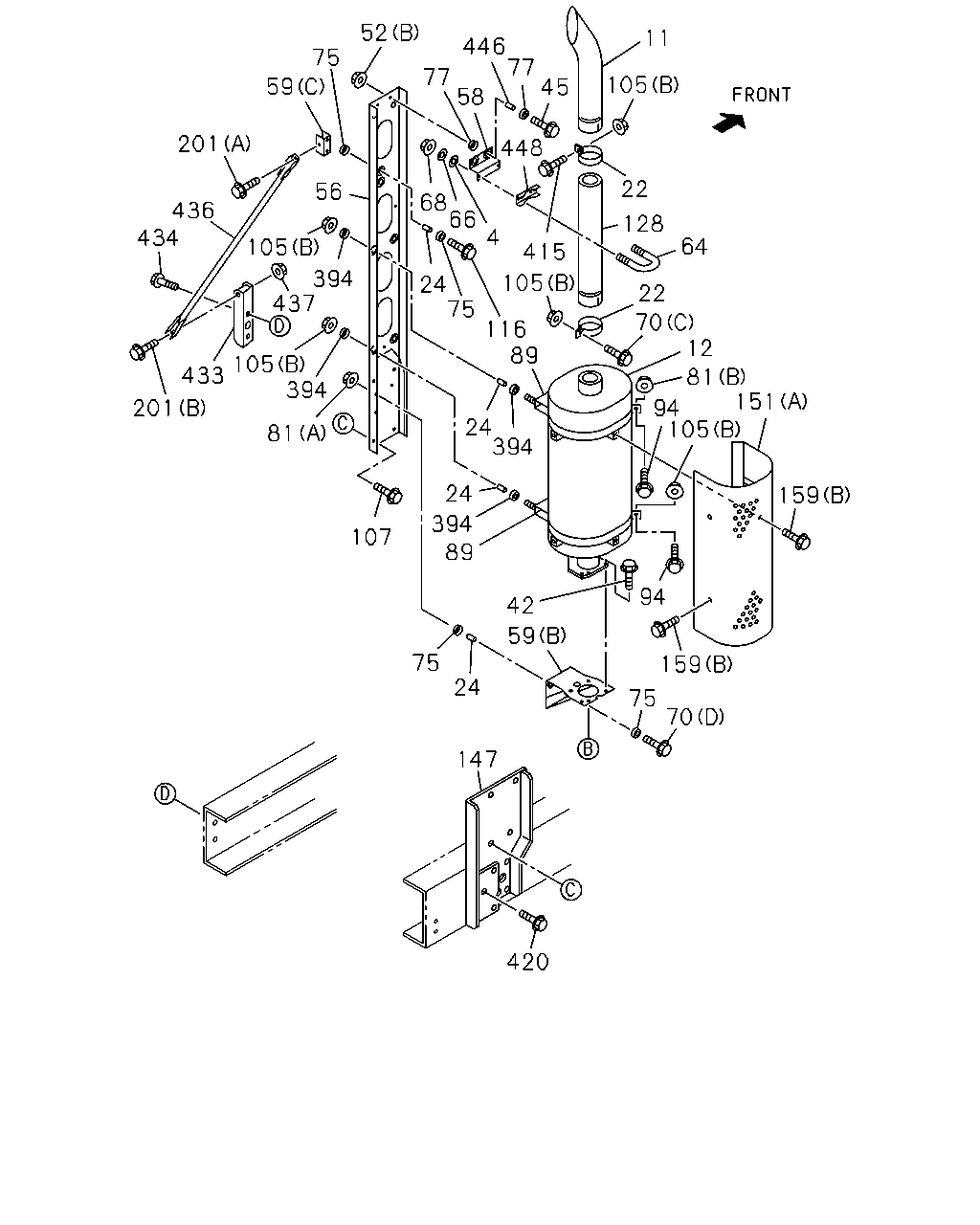

201 436 434 201 433 105 437 105 59 75 52 56 394 394 81 107 75 24 147 420 70 75 59 89 394 24 394 24 89 116 75 24 4 66 68 77 446 58 448 415 105 42 159 94 159 105 151 94 81 12 70 22 64 128 22 105 45 77 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	1306-
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-979-1	01	1	1306-
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	8-97634-120-1	01	1	1306-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	8-97632-553-0	01	1	1306-
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	02	1	1306-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1306-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1306-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1306-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1306-
45	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M10X50 FLANGE	0-28051-050-0	01	1	1306-
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1306-
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (A) M8 FLANGE	0-91180-108-0	02	1	1306-
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (B) M10 FLANGE	0-91180-210-0	01	1	1306-
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1306-
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-335-0	01	1	1306-
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	1306-
59	BRACKET; EXH SILENCER,FRT SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22134-147-1	02	1	1306-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1306-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-550-0	01	1	1306-
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	1306-
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	1306-
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1306-
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X35 FLANGE	0-28051-035-0	04	1	1306-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1306-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1306-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1306-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1306-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1306-
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1306-
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (A) M12 FLANGE	0-91180-212-0	12	1	1306-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	05	1	1306-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1306-
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-270-0	02	1	1306-
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	02	1	1306-
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> (A) M8 FLANGE	0-91180-108-0	02	1	1306-
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	07	1	1306-
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1306-
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	09	1	1306-
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1306-
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	1306-
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-348-1	01	1	1306-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1306-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97644-313-0	01	1	1306-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97644-314-0	01	1	1306-
159	BOLT; HEAT PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	09	1	1306-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1306-
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (A) M10X25 FLANGE	0-28051-025-0	02	1	1306-
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (B) M10X90 FLANGE	0-28051-090-0	01	1	1306-
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	1306-
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	01	1	1306-
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	04	1	1306-
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97639-111-0	01	1	1306-
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE	0-28051-030-0	02	1	1306-
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	8-97616-276-0	02	1	1306-
437	NUT; STAY SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	1306-
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1306-
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	1306-
