11533 - CYH LHD EURO2 WITH REFLECTOR
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶

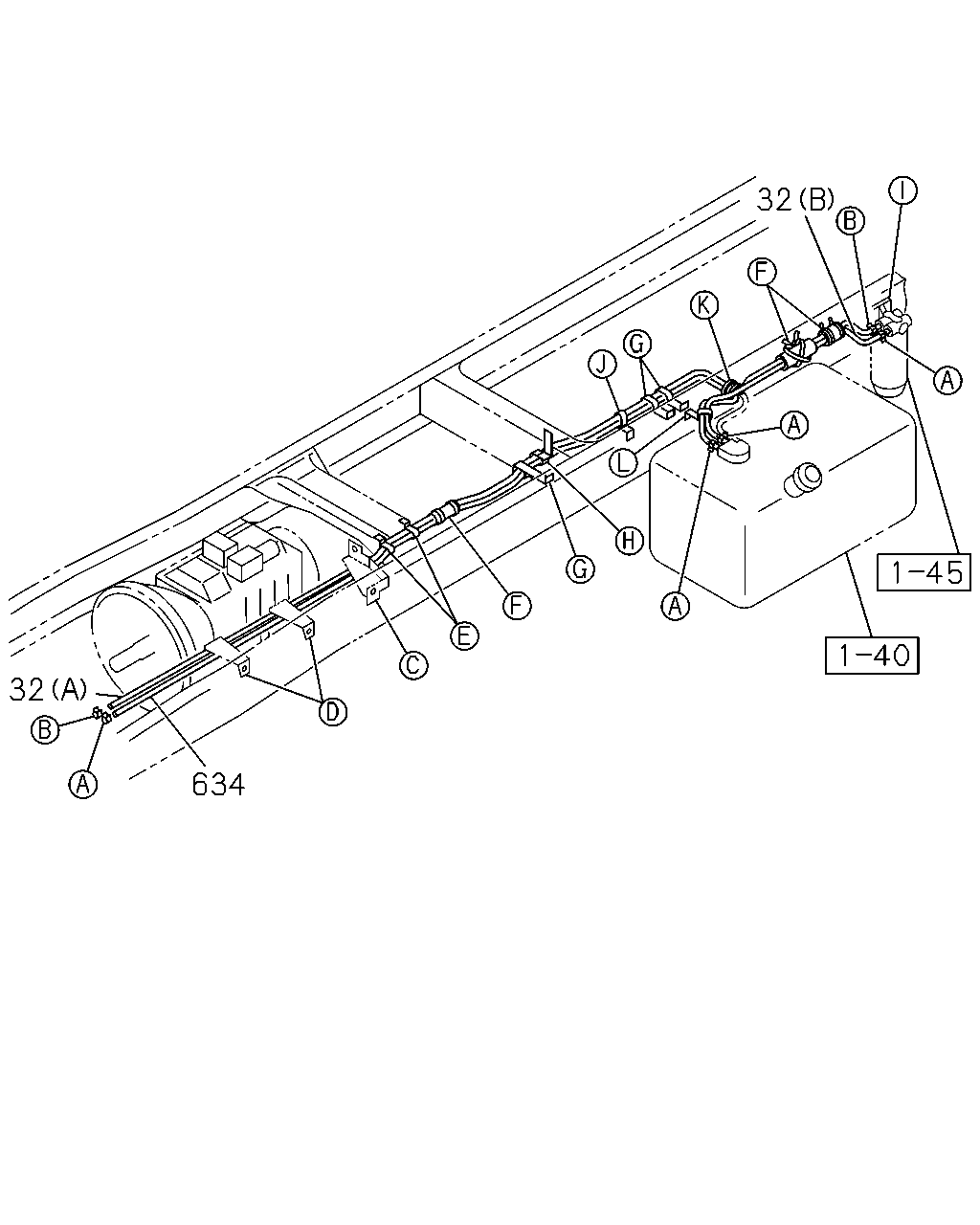

1-41 — FUEL PIPING; CHASSIS
(#124597) — 33 parça
◀

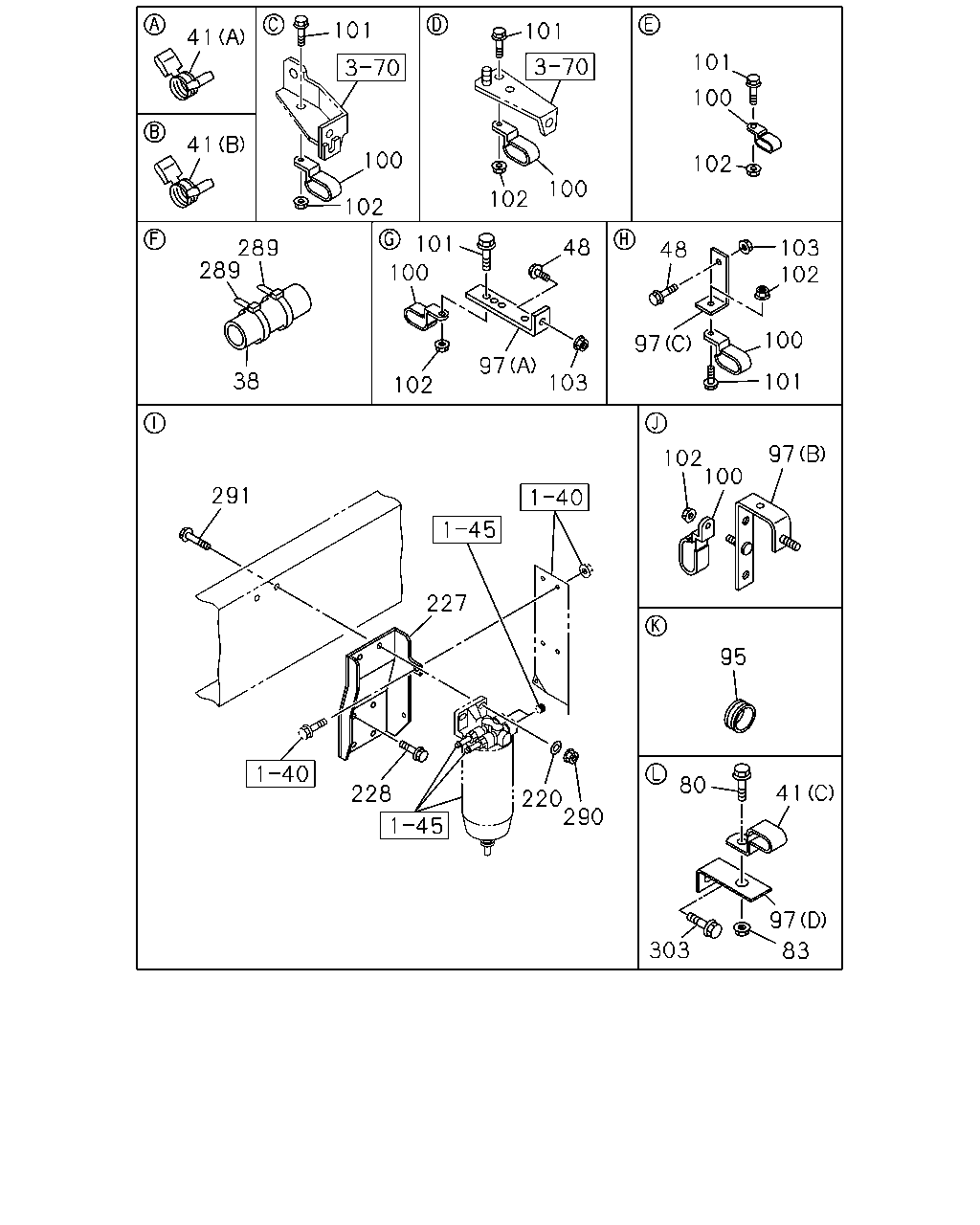

[141A] FIXING PARTS (27 parça)
[141A] PIPING (6 parça)
▶
83
97
303
41
80
95
97
100
102
290
220
228
227
291
101
100
102
103
48
97
103
97
102
100
101
48
38
289
289
102
100
101
102
100
101
102
100
101
41
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 6500MM(65W) L=150 SERVICED BY L=1300
1-09360-677-1
02
1
1306-
38
SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 7400MM(74W) L=150 SERVICED BY L=1300
1-09360-677-1
03
1
1306-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14
1-09704-102-0
04
1
1306-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=19
8-94238-569-0
02
1
1306-
41
CLIP; FUEL PIPE,FUEL TANK
FUEL TANK 400L<SDH> (C) ID=14X29 H=15 L=20
1-09700-744-0
01
1
1306-
48
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
1306-
48
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
03
1
1306-
80
BOLT; CLIP,FUEL TANK
FUEL TANK 400L<SDH> M8X20 FLANGE
0-28650-820-0
01
1
1306-
83
NUT; CLIP,FUEL TANK
FUEL TANK 400L<SDH> M8 FLANGE
0-91180-108-0
01
1
1306-
95
BUSHING; PIPE,FUEL TANK
ID=32 OD=40 T=23
1-09332-112-0
01
1
1306-
97
BRACKET; CLIP
(C) L=55
1-47475-304-0
01
1
1306-
97
BRACKET; CLIP
(B)
1-47479-797-0
01
1
1306-
97
BRACKET; CLIP
(A)
8-98172-059-0
03
1
1306-
97
BRACKET; CLIP
FUEL TANK 400L<SDH> (D) L=68
1-47475-525-0
01
1
1306-
100
CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5
1-09701-315-0
10
1
1306-
101
BOLT; CLIP,FUEL PIPE
M8X20 FLANGE
0-28650-820-0
07
1
1306-
101
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
0-28650-825-0
02
1
1306-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
10
1
1306-
103
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1306-
220
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
02
1
1306-
227
BRACKET; FUEL SEDIMENTER
WHEEL BASE 6500MM(65W)
8-98144-960-0
01
1
1306-
228
BOLT; BRKT,SEDIMENTER
WHEEL BASE 6500MM(65W) M10X35 FLANGE
0-28051-035-0
04
1
1306-
289
CLIP; BAND,HOSE
WHEEL BASE 6500MM(65W) L=250
5-09707-030-1
04
1
1306-
289
CLIP; BAND,HOSE
WHEEL BASE 7400MM(74W) L=250
5-09707-030-1
06
1
1306-
290
NUT; FILTER TO BRKT
M10 FLANGE
0-91180-210-0
02
1
1306-
291
BOLT; FILER TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
1306-
303
BOLT; BRKT
FUEL TANK 400L<SDH> M8X35 FLANGE
0-28650-835-0
01
1
1306-
634
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) L=3950 SERVICED BY L=5050
0-01262-505-0
01
1
1306-
32
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6500MM(65W) FUEL TANK 200L AL<THF> (B) L=640 SERVICED BY L=3000
0-01260-300-0
01
1
1306-
32
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6500MM(65W) FUEL TANK 400L<SDH> (B) L=900 SERVICED BY L=3000
0-01260-300-0
01
1
1306-
32
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 7400MM(74W) FUEL TANK 400L<SDH> (B) L=850 SERVICED BY L=3000
0-01260-300-0
01
1
1306-
634
HOSE; RUBBER RETURN
FUEL TANK 200L AL<THF> L=3500 SERVICED BY L=8000
0-01260-800-0
01
1
1306-
634
HOSE; RUBBER RETURN
FUEL TANK 400L<SDH> L=3650 SERVICED BY L=8000
0-01260-800-0
01
1
1306-
