◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11533 - CYH LHD EURO2 WITH REFLECTOR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#124596) — 54 parça

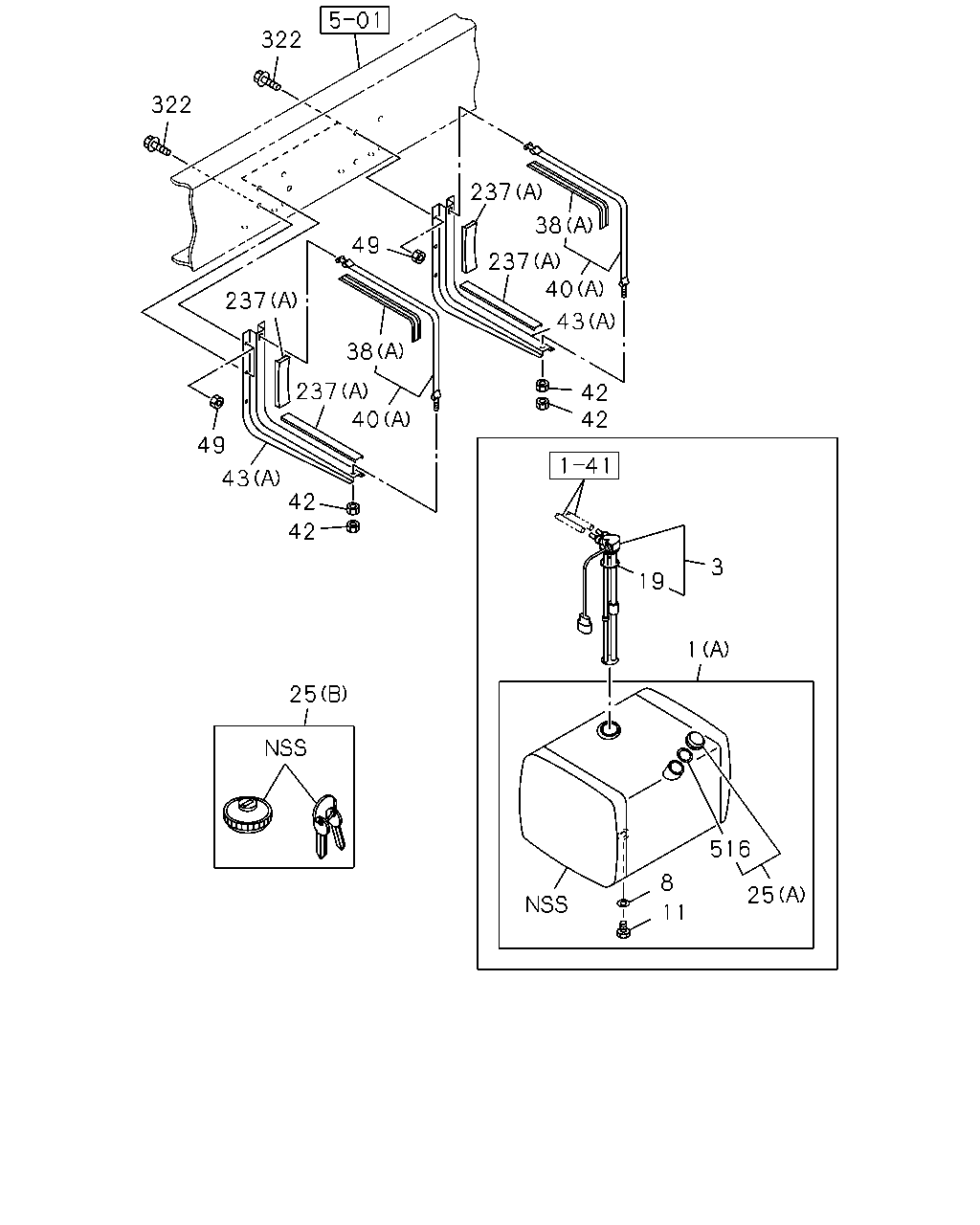

çizim 362743
322 322 49 237 237 38 40 42 43 42 3 19 516 8 25 11 25 42 42 43 49 40 237 38 237 1
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
FUEL TANK 200L AL<THF> (A) 745X650X480 200L 		1-87411-169-0 01 1 1306-
1 TANK; FUEL
FUEL TANK 400L<SDH> (B) 1050X680X625 400L 		1-87411-788-3 01 1 1306-
3 UNIT; FUEL TANK,SUB
FUEL TANK 200L AL<THF> 		8-98217-750-0 01 1 1306-
3 UNIT; FUEL TANK,SUB
FUEL TANK 400L<SDH> 		8-98217-749-0 01 1 1306-
8 GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6 		8-98030-453-0 01 1 1306-
11 PLUG; DRAIN,FUEL TANK
M18X12 		0-92002-418-0 01 1 1306-
19 GASKET; FUEL TANK UNIT
ID=54.5 		8-98299-580-0 01 1 1306-
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B) 		1-22440-057-2 01 1 1306-
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L AL<THF> (A) 		1-22440-056-0 01 1 1306-
25 CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH> (C) 		8-98182-306-0 01 1 1306-
25 CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH> FUEL TANK CAP KEY LOCK<N05> (D) 		8-98108-595-0 01 1 1306-
38 INSULATION; SUPPORT BELT
FUEL TANK 200L AL<THF> (A) L=960 		1-22553-044-0 02 1 1306-
38 INSULATION; SUPPORT BELT
FUEL TANK 400L<SDH> (B) L=1156 		1-22553-039-1 02 1 1306-
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 200L AL<THF> (A) L=1045 		1-22550-262-0 02 1 1306-
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH> (B) L=1210 		8-98202-448-0 02 1 1306-
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 1306-
43 BRACKET; FUEL TANK
FUEL TANK 200L AL<THF> (A) 		1-53461-543-0 02 1 1306-
43 BRACKET; FUEL TANK
FUEL TANK 400L<SDH> (B) 		1-53461-525-1 02 1 1306-
49 NUT; BRKT
FUEL TANK 200L AL<THF> M12 		0-91110-512-0 08 1 1306-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF> (A) L=340 		1-22553-043-2 02 1 1306-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF> (A) L=540 		1-22553-064-1 02 1 1306-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 400L<SDH> (B) 		1-22553-037-1 04 1 1306-
322 BOLT; BRKT FIX
FUEL TANK 200L AL<THF> M12X35 FLANGE 		0-28051-235-0 08 1 1306-
322 BOLT; BRKT FIX
FUEL TANK 400L<SDH> M12X40 FLANGE 		0-28051-240-0 12 1 1306-
516 GASKET; CAP
FUEL TANK 200L AL<THF> ID=78 		8-98259-383-0 01 1 1306-

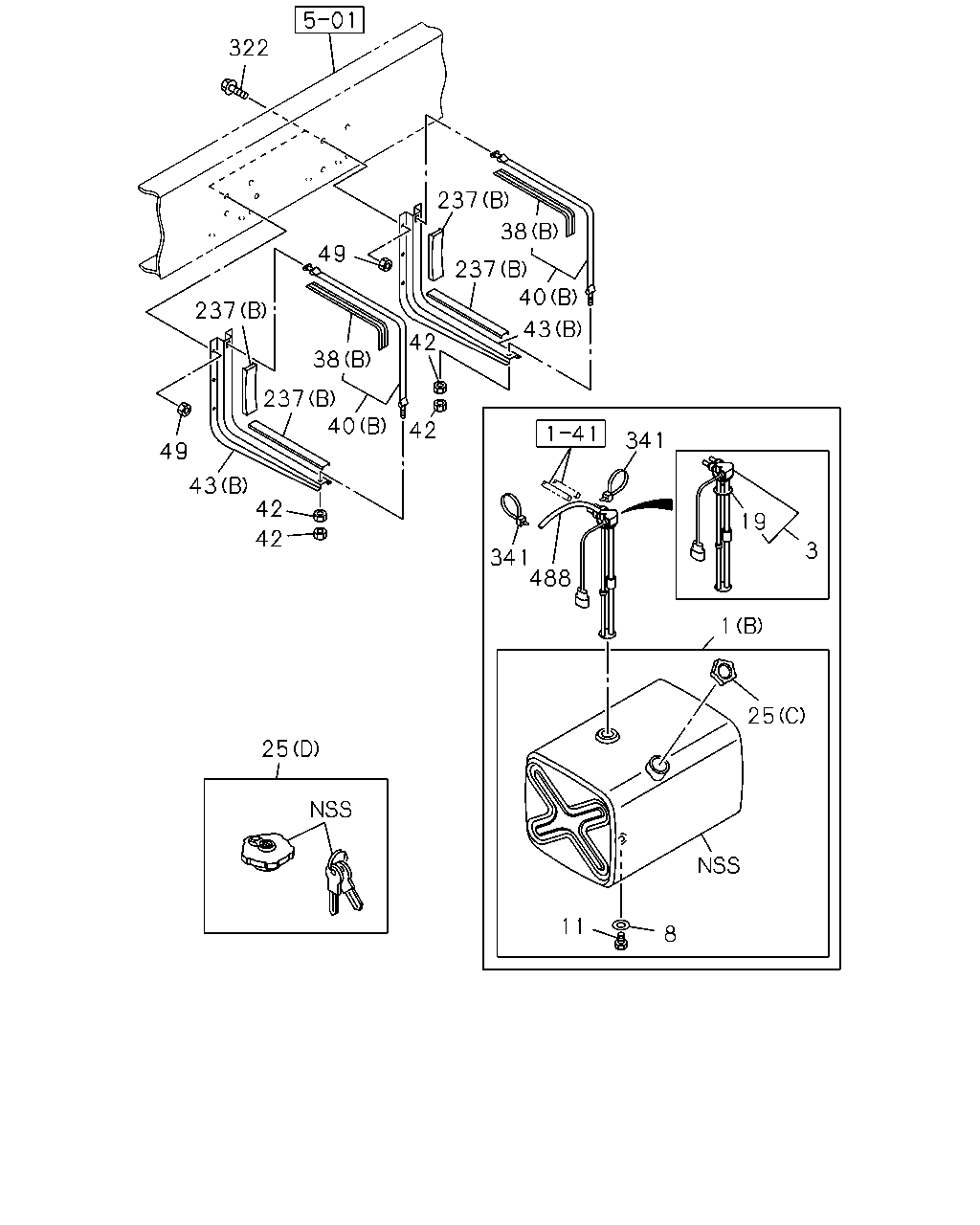

çizim 362751
322 49 237 38 237 43 49 42 42 40 42 42 237 237 38 40 341 19 3 1 488 341 43 8 11 25 25
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
FUEL TANK 200L AL<THF> (A) 745X650X480 200L 		1-87411-169-0 01 1 1306-
1 TANK; FUEL
FUEL TANK 400L<SDH> (B) 1050X680X625 400L 		1-87411-788-3 01 1 1306-
3 UNIT; FUEL TANK,SUB
FUEL TANK 200L AL<THF> 		8-98217-750-0 01 1 1306-
3 UNIT; FUEL TANK,SUB
FUEL TANK 400L<SDH> 		8-98217-749-0 01 1 1306-
8 GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6 		8-98030-453-0 01 1 1306-
11 PLUG; DRAIN,FUEL TANK
M18X12 		0-92002-418-0 01 1 1306-
19 GASKET; FUEL TANK UNIT
ID=54.5 		8-98299-580-0 01 1 1306-
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B) 		1-22440-057-2 01 1 1306-
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L AL<THF> (A) 		1-22440-056-0 01 1 1306-
25 CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH> (C) 		8-98182-306-0 01 1 1306-
25 CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH> FUEL TANK CAP KEY LOCK<N05> (D) 		8-98108-595-0 01 1 1306-
38 INSULATION; SUPPORT BELT
FUEL TANK 200L AL<THF> (A) L=960 		1-22553-044-0 02 1 1306-
38 INSULATION; SUPPORT BELT
FUEL TANK 400L<SDH> (B) L=1156 		1-22553-039-1 02 1 1306-
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 200L AL<THF> (A) L=1045 		1-22550-262-0 02 1 1306-
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH> (B) L=1210 		8-98202-448-0 02 1 1306-
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 1306-
43 BRACKET; FUEL TANK
FUEL TANK 200L AL<THF> (A) 		1-53461-543-0 02 1 1306-
43 BRACKET; FUEL TANK
FUEL TANK 400L<SDH> (B) 		1-53461-525-1 02 1 1306-
49 NUT; BRKT
FUEL TANK 200L AL<THF> M12 		0-91110-512-0 08 1 1306-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF> (A) L=340 		1-22553-043-2 02 1 1306-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF> (A) L=540 		1-22553-064-1 02 1 1306-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 400L<SDH> (B) 		1-22553-037-1 04 1 1306-
322 BOLT; BRKT FIX
FUEL TANK 200L AL<THF> M12X35 FLANGE 		0-28051-235-0 08 1 1306-
322 BOLT; BRKT FIX
FUEL TANK 400L<SDH> M12X40 FLANGE 		0-28051-240-0 12 1 1306-
341 CLIP; BAND,RUBBER HOSE
FUEL TANK 400L<SDH> L=350 		1-09707-183-0 02 1 1306-
488 HOSE; RUBBER
FUEL TANK 400L<SDH> 		8-98134-936-0 01 1 1306-
çizim 365984
324 110 261
BalonParca AdiParca NoAdetTipApplied Date
110 NUT; PROTECTOR
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 1306-
261 BOLT; PROTECTOR
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
324 PROTECTOR; FUEL SEDIMENTER
WHEEL BASE 6500MM(65W) 		1-47471-216-0 01 1 1306-
