0-12 — CYLINDER BLOCK (#124560) — 41 parça

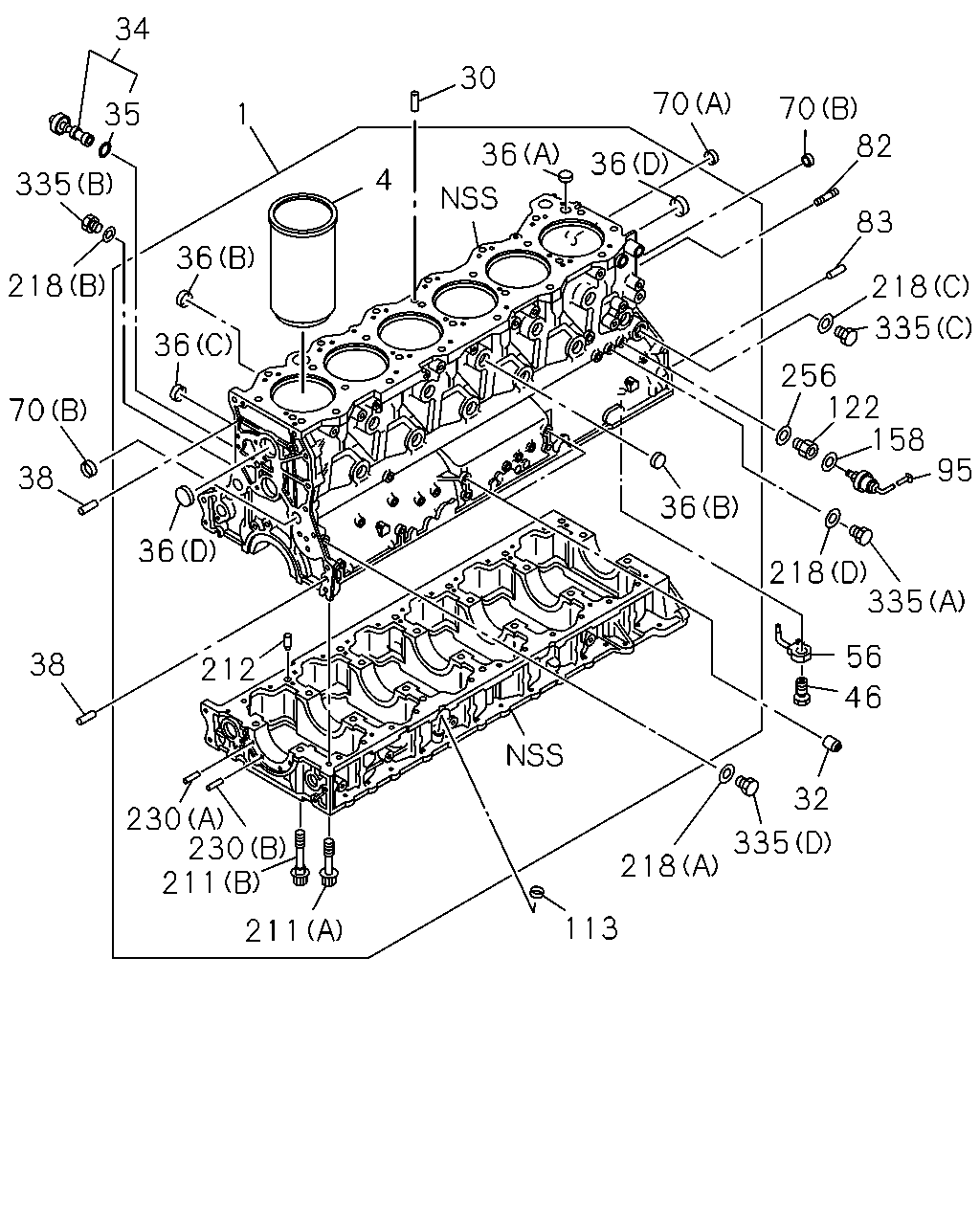

çizim 366091
113 218 335 32 46 56 335 218 95 158 122 256 36 335 218 83 82 70 70 211 211 230 230 212 38 36 38 70 36 36 218 335 35 34 1 36 36 30 4
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL 8-98180-452-1 01 1 1306-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 1306-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 1306-
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 02 1 1306-
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 1306-
34 VALVE; OIL RELIEF 1-13160-030-3 01 1 1306-
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		1-09623-297-0 01 1 1306-
36 CUP; SEALING,WATER JACKET
(A) OD=25 		1-09600-016-0 01 1 1306-
36 CUP; SEALING,WATER JACKET
(B) OD=40 		1-09600-065-1 02 1 1306-
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94241-637-0 13 1 1306-
36 CUP; SEALING,WATER JACKET
(D) OD=45 		8-97351-451-0 04 1 1306-
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 1306-
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 1306-
56 JET; OIL,PISTON COOLING 1-13342-125-5 06 1 1306-
70 CUP; SEALING,FRT & RR
(A) OD=32 		1-09600-012-2 01 1 1306-
70 CUP; SEALING,FRT & RR
(B) OD=25 		1-09600-016-0 04 1 1306-
82 STUD; FLYWHEEL HSG
M14X35 L=56 		0-44011-435-0 01 1 1306-
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 1306-
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 1306-
113 CUP; SEALING
OD=15.6 		5-11129-003-0 01 1 1306-
122 ADAPTER; OIL PRESSURE SWITCH 8-94390-391-0 01 1 1306-
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 1306-
211 BOLT; CRANKCASE
(A) M12X114 		1-09070-087-3 28 1 1306-
211 BOLT; CRANKCASE
(B) M18X150 		1-09070-151-0 14 1 1306-
212 PIN; CRANKCASE 1-09740-068-1 02 1 1306-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1306-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 01 1 1306-1312
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		8-98251-344-0 01 1 1401-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22 		1-09630-089-0 01 1 1306-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=25 		1-09630-141-0 01 1 1306-
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 1306-
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 1306-
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 1306-
335 PLUG; C/BL,SIDE
(C) M22X12 		1-09604-035-0 01 1 1306-
335 PLUG; C/BL,SIDE
(D) M10X7 		1-09604-094-0 01 1 1306-
335 PLUG; C/BL,SIDE
(A) M14X9 		8-98042-944-0 01 1 1306-
335 PLUG; C/BL,SIDE
(B) M12X9 		8-98047-054-0 01 1 1306-
çizim 366368
4 2
BalonParca AdiParca NoAdetTipApplied Date
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-928-5 06 1 1306-
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-929-5 06 1 1306-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 1306-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 1306-
