9-01 — TOOLS (#124555) — 88 parça

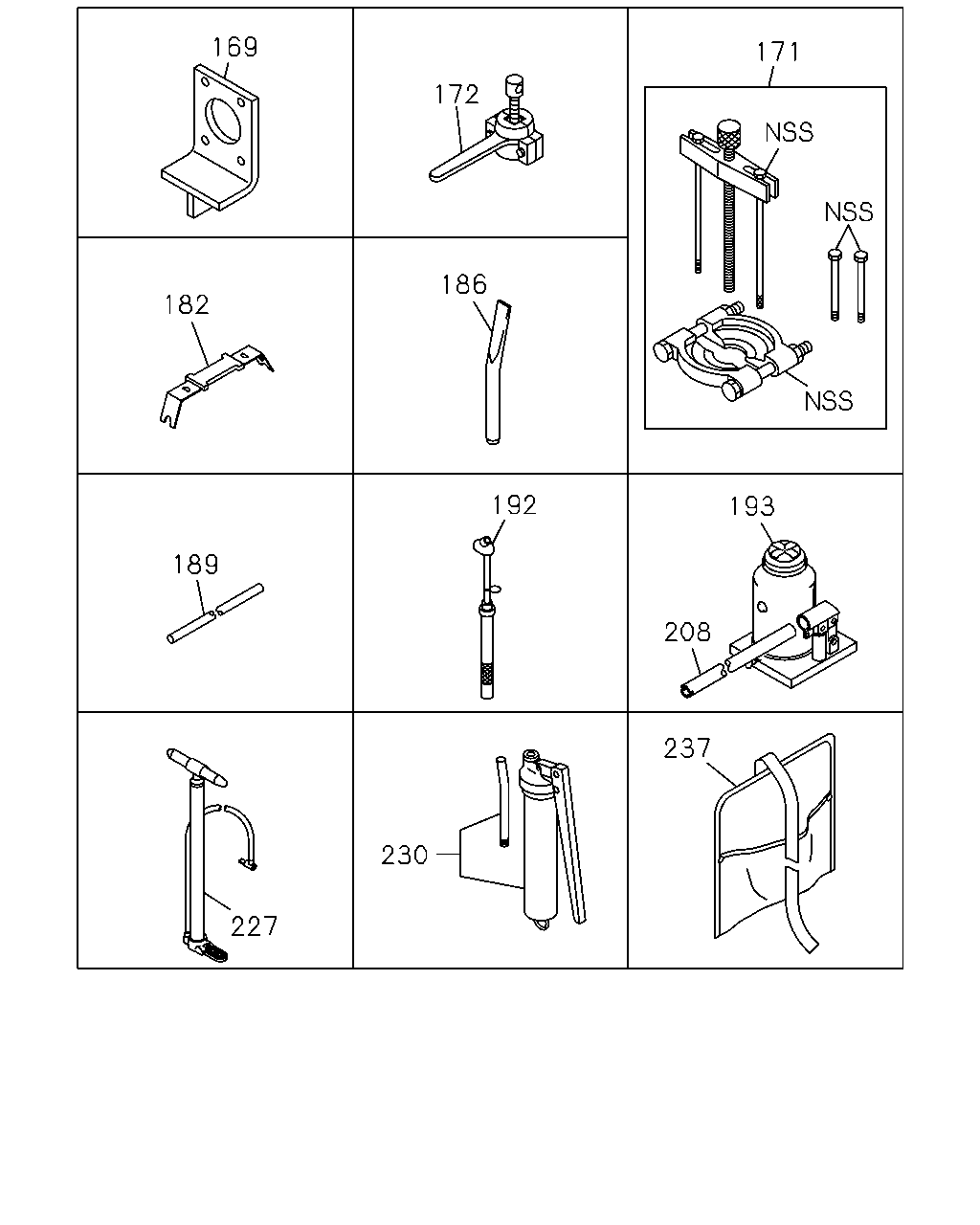

çizim 362022
171 172 186 193 208 237 230 227 192 189 182 169
BalonParca AdiParca NoAdetTipApplied Date
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 1306-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 1306-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 1306-
182 REMOVER ASM 1-85239-008-0 01 1 1306-
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 1306-
189 TUBE; AIR BREATHER
TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 1306-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1306-
193 JACK ASM
TOOL B KIT<SL1> 15TON 		1-85510-019-2 01 1 1306-
208 HANDLE; JACK
TOOL B KIT<SL1> L=600 		8-98181-437-0 01 1 1306-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1306-
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 1306-
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-1 01 1 1306-
çizim 364070
167 163 163 153 154 156 160 151 146 145 143
BalonParca AdiParca NoAdetTipApplied Date
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 1306-
145 REPLACER ASM; BUSHING 1-85230-008-0 01 1 1306-
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 1306-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 1306-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 1306-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 1306-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 1306-
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 1306-
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 1306-
163 TOOL; SETTING
(A) 		9-85221-231-0 01 1 1306-
167 ALIGNER; CLU PILOT
L=300 OD=52.5 		1-85253-025-0 01 1 1306-

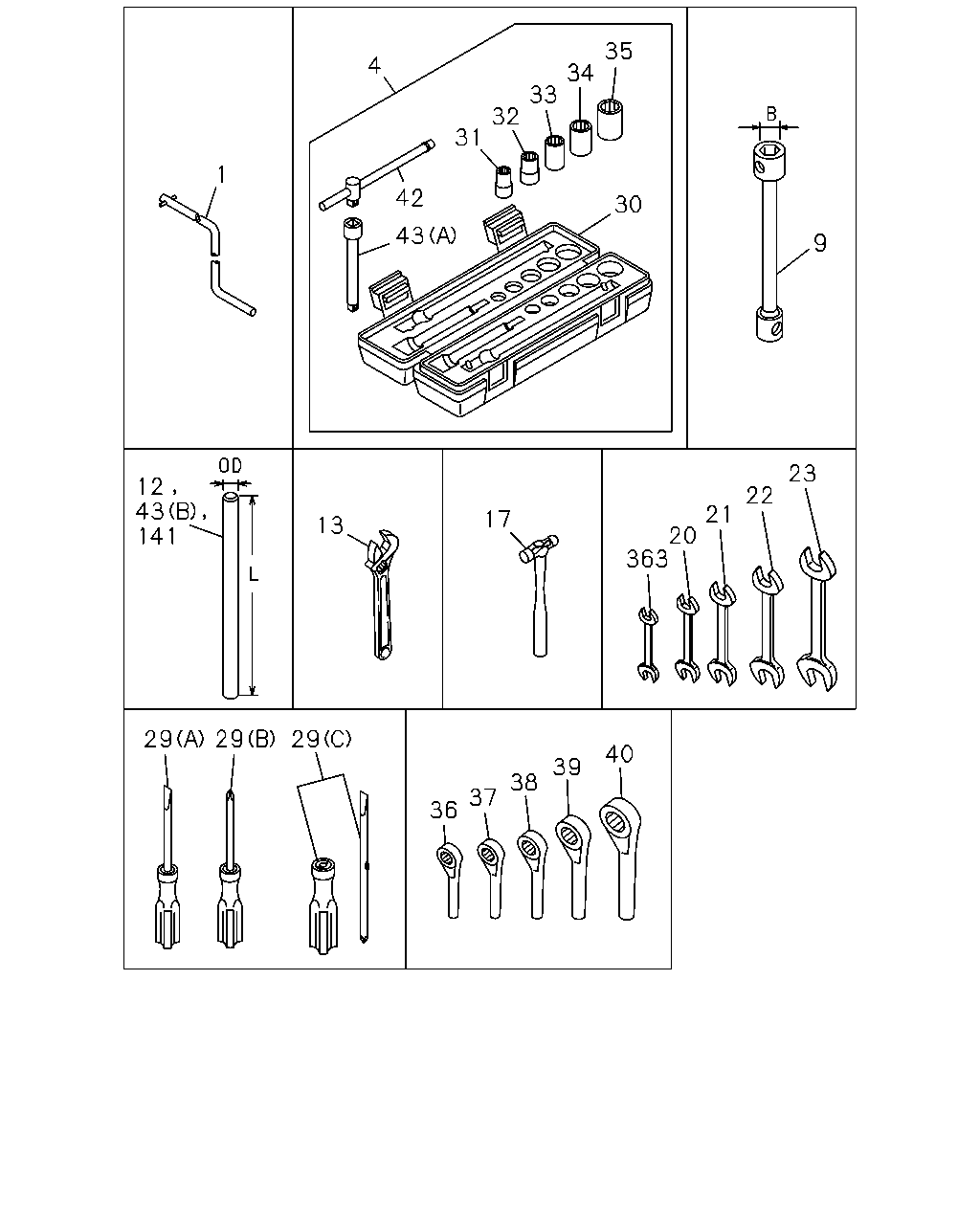

çizim 364138
1 4 35 34 33 32 31 42 43 30 9 23 22 21 20 363 17 13 12 141 43 29 29 29 40 39 38 37 36
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 1306-
4 WRENCH KIT; SOCKET
TOOL B KIT<SL1> 		1-85000-491-0 01 1 1306-
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 1306-1601
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=33X30 L=450 		8-98316-700-0 01 1 1602-
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 1306-1501
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1502-
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 1306-1407
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408-
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 1306-
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 1306-
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 1306-
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 1306-
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 1306-
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 1306-
29 DRIVER; SCREW
TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 1306-
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <+> L=275 		9-09595-023-0 01 1 1306-
30 BOX; SOCKET WRENCH
TOOL B KIT<SL1> 		1-85000-492-0 01 1 1306-
31 WRENCH; 12
TOOL B KIT<SL1> 		1-85000-495-0 01 1 1306-
32 WRENCH; 14
TOOL B KIT<SL1> 		1-85000-496-0 01 1 1306-
33 WRENCH; 17
TOOL B KIT<SL1> 		1-85000-497-0 01 1 1306-
34 WRENCH; 19
TOOL B KIT<SL1> 		1-85000-498-0 01 1 1306-
35 WRENCH; 22
TOOL B KIT<SL1> 		1-85000-499-0 01 1 1306-
36 WRENCH; 24 9-85111-377-0 01 1 1306-
37 WRENCH; 27 9-85111-375-0 01 1 1306-
38 WRENCH; 32 9-85111-358-0 01 1 1306-
39 WRENCH; 36 9-85111-374-0 01 1 1306-
40 WRENCH; 41 9-85111-356-0 01 1 1306-
42 HANDLE; SLIDING
TOOL B KIT<SL1> 		1-85000-500-0 01 1 1306-
43 BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480 		1-85116-011-0 01 1 1306-1501
43 BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480 		8-98257-407-0 01 1 1502-
43 BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1> (A) 		1-85000-501-0 01 1 1306-
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 1306-
363 WRENCH; OPEN END 8X10
TOOL B KIT<SL1> 8X10 		0-95902-508-0 01 1 1306-
çizim 364143
121 126 125 115 120 108 122 127 124 128 129 130 135
BalonParca AdiParca NoAdetTipApplied Date
108 WRENCH; SOCKET 9-85113-132-0 01 1 1306-
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 1306-1410
115 PLIER
TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411-
120 PULLER ASM; MAIN REAR BRG
L=285 		9-85210-184-0 01 1 1306-
121 PULLER ASM; COUNTER REAR 1-85210-069-0 01 1 1306-
122 PULLER ASM; COUNTER FRT 9-85210-195-0 01 1 1306-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 1306-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 1306-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 1306-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 1306-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 1306-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 1306-
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 1306-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 1306-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 1306-
çizim 365902
242 246 247 248 249 250 388 388 405 407 408 408 408 417
BalonParca AdiParca NoAdetTipApplied Date
242 DRAWER ASM; ENG TRANS & DIFF
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 1306-
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 1306-
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 1306-
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 1306-
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 1306-
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 1306-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 1306-
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 1306-
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 1306-
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 1306-
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 1306-
405 GUIDE; COUNTER 1-85221-264-0 01 1 1306-
407 SOCKET; SW 1-85221-267-1 01 1 1306-
408 TOOL; SETTING,SHIFT ASSISTER
(B) 		1-85221-262-0 02 1 1306-
408 TOOL; SETTING,SHIFT ASSISTER
(A) 		1-85221-268-0 01 1 1306-
408 TOOL; SETTING,SHIFT ASSISTER
(C) 		1-85221-269-0 01 1 1306-
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 1306-
