◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11526 - EXZ RHD EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#124548) — 42 parça

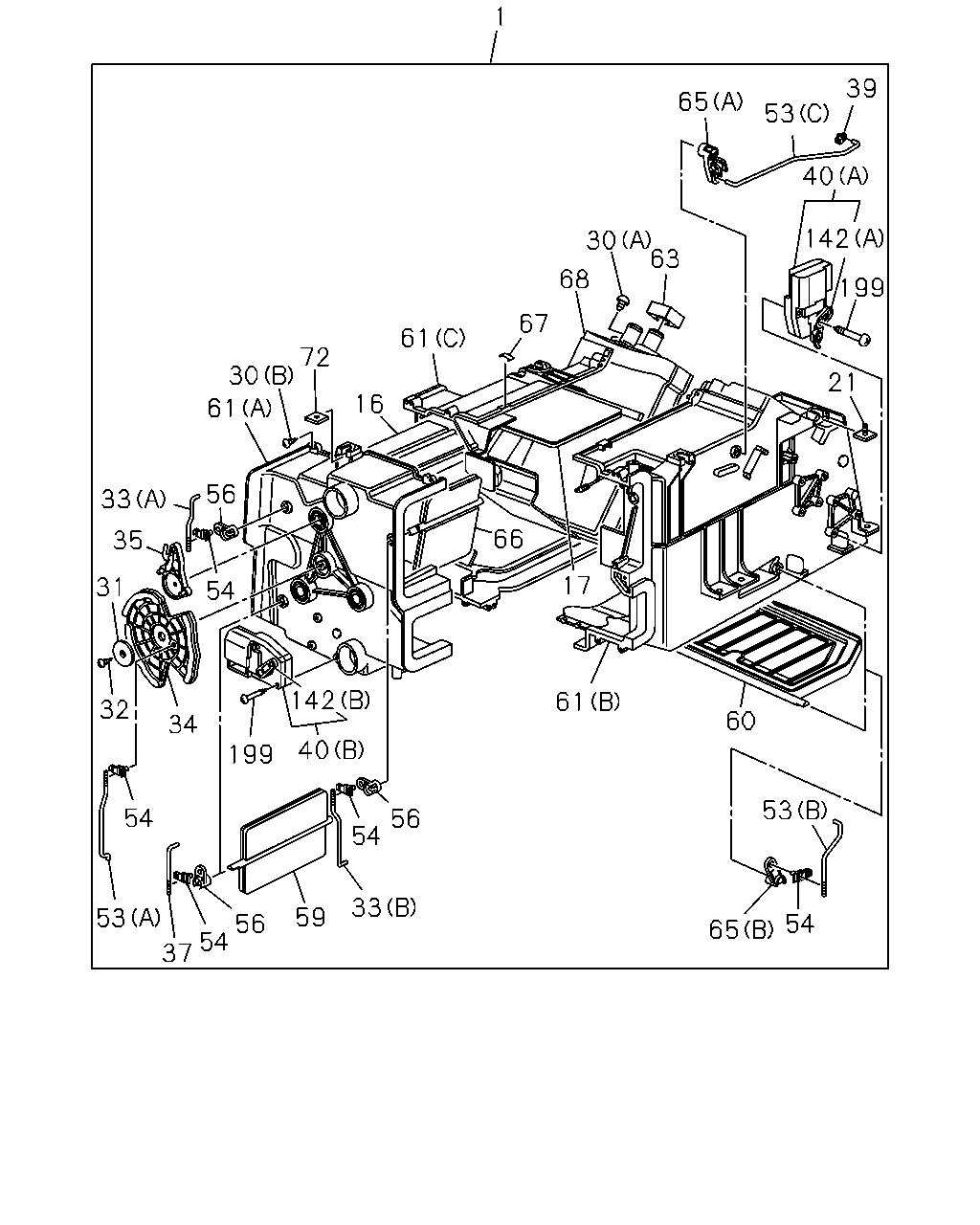

çizim 366396
1 65 53 39 40 142 199 21 60 53 54 65 61 63 30 68 67 66 61 16 72 30 61 56 54 33 56 54 142 40 59 199 56 54 37 53 54 34 32 31 35 33 17
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-175-1 01 1 1306-1409
1 HEATER UNIT 8-98238-476-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1306-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1306-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1306-
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1306-
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 1306-1409
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1306-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1306-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1306-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1306-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1306-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1306-
37 ROD; LEVER 1-83579-620-1 01 1 1306-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1306-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 1306-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1306-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1306-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1306-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1306-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1306-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1306-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1306-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1306-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 1306-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 1306-1409
61 CASE; HTR UNIT
(B) 		8-98299-713-0 01 1 1410-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 1306-1409
61 CASE; HTR UNIT
(A) 		8-98299-715-0 01 1 1410-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1306-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1306-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1306-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 1306-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1306-
68 CORE; HTR UNIT 1-83562-078-1 01 1 1306-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1306-
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 1306-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 1306-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1306-
