◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11526 - EXZ RHD EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#124536) — 29 parça
çizim 363717
33 24 33 27 35 25
BalonParca AdiParca NoAdetTipApplied Date
24 LAMP; STEP 1-82140-052-1 01 1 1306-
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 1306-
27 LENS; STEP LAMP 1-82145-019-0 01 1 1306-
33 GROMMET; SCREW,LAMP
M4 		5-09470-002-0 02 1 1306-
35 SCREW; STEP LAMP
M4X20 		1-82149-006-0 02 1 1306-

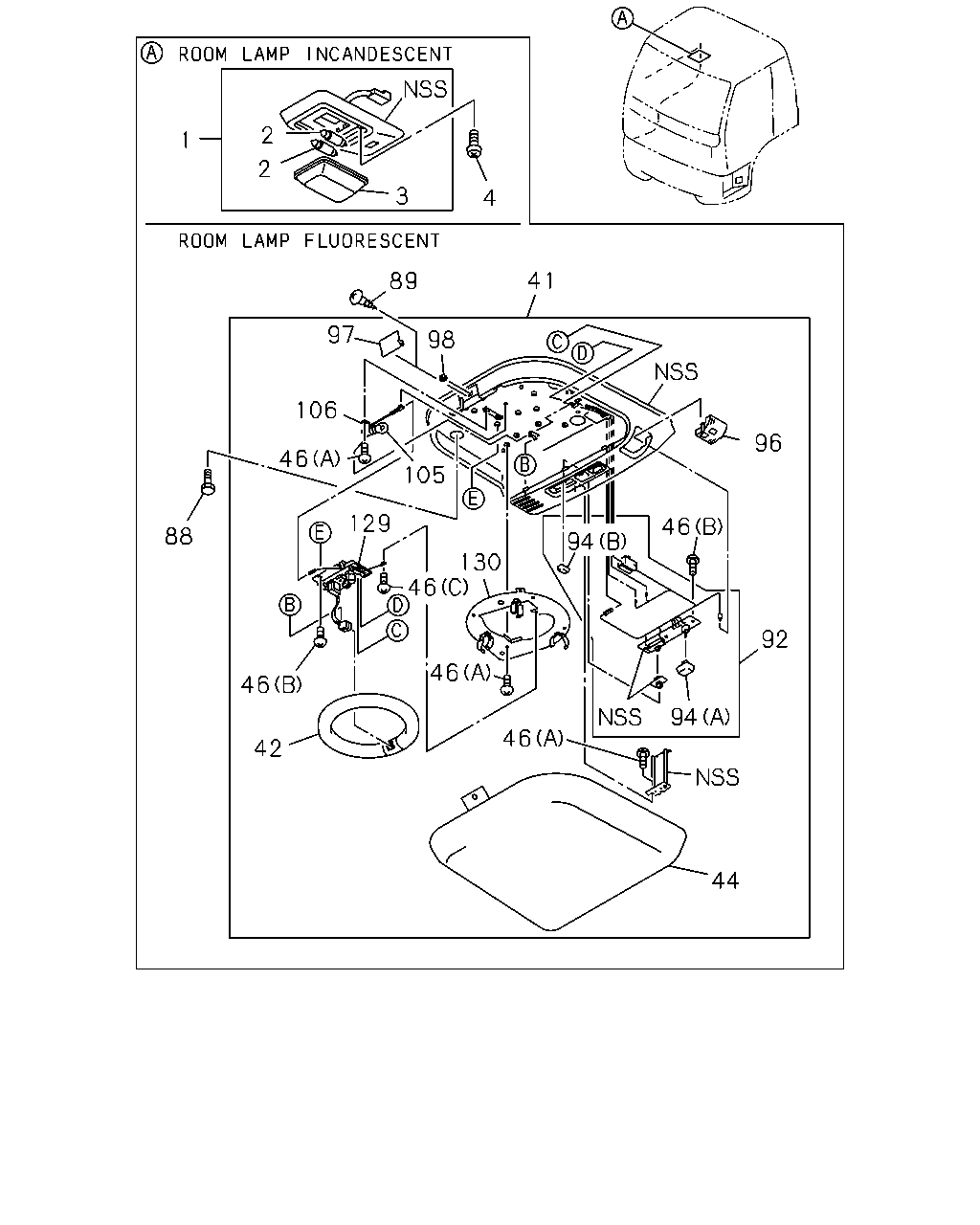

çizim 365198
4 3 2 2 1 89 97 98 41 106 46 88 46 42 129 46 130 105 46 46 94 44 92 96 46 94
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; ROOM
ROOM LAMP INCANDESCENT<NGH> 		1-82140-050-1 01 1 1306-
2 BULB; ROOM LAMP
ROOM LAMP INCANDESCENT<NGH> 24V 10W 		1-82195-001-0 02 1 1306-
3 LENS; ROOM LAMP
ROOM LAMP INCANDESCENT<NGH> 		1-82145-020-0 01 1 1306-
4 SCREW; ROOM LAMP
ROOM LAMP INCANDESCENT<NGH> M5X20 TAPPING 		0-71040-520-0 03 1 1306-
41 LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-315-2 01 1 1306-
41 LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-323-1 01 1 1306-
42 LAMP; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-094-1 01 1 1306-
44 LENS; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-092-0 01 1 1306-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING 		1-86830-095-0 08 1 1306-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (B) M4X12 		1-86830-202-0 07 1 1306-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING 		1-86830-336-0 01 1 1306-
88 BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1306-
89 SCREW; LENS,FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING 		0-71240-510-0 01 1 1306-
92 SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-306-0 01 1 1306-
92 SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-341-0 01 1 1306-
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (A) 		1-86830-312-0 01 1 1306-
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (B) 		1-86830-313-0 01 1 1306-
96 CAP; SPOT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-385-0 01 1 1306-
97 CAP; LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-311-0 01 1 1306-
98 GROMMET; SCREW,LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-102-0 01 1 1306-
105 BULB; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 28V 20W 		1-86830-200-0 01 1 1306-
106 SOCKET; BULB
ROOM LAMP FLUORESCENT<NGG> 		1-86830-201-0 01 1 1306-
129 INVERTER ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-338-0 01 1 1306-
130 PLATE ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-339-0 01 1 1306-
