Sayfa 7-70 - Isuzu EPC

7-70 — SEPARATER AND BED (#124533) — 54 parça

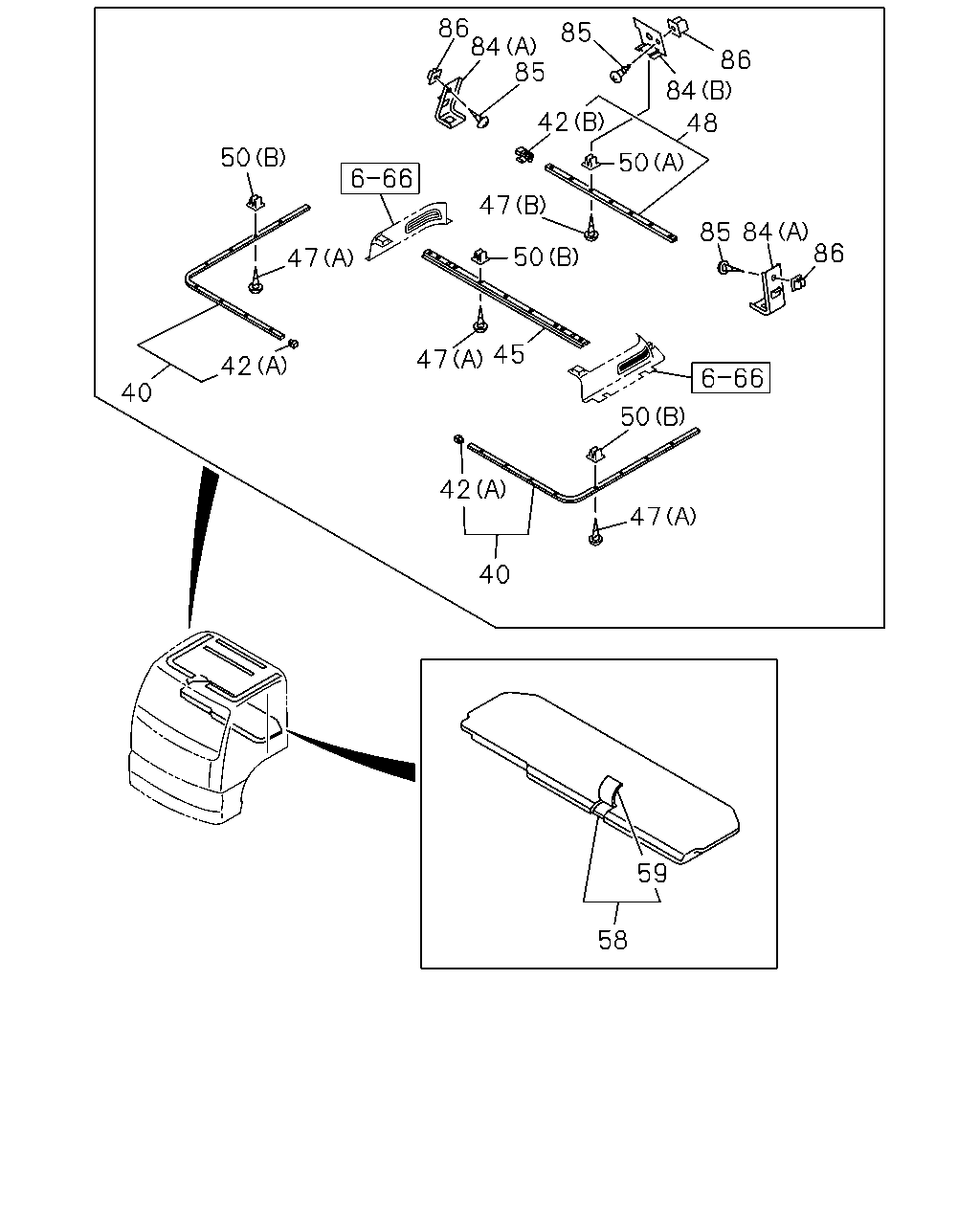

47 50 42 40 58 59 85 84 86 48 84 86 50 42 85 85 84 86 47 50 45 47 47 50 42 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1306-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1306-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1306-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1306-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1306-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1306-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1306-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1306-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1306-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1306-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1306-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1306-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1306-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1306-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1306-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1306-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1306-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1306-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1306-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1306-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1306-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1306-

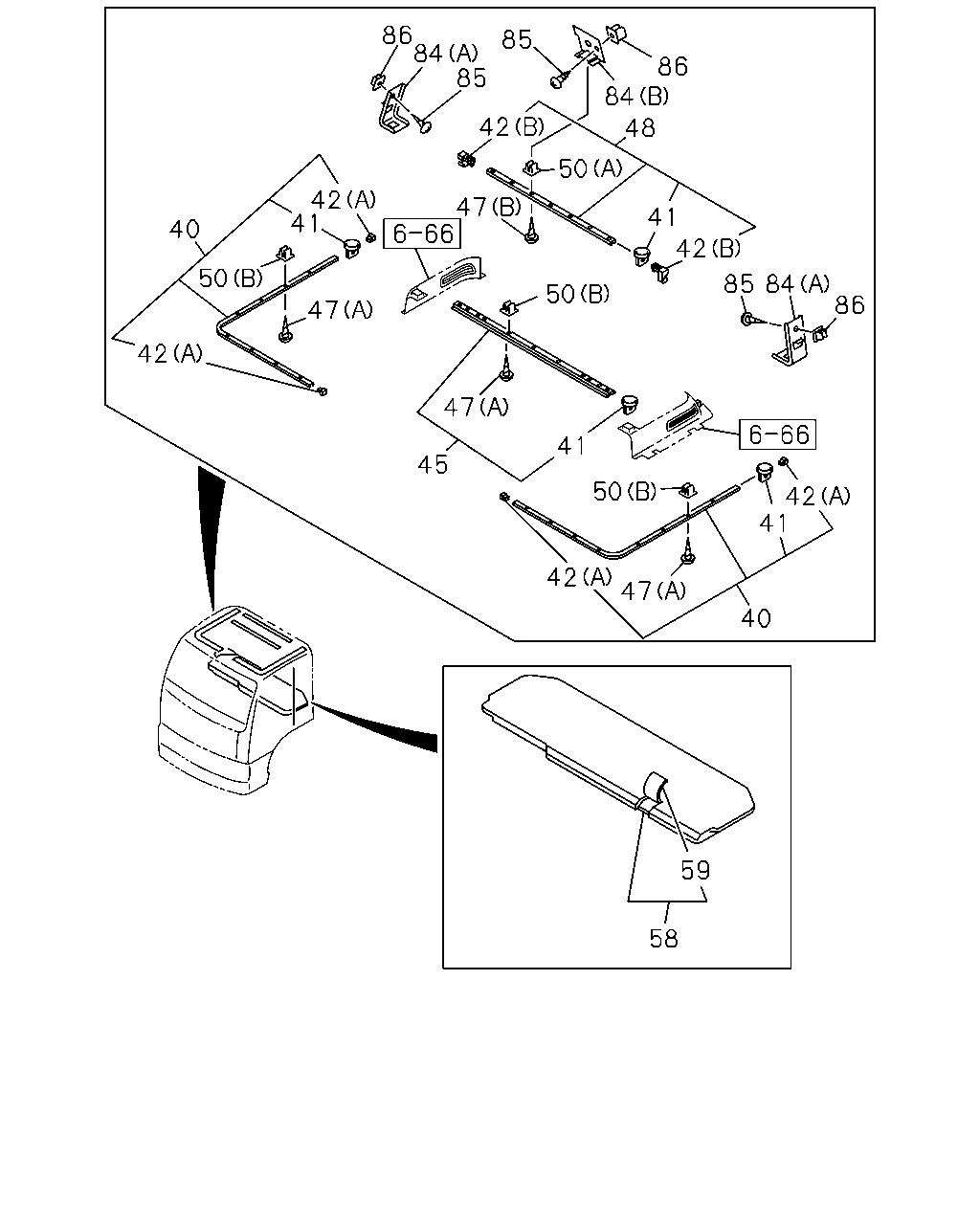

86 84 85 85 42 50 41 42 85 84 86 84 48 86 47 50 47 41 50 42 41 40 47 42 59 58 42 41 47 45 40 50 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1306-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1306-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1306-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1306-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	1306-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	1306-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1306-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1306-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1306-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1306-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1306-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1306-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1306-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1306-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1306-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1306-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1306-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1306-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1306-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1306-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1306-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1306-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1306-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1306-

51 51 64 92 44 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-1	01	1	1306-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-1	01	1	1306-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-426-0	01	1	1306-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-1	01	1	1306-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-1	01	1	1306-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-479-1	01	1	1306-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-1	01	1	1306-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-1	01	1	1306-
