◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11526 - EXZ RHD EURO2 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#124516) — 14 parça

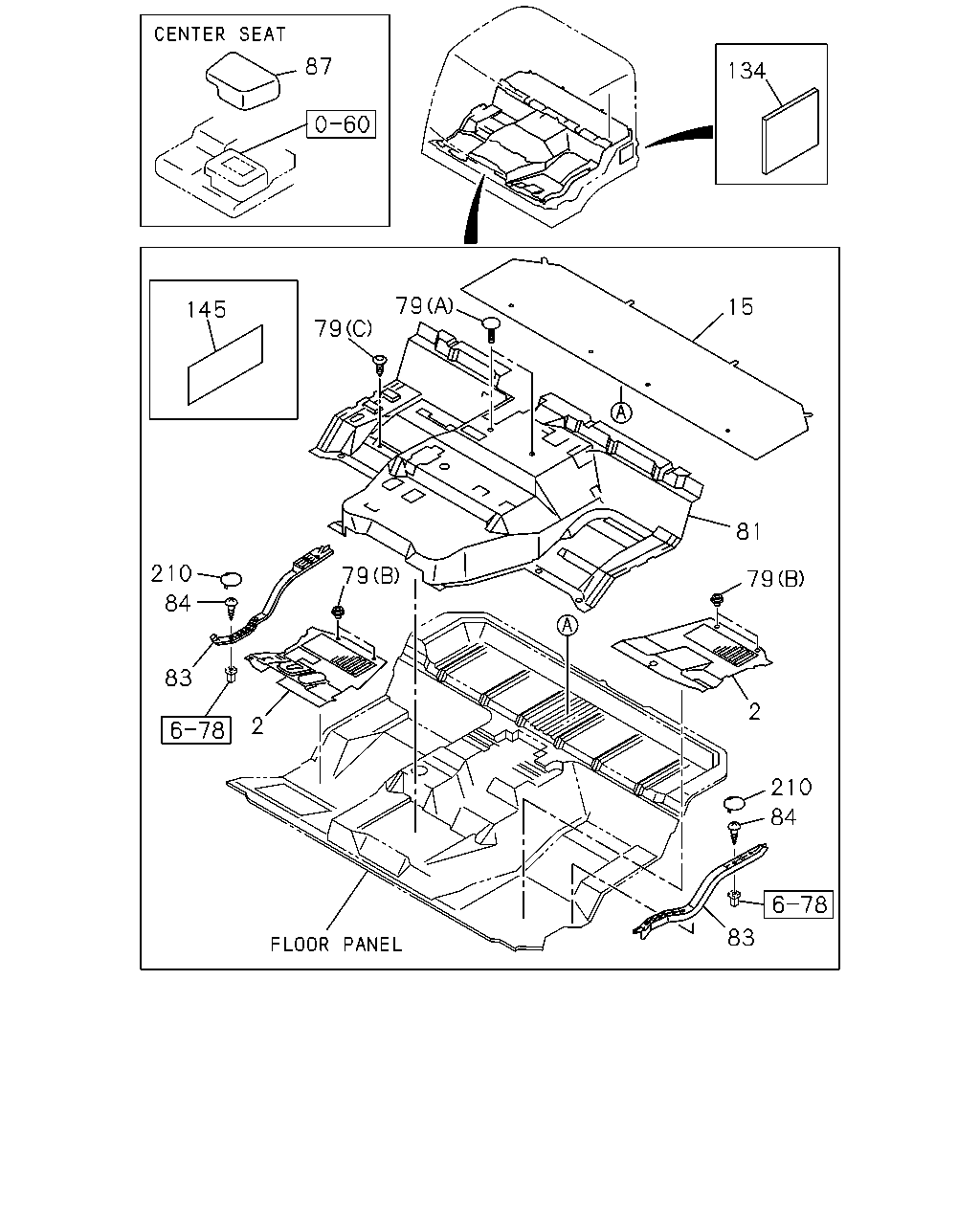

çizim 365111
79 81 15 134 87 145 79 79 79 2 210 84 83 2 83 84 210
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR 1-73237-786-1 01 1 1306-
2 MAT; FLOOR 1-73237-784-1 01 1 1306-
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> 		1-73237-783-1 01 1 1306-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 1306-
79 HOOK; MALE
(C) OD=16 L=11 		1-76378-155-0 01 1 1306-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1306-
81 MAT; FLOOR,CENTER 1-73237-923-1 01 1 1306-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1306-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1306-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1306-
87 MAT; FLOOR
EXC. CENTER SEAT DELETE(SP9) 		1-73237-779-1 01 1 1306-
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 1306-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1306-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1306-
