◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11526 - EXZ RHD EURO2 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#124509) — 47 parça

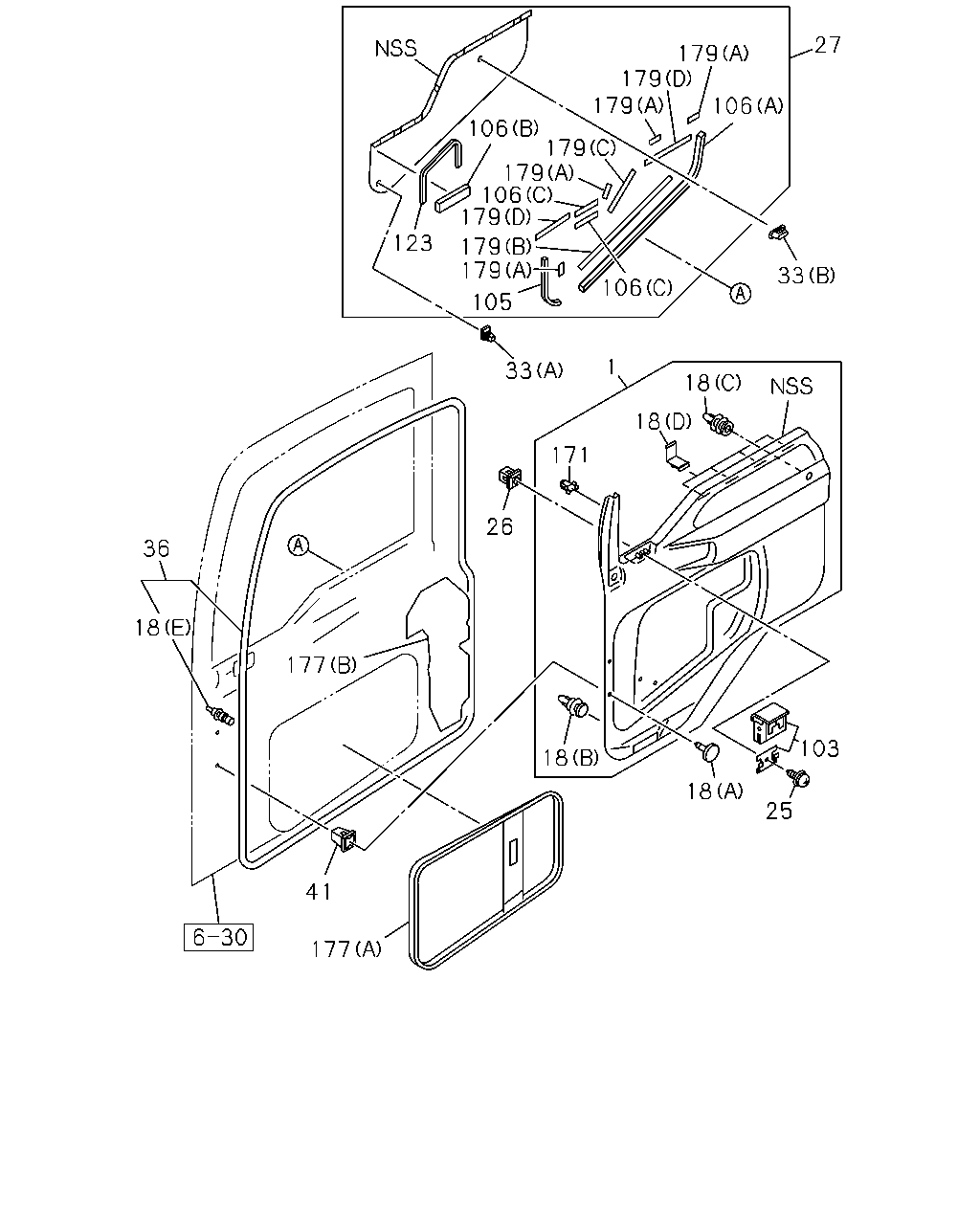

çizim 364530
177 41 25 18 103 18 177 18 36 26 171 18 18 1 33 33 27 179 106 179 179 179 106 179 106 123 179 105 179 179 106
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR 8-98145-253-2 01 1 1306-
1 PAD; TRIM,FRT DOOR 8-98145-252-2 01 1 1306-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 1306-
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 1306-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 1306-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 1306-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1306-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1306-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 1306-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1306-
27 PANEL; ORNAMENT,DOOR
PAPUA NEW GUINEA EQUIPMENT(PV5) 		1-76218-099-7 01 1 1306-
27 PANEL; ORNAMENT,DOOR
PAPUA NEW GUINEA EQUIPMENT(PV5) 		8-98229-328-0 01 1 1306-
27 PANEL; ORNAMENT,DOOR
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) 		8-97632-479-0 01 1 1306-
27 PANEL; ORNAMENT,DOOR
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) 		8-98229-332-0 01 1 1306-
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 1306-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 1306-
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1306-
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1306-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 1306-
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 1306-
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 1306-
105 SEAL; DOOR ORNAMENT,FRT
PAPUA NEW GUINEA EQUIPMENT(PV5) 		1-76218-082-2 01 1 1306-
105 SEAL; DOOR ORNAMENT,FRT
PAPUA NEW GUINEA EQUIPMENT(PV5) 		1-76218-082-2 01 1 1306-
105 SEAL; DOOR ORNAMENT,FRT
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) 		1-76218-082-2 02 1 1306-
106 SEAL; DOOR ORNAMENT
(B) 		8-98226-642-0 01 1 1306-
106 SEAL; DOOR ORNAMENT
PAPUA NEW GUINEA EQUIPMENT(PV5) (A) 		1-76218-083-2 01 1 1306-
106 SEAL; DOOR ORNAMENT
PAPUA NEW GUINEA EQUIPMENT(PV5) (A) 		1-76218-083-2 01 1 1306-
106 SEAL; DOOR ORNAMENT
PAPUA NEW GUINEA EQUIPMENT(PV5) (C) 		1-76218-104-0 02 1 1306-
106 SEAL; DOOR ORNAMENT
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) (A) 		1-76218-083-2 02 1 1306-
123 SEAL; ORNAMENT PANEL
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) 		8-98150-732-0 01 1 1306-
123 SEAL; ORNAMENT PANEL
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) 		8-98150-731-0 01 1 1306-
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 1306-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 1306-
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 1306-
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 1306-
179 TAPE; ORNAMENT
PAPUA NEW GUINEA EQUIPMENT(PV5) (A) L=45 		1-76218-063-2 04 1 1306-
179 TAPE; ORNAMENT
PAPUA NEW GUINEA EQUIPMENT(PV5) (A) L=45 		1-76218-063-2 04 1 1306-
179 TAPE; ORNAMENT
PAPUA NEW GUINEA EQUIPMENT(PV5) (B) L=770 		1-76218-091-2 01 1 1306-
179 TAPE; ORNAMENT
PAPUA NEW GUINEA EQUIPMENT(PV5) (B) L=770 		1-76218-091-2 01 1 1306-
179 TAPE; ORNAMENT
PAPUA NEW GUINEA EQUIPMENT(PV5) (C) L=160 		1-76218-094-1 01 1 1306-
179 TAPE; ORNAMENT
PAPUA NEW GUINEA EQUIPMENT(PV5) (C) L=160 		1-76218-094-1 01 1 1306-
179 TAPE; ORNAMENT
PAPUA NEW GUINEA EQUIPMENT(PV5) (D) L=235 		1-76218-127-1 02 1 1306-
179 TAPE; ORNAMENT
PAPUA NEW GUINEA EQUIPMENT(PV5) (D) L=235 		1-76218-127-1 02 1 1306-
179 TAPE; ORNAMENT
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) (A) L=45 		1-76218-063-2 08 1 1306-
179 TAPE; ORNAMENT
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) (C) L=160 		1-76218-094-1 02 1 1306-
179 TAPE; ORNAMENT
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) (D) L=235 		1-76218-127-1 04 1 1306-
179 TAPE; ORNAMENT
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) (B) L=600 		8-97633-876-0 02 1 1306-
