6-05 — FRONT PANEL (#124503) — 181 parça

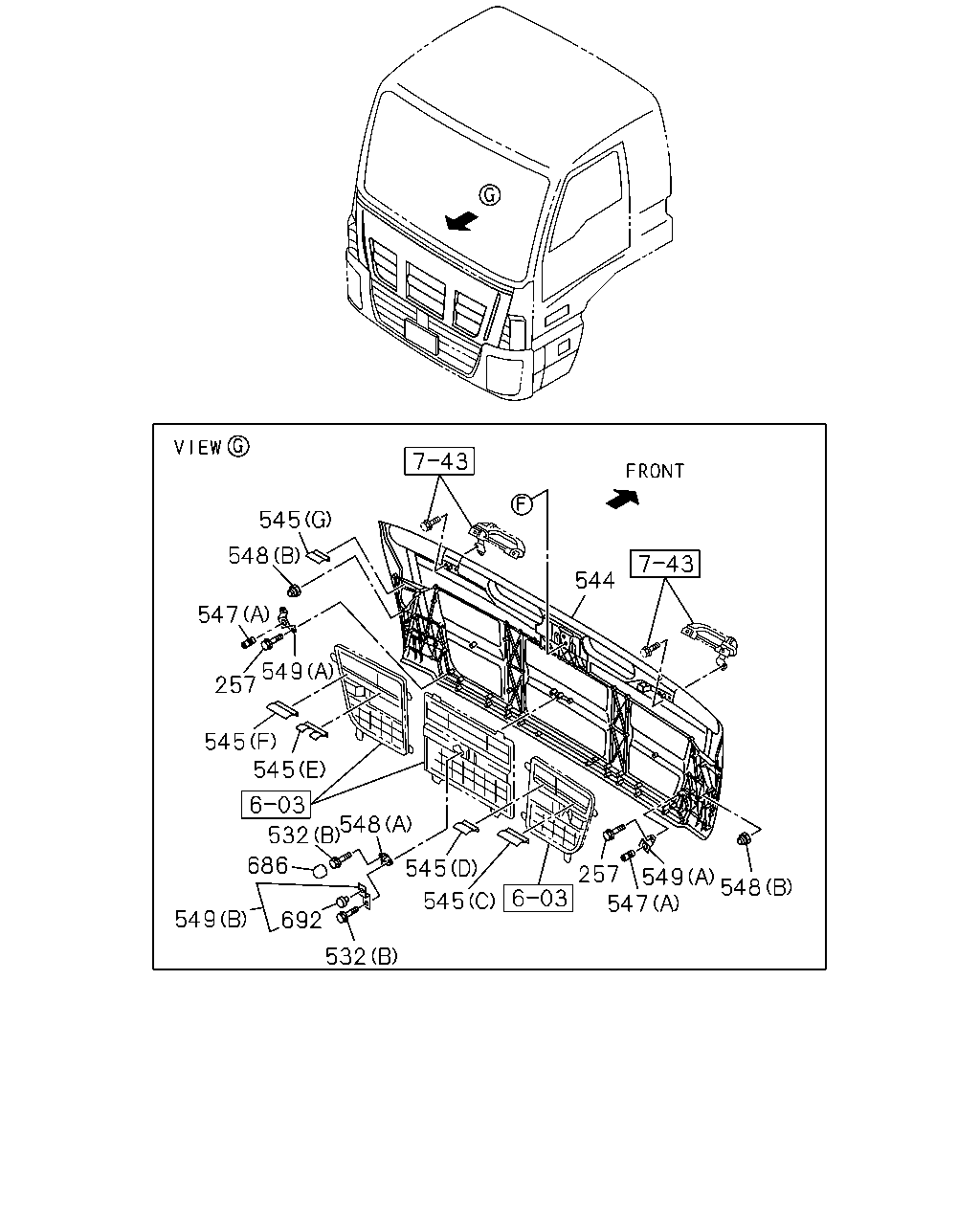

çizim 364901
545 548 547 549 257 545 545 548 532 686 549 532 692 545 545 257 547 549 548 544
BalonParca AdiParca NoAdetTipApplied Date
257 BOLT; BRKT
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 1306-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1306-
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1306-1511
532 BOLT; FRT PANEL
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512-
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1306-
544 LID; FRT
WHITE 		8-97417-923-3 01 1 1306-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1306-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1306-
545 SEAL; FRT LID
(C) 		8-98133-467-0 01 1 1306-
545 SEAL; FRT LID
(D) 		8-98133-468-0 01 1 1306-
545 SEAL; FRT LID
(E) 		8-98133-469-0 01 1 1306-
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1306-
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1306-
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1306-
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 1306-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 1306-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 1306-
549 BRACKET; STOPPER,FRT LID
(B) 		8-98274-092-0 01 1 1411-
549 BRACKET; STOPPER,FRT LID
(A) 		8-98135-101-0 02 1 1306-
686 CAP; BOLT 8-98217-298-0 01 1 1306-1410
692 BUFFER 8-98251-459-0 01 1 1411-

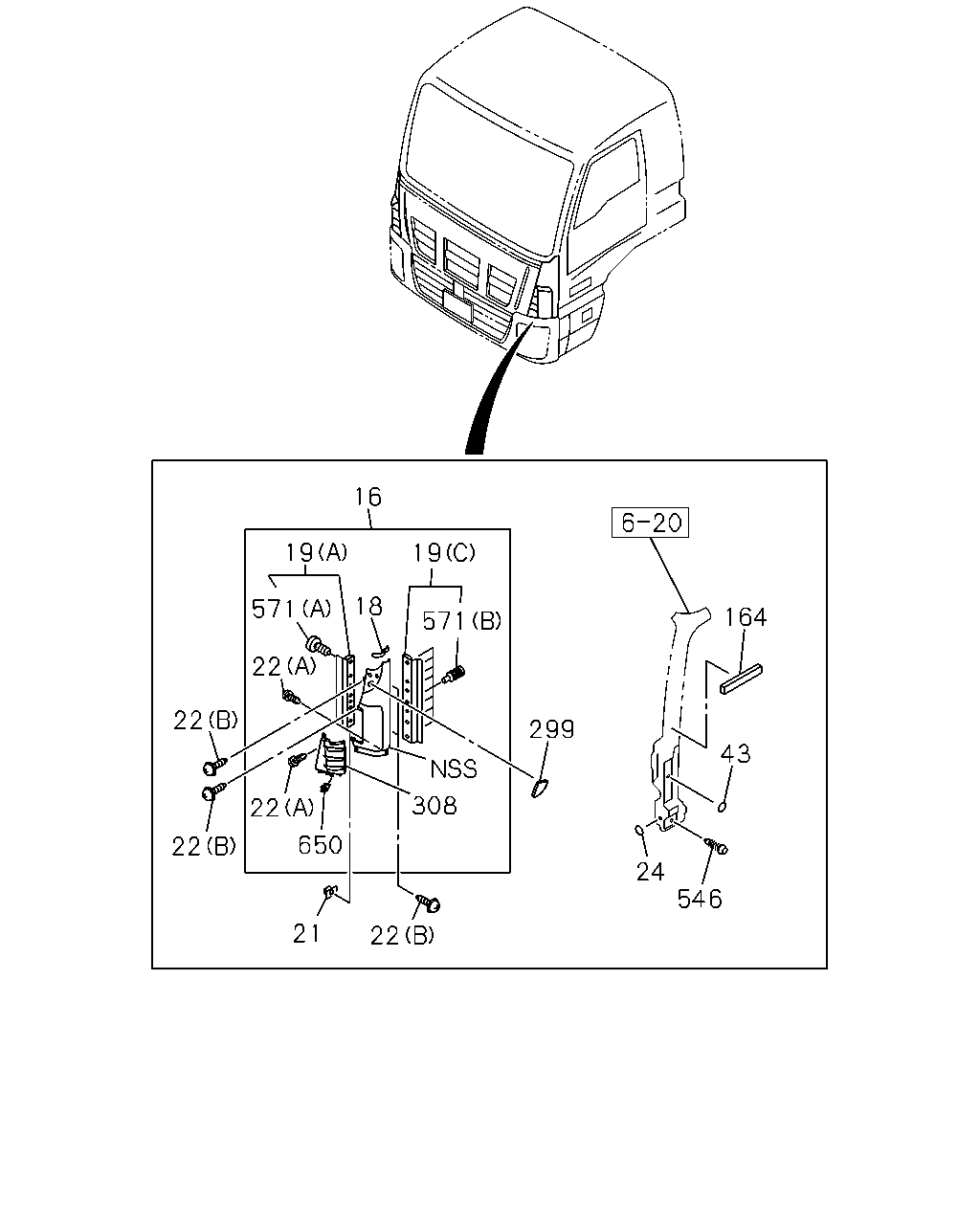

çizim 364904
546 24 43 164 299 22 21 650 308 22 22 22 571 18 22 571 19 19 16
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		8-97417-875-2 01 1 1306-
16 PANEL; FRONT,SIDE
WHITE 		8-97417-867-2 01 1 1306-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 1306-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 1306-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 1306-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-434-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-433-0 01 1 1306-
21 GROMMET; SCREW,FRT SIDE PANEL
D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 1306-
22 SCREW; FRT PANEL SIDE
(A) M5X16 W/PL WASHER 		1-09981-532-0 04 1 1306-
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1306-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 05 1 1306-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 1306-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 1306-
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97423-348-1 01 1 1306-
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) GENERAL EXPORT EQUIPMENT(TAA) WHITE 		8-97423-349-1 01 1 1306-
299 COVER; FRT PANEL SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97424-988-1 01 1 1306-
299 COVER; FRT PANEL SIDE
BODY COLOR GOLDEN YELLOW(904) GENERAL EXPORT EQUIPMENT(TAA) YELLOW 		8-97424-991-1 01 1 1306-
299 COVER; FRT PANEL SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97424-987-1 01 1 1306-
299 COVER; FRT PANEL SIDE
BODY COLOR MARINE BLUE(890) GENERAL EXPORT EQUIPMENT(TAA) BLUE 		8-97424-990-1 01 1 1306-
308 PLATE; FRT PANEL
BODY COLOR ARC WHITE(729) WHITE 		8-97417-907-1 01 1 1306-
308 PLATE; FRT PANEL
BODY COLOR ARC WHITE(729) WHITE 		8-97417-899-1 01 1 1306-
308 PLATE; FRT PANEL
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97425-015-1 01 1 1306-
308 PLATE; FRT PANEL
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97425-009-1 01 1 1306-
308 PLATE; FRT PANEL
BODY COLOR MARINE BLUE(890) BLUE 		8-97425-013-1 01 1 1306-
308 PLATE; FRT PANEL
BODY COLOR MARINE BLUE(890) BLUE 		8-97425-007-1 01 1 1306-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 1306-
571 CLIP; SEAL
(A) 		1-09987-228-0 20 1 1306-
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 1306-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 1306-
650 NUT; SPIRE
M5 		1-09984-162-0 04 1 1306-

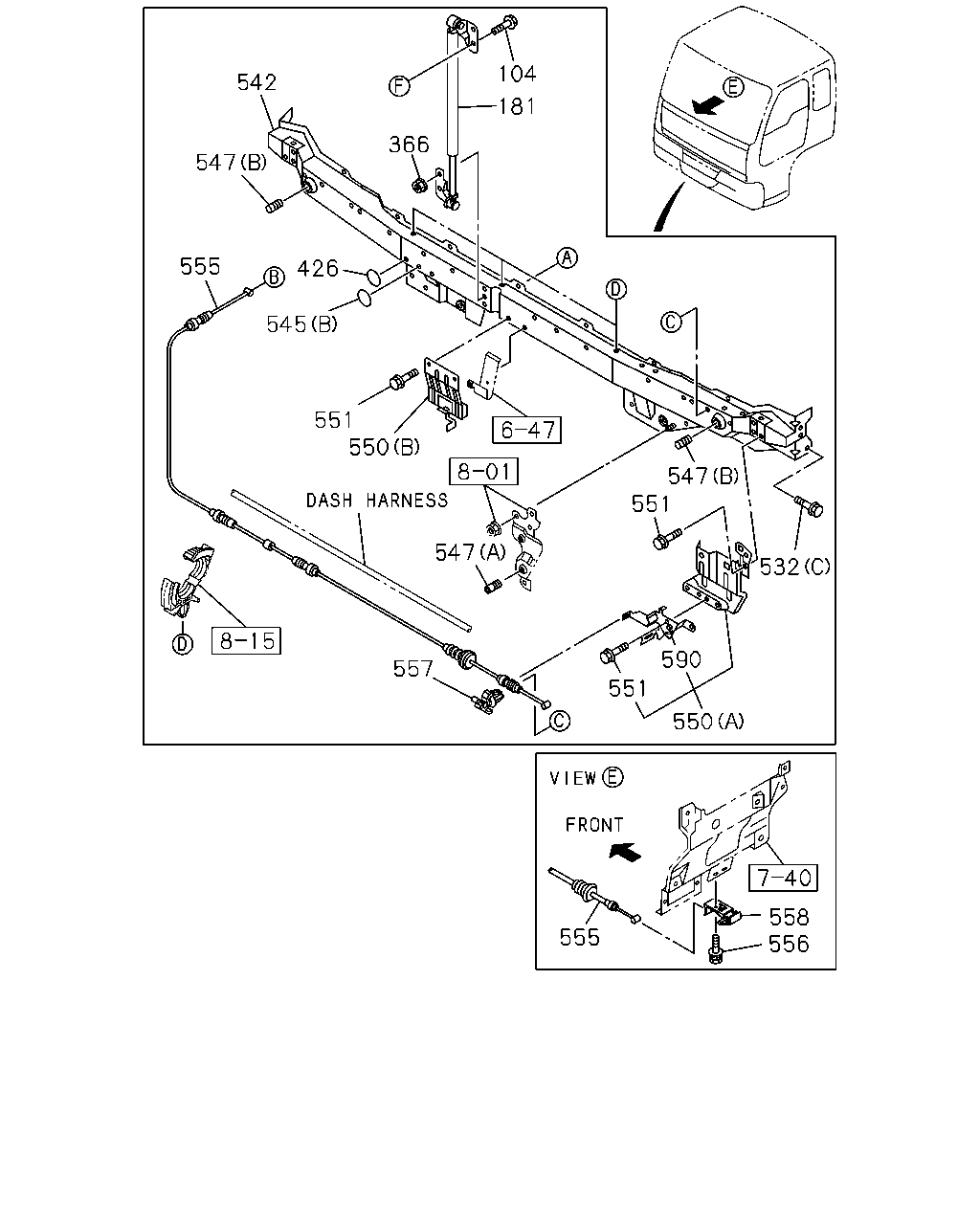

çizim 364915
181 104 366 542 547 555 426 545 551 550 547 557 555 556 558 550 551 590 532 551 547
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 1306-
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 1306-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 1306-
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 1306-
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 1306-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1306-
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1306-1511
532 BOLT; FRT PANEL
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512-
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1306-
542 RAIL; FRT MOUNTING 1-61470-721-1 01 1 1306-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1306-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1306-
545 SEAL; FRT LID
(C) 		8-98133-467-0 01 1 1306-
545 SEAL; FRT LID
(D) 		8-98133-468-0 01 1 1306-
545 SEAL; FRT LID
(E) 		8-98133-469-0 01 1 1306-
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1306-
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1306-
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1306-
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 1306-
550 LOCK ASM; FRT LID
(B) 		8-98174-767-0 01 1 1306-
550 LOCK ASM; FRT LID
(A) 		1-79317-026-1 01 1 1306-
550 LOCK ASM; FRT LID
(A) 		1-79317-025-1 01 1 1306-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 1306-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1306-
555 CABLE; FRT LID
L=2512 		1-79347-007-3 01 1 1306-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 1306-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 1306-
558 LEVER; FRT LID 1-79338-007-1 01 1 1306-
590 LOCK; FRT LID 1-79318-010-2 01 1 1306-
590 LOCK; FRT LID 1-79318-009-4 01 1 1306-

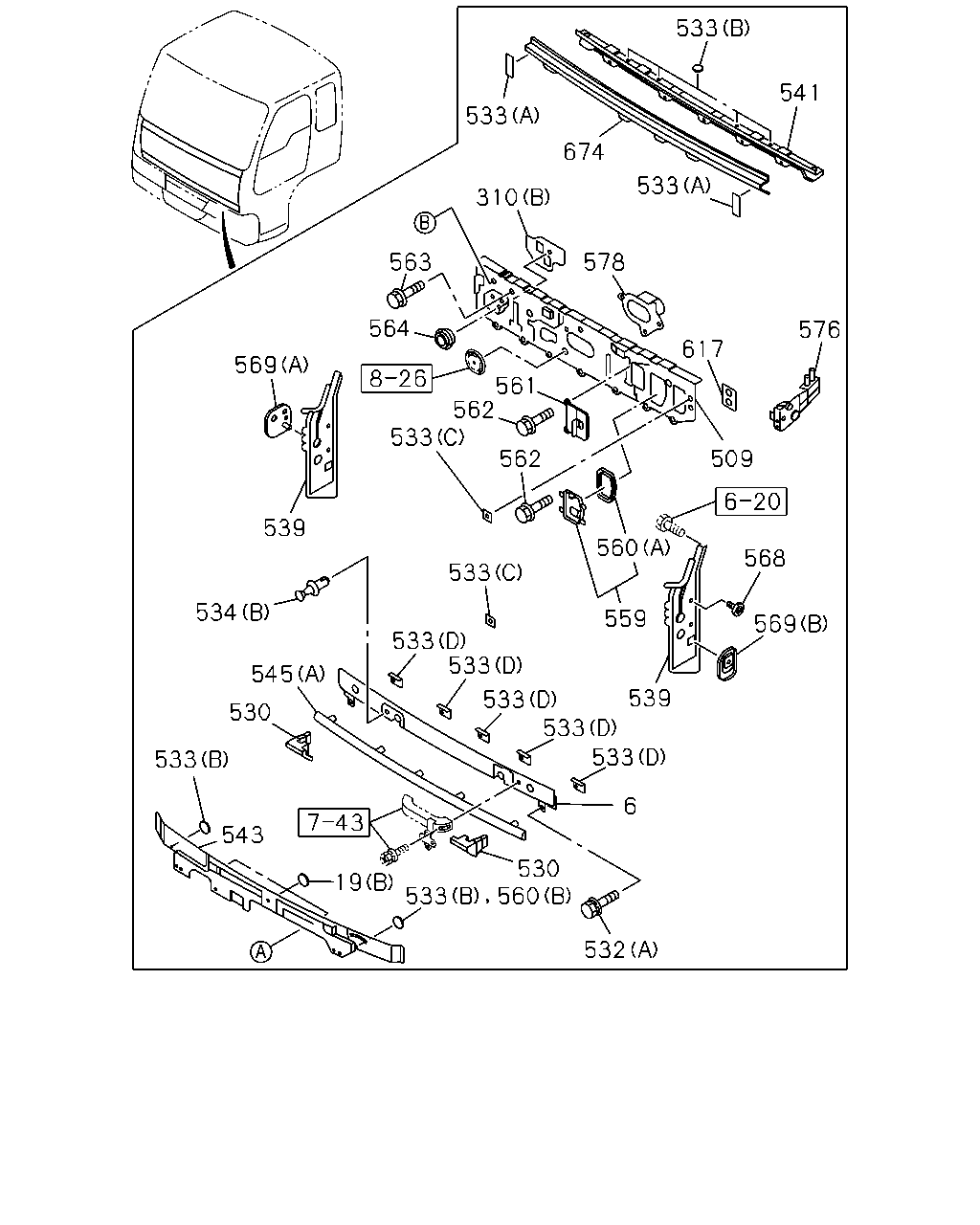

çizim 365604
541 533 533 674 533 310 578 617 576 509 568 569 560 559 539 562 561 562 563 564 533 569 539 533 534 545 533 533 533 533 533 6 530 533 543 19 533 560 530 532
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65473-144-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 1306-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-434-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-433-0 01 1 1306-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 1306-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 1306-
509 PANEL; DASH 1-62270-478-6 01 1 1306-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 1306-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 1306-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1306-
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1306-1511
532 BOLT; FRT PANEL
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512-
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1306-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 1306-
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-3 02 1 1306-
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 1306-
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 1306-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1306-
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1306-
539 CLOSING; PILLAR 1-61480-674-6 01 1 1306-
539 CLOSING; PILLAR 1-61480-673-6 01 1 1306-
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 1306-
543 CLOSING; FRT MTG RAIL 1-61470-727-0 01 1 1306-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1306-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1306-
545 SEAL; FRT LID
(C) 		8-98133-467-0 01 1 1306-
545 SEAL; FRT LID
(D) 		8-98133-468-0 01 1 1306-
545 SEAL; FRT LID
(E) 		8-98133-469-0 01 1 1306-
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1306-
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1306-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 1306-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 1306-
560 SEAL; COVER
HEATER & DEFROSTER(C41) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1306-
561 COVER; HEATER CORE 1-71998-829-1 01 1 1306-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1306-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 1306-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 1306-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 1306-
568 PATCH; INST REINF 1-61480-675-2 02 1 1306-
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 1306-
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 1306-
576 FRAME; INST SIDE 1-62280-177-7 01 1 1306-
576 FRAME; INST SIDE 1-62280-176-6 01 1 1306-
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 1306-
617 SEAL; DASH 1-61281-497-1 02 1 1306-
674 PANEL; UPR 1-61470-688-2 01 1 1306-

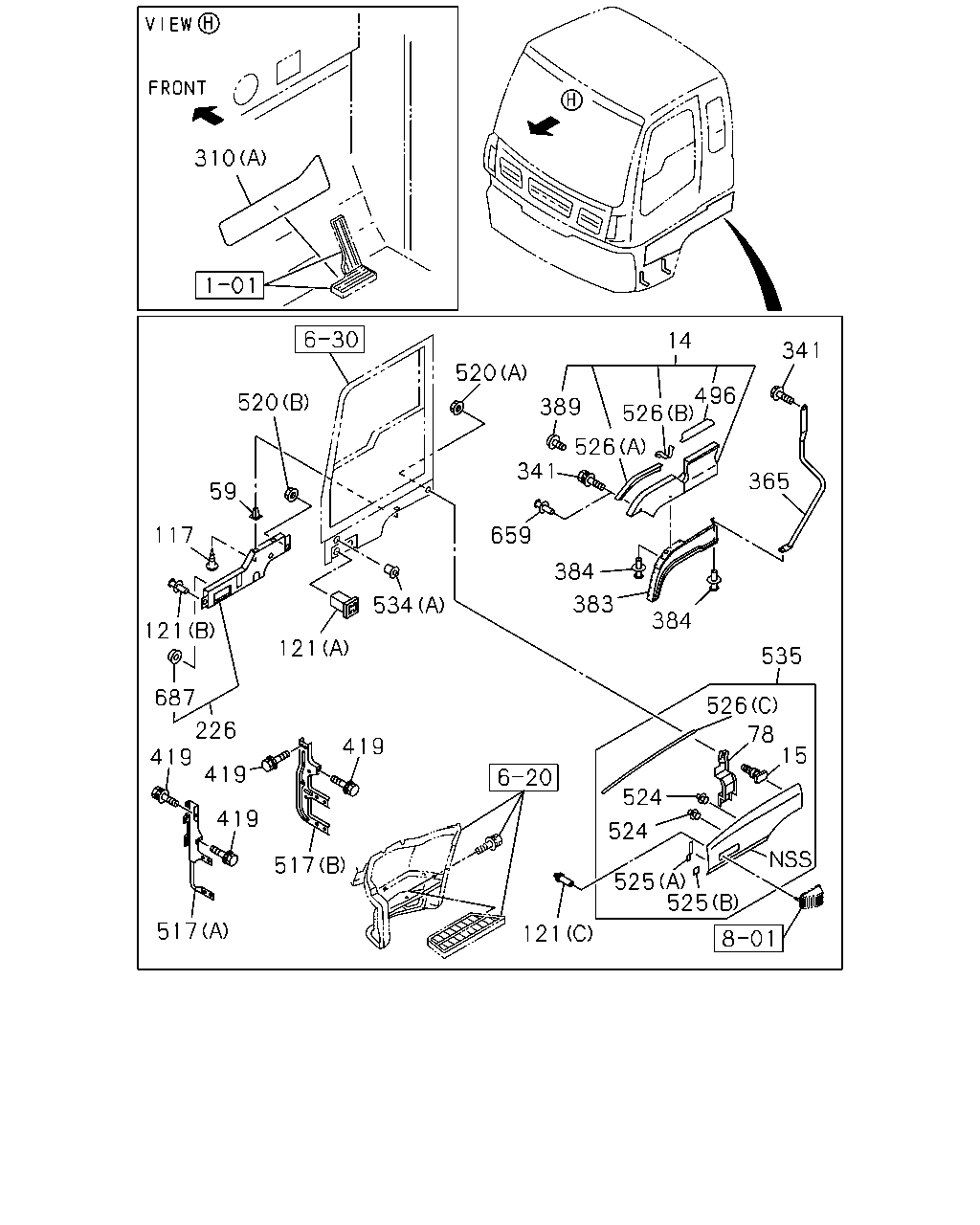

çizim 365779
525 525 524 524 15 78 526 535 121 517 419 517 419 419 419 226 121 687 121 117 59 534 520 384 383 384 659 365 341 496 14 526 526 341 389 520 310
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
BODY COLOR ARC WHITE(729) 		8-98154-745-1 01 1 1306-
14 FENDER; FRT
BODY COLOR ARC WHITE(729) 		8-98154-744-1 01 1 1306-
14 FENDER; FRT
BODY COLOR GOLDEN YELLOW(904) 		8-98155-611-0 01 1 1306-
14 FENDER; FRT
BODY COLOR GOLDEN YELLOW(904) 		8-98155-610-0 01 1 1306-
14 FENDER; FRT
BODY COLOR MARINE BLUE(890) 		8-98155-611-0 01 1 1306-
14 FENDER; FRT
BODY COLOR MARINE BLUE(890) 		8-98155-610-0 01 1 1306-
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 1306-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 1306-
78 BRACKET; FENDER 1-71267-215-0 01 1 1306-
78 BRACKET; FENDER 1-71267-214-0 01 1 1306-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 1306-
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 1306-
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1306-
121 GROMMET; FENDER
(C) 		8-98111-356-0 02 1 1306-1306
226 PROTECTOR; FRT 8-98109-134-1 01 1 1306-1306
226 PROTECTOR; FRT 8-98234-710-0 01 1 1307-
226 PROTECTOR; FRT 8-98109-132-1 01 1 1306-1306
226 PROTECTOR; FRT 8-98234-709-0 01 1 1307-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 1306-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 1306-
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 1306-
365 SUPPORT; FENDER 8-98120-232-0 01 1 1306-
365 SUPPORT; FENDER 8-98120-231-0 01 1 1306-
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 1306-
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 1306-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 13 1 1306-1510
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 15 1 1511-
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 1306-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 1306-
496 RUBBER; STEP 1-71998-862-2 01 1 1306-
496 RUBBER; STEP 1-71998-861-2 01 1 1306-
517 SUPPORT; STEP PANEL
(A) 		8-98125-815-1 01 1 1306-
517 SUPPORT; STEP PANEL
(B) 		8-98125-817-2 01 1 1306-
517 SUPPORT; STEP PANEL
(A) 		8-98125-814-2 01 1 1306-
517 SUPPORT; STEP PANEL
(B) 		8-98125-816-2 01 1 1306-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1306-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 1306-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 1306-
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 1306-
525 SEAL; FENDER
(B) 10X30 		8-97631-981-0 02 1 1306-
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 1306-
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 1306-
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 1306-
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 1306-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1306-
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1306-
535 FENDER; BLISTER
WHITE 		8-98234-067-0 01 1 1306-
535 FENDER; BLISTER
WHITE 		8-98234-066-0 01 1 1306-
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 1306-
687 COVER; FENDER 8-98234-587-0 02 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
