◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11526 - EXZ RHD EURO2 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#124501) — 148 parça

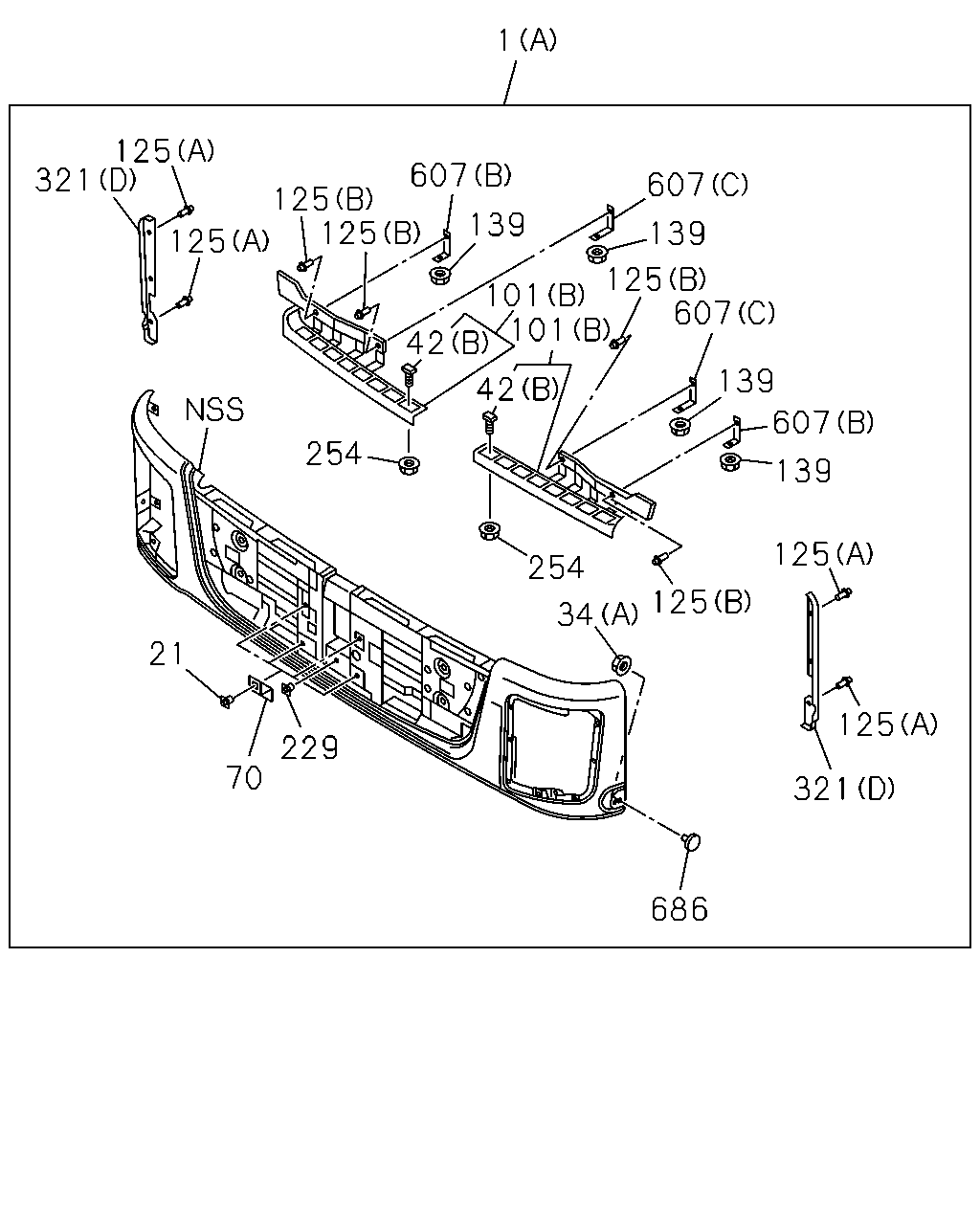

çizim 364824
686 229 70 21 254 254 34 125 321 125 125 139 607 139 607 125 139 607 1 607 139 101 101 42 125 125 42 125 125 321
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (B) WHITE 		8-97424-794-3 01 1 1306-
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (A) WHITE 		8-97417-846-3 01 1 1306-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 1306-
34 NUT; BRKT,BUMPER
(A) M6 FLANGE 		0-91180-106-0 02 1 1306-
34 NUT; BRKT,BUMPER
(B) M10 FLANGE 		0-91180-110-0 04 1 1306-
42 BOLT; BUMPER
(C) M10X30 FLANGE 		0-28051-030-0 04 1 1306-
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1306-
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1306-
42 BOLT; BUMPER
FRONT SPOILER<VP1> (A) M10X30 FLANGE 		8-98055-942-0 14 1 1306-
42 BOLT; BUMPER
FRONT UNDER SPOILER DELETE<SGA> (A) M10X30 FLANGE 		8-98055-942-0 10 1 1306-
70 BRACKET; LICENSE PLATE,FRT 8-98128-625-0 04 1 1306-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1306-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1306-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1306-
125 CLIP; STEP
(B) 		8-98157-167-0 04 1 1306-
125 CLIP; STEP
FRONT SPOILER<VP1> (A) 		8-98157-186-0 08 1 1306-
125 CLIP; STEP
EXC. FRONT SPOILER<VP1> (A) 		8-98157-186-0 06 1 1306-
139 NUT; BRKT FIX
M8 FLANGE 		0-91180-208-0 04 1 1306-
229 GROMMET
D=7X7 L=7.5 		8-94291-927-0 01 1 1306-
254 NUT; STEP
M6 FLANGE 		0-91180-106-0 06 1 1306-
321 COVER; BUMPER FRT SIDE
(A) 		8-98132-737-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-456-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-455-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-458-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-457-1 01 1 1306-
607 BRACKET
(C) 		8-98147-053-0 02 1 1306-
607 BRACKET
(B) 		8-98147-054-0 02 1 1306-
607 BRACKET
(A) 		8-98211-759-0 01 1 1306-
607 BRACKET
(A) 		8-98211-758-0 01 1 1306-
686 REFLECTOR; REFLEX 8-98121-023-0 02 1 1306-

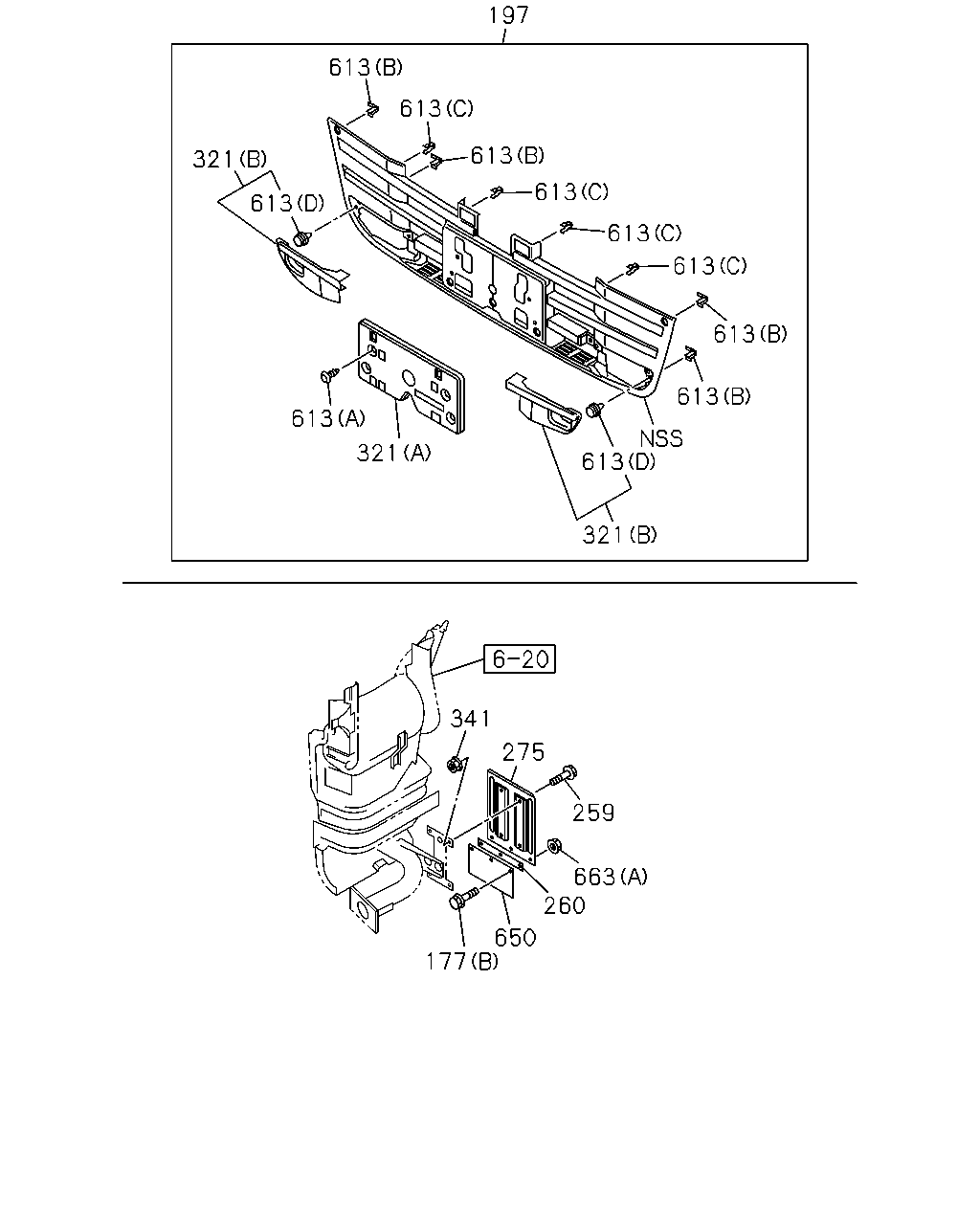

çizim 364836
613 197 613 613 613 613 613 613 613 613 321 321 613 613 321 341 275 259 663 260 650 177
BalonParca AdiParca NoAdetTipApplied Date
177 BOLT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1306-1510
177 BOLT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1511-
177 BOLT
FRONT SPOILER<VP1> (A) M8X20 FLANGE 		0-28050-820-0 04 1 1306-
197 GRILLE; BUMPER 8-98144-188-4 01 1 1306-
259 BOLT; COVER
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1306-1510
259 BOLT; COVER
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1511-
260 RETAINER; UPR SKIRT 8-98125-829-0 02 1 1306-1510
260 RETAINER; UPR SKIRT 8-98125-829-0 02 1 1511-
275 GUARD; FRT 8-98125-825-0 02 1 1306-1510
275 GUARD; FRT 8-98125-825-0 02 1 1511-
321 COVER; BUMPER FRT SIDE
(A) 		8-98132-737-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-456-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-455-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-458-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-457-1 01 1 1306-
341 NUT; COVER
M8 FLANGE 		0-91180-108-0 08 1 1306-1510
341 NUT; COVER
M8 FLANGE 		0-91180-108-0 08 1 1511-
613 CLIP
(D) 		8-97581-651-2 04 1 1306-
613 CLIP
(A) D8X13.5 		1-09987-248-1 05 1 1306-
613 CLIP
(B) 		8-98025-698-0 08 1 1306-
613 CLIP
(C) 		8-98144-173-1 06 1 1306-
650 RUBBER; MUD COVER 8-98125-828-0 02 1 1306-1510
650 RUBBER; MUD COVER 8-98125-828-0 02 1 1511-
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1306-1510
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1511-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1306-
663 NUT
FRONT SPOILER<VP1> (C) M6 FLANGE 		0-91180-106-0 13 1 1306-

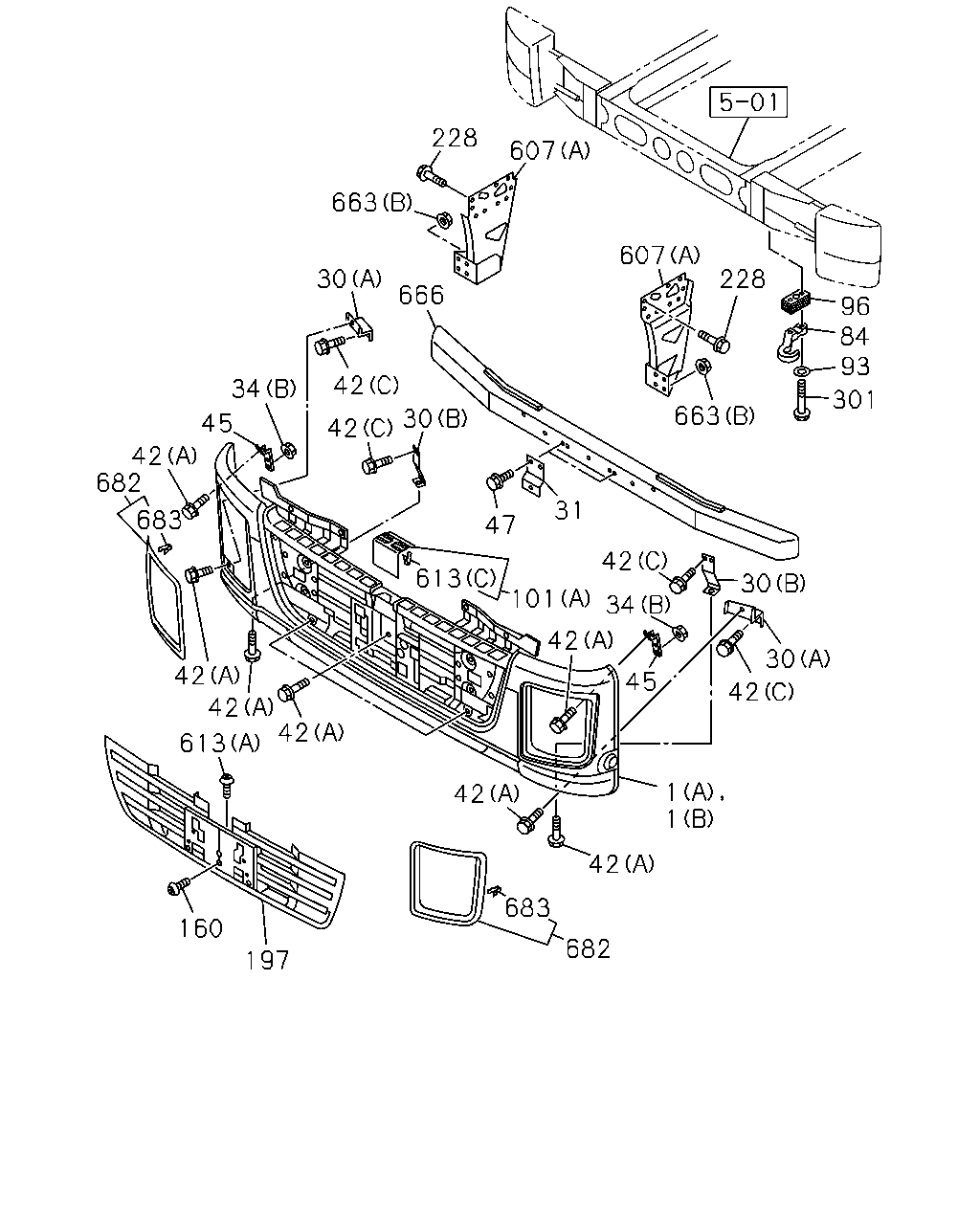

çizim 366048
301 93 84 96 228 663 607 607 228 663 666 30 42 42 30 34 45 42 682 683 42 42 42 613 160 197 683 682 42 42 1 1 42 45 30 30 42 34 101 42 613 47 31
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (B) WHITE 		8-97424-794-3 01 1 1306-
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (A) WHITE 		8-97417-846-3 01 1 1306-
30 BRACKET; FRT BUMPER
(A) 		8-98135-977-1 01 1 1306-
30 BRACKET; FRT BUMPER
(A) 		8-98135-978-1 01 1 1306-
30 BRACKET; FRT BUMPER
FRONT SPOILER<VP1> (B) 		8-98139-907-0 01 1 1306-
30 BRACKET; FRT BUMPER
FRONT SPOILER<VP1> (B) 		8-98139-909-0 01 1 1306-
31 SUPPORT; FRT BUMPER,LWR
FRONT SPOILER<VP1> 		8-98139-742-0 02 1 1306-
34 NUT; BRKT,BUMPER
(A) M6 FLANGE 		0-91180-106-0 02 1 1306-
34 NUT; BRKT,BUMPER
(B) M10 FLANGE 		0-91180-110-0 04 1 1306-
42 BOLT; BUMPER
(C) M10X30 FLANGE 		0-28051-030-0 04 1 1306-
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1306-
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1306-
42 BOLT; BUMPER
FRONT SPOILER<VP1> (A) M10X30 FLANGE 		8-98055-942-0 14 1 1306-
42 BOLT; BUMPER
FRONT UNDER SPOILER DELETE<SGA> (A) M10X30 FLANGE 		8-98055-942-0 10 1 1306-
45 BRACKET; BRKT TO BUMPER 8-98126-935-2 02 1 1306-
47 BOLT; SUPPORT TO BODY
FRONT SPOILER<VP1> M10X30 FLANGE 		0-28051-030-0 04 1 1306-
84 HOOK 8-98126-930-0 01 1 1306-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1306-
96 PLATE; DIST,HOOK 8-98169-197-0 01 1 1306-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1306-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1306-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1306-
160 SCREW
M5X16 		8-94380-268-0 01 1 1306-
197 GRILLE; BUMPER 8-98144-188-4 01 1 1306-
228 BOLT; BRKT
M16X35 FLANGE 		0-28851-635-0 06 1 1306-
301 BOLT; HOOK TO FRAME
M16X110 		8-98074-591-0 02 1 1306-
607 BRACKET
(C) 		8-98147-053-0 02 1 1306-
607 BRACKET
(B) 		8-98147-054-0 02 1 1306-
607 BRACKET
(A) 		8-98211-759-0 01 1 1306-
607 BRACKET
(A) 		8-98211-758-0 01 1 1306-
613 CLIP
(D) 		8-97581-651-2 04 1 1306-
613 CLIP
(A) D8X13.5 		1-09987-248-1 05 1 1306-
613 CLIP
(B) 		8-98025-698-0 08 1 1306-
613 CLIP
(C) 		8-98144-173-1 06 1 1306-
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1306-1510
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1511-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1306-
663 NUT
FRONT SPOILER<VP1> (C) M6 FLANGE 		0-91180-106-0 13 1 1306-
666 PROTECTOR; UNDER 8-98198-583-0 01 1 1306-
682 BEZEL; BUMPER 8-98123-445-2 01 1 1306-
682 BEZEL; BUMPER 8-98123-444-2 01 1 1306-
683 CLIP; BEZEL,BUMPER 8-98144-173-1 16 1 1306-

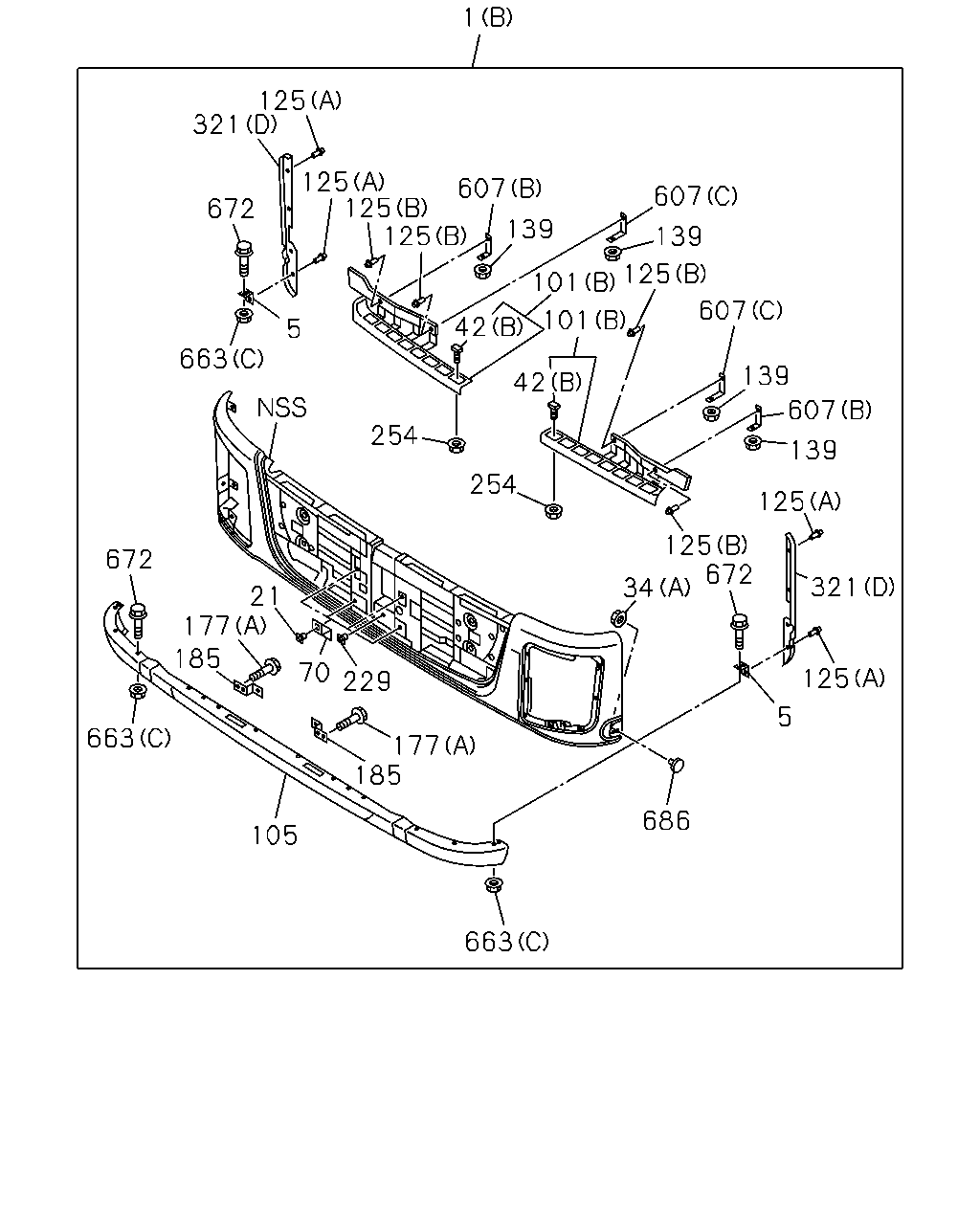

çizim 367356
663 686 5 125 321 125 125 672 34 177 185 229 70 105 21 177 185 672 663 139 607 139 607 125 139 607 1 607 139 101 101 42 254 254 42 125 125 125 125 321 672 5 663
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (B) WHITE 		8-97424-794-3 01 1 1306-
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (A) WHITE 		8-97417-846-3 01 1 1306-
5 BRACKET; AIR DAM
FRONT SPOILER<VP1> 		8-98154-762-0 02 1 1306-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 1306-
34 NUT; BRKT,BUMPER
(A) M6 FLANGE 		0-91180-106-0 02 1 1306-
34 NUT; BRKT,BUMPER
(B) M10 FLANGE 		0-91180-110-0 04 1 1306-
42 BOLT; BUMPER
(C) M10X30 FLANGE 		0-28051-030-0 04 1 1306-
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1306-
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1306-
42 BOLT; BUMPER
FRONT SPOILER<VP1> (A) M10X30 FLANGE 		8-98055-942-0 14 1 1306-
42 BOLT; BUMPER
FRONT UNDER SPOILER DELETE<SGA> (A) M10X30 FLANGE 		8-98055-942-0 10 1 1306-
70 BRACKET; LICENSE PLATE,FRT 8-98128-625-0 04 1 1306-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1306-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1306-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1306-
105 AIR DAM
BODY COLOR ARC WHITE(729) FRONT SPOILER<VP1> WHITE 		8-97417-859-4 01 1 1306-
105 AIR DAM
BODY COLOR GOLDEN YELLOW(904) FRONT SPOILER<VP1> YELLOW 		8-97425-003-4 01 1 1306-
105 AIR DAM
BODY COLOR MARINE BLUE(890) FRONT SPOILER<VP1> BLUE 		8-97425-002-4 01 1 1306-
125 CLIP; STEP
(B) 		8-98157-167-0 04 1 1306-
125 CLIP; STEP
FRONT SPOILER<VP1> (A) 		8-98157-186-0 08 1 1306-
125 CLIP; STEP
EXC. FRONT SPOILER<VP1> (A) 		8-98157-186-0 06 1 1306-
139 NUT; BRKT FIX
M8 FLANGE 		0-91180-208-0 04 1 1306-
177 BOLT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1306-1510
177 BOLT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1511-
177 BOLT
FRONT SPOILER<VP1> (A) M8X20 FLANGE 		0-28050-820-0 04 1 1306-
185 BRACKET; BUMPER,INNER
FRONT SPOILER<VP1> 		8-98139-739-0 02 1 1306-
229 GROMMET
D=7X7 L=7.5 		8-94291-927-0 01 1 1306-
254 NUT; STEP
M6 FLANGE 		0-91180-106-0 06 1 1306-
321 COVER; BUMPER FRT SIDE
(A) 		8-98132-737-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-456-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-455-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-458-1 01 1 1306-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-457-1 01 1 1306-
607 BRACKET
(C) 		8-98147-053-0 02 1 1306-
607 BRACKET
(B) 		8-98147-054-0 02 1 1306-
607 BRACKET
(A) 		8-98211-759-0 01 1 1306-
607 BRACKET
(A) 		8-98211-758-0 01 1 1306-
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1306-1510
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1511-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1306-
663 NUT
FRONT SPOILER<VP1> (C) M6 FLANGE 		0-91180-106-0 13 1 1306-
672 STUD; STEP
FRONT SPOILER<VP1> M6X16 FLANGE 		0-28050-616-0 13 1 1306-
686 REFLECTOR; REFLEX 8-98121-023-0 02 1 1306-
