Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#1245) — 177 parça

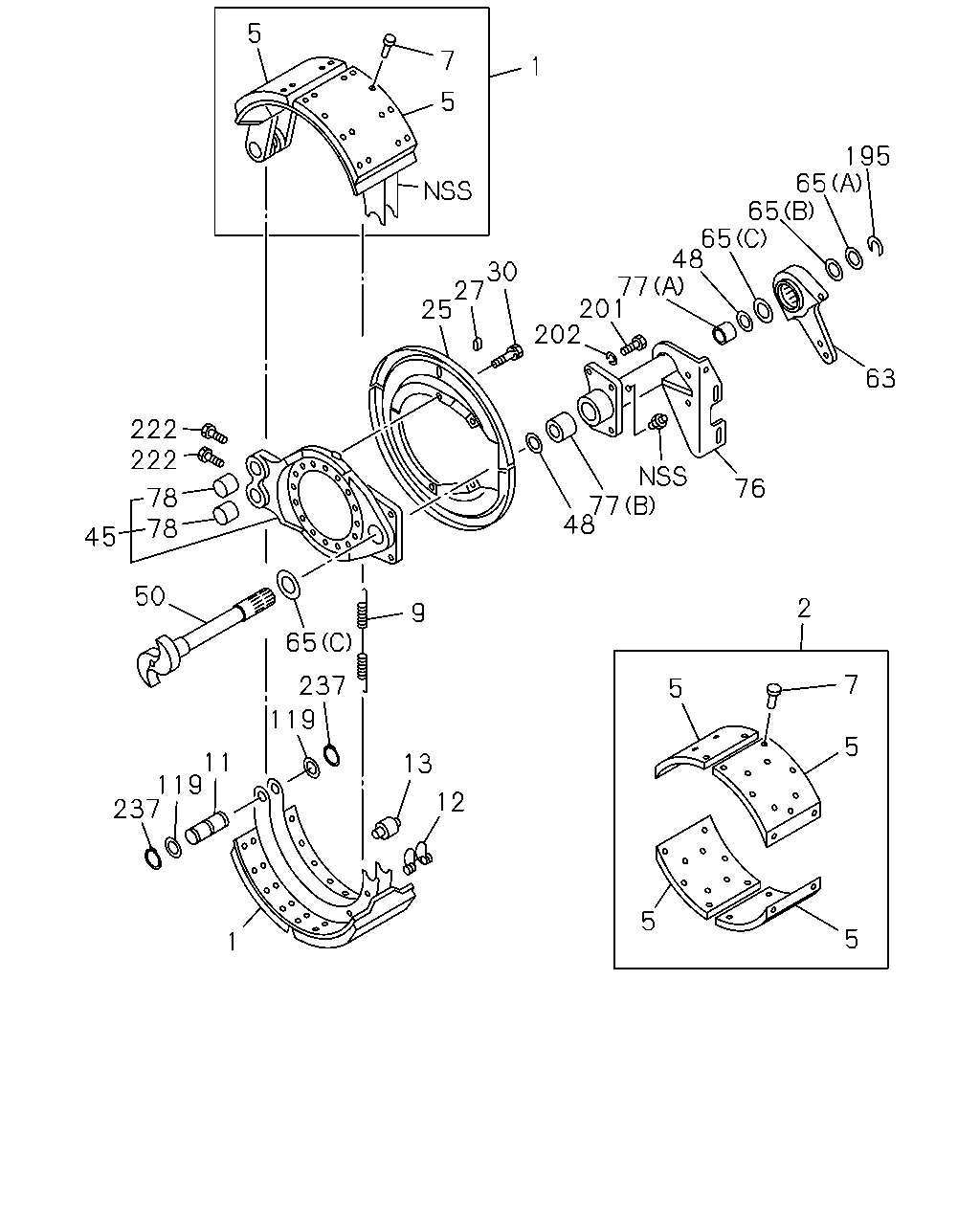

5 7 1 5 195 65 65 65 48 77 201 202 30 27 25 63 222 222 77 48 76 78 78 45 50 2 9 65 7 237 5 119 5 11 119 237 13 12 5 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-390-0	04	1	9202-	●	●
1	SHOE; BRK,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-612-0	04	1	9202-	●	●
1	SHOE; BRK,RR FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47120-218-0	04	1	9202-		●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-315-0	02	1	9202-	●	●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-613-0	02	1	9202-	●	●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-88302-958-0	02	1	9202-		●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-314-0	08	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> ANC BLOCK SIDE	1-87061-615-0	04	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> CAM BLOCK SIDE	1-87061-616-0	04	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47125-055-0	08	1	9202-		●
7	RIVET; LINING,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-377-0	AR	1	9202-	●	●
7	RIVET; LINING,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-614-0	AR	1	9202-	●	●
7	RIVET; LINING,RR BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) L=18.5	1-09732-034-0	AR	1	9202-		●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-87061-313-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-87061-384-0	04	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-610-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (A)	1-09583-175-0	02	1	9202-		●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (B)	1-09583-210-0	04	1	9202-		●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-617-0	04	1	9202-	●	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) L=121.5	1-47131-039-0	04	1	9202-		●
12	ROLLER; CAM,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-379-0	02	1	9202-	●	●
12	ROLLER; CAM,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-607-0	04	1	9202-	●	●
13	CLIP; ROLLER PIN,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-606-0	04	1	9202-	●	●
25	COVER SET; RR BRK DRUM FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-392-0	02	1	9202-	●	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47151-461-1	02	1	9202-		●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-402-0	04	1	9202-	●	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-09333-095-0	04	1	9202-9501		●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-09333-151-0	04	1	9502-		●
30	BOLT; DRUM COVER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-389-0	12	1	9202-	●	●
30	BOLT; DRUM COVER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-603-0	12	1	9202-	●	●
30	BOLT; DRUM COVER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) M10X16 W/LK WASHER	9-01901-016-0	12	1	9202-9204		●
30	BOLT; DRUM COVER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-		●
45	BRACKET; ANCHOR PIN,W/BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-387-0	02	1	9202-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-608-0	02	1	9202-	●	●
48	SEAL; OIL,CM/SHF,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-386-0	04	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-375-0	01	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-601-0	01	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-376-0	01	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-602-0	01	1	9202-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-391-0	02	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 0.030"	1-87061-368-0	06	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (A) 0.030"	1-87061-368-0	04	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 0.060"	1-87061-374-0	06	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (B) 0.060"	1-87061-374-0	02	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-381-0	02	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-381-0	04	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-397-0	01	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-619-0	01	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-396-0	01	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-618-0	01	1	9202-	●	●
77	BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NYLON	1-87061-312-0	04	1	9202-	●	●
77	BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (A) NYLON	1-87061-312-0	02	1	9202-	●	●
77	BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (B) BRONZE	1-87061-620-0	02	1	9202-	●	●
78	BUSHING; BRKT FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-609-0	04	1	9202-	●	●
119	WASHER; PL,ANCHOR PIN FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-604-0	08	1	9202-	●	●
195	RING; SNAP,CM/SHF FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-388-0	02	1	9202-	●	●
201	BOLT; BRKT,POWER CHAMBER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-378-0	08	1	9202-	●	●
202	WASHER; LK,BRKT FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-403-0	08	1	9202-	●	●
222	BOLT; LK,ANCHOR PIN FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-611-0	04	1	9202-	●	●
237	RING; SNAP,ANCHOR PIN FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-605-0	08	1	9202-	●	●

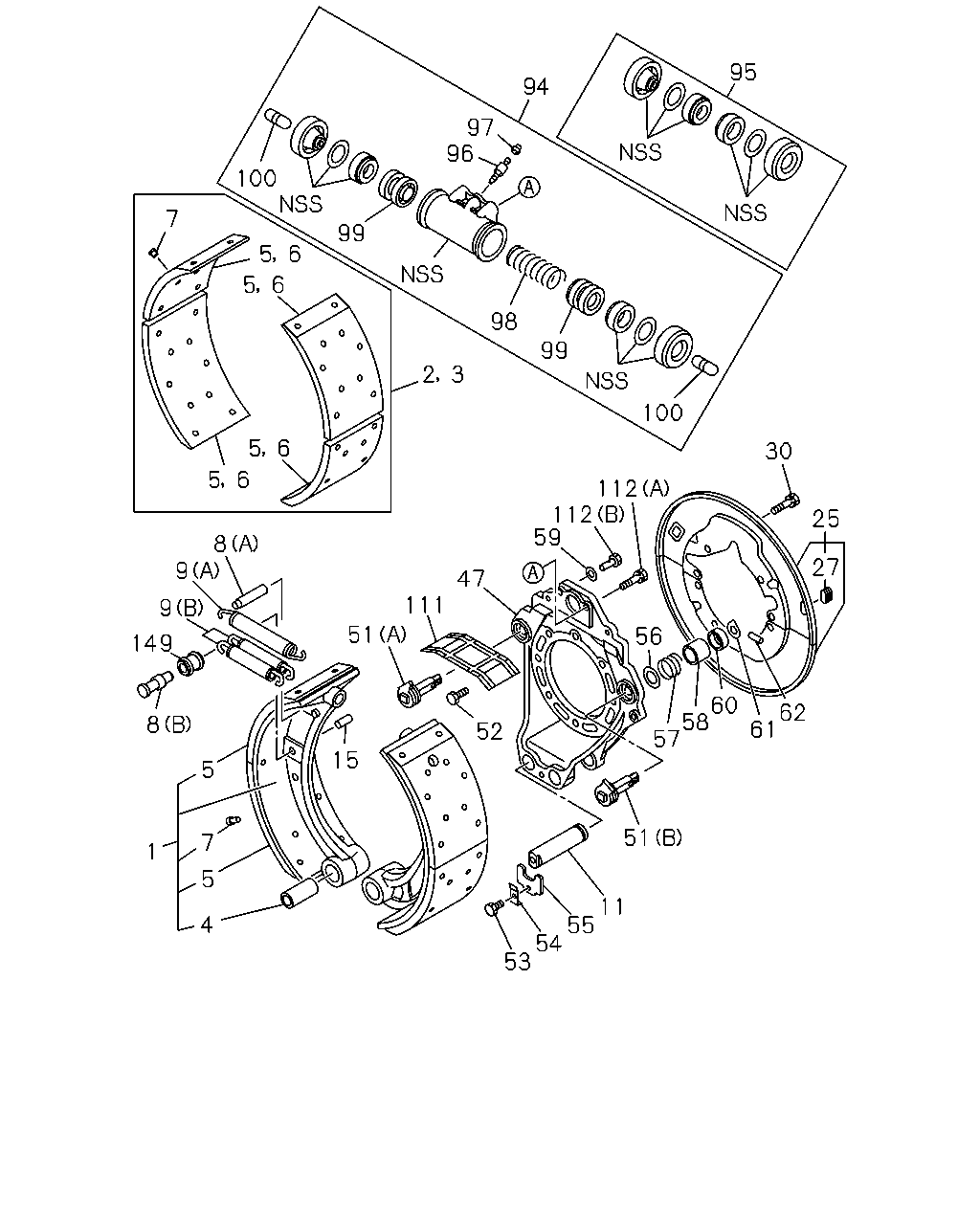

95 94 97 96 100 7 99 5 6 5 6 98 99 2 3 100 5 6 30 5 6 112 112 59 25 8 27 9 47 111 9 51 56 149 60 58 57 62 61 8 52 15 5 51 7 1 5 11 55 54 53 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-390-0	04	1	9202-	●	●
1	SHOE; BRK,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-612-0	04	1	9202-	●	●
1	SHOE; BRK,RR FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47120-218-0	04	1	9202-		●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-315-0	02	1	9202-	●	●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-613-0	02	1	9202-	●	●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-88302-958-0	02	1	9202-		●
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-88310-157-0	02	1	9202-		●
4	BUSHING; BRK SHOE,RR WHEEL FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47112-012-0	04	1	9202-		●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-314-0	08	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> ANC BLOCK SIDE	1-87061-615-0	04	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> CAM BLOCK SIDE	1-87061-616-0	04	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47125-055-0	08	1	9202-		●
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47125-057-0	08	1	9202-		●
7	RIVET; LINING,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-377-0	AR	1	9202-	●	●
7	RIVET; LINING,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-614-0	AR	1	9202-	●	●
7	RIVET; LINING,RR BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) L=18.5	1-09732-034-0	AR	1	9202-		●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (B)	1-09744-051-0	04	1	9202-		●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (A)	1-47119-025-0	04	1	9202-		●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-87061-313-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-87061-384-0	04	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-610-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (A)	1-09583-175-0	02	1	9202-		●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (B)	1-09583-210-0	04	1	9202-		●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-617-0	04	1	9202-	●	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) L=121.5	1-47131-039-0	04	1	9202-		●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47116-002-0	04	1	9202-		●
25	COVER SET; RR BRK DRUM FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-392-0	02	1	9202-	●	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47151-461-1	02	1	9202-		●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-402-0	04	1	9202-	●	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-09333-095-0	04	1	9202-9501		●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-09333-151-0	04	1	9502-		●
30	BOLT; DRUM COVER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-389-0	12	1	9202-	●	●
30	BOLT; DRUM COVER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-603-0	12	1	9202-	●	●
30	BOLT; DRUM COVER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) M10X16 W/LK WASHER	9-01901-016-0	12	1	9202-9204		●
30	BOLT; DRUM COVER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47137-151-0	02	1	9202-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (A)	1-47165-058-1	02	1	9202-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (B)	1-47165-059-1	02	1	9202-		●
52	BOLT; ANCHOR BRKT FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M14X50	1-09040-066-0	02	1	9202-		●
53	BOLT; LOCK PLATE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) M10X16	9-02041-016-0	02	1	9202-9204		●
53	BOLT; LOCK PLATE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M10X16	0-20801-016-0	02	1	9205-		●
54	WASHER; LK,ANCHOR PIN,RR BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47133-011-0	02	1	9202-		●
55	PLATE; LK,RR WHEEL CYL FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47133-005-0	02	1	9202-		●
56	WASHER; ADJ CAM,RR WHEEL BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47169-033-0	04	1	9202-		●
57	SPRING; ADJ CAM,RR WHEEL BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	9-09941-293-0	04	1	9202-9506		●
57	SPRING; ADJ CAM,RR WHEEL BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47169-046-0	04	1	9507-		●
58	BOOT; ADJ CAM,RR WHEEL BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47169-034-0	04	1	9202-		●
59	WASHER; LK,RR WHEEL CYL FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=14.2	9-09150-514-0	04	1	9202-		●
60	COVER; ADJ CAM BOOT,RR WHEEL BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47169-031-0	04	1	9202-		●
61	INDICATOR; WEAR,RR BRK SHOE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47169-032-1	04	1	9202-		●
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47169-030-0	04	1	9202-		●
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47600-682-0	02	1	9202-		●
95	CUP SET; RR WHEEL CYL FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-87830-528-0	04	1	9202-		●
96	SCREW; BLEEDER,RR BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47615-002-0	02	1	9202-		●
97	CAP; BLEEDER,RR WHEEL CYL FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) OD=12	1-47619-011-0	02	1	9202-		●
98	SPRING; RR WHEEL CYL FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-09580-019-0	02	1	9202-		●
99	PISTON; RR WHEEL CYL FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47624-044-0	04	1	9202-		●
100	ROD; PUSH,RR WHEEL CYL FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47621-009-0	04	1	9202-		●
111	COVER; WHEEL CYL FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47159-081-0	02	1	9202-		●
112	BOLT; WHEEL CYL SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) (A) M8X16 W/LK WASHER	9-01900-816-0	06	1	9202-9204		●
112	BOLT; WHEEL CYL SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (A) M8X16 W/LK WASHER	0-50040-816-0	06	1	9205-		●
112	BOLT; WHEEL CYL SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (B) M14X35	0-20801-435-0	04	1	9202-		●
149	PIN; GUIDE RETURN FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47119-024-0	04	1	9202-		●

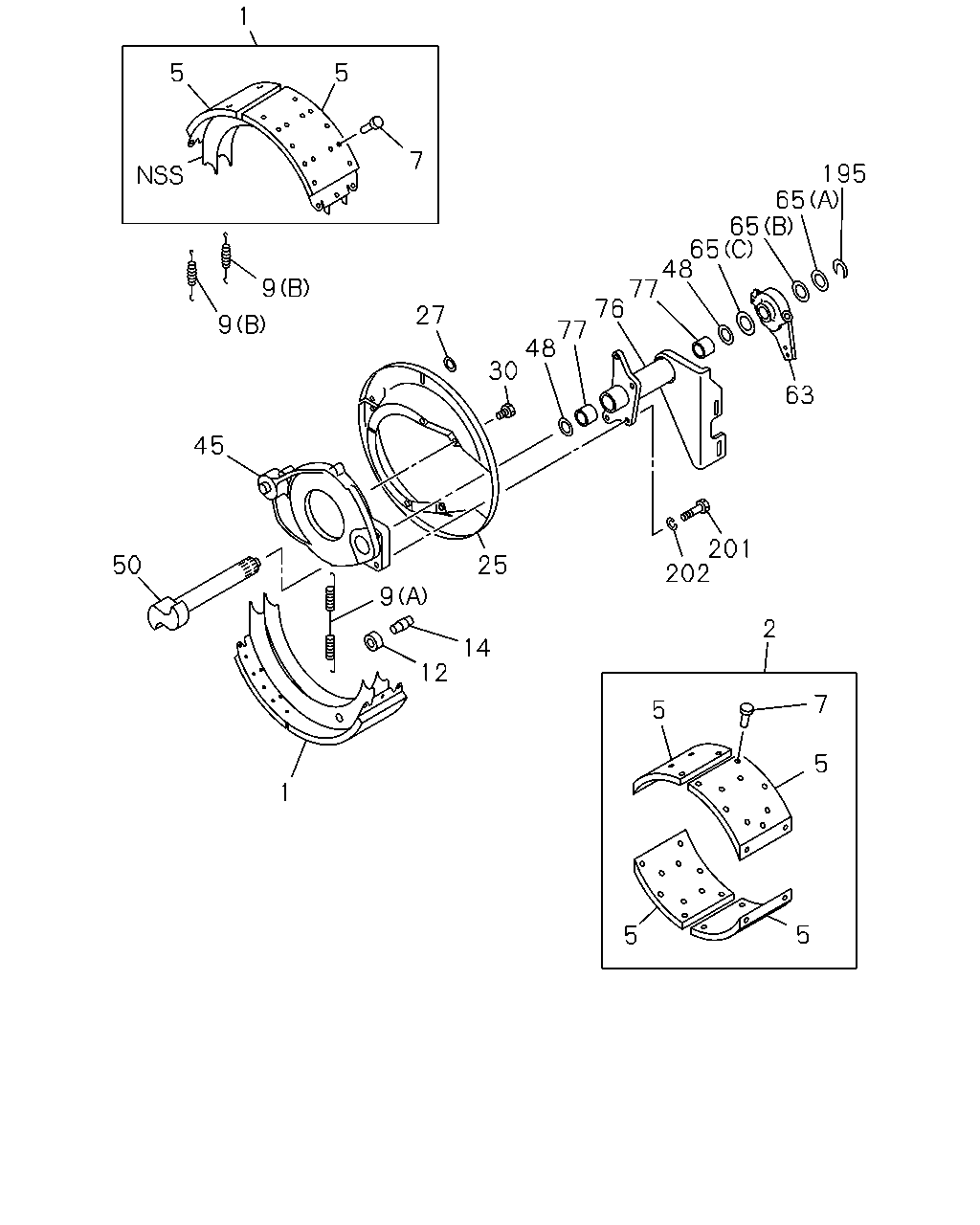

1 5 5 7 195 65 65 65 48 77 76 77 48 30 9 27 9 63 45 201 202 25 50 9 2 14 12 7 5 5 1 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-390-0	04	1	9202-	●	●
1	SHOE; BRK,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-612-0	04	1	9202-	●	●
1	SHOE; BRK,RR FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47120-218-0	04	1	9202-		●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-315-0	02	1	9202-	●	●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-613-0	02	1	9202-	●	●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-88302-958-0	02	1	9202-		●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-314-0	08	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> ANC BLOCK SIDE	1-87061-615-0	04	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> CAM BLOCK SIDE	1-87061-616-0	04	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47125-055-0	08	1	9202-		●
7	RIVET; LINING,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-377-0	AR	1	9202-	●	●
7	RIVET; LINING,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-614-0	AR	1	9202-	●	●
7	RIVET; LINING,RR BRK FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) L=18.5	1-09732-034-0	AR	1	9202-		●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-87061-313-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-87061-384-0	04	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-610-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (A)	1-09583-175-0	02	1	9202-		●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (B)	1-09583-210-0	04	1	9202-		●
12	ROLLER; CAM,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-379-0	02	1	9202-	●	●
12	ROLLER; CAM,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-607-0	04	1	9202-	●	●
14	PIN; CAM ROLLER,BRK SHOE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-380-0	02	1	9202-	●	●
25	COVER SET; RR BRK DRUM FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-392-0	02	1	9202-	●	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-47151-461-1	02	1	9202-		●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-402-0	04	1	9202-	●	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-09333-095-0	04	1	9202-9501		●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-09333-151-0	04	1	9502-		●
30	BOLT; DRUM COVER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-389-0	12	1	9202-	●	●
30	BOLT; DRUM COVER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-603-0	12	1	9202-	●	●
30	BOLT; DRUM COVER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) M10X16 W/LK WASHER	9-01901-016-0	12	1	9202-9204		●
30	BOLT; DRUM COVER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-		●
45	BRACKET; ANCHOR PIN,W/BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-387-0	02	1	9202-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-608-0	02	1	9202-	●	●
48	SEAL; OIL,CM/SHF,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-386-0	04	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-375-0	01	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-601-0	01	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-376-0	01	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-602-0	01	1	9202-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-391-0	02	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 0.030"	1-87061-368-0	06	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (A) 0.030"	1-87061-368-0	04	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 0.060"	1-87061-374-0	06	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (B) 0.060"	1-87061-374-0	02	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-381-0	02	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-381-0	04	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-397-0	01	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-619-0	01	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-396-0	01	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-618-0	01	1	9202-	●	●
77	BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NYLON	1-87061-312-0	04	1	9202-	●	●
77	BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (A) NYLON	1-87061-312-0	02	1	9202-	●	●
77	BUSHING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (B) BRONZE	1-87061-620-0	02	1	9202-	●	●
195	RING; SNAP,CM/SHF FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-388-0	02	1	9202-	●	●
201	BOLT; BRKT,POWER CHAMBER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-378-0	08	1	9202-	●	●
202	WASHER; LK,BRKT FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-403-0	08	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
