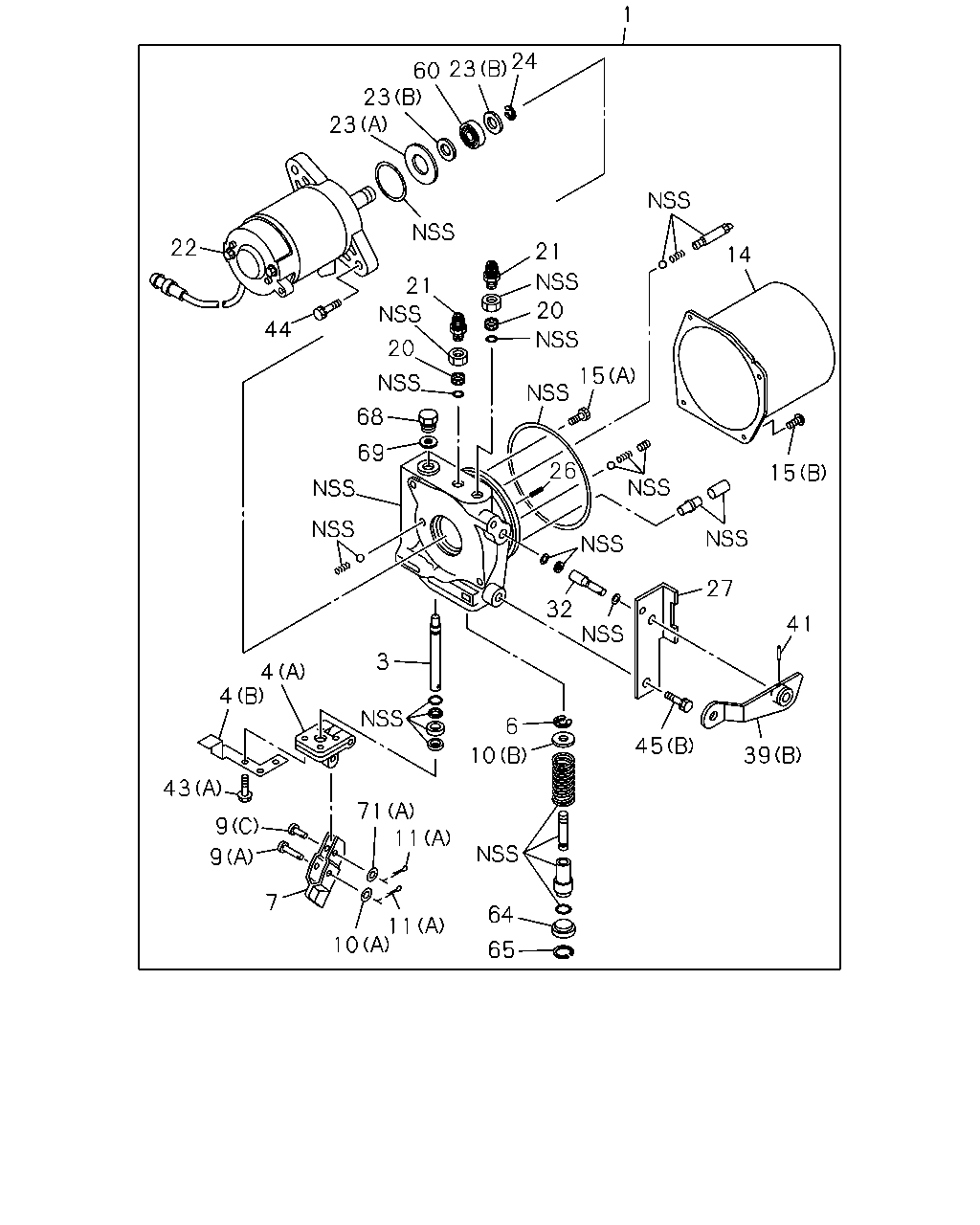

5-16 — OIL PUMP; CAB TILT (#124497) — 196 parça

1 24 23 60 23 23 22 44 21 21 14 20 20 68 69 15 26 15 27 41 32 3 4 4 43 9 9 7 71 11 11 10 64 65 10 6 45 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP; OIL,CAB TILT	1-53457-064-1	01	1	1306-1408
1	PUMP; OIL,CAB TILT	8-98279-120-0	01	1	1409-1510
1	PUMP; OIL,CAB TILT CAB SUSPENSION-FULL FLOATING(SMK)	8-98279-120-0	01	1	1511-
3	PISTON; MANUAL	1-53457-204-0	01	1	1306-1510
3	PISTON; MANUAL CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-204-0	01	1	1511-
4	BRACKET; OIL PUMP (B)	8-98281-606-0	01	1	1409-1510
4	BRACKET; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (B)	8-98281-606-0	01	1	1511-
4	BRACKET; OIL PUMP (A)	1-53457-205-0	01	1	1306-1510
4	BRACKET; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-205-0	01	1	1511-
6	RING; SNAP	1-53458-411-0	01	1	1306-1510
6	RING; SNAP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-411-0	01	1	1511-
7	SOCKET; OIL PUMP	1-53457-207-0	01	1	1306-1510
7	SOCKET; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-207-0	01	1	1511-
9	PIN; OIL PUMP (B) L=27.7	1-09987-141-0	02	1	1306-
9	PIN; OIL PUMP (C)	1-53458-057-0	01	1	1306-1510
9	PIN; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (C)	1-53458-057-0	01	1	1511-
9	PIN; OIL PUMP (A)	1-53458-060-0	01	1	1306-1510
9	PIN; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-060-0	01	1	1511-
10	WASHER; OIL PUMP (C) ID=8.4 OD=22	0-91610-708-0	02	1	1306-
10	WASHER; OIL PUMP (A)	1-53458-013-0	01	1	1306-1510
10	WASHER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-013-0	01	1	1511-
10	WASHER; OIL PUMP (B)	1-53458-561-0	01	1	1306-1510
10	WASHER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53458-561-0	01	1	1511-
11	PIN; SPLIT,OIL PUMP (B) OD=8 L=17	0-82253-817-0	02	1	1306-
11	PIN; SPLIT,OIL PUMP (A)	1-53457-209-0	02	1	1306-1510
11	PIN; SPLIT,OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-209-0	02	1	1511-
14	RESERVOIR; OIL PUMP	1-53458-432-0	01	1	1306-1510
14	RESERVOIR; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-432-0	01	1	1511-
15	BOLT; RESERVOIR (B) M5X8	1-53458-005-0	04	1	1306-1510
15	BOLT; RESERVOIR CAB SUSPENSION-FULL FLOATING(SMK) (B) M5X8	1-53458-005-0	04	1	1511-
15	BOLT; RESERVOIR (A) M5X8	1-53458-433-0	02	1	1306-1510
15	BOLT; RESERVOIR CAB SUSPENSION-FULL FLOATING(SMK) (A) M5X8	1-53458-433-0	02	1	1511-
20	FILTER; OIL PUMP	1-53457-081-0	02	1	1306-1510
20	FILTER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-081-0	02	1	1511-
21	CONNECTOR; OIL PUMP M12	1-53458-941-0	02	1	1306-1510
21	CONNECTOR; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) M12	1-53458-941-0	02	1	1511-
22	MOTOR; OIL PUMP	1-53457-080-0	01	1	1306-1510
22	MOTOR; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-080-0	01	1	1511-
23	WASHER; MOTOR (A)	1-53458-018-0	01	1	1306-1510
23	WASHER; MOTOR CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-018-0	01	1	1511-
23	WASHER; MOTOR (B)	1-53458-045-0	02	1	1306-1408
23	WASHER; MOTOR (B)	8-97613-686-0	02	1	1409-1510
23	WASHER; MOTOR CAB SUSPENSION-FULL FLOATING(SMK) (B)	8-97613-686-0	02	1	1511-
24	RING; SNAP,MOTOR	1-53458-044-0	01	1	1306-1510
24	RING; SNAP,MOTOR CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-044-0	01	1	1511-
26	PIN; SPR,OIL PUMP	1-53458-038-0	01	1	1306-1510
26	PIN; SPR,OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-038-0	01	1	1511-
27	COVER; OIL PUMP	1-53458-568-0	01	1	1306-1510
27	COVER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-568-0	01	1	1511-
32	VALVE; OIL PUMP	1-53458-569-0	01	1	1306-1510
32	VALVE; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-569-0	01	1	1511-
39	LEVER; OIL PUMP (B)	1-53458-567-0	01	1	1306-1510
39	LEVER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53458-567-0	01	1	1511-
39	LEVER; OIL PUMP (A)	8-97608-198-0	01	1	1306-
41	PIN; SPR,LEVER	1-53458-019-0	01	1	1306-1510
41	PIN; SPR,LEVER CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-019-0	01	1	1511-
43	BOLT; LEVER (B) M8X20 FLANGE	0-28050-820-0	02	1	1306-
43	BOLT; LEVER (A) M5X16	1-53457-206-0	03	1	1306-1510
43	BOLT; LEVER CAB SUSPENSION-FULL FLOATING(SMK) (A) M5X16	1-53457-206-0	03	1	1511-
44	BOLT; MOTOR M6X20	1-53458-007-0	02	1	1306-1510
44	BOLT; MOTOR CAB SUSPENSION-FULL FLOATING(SMK) M6X20	1-53458-007-0	02	1	1511-
45	BOLT; COVER (A) M8X20 FLANGE	0-28650-820-0	02	1	1306-
45	BOLT; COVER (B) M6X8	1-53458-004-0	02	1	1306-1510
45	BOLT; COVER CAB SUSPENSION-FULL FLOATING(SMK) (B) M6X8	1-53458-004-0	02	1	1511-
60	BEARING; OIL PUMP	1-53458-423-0	01	1	1306-1510
60	BEARING; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-423-0	01	1	1511-
64	SLEEVE; OIL PUMP	1-53458-572-0	01	1	1306-1408
64	SLEEVE; OIL PUMP	8-98249-572-0	01	1	1409-1510
64	SLEEVE; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	8-98249-572-0	01	1	1511-
65	RING; SNAP,SLEEVE	1-53458-570-0	01	1	1306-1510
65	RING; SNAP,SLEEVE CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-570-0	01	1	1511-
68	PLUG; FILLER	1-53458-428-0	01	1	1306-1510
68	PLUG; FILLER CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-428-0	01	1	1511-
69	GASKET; FILLER PLUG	1-53458-427-0	01	1	1306-1510
69	GASKET; FILLER PLUG CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-427-0	01	1	1511-
71	NUT; PUSH (A)	1-53457-208-0	01	1	1306-1510
71	NUT; PUSH CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-208-0	01	1	1511-
71	NUT; PUSH (B) ID=9.9 PUSH NUT	8-97022-566-0	01	1	1306-

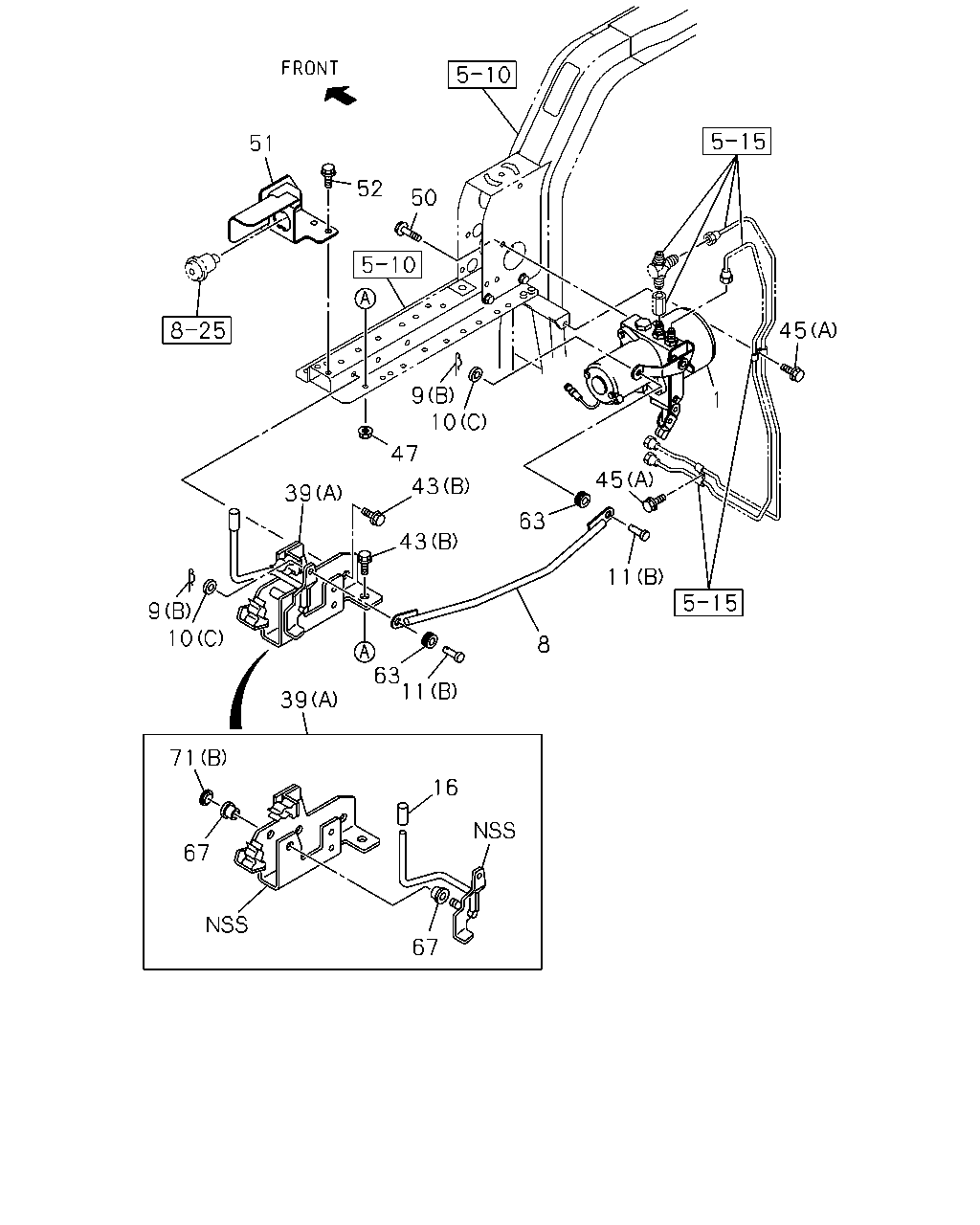

51 52 50 9 1 45 45 63 11 8 11 63 43 43 47 10 39 9 39 10 71 67 16 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP; OIL,CAB TILT	1-53457-064-1	01	1	1306-1408
1	PUMP; OIL,CAB TILT	8-98279-120-0	01	1	1409-1510
1	PUMP; OIL,CAB TILT CAB SUSPENSION-FULL FLOATING(SMK)	8-98279-120-0	01	1	1511-
8	LINK; OIL PUMP	1-53457-155-0	01	1	1306-
9	PIN; OIL PUMP (B) L=27.7	1-09987-141-0	02	1	1306-
9	PIN; OIL PUMP (C)	1-53458-057-0	01	1	1306-1510
9	PIN; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (C)	1-53458-057-0	01	1	1511-
9	PIN; OIL PUMP (A)	1-53458-060-0	01	1	1306-1510
9	PIN; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-060-0	01	1	1511-
10	WASHER; OIL PUMP (C) ID=8.4 OD=22	0-91610-708-0	02	1	1306-
10	WASHER; OIL PUMP (A)	1-53458-013-0	01	1	1306-1510
10	WASHER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-013-0	01	1	1511-
10	WASHER; OIL PUMP (B)	1-53458-561-0	01	1	1306-1510
10	WASHER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53458-561-0	01	1	1511-
11	PIN; SPLIT,OIL PUMP (B) OD=8 L=17	0-82253-817-0	02	1	1306-
11	PIN; SPLIT,OIL PUMP (A)	1-53457-209-0	02	1	1306-1510
11	PIN; SPLIT,OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-209-0	02	1	1511-
16	CAP ID=9.0	8-94207-303-0	01	1	1306-
39	LEVER; OIL PUMP (B)	1-53458-567-0	01	1	1306-1510
39	LEVER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53458-567-0	01	1	1511-
39	LEVER; OIL PUMP (A)	8-97608-198-0	01	1	1306-
43	BOLT; LEVER (B) M8X20 FLANGE	0-28050-820-0	02	1	1306-
43	BOLT; LEVER (A) M5X16	1-53457-206-0	03	1	1306-1510
43	BOLT; LEVER CAB SUSPENSION-FULL FLOATING(SMK) (A) M5X16	1-53457-206-0	03	1	1511-
45	BOLT; COVER (A) M8X20 FLANGE	0-28650-820-0	02	1	1306-
45	BOLT; COVER (B) M6X8	1-53458-004-0	02	1	1306-1510
45	BOLT; COVER CAB SUSPENSION-FULL FLOATING(SMK) (B) M6X8	1-53458-004-0	02	1	1511-
47	NUT; LEVER M8 FLANGE	0-91180-108-0	01	1	1306-
50	BOLT; OIL PUMP M10X16 FLANGE	0-28051-016-0	02	1	1306-
51	BRACKET; OIL PUMP	8-97606-599-1	01	1	1306-
52	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1306-
63	GROMMET ID=10 OD=23 T=8	1-09983-010-0	02	1	1306-
67	BUSHING T=6 OD=17.5	9-33659-249-0	02	1	1306-
71	NUT; PUSH (A)	1-53457-208-0	01	1	1306-1510
71	NUT; PUSH CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-208-0	01	1	1511-
71	NUT; PUSH (B) ID=9.9 PUSH NUT	8-97022-566-0	01	1	1306-

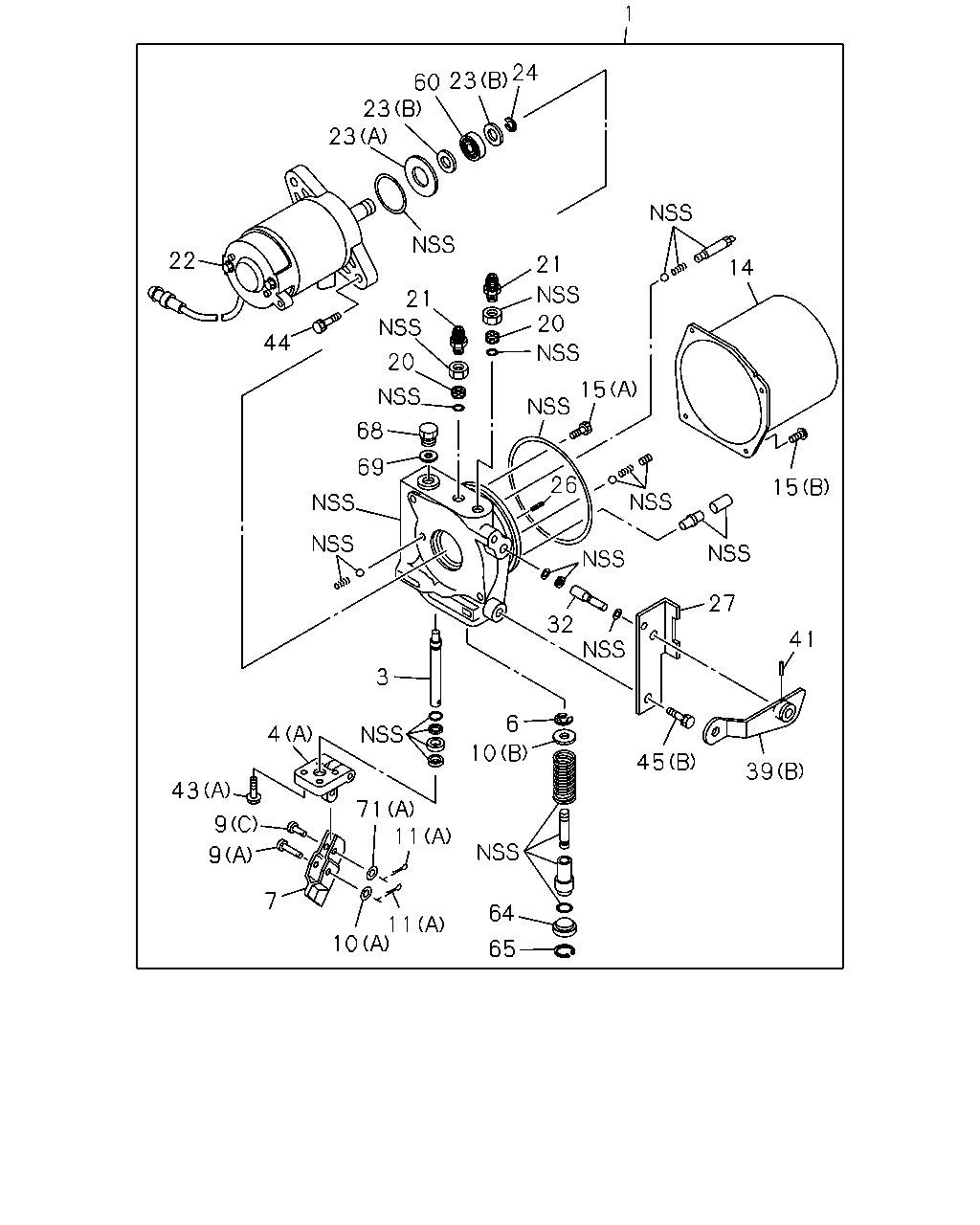

1 24 23 60 23 23 22 44 21 21 20 68 69 20 15 26 14 15 32 27 41 3 6 4 10 45 39 43 9 9 7 71 11 10 11 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP; OIL,CAB TILT	1-53457-064-1	01	1	1306-1408
1	PUMP; OIL,CAB TILT	8-98279-120-0	01	1	1409-1510
1	PUMP; OIL,CAB TILT CAB SUSPENSION-FULL FLOATING(SMK)	8-98279-120-0	01	1	1511-
3	PISTON; MANUAL	1-53457-204-0	01	1	1306-1510
3	PISTON; MANUAL CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-204-0	01	1	1511-
4	BRACKET; OIL PUMP (B)	8-98281-606-0	01	1	1409-1510
4	BRACKET; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (B)	8-98281-606-0	01	1	1511-
4	BRACKET; OIL PUMP (A)	1-53457-205-0	01	1	1306-1510
4	BRACKET; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-205-0	01	1	1511-
6	RING; SNAP	1-53458-411-0	01	1	1306-1510
6	RING; SNAP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-411-0	01	1	1511-
7	SOCKET; OIL PUMP	1-53457-207-0	01	1	1306-1510
7	SOCKET; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-207-0	01	1	1511-
9	PIN; OIL PUMP (B) L=27.7	1-09987-141-0	02	1	1306-
9	PIN; OIL PUMP (C)	1-53458-057-0	01	1	1306-1510
9	PIN; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (C)	1-53458-057-0	01	1	1511-
9	PIN; OIL PUMP (A)	1-53458-060-0	01	1	1306-1510
9	PIN; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-060-0	01	1	1511-
10	WASHER; OIL PUMP (C) ID=8.4 OD=22	0-91610-708-0	02	1	1306-
10	WASHER; OIL PUMP (A)	1-53458-013-0	01	1	1306-1510
10	WASHER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-013-0	01	1	1511-
10	WASHER; OIL PUMP (B)	1-53458-561-0	01	1	1306-1510
10	WASHER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53458-561-0	01	1	1511-
11	PIN; SPLIT,OIL PUMP (B) OD=8 L=17	0-82253-817-0	02	1	1306-
11	PIN; SPLIT,OIL PUMP (A)	1-53457-209-0	02	1	1306-1510
11	PIN; SPLIT,OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-209-0	02	1	1511-
14	RESERVOIR; OIL PUMP	1-53458-432-0	01	1	1306-1510
14	RESERVOIR; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-432-0	01	1	1511-
15	BOLT; RESERVOIR (B) M5X8	1-53458-005-0	04	1	1306-1510
15	BOLT; RESERVOIR CAB SUSPENSION-FULL FLOATING(SMK) (B) M5X8	1-53458-005-0	04	1	1511-
15	BOLT; RESERVOIR (A) M5X8	1-53458-433-0	02	1	1306-1510
15	BOLT; RESERVOIR CAB SUSPENSION-FULL FLOATING(SMK) (A) M5X8	1-53458-433-0	02	1	1511-
20	FILTER; OIL PUMP	1-53457-081-0	02	1	1306-1510
20	FILTER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-081-0	02	1	1511-
21	CONNECTOR; OIL PUMP M12	1-53458-941-0	02	1	1306-1510
21	CONNECTOR; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) M12	1-53458-941-0	02	1	1511-
22	MOTOR; OIL PUMP	1-53457-080-0	01	1	1306-1510
22	MOTOR; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-080-0	01	1	1511-
23	WASHER; MOTOR (A)	1-53458-018-0	01	1	1306-1510
23	WASHER; MOTOR CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-018-0	01	1	1511-
23	WASHER; MOTOR (B)	1-53458-045-0	02	1	1306-1408
23	WASHER; MOTOR (B)	8-97613-686-0	02	1	1409-1510
23	WASHER; MOTOR CAB SUSPENSION-FULL FLOATING(SMK) (B)	8-97613-686-0	02	1	1511-
24	RING; SNAP,MOTOR	1-53458-044-0	01	1	1306-1510
24	RING; SNAP,MOTOR CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-044-0	01	1	1511-
26	PIN; SPR,OIL PUMP	1-53458-038-0	01	1	1306-1510
26	PIN; SPR,OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-038-0	01	1	1511-
27	COVER; OIL PUMP	1-53458-568-0	01	1	1306-1510
27	COVER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-568-0	01	1	1511-
32	VALVE; OIL PUMP	1-53458-569-0	01	1	1306-1510
32	VALVE; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-569-0	01	1	1511-
39	LEVER; OIL PUMP (B)	1-53458-567-0	01	1	1306-1510
39	LEVER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53458-567-0	01	1	1511-
39	LEVER; OIL PUMP (A)	8-97608-198-0	01	1	1306-
41	PIN; SPR,LEVER	1-53458-019-0	01	1	1306-1510
41	PIN; SPR,LEVER CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-019-0	01	1	1511-
43	BOLT; LEVER (B) M8X20 FLANGE	0-28050-820-0	02	1	1306-
43	BOLT; LEVER (A) M5X16	1-53457-206-0	03	1	1306-1510
43	BOLT; LEVER CAB SUSPENSION-FULL FLOATING(SMK) (A) M5X16	1-53457-206-0	03	1	1511-
44	BOLT; MOTOR M6X20	1-53458-007-0	02	1	1306-1510
44	BOLT; MOTOR CAB SUSPENSION-FULL FLOATING(SMK) M6X20	1-53458-007-0	02	1	1511-
45	BOLT; COVER (A) M8X20 FLANGE	0-28650-820-0	02	1	1306-
45	BOLT; COVER (B) M6X8	1-53458-004-0	02	1	1306-1510
45	BOLT; COVER CAB SUSPENSION-FULL FLOATING(SMK) (B) M6X8	1-53458-004-0	02	1	1511-
60	BEARING; OIL PUMP	1-53458-423-0	01	1	1306-1510
60	BEARING; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-423-0	01	1	1511-
64	SLEEVE; OIL PUMP	1-53458-572-0	01	1	1306-1408
64	SLEEVE; OIL PUMP	8-98249-572-0	01	1	1409-1510
64	SLEEVE; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	8-98249-572-0	01	1	1511-
65	RING; SNAP,SLEEVE	1-53458-570-0	01	1	1306-1510
65	RING; SNAP,SLEEVE CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-570-0	01	1	1511-
68	PLUG; FILLER	1-53458-428-0	01	1	1306-1510
68	PLUG; FILLER CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-428-0	01	1	1511-
69	GASKET; FILLER PLUG	1-53458-427-0	01	1	1306-1510
69	GASKET; FILLER PLUG CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-427-0	01	1	1511-
71	NUT; PUSH (A)	1-53457-208-0	01	1	1306-1510
71	NUT; PUSH CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-208-0	01	1	1511-
71	NUT; PUSH (B) ID=9.9 PUSH NUT	8-97022-566-0	01	1	1306-

2 69

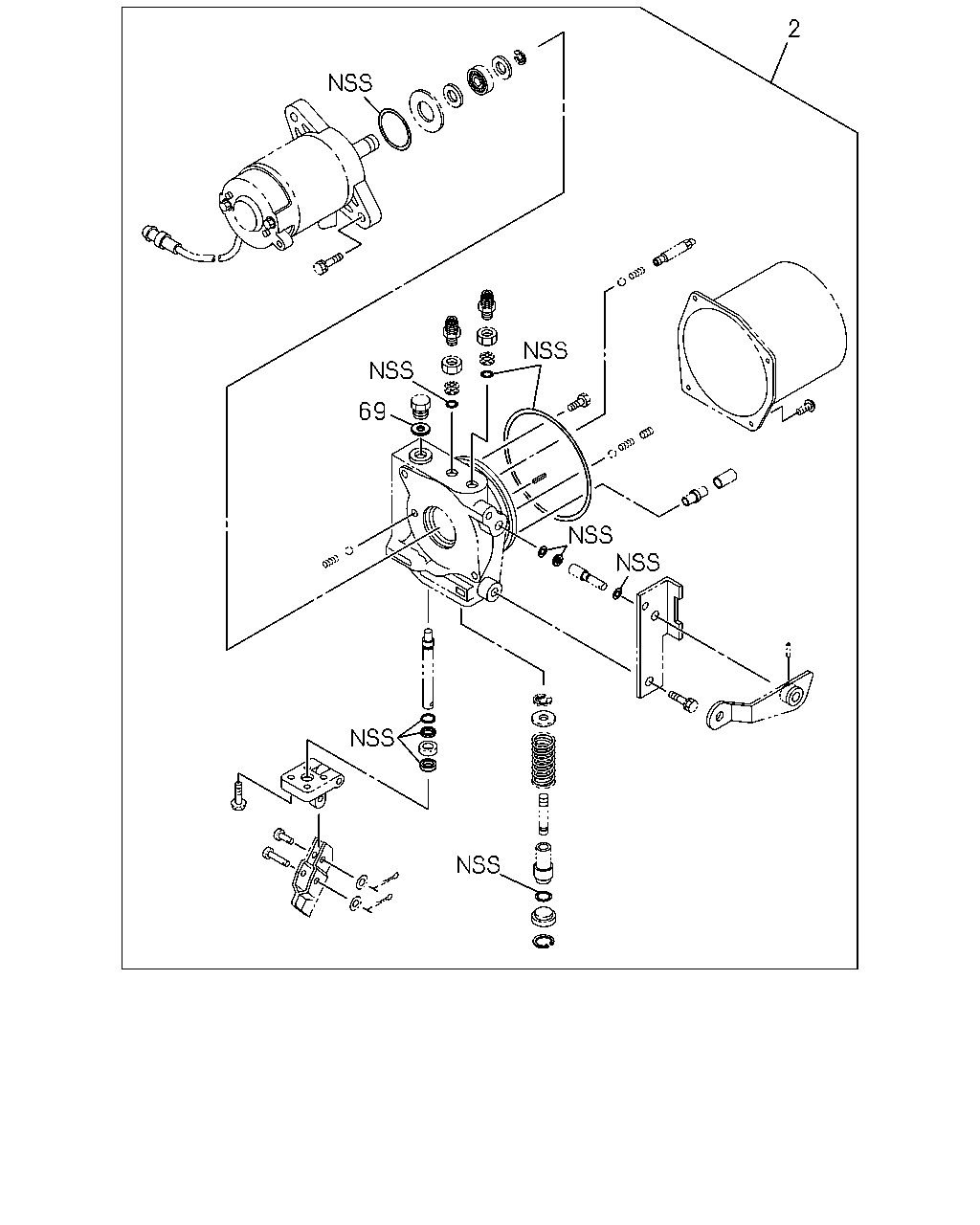

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; OIL PUMP	1-85579-069-0	01	1	1306-1510
2	REPAIR KIT; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-85579-069-0	01	1	1511-
69	GASKET; FILLER PLUG	1-53458-427-0	01	1	1306-1510
69	GASKET; FILLER PLUG CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-427-0	01	1	1511-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
