Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11526 - EXZ RHD EURO2
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#124496) — 47 parça
◀

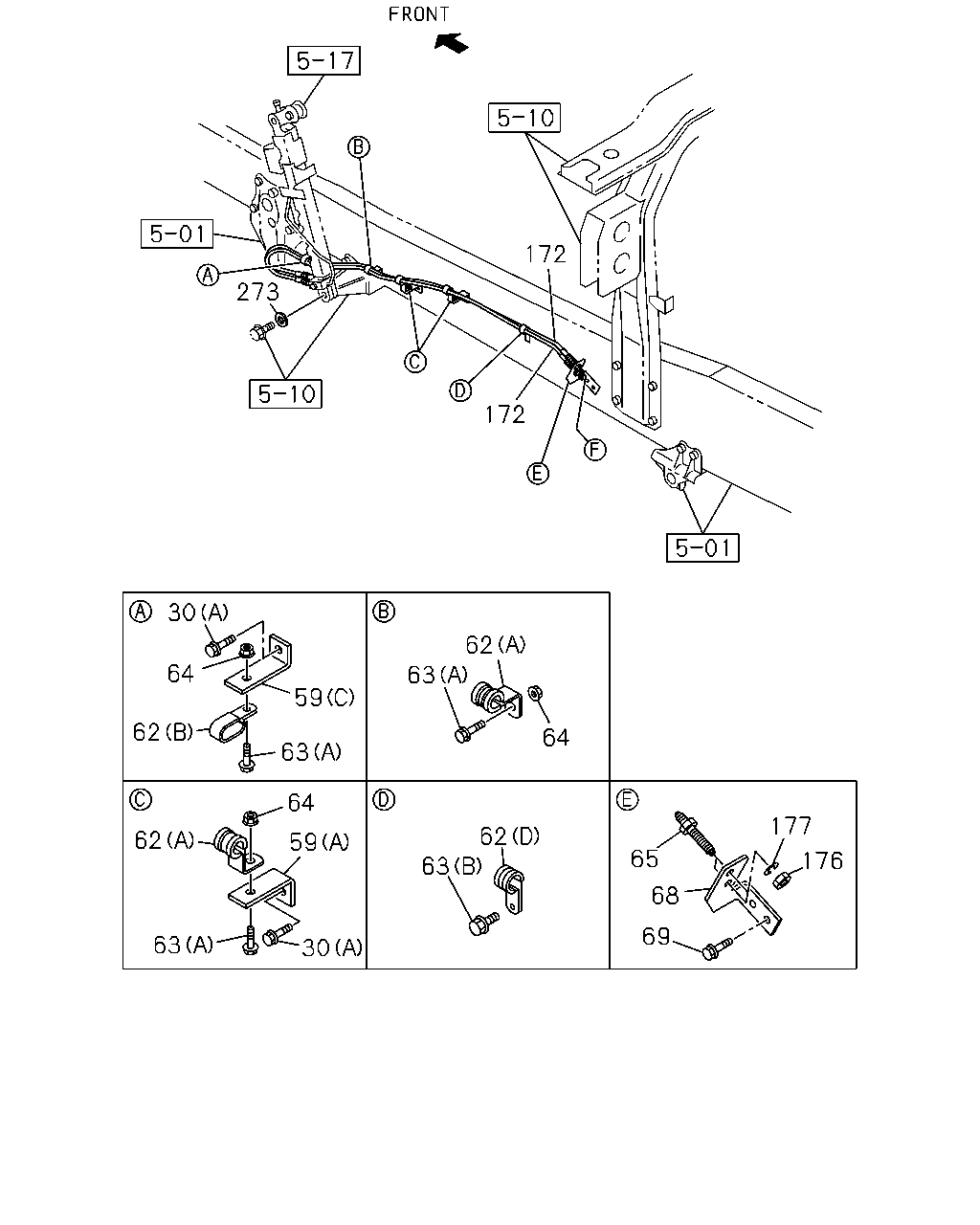

[515A] CAB TILT PIPING;FRAME SIDE (19 parça)

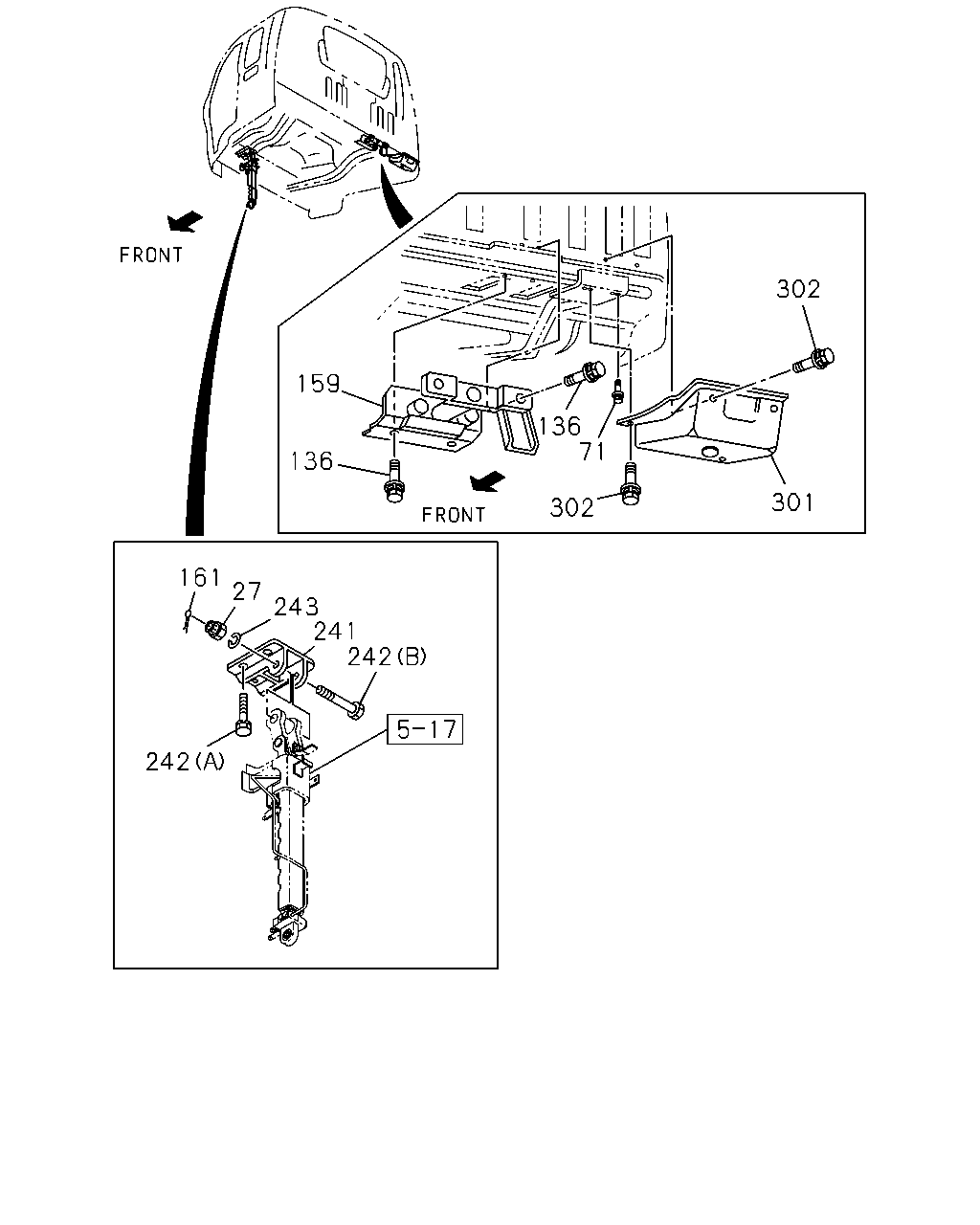

[515A] BRACKET,PIN AND OTHER PARTS (11 parça)

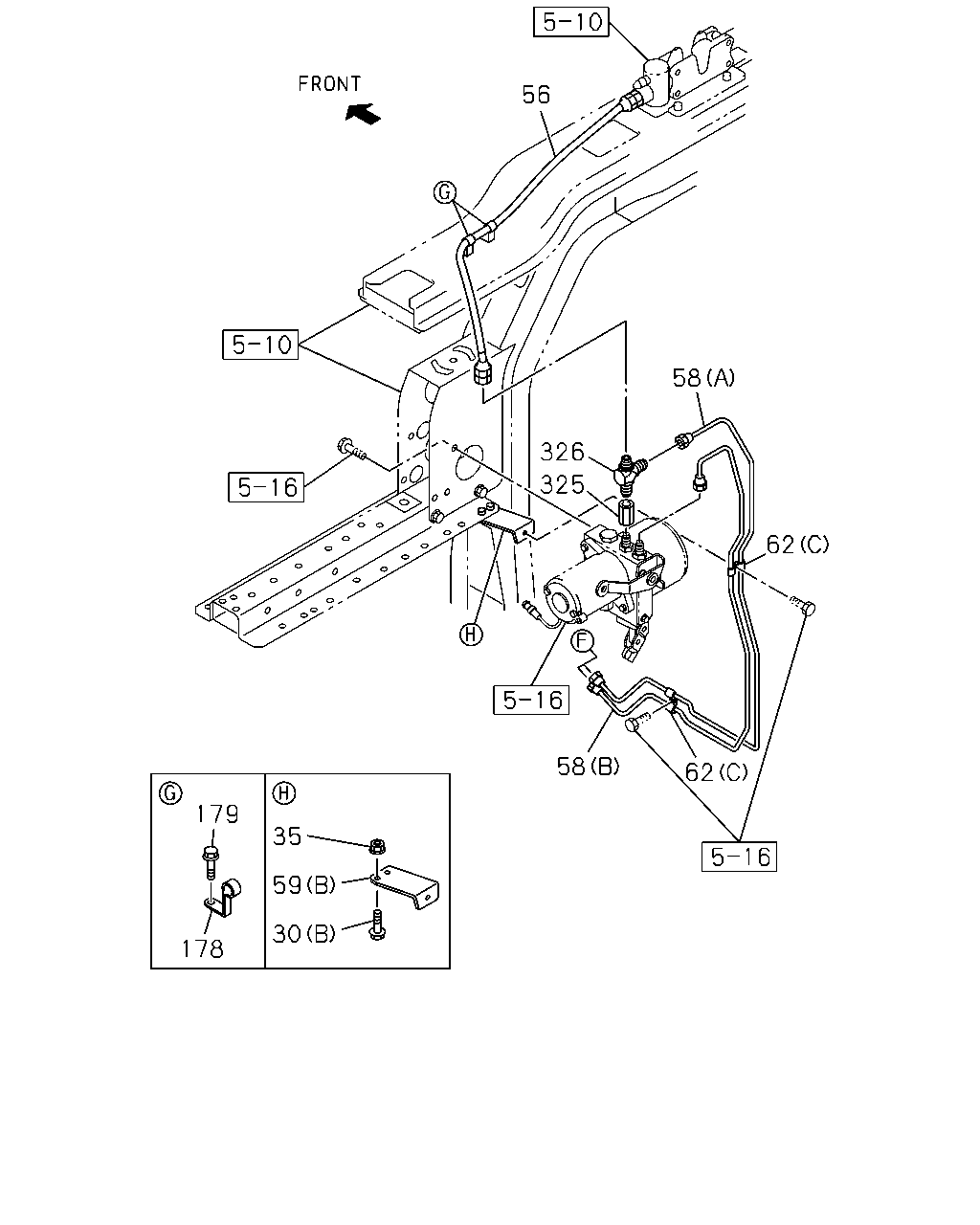

[515A] CAB TILT PIPING;CAB MTG MBR SIDE (17 parça)
▶
62
63
64
177
176
65
68
69
62
63
59
30
63
62
64
63
59
64
62
30
172
273
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(B) M8X20 FLANGE
0-28650-820-0
02
1
1306-
30
BOLT; BRKT FIX
(A) M8X30 FLANGE
0-28650-830-0
03
1
1306-
59
BRACKET; CLIP
(A) L=115 B=25
1-47476-758-0
02
1
1306-
59
BRACKET; CLIP
(B)
1-47477-317-0
01
1
1306-
59
BRACKET; CLIP
(C) L=65
1-47479-064-1
01
1
1306-
62
CLIP; OIL PIPE
(B) ID=9X2 L=20
0-95324-835-0
01
1
1306-
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
02
1
1306-
62
CLIP; OIL PIPE
(D) ID=24 L=27
1-09700-809-0
01
1
1306-
62
CLIP; OIL PIPE
(A) ID=21 L=30 H=40
1-09700-991-1
03
1
1306-
63
BOLT; CLIP
(A) M8X20 FLANGE
0-28650-820-0
04
1
1306-
63
BOLT; CLIP
(B) M8X30 FLANGE
0-28650-830-0
01
1
1306-
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1306-
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
1306-
68
BRACKET; UNION
8-98226-698-0
01
1
1306-
69
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
1306-
172
HOSE; FLEX,OIL TILT
8-98242-445-0
02
1
1306-
176
NUT; UNION
M12
9-09840-280-0
02
1
1306-
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
1306-
273
WASHER; PL,OIL CYL
ID=10.5 OD=32
0-91614-810-0
01
1
1306-
301
302
71
136
302
159
136
161
27
243
241
242
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
NUT; OIL CYL
M14 SLOTTED
0-91116-514-0
01
1
1306-
71
BOLT
M10X25 W/LK&PL WASHER
1-09980-488-0
02
1
1306-
136
BOLT; CAB LK
M8X24.5 W/LK&PL WASHER
8-94279-217-0
04
1
1306-
159
PIN
1-79717-627-1
01
1
1306-
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
1306-
241
BRACKET; POWER CYL UPR,CAB TILT
1-53458-338-1
01
1
1306-
242
BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER
1-09980-546-0
05
1
1306-
242
BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70
1-53458-633-0
01
1
1306-
243
WASHER; LK,POWER CYL BRKT
ID=14.2
0-91510-814-0
01
1
1306-
301
BRACKET; RR MTG,CAB
1-62570-866-1
02
1
1306-
302
BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER
1-09980-488-0
08
1
1306-
62
58
62
58
326
325
179
178
35
59
30
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(B) M8X20 FLANGE
0-28650-820-0
02
1
1306-
30
BOLT; BRKT FIX
(A) M8X30 FLANGE
0-28650-830-0
03
1
1306-
35
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1306-
56
HOSE; FLEX,OIL PIPE
L=750
1-09365-058-0
01
1
1306-
58
PIPE; OIL,POWER UNIT
(A) L=966 SERVICED BY L=1000
1-47428-730-0
01
1
1306-
58
PIPE; OIL,POWER UNIT
(B) L=1011 SERVICED BY L=1100
1-47428-731-0
01
1
1306-
59
BRACKET; CLIP
(A) L=115 B=25
1-47476-758-0
02
1
1306-
59
BRACKET; CLIP
(B)
1-47477-317-0
01
1
1306-
59
BRACKET; CLIP
(C) L=65
1-47479-064-1
01
1
1306-
62
CLIP; OIL PIPE
(B) ID=9X2 L=20
0-95324-835-0
01
1
1306-
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
02
1
1306-
62
CLIP; OIL PIPE
(D) ID=24 L=27
1-09700-809-0
01
1
1306-
62
CLIP; OIL PIPE
(A) ID=21 L=30 H=40
1-09700-991-1
03
1
1306-
178
CLIP; FLEX HOSE
ID=8 H=20 L=20
1-09700-604-0
02
1
1306-
179
BOLT; CLIP,FLEX HOSE
M8X20 FLANGE
0-28650-820-0
02
1
1306-
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
1306-
326
UNION; PUMP
M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
1306-
