◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11526 - EXZ RHD EURO2 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#124495) — 136 parça
çizim 363620
202 202 203 204 205 65 69 72 70 204 203
BalonParca AdiParca NoAdetTipApplied Date
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1306-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1306-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1306-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 1306-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 1306-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1306-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1306-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1306-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1306-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1306-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1306-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1306-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1306-
çizim 364682
294 205 204 203 202 202 204 203 201 173 203 204 205 66 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date
66 BRACKET; S/ABS 8-98214-572-0 01 1 1306-
66 BRACKET; S/ABS 1-53458-786-0 01 1 1306-
173 MEMBER; CAB MTG RR 8-98166-346-0 01 1 1306-
174 OUTRIGGER 1-53456-418-3 01 1 1306-
174 OUTRIGGER 8-98158-646-0 01 1 1306-
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 1306-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1306-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1306-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1306-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1306-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1306-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1306-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1306-
294 MEMBER; FLOATING
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53454-950-3 01 1 1306-1510
294 MEMBER; FLOATING 1-53454-950-3 01 1 1511-

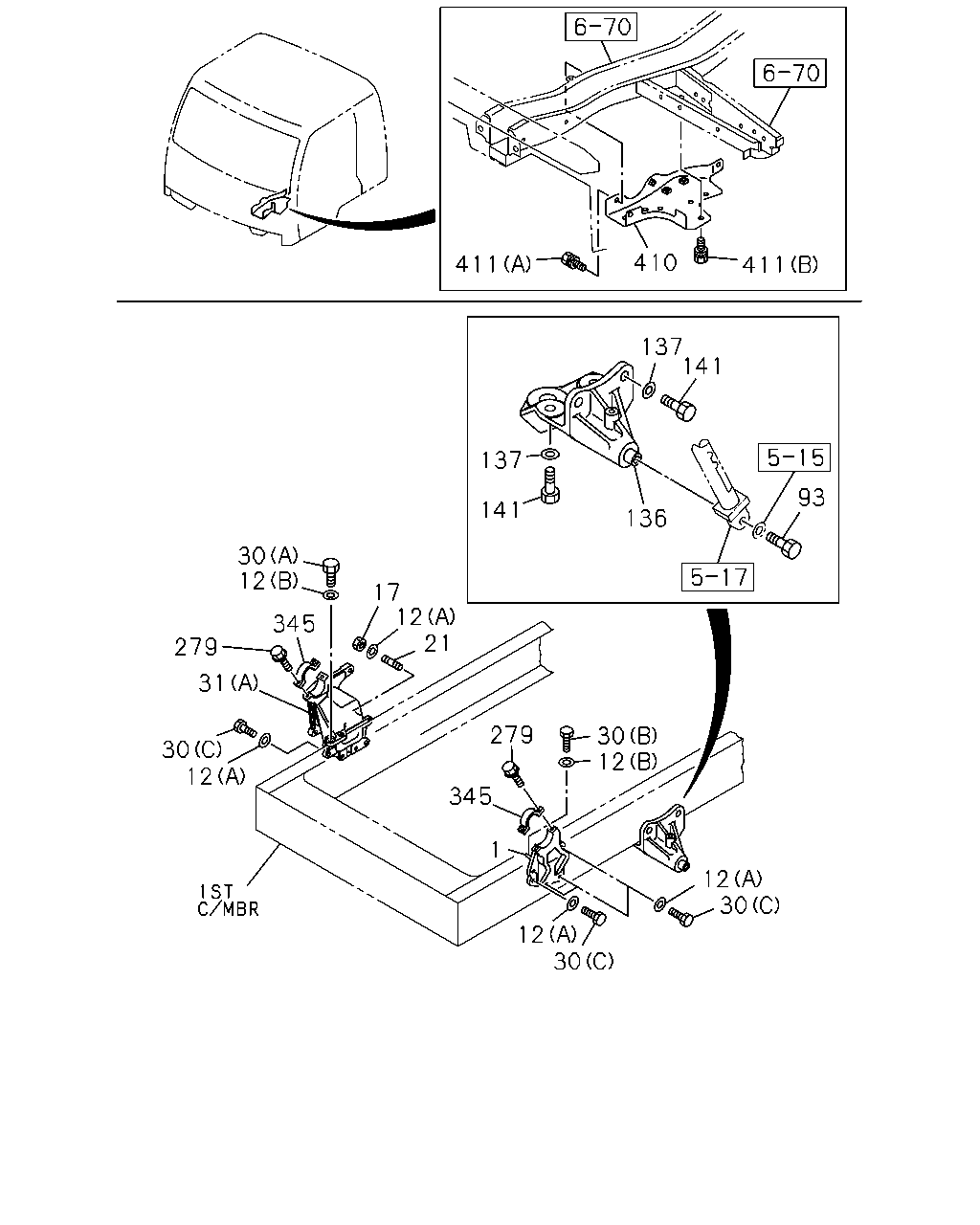

çizim 364693
411 410 411 137 137 141 141 136 93 30 279 12 12 30 30 12 1 345 21 12 17 30 345 12 279 31 30 12
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 8-98120-797-0 01 1 1306-1510
1 BRACKET; CAB MTG 8-98120-797-0 01 1 1511-
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 11 1 1306-
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 04 1 1306-
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1306-
21 STUD; BRKT,CAB TILT
M16X50 L=74 		1-09300-117-0 01 1 1306-1510
21 STUD; BRKT,CAB TILT
M16X50 L=74 		1-09300-117-0 01 1 1511-
30 BOLT; CAB FRT FOOT
(B) M14X50 		0-20951-450-0 02 1 1306-
30 BOLT; CAB FRT FOOT
(A) M14X60 		0-20951-460-0 02 1 1306-
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 05 1 1306-
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 05 1 1306-
31 BRACKET; CAB
(A) 		8-98152-139-0 01 1 1306-
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1306-
31 BRACKET; CAB
(B) 		1-53453-273-2 01 1 1306-
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 1306-
136 BRACKET; OIL CYL 1-53458-829-0 01 1 1306-
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1306-
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1306-
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 1306-1510
279 BOLT
M12X40 FLANGE 		8-98270-173-0 04 1 1511-
345 CAP; CAB 1-53458-336-3 02 1 1306-
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 1306-
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 1306-
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1306-

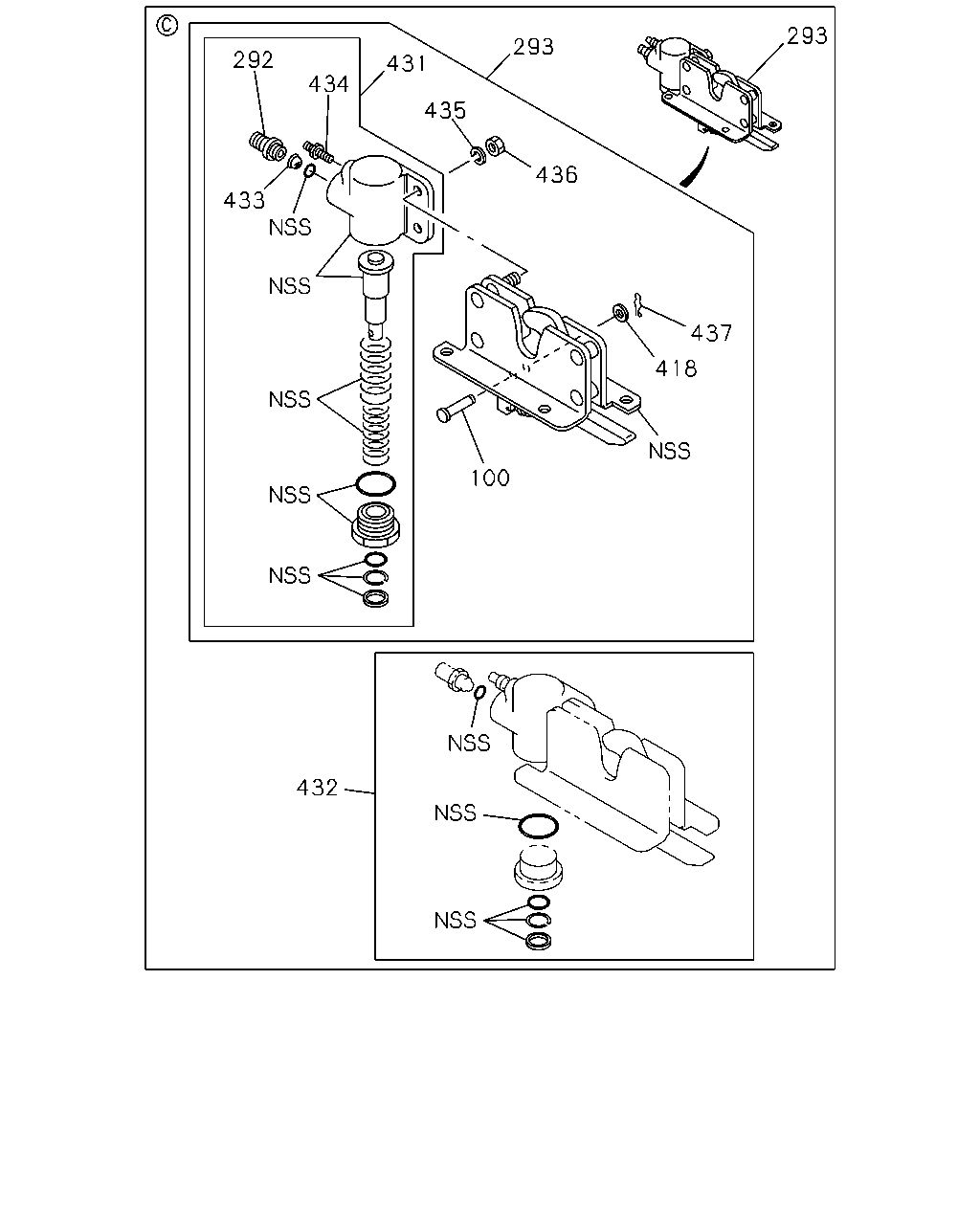

çizim 364768
292 434 433 431 435 436 293 293 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date
100 PIN; JOINT 1-53458-831-0 01 1 1306-
292 CONNECTOR; CAB SUSPENSION
M12 		1-53458-941-0 01 1 1306-
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 1306-
418 WASHER; PL,PIN 1-53458-059-0 01 1 1306-
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 1306-
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 1306-
433 FILTER; AIR CYL 1-53458-048-0 01 1 1306-
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 1306-
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 1306-
436 NUT; AIR CYL 1-53458-528-0 02 1 1306-
437 PIN; SNAP 1-53458-526-0 01 1 1306-

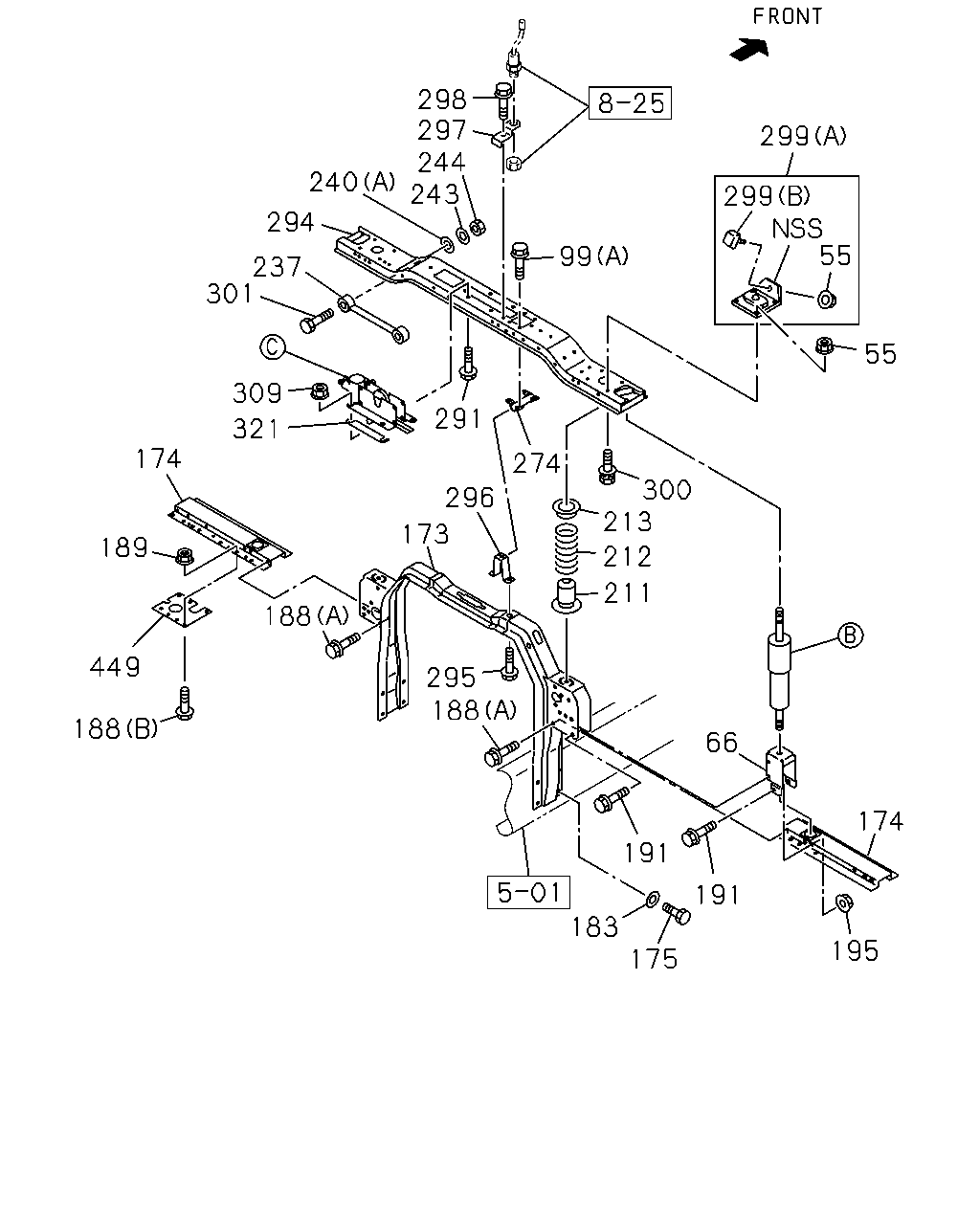

çizim 365570
298 297 244 243 240 294 237 301 309 321 174 189 449 188 188 173 296 291 274 300 213 212 211 295 188 66 191 191 175 183 195 174 55 55 299 299 99
BalonParca AdiParca NoAdetTipApplied Date
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 1306-
66 BRACKET; S/ABS 8-98214-572-0 01 1 1306-
66 BRACKET; S/ABS 1-53458-786-0 01 1 1306-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1306-
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1306-
173 MEMBER; CAB MTG RR 8-98166-346-0 01 1 1306-
174 OUTRIGGER 1-53456-418-3 01 1 1306-
174 OUTRIGGER 8-98158-646-0 01 1 1306-
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1306-
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1306-
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 1306-
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1306-
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 1306-
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 1306-
195 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1306-
211 RUBBER; CUSHION,S/ABS
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53366-128-0 02 1 1306-1510
211 RUBBER; CUSHION,S/ABS 1-53366-128-0 02 1 1511-
212 SPRING; COIL
CAB SUSPENSION-FULL FLOATING(SMK) 		1-09580-515-0 02 1 1306-1510
212 SPRING; COIL 1-09580-515-0 02 1 1511-
213 SEAT; SPR,S/ABS
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53366-132-1 02 1 1306-1510
213 SEAT; SPR,S/ABS 1-53366-132-1 02 1 1511-
237 ROD ASM; LATERAL 1-53458-343-0 01 1 1306-
240 WASHER; PL,BRKT
(A) ID=12.5 OD=22 		0-91610-512-0 02 1 1306-
240 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		1-09985-173-0 01 1 1306-1410
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1306-
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 1306-
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 1306-
274 PIN 1-53458-996-0 01 1 1306-
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 1306-
294 MEMBER; FLOATING
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53454-950-3 01 1 1306-1510
294 MEMBER; FLOATING 1-53454-950-3 01 1 1511-
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 1306-
296 STOPPER; UPR 1-53458-973-1 01 1 1306-
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 1306-
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 1306-
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 1306-
300 BOLT; MTG RUBBER
CAB SUSPENSION-FULL FLOATING(SMK) M8X25 W/LK&PL WASHER 		1-09030-027-0 08 1 1306-1510
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 08 1 1511-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 1306-
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 1306-
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 1306-
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 1306-

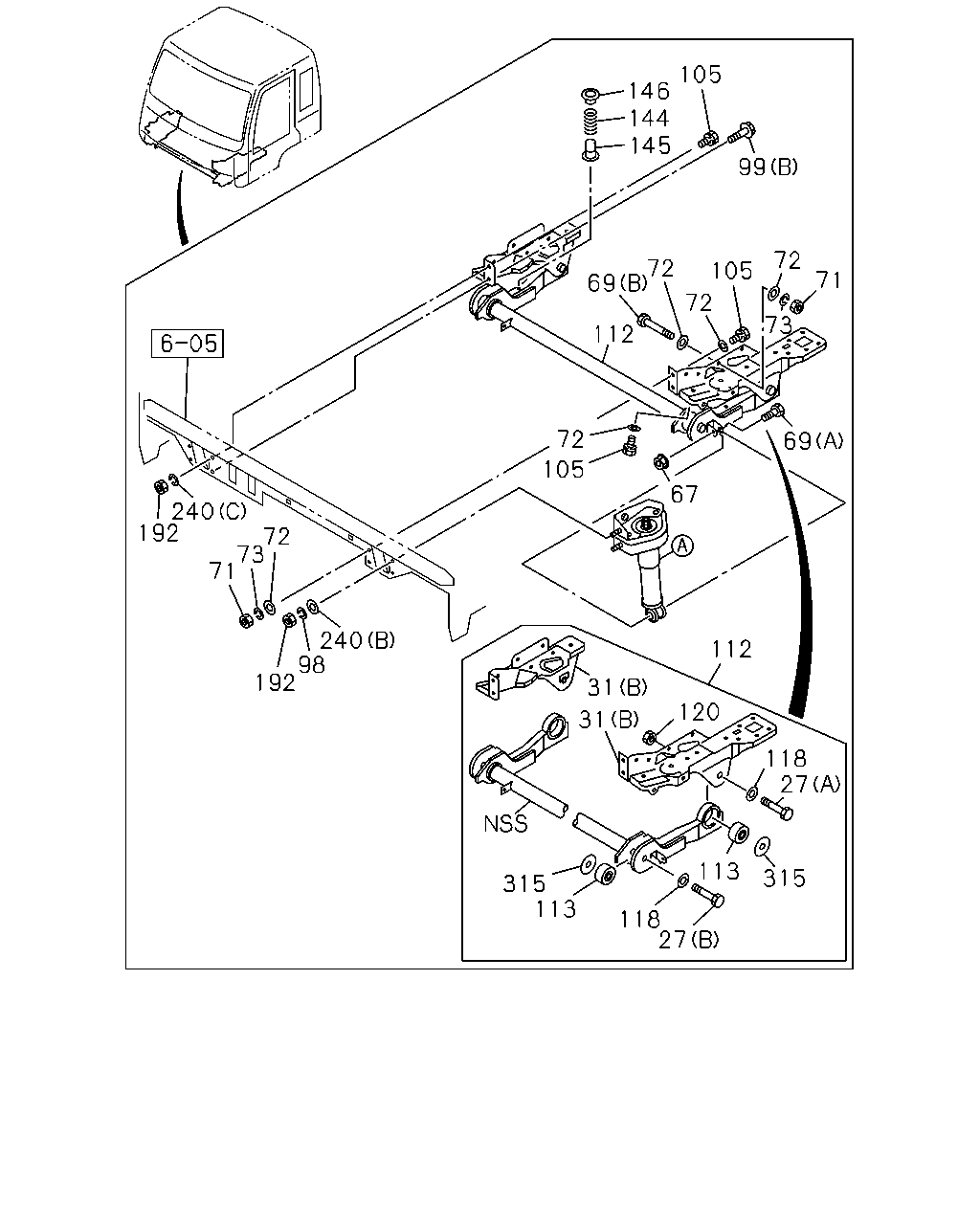

çizim 366123
105 99 71 72 105 72 146 144 145 69 112 72 240 72 73 71 192 192 98 240 31 31 112 67 72 69 120 118 27 315 113 27 118 113 315 105 73
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 1306-
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 1306-
31 BRACKET; CAB
(A) 		8-98152-139-0 01 1 1306-
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1306-
31 BRACKET; CAB
(B) 		1-53453-273-2 01 1 1306-
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 1306-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1306-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1306-
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 1306-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1306-
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 1306-
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 1306-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1306-
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1306-
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 08 1 1306-
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-565-8 01 1 1306-
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 1306-
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 1306-
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 1306-
144 SPRING; COIL,CAB FRT SUSPENSION
CAB SUSPENSION-FULL FLOATING(SMK) 		1-09580-537-0 02 1 1306-1510
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1511-
145 RUBBER; CUSHION,CAB FRT SUSPENSION
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53366-139-0 02 1 1306-1510
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1511-
146 SEAT; SPRING,CAB FRT SUSPENSION
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53366-138-0 02 1 1306-1510
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1511-
192 NUT; BRKT FIX
M10 		1-09984-142-0 05 1 1306-
240 WASHER; PL,BRKT
(A) ID=12.5 OD=22 		0-91610-512-0 02 1 1306-
240 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		1-09985-173-0 01 1 1306-1410
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1306-
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 1306-
