Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11526 - EXZ RHD EURO2
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#124494) — 55 parça
◀

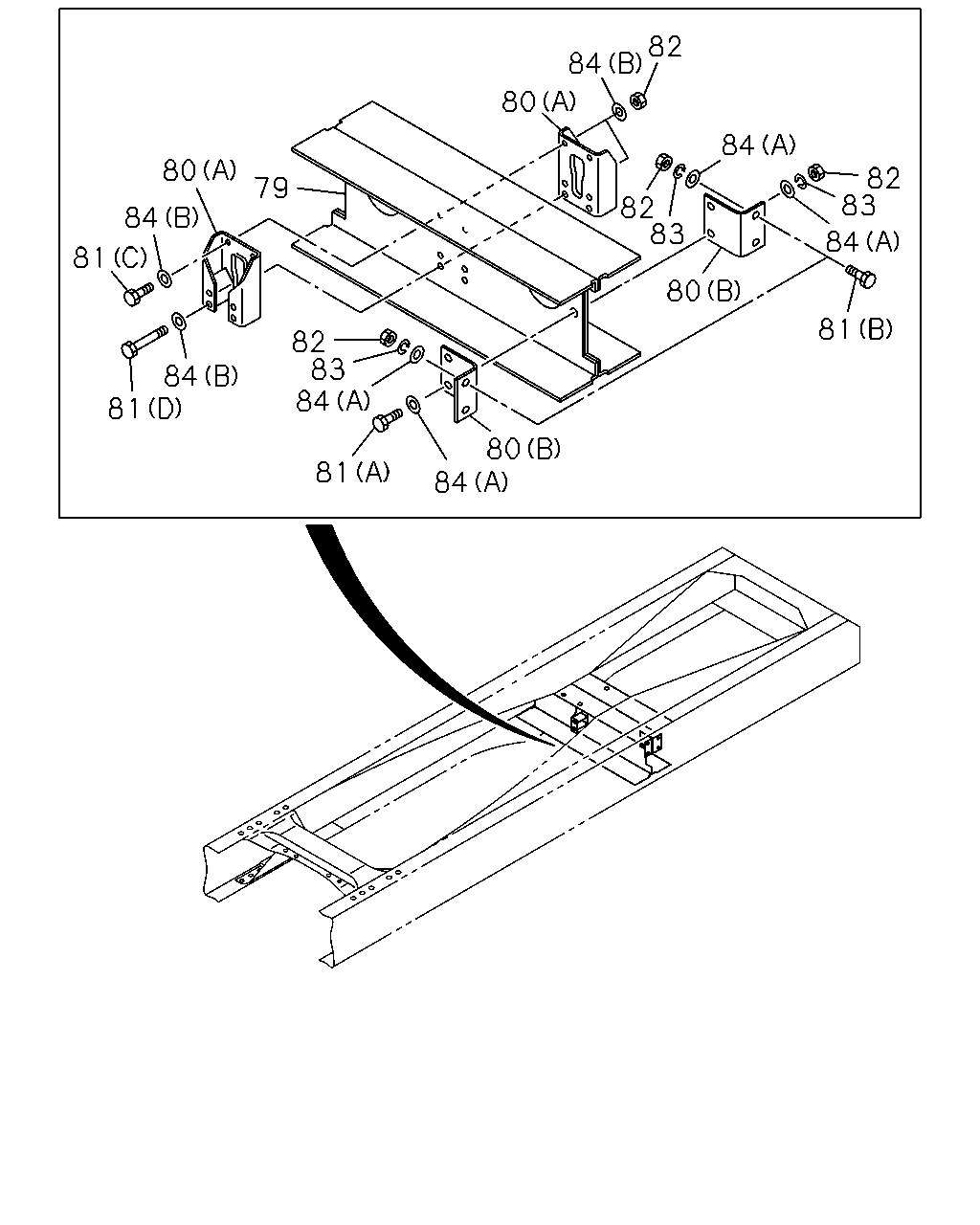

[501A] BRACKET REAR (12 parça)

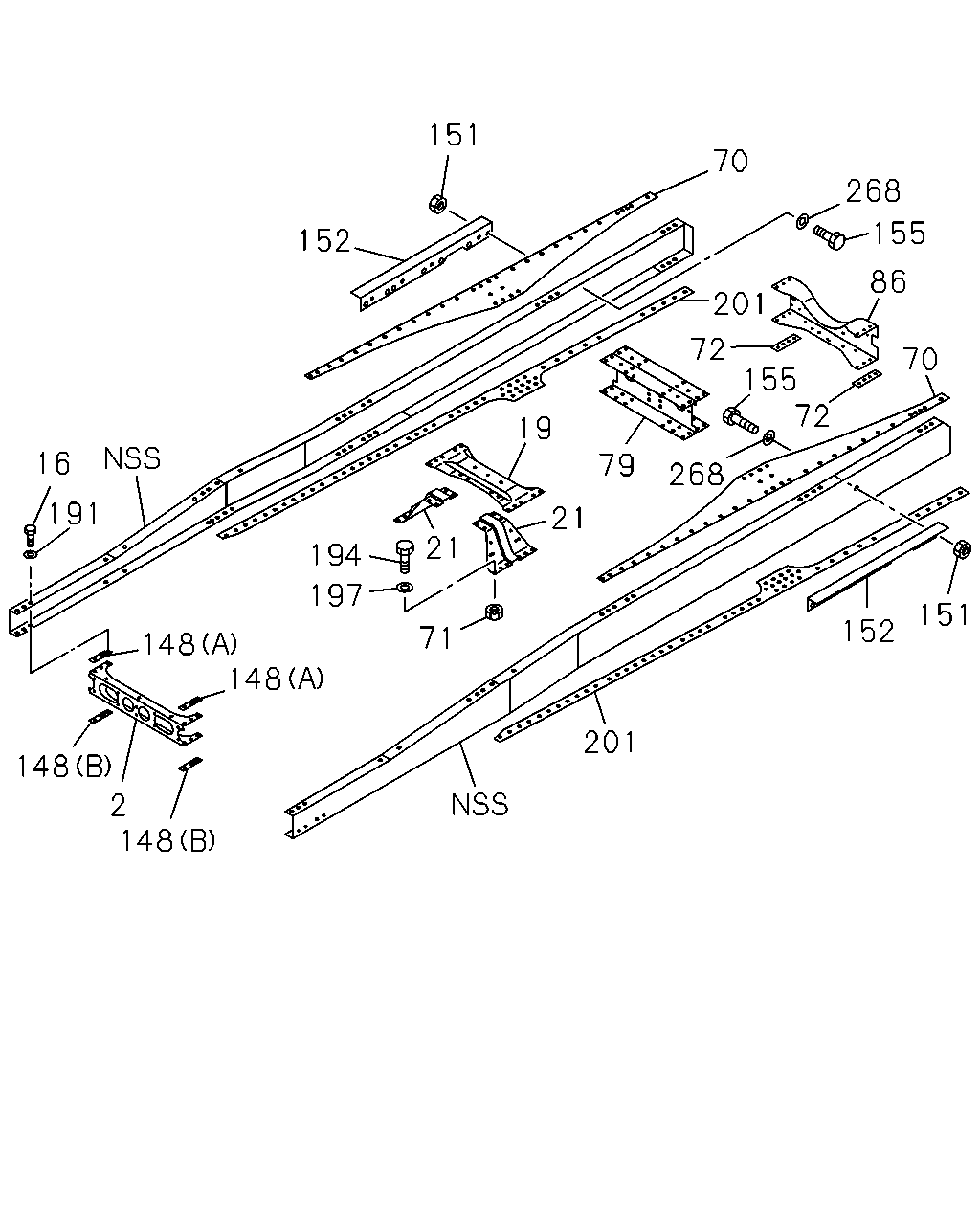

[501A] CROSS MEMBER AND OUTRIGGER (21 parça)

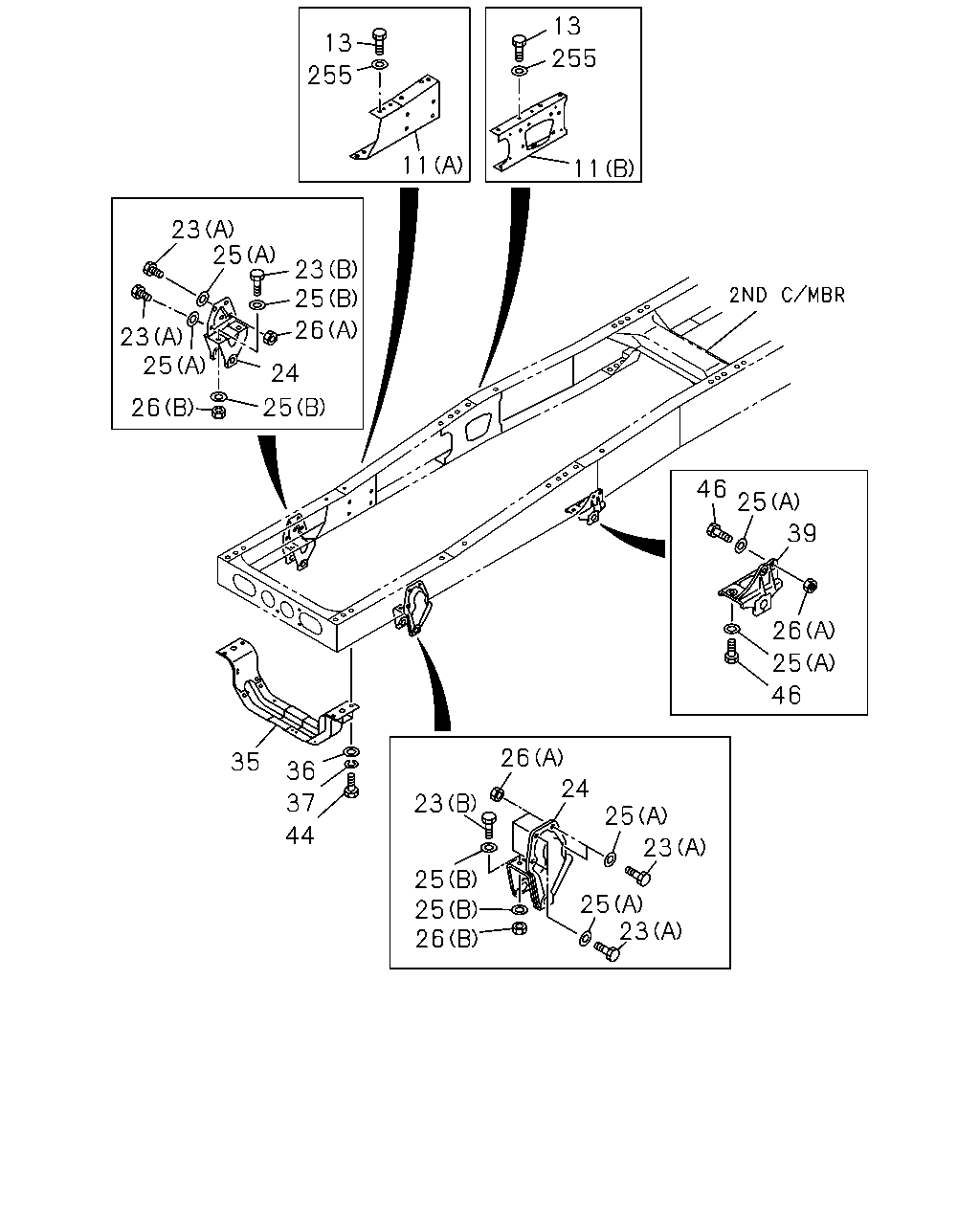

[501A] BRACKET FRONT AND UNDER MEMBER (22 parça)
▶
81
84
83
82
84
80
80
84
81
84
83
82
83
82
82
84
80
79
80
84
81
84
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
79
MEMBER; CROSS,TRUNNION ASM
8-98226-878-0
01
1
1306-
80
BRACKET; C/MBR
(B)
1-53167-610-0
04
1
1306-
80
BRACKET; C/MBR
(A)
1-53363-031-2
02
1
1306-
81
BOLT; BRKT
(B) M14X40
0-20951-440-0
08
1
1306-
81
BOLT; BRKT
(C) M14X50
0-20951-450-0
02
1
1306-
81
BOLT; BRKT
(A) M14X60
0-20951-460-0
04
1
1306-
81
BOLT; BRKT
(D) M14X205
1-09000-147-0
02
1
1306-
82
NUT; BRKT
M14
0-91110-514-0
04
1
1306-
82
NUT; BRKT
M14
0-91110-514-0
12
1
1306-
83
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
12
1
1306-
84
WASHER; PL,BRKT
(A) ID=15 OD=26
0-91614-514-0
16
1
1306-
84
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
08
1
1306-
152
151
70
86
155
268
70
201
72
155
72
268
79
19
21
201
21
71
151
152
16
191
148
194
197
148
148
2
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-98232-274-1
01
1
1306-
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20951-640-0
02
1
1306-
19
MEMBER; CROSS,2ND
8-98098-303-0
01
1
1306-
21
GUSSET; 2ND CROSS
8-98098-311-1
01
1
1306-
21
GUSSET; 2ND CROSS
8-98098-310-1
01
1
1306-
70
GUSSET; TRUNNION,UPR
8-98142-063-0
02
1
1306-
71
NUT; 2ND C/MBR
M14
0-91110-514-0
08
1
1306-
72
SPACER; TRUNNION
8-98098-261-0
02
1
1306-
79
MEMBER; CROSS,TRUNNION ASM
8-98226-878-0
01
1
1306-
86
MEMBER; CROSS,RR SUSP RR
8-98047-518-0
01
1
1306-
148
SPACER; C/MBR
(A)
8-98118-884-2
02
1
1306-
148
SPACER; C/MBR
(B)
8-98118-885-0
02
1
1306-
151
NUT; OUTRIGGER
M16
0-91110-516-0
28
1
1306-
152
OUTRIGGER
1-53456-356-1
01
1
1306-
152
OUTRIGGER
1-53456-355-1
01
1
1306-
155
BOLT; OUTRIGGER
M16X50
0-20951-650-0
28
1
1306-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2
1-09503-316-0
02
1
1306-
194
BOLT; 2ND C/MBR
M14X60
0-20951-460-0
08
1
1306-
197
WASHER; PL,2ND C/MBR
ID=15
8-98010-627-1
08
1
1306-
201
GUSSET; C/MBR
8-98142-064-0
02
1
1306-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
28
1
1306-
11
255
13
11
255
13
23
26
25
25
23
23
26
25
24
25
36
37
35
44
23
26
24
25
23
23
25
25
25
26
39
25
46
26
25
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
1306-
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
1306-
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
1306-
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
1306-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
04
1
1306-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
08
1
1306-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
1306-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
1306-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
1306-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1306-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
16
1
1306-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
1306-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1306-
35
MEMBER; UNDER
1-53174-263-2
01
1
1306-
36
WASHER; PL,UNDER MBR
ID=17
0-91614-516-0
04
1
1306-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
1306-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
1306-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
1306-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
1306-
46
BOLT; BRKT FIX
M14X40
0-20951-440-0
04
1
1306-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
04
1
1306-
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1306-
