3-70 — BRAKE PIPING; AIR,AIR MASTER (#124471) — 145 parça

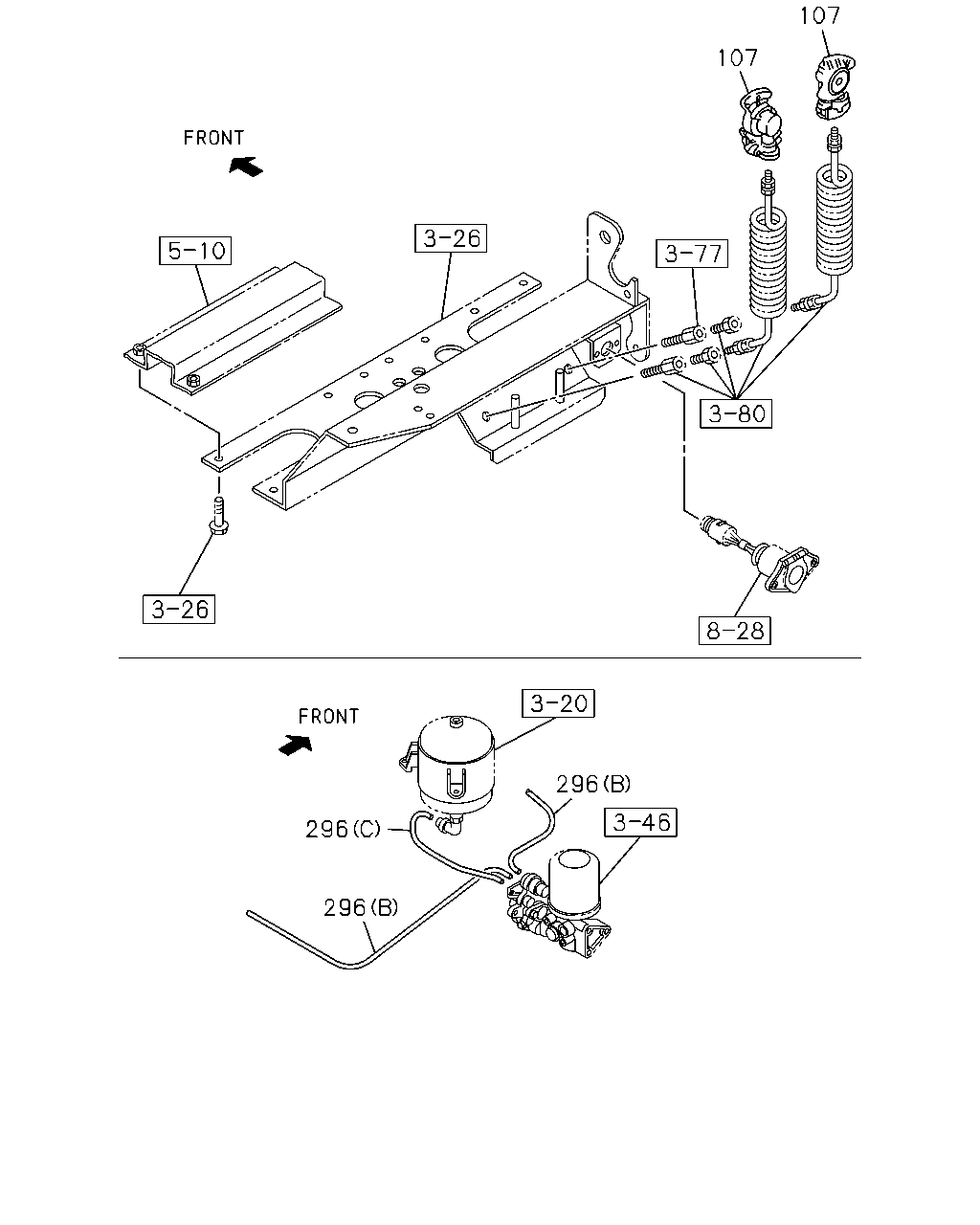

çizim 363605
107 107 296 296 296
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
EMERGENCY 		1-47478-210-0 01 1 1306-
107 COUPLING; SERVICE
SERVICE 		1-47478-211-0 01 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
(D) 		8-98242-435-0 01 1 1306-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-

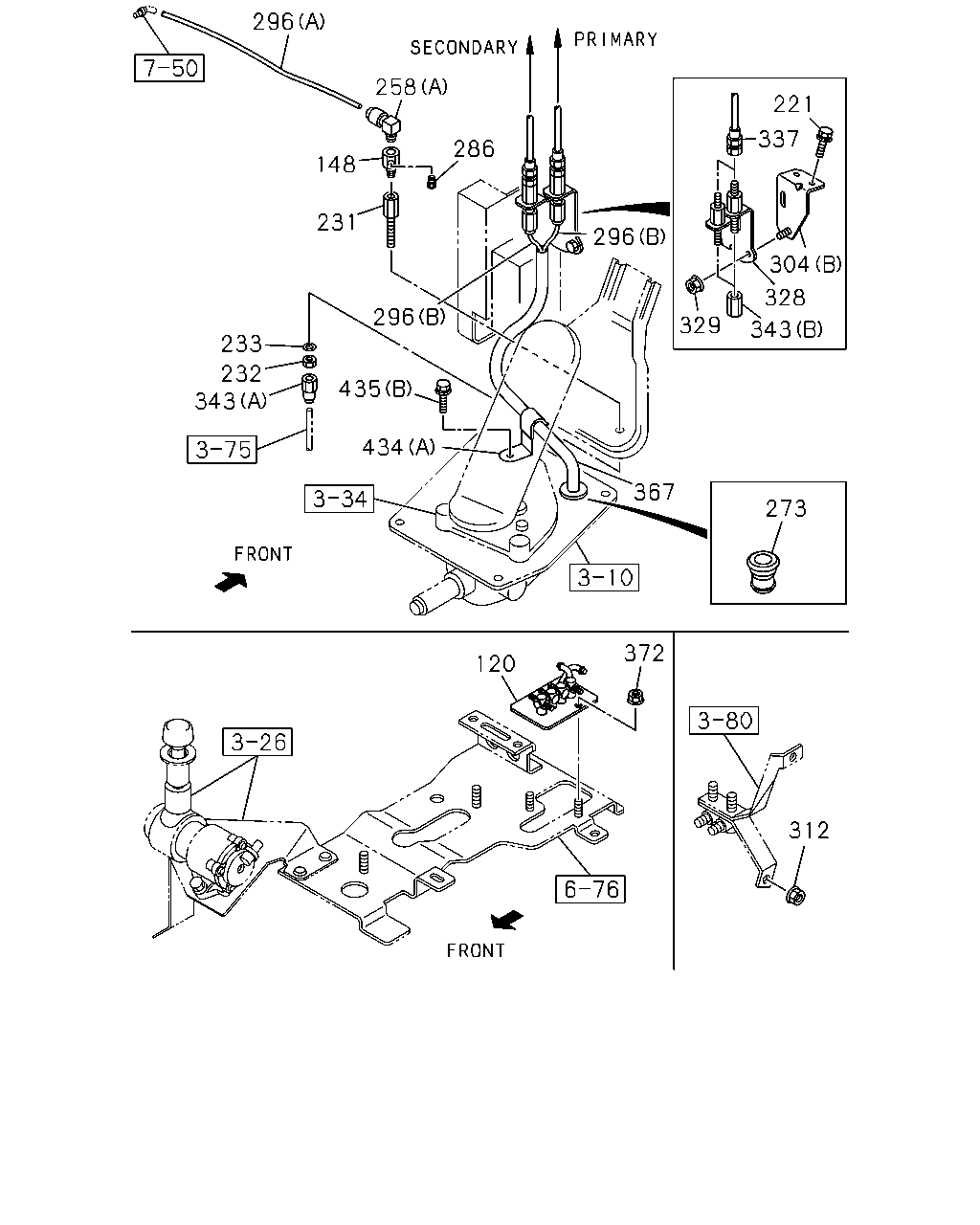

çizim 364491
312 120 372 273 367 434 435 343 232 233 296 231 148 258 286 296 296 329 343 328 304 337 221
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 1306-
148 CONNECTOR; UNION 8-94338-417-0 01 1 1306-1510
148 CONNECTOR; UNION 8-94338-417-0 01 1 1511-
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-1510
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1511-
231 UNION; AIR PIPE
PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 1306-
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306-
273 GROMMET 1-09332-135-0 01 1 1306-1510
273 GROMMET 1-09332-135-0 01 1 1511-
286 PLUG; AIR PIPE
RIGID SEAT W/ARM REST(SGC) 		9-09204-510-0 01 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
(D) 		8-98242-435-0 01 1 1306-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 1306-1510
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 1511-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1306-
312 NUT; UNION
M8 		0-91110-508-0 01 1 1306-
328 UNION; AIR PIPE 1-47470-442-0 01 1 1306-1510
328 UNION; AIR PIPE 1-47470-442-0 01 1 1511-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91180-106-0 01 1 1306-1510
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91180-106-0 01 1 1511-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-57210-520-0 02 1 1306-1510
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-57210-520-0 02 1 1511-
343 UNION; NYLON TUBE
(B) 		1-09660-796-1 02 1 1306-1510
343 UNION; NYLON TUBE
(B) 		1-09660-796-1 02 1 1511-
343 UNION; NYLON TUBE
(A) DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1511-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1511-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1511-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1306-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1306-
434 CLIP
(B) ID=24 L=27 		1-09700-809-0 03 1 1306-
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 1306-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 1306-1510
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 1511-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1306-
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1306-1510
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1511-

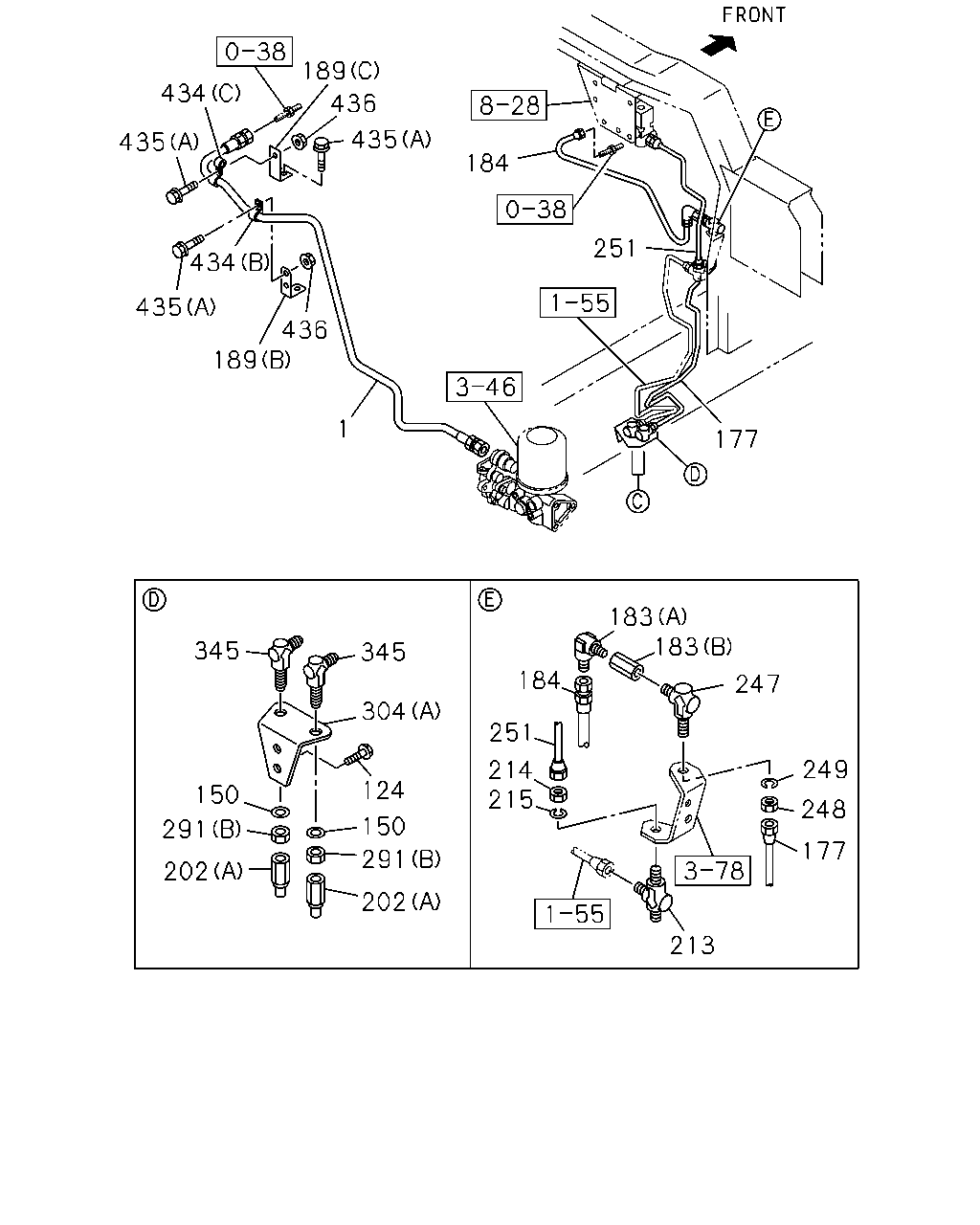

çizim 366191
189 436 435 434 435 434 435 189 436 1 184 251 177 345 345 150 291 202 124 304 150 291 202 184 251 214 215 183 183 247 249 248 177 213
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1480 		8-98169-578-0 01 1 1306-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1306-
177 PIPE; AIR,UNION TO UNION
L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1306-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1306-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1306-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1306-
189 BRACKET; FLEX HOSE
(B) 		1-47477-337-1 01 1 1306-
189 BRACKET; FLEX HOSE
(C) L=75 		1-47478-328-0 01 1 1306-
189 BRACKET; FLEX HOSE
(A) 		8-97645-648-0 01 1 1306-1308
189 BRACKET; FLEX HOSE
(A) 		8-97646-842-0 01 1 1309-
202 ADAPTER
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) M12 ELBOW 		0-92125-206-0 01 1 1306-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1306-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1306-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1306-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1306-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1306-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1306-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1306-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1306-
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 1306-1510
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 1511-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1306-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1306-
434 CLIP
(B) ID=24 L=27 		1-09700-809-0 03 1 1306-
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 1306-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 1306-1510
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 1511-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1306-
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1306-1510
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1511-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1306-

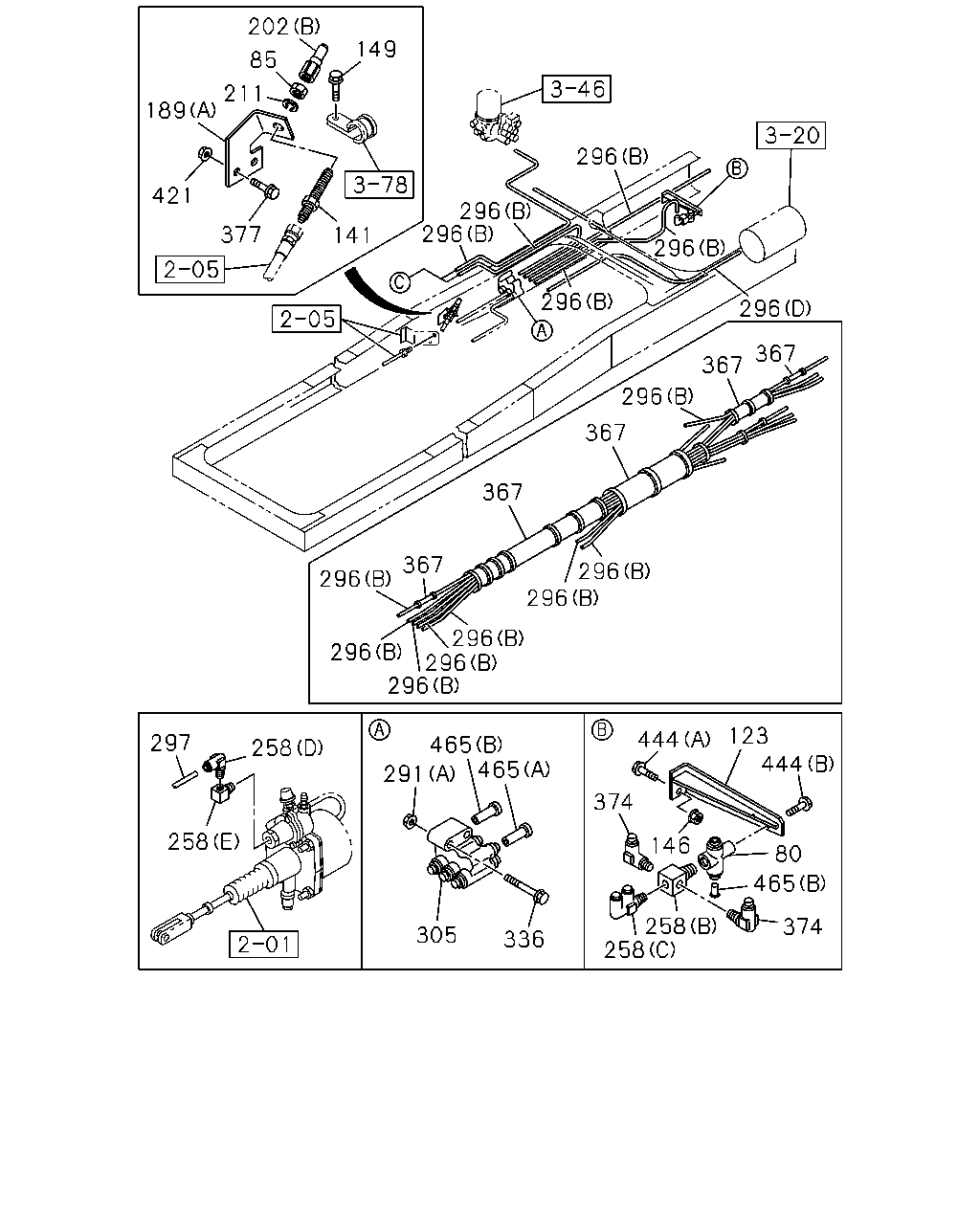

çizim 367243
202 85 211 189 421 149 377 141 296 296 296 296 296 296 367 367 296 367 367 367 296 296 296 296 296 296 296 258 258 297 291 465 465 305 336 258 374 146 444 123 444 80 465 374 258
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1306-
85 NUT; UNION
M12 		0-91111-512-0 01 1 1306-1308
85 NUT; UNION
M12 		9-09840-280-0 01 1 1309-
123 BRACKET; UNION 1-47479-401-0 01 1 1306-
141 UNION; FLEX HOSE
M12 L=66.5 		0-92113-306-0 01 1 1306-
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1306-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
189 BRACKET; FLEX HOSE
(B) 		1-47477-337-1 01 1 1306-
189 BRACKET; FLEX HOSE
(C) L=75 		1-47478-328-0 01 1 1306-
189 BRACKET; FLEX HOSE
(A) 		8-97645-648-0 01 1 1306-1308
189 BRACKET; FLEX HOSE
(A) 		8-97646-842-0 01 1 1309-
202 ADAPTER
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
211 WASHER; LK,UNION
ID=12.2 		0-91510-812-0 01 1 1306-1308
211 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 1309-
258 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1306-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
(D) 		8-98242-435-0 01 1 1306-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1306-
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1511-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1511-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1511-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1306-
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1306-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1306-
444 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306-
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1306-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1306-
