Sayfa 0-39 - Isuzu EPC

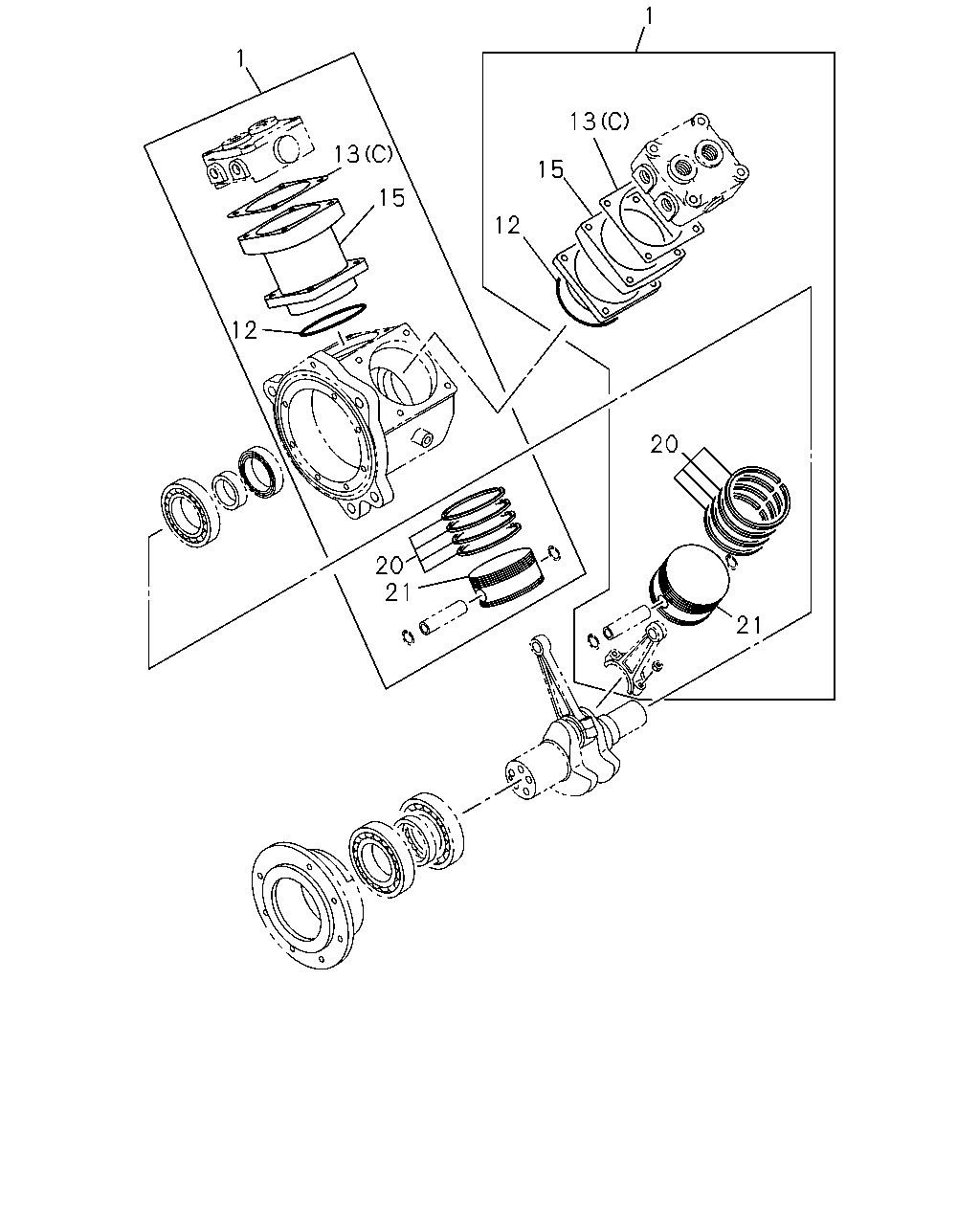

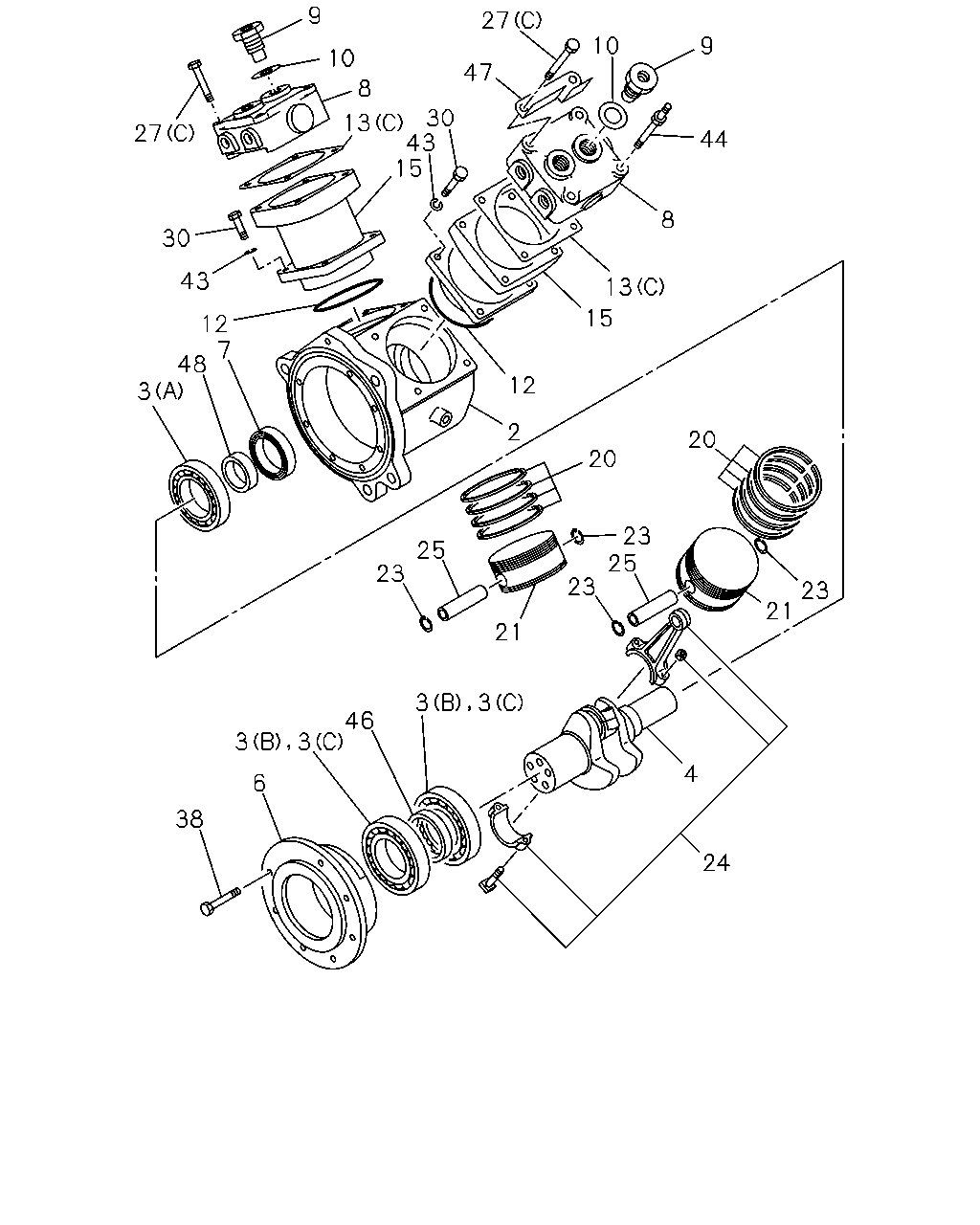

0-39 — AIR COMPRESSOR; BRAKE (#12447) — 287 parça

9 27 10 9 10 47 8 30 13 43 15 27 44 8 30 43 13 15 12 7 48 12 3 2 20 20 23 25 25 23 23 23 21 21 46 4 6 38 24 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR	1-19151-286-2	01	1	0105-0107
2	CRANKCASE; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-286-2	01	1	0108-0301
2	CRANKCASE; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-286-3	01	1	0302-
2	CRANKCASE; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-269-5	01	1	0108-0301
2	CRANKCASE; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-269-6	01	1	0302-
3	BEARING; AIR CMPR (B)	8-98171-672-0	01	1	0105-0107
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98171-672-0	01	1	0108-0301
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98171-672-0	01	1	0302-
3	BEARING; AIR CMPR (A)	1-09800-281-0	02	1	0105-0107
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09800-281-0	02	1	0108-0301
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09800-281-0	02	1	0302-0310
3	BEARING; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09800-232-0	01	1	0108-0301
3	BEARING; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09800-232-0	01	1	0302-
3	BEARING; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09800-246-0	02	1	0108-0301
3	BEARING; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-09800-246-0	02	1	0302-0310
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09800-246-0	02	1	0311-
3	BEARING; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09800-246-0	02	1	0311-
4	CRANKSHAFT; AIR CMPR	1-19171-080-0	01	1	0105-0107
4	CRANKSHAFT; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-080-0	01	1	0108-0301
4	CRANKSHAFT; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-080-0	01	1	0302-
4	CRANKSHAFT; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-068-0	01	1	0108-0301
4	CRANKSHAFT; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-068-0	01	1	0302-0302
4	CRANKSHAFT; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-088-0	01	1	0302-
6	COVER ASM; BRG,AIR CMPR	1-19156-079-1	01	1	0105-0107
6	COVER ASM; BRG,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-079-1	01	1	0108-0301
6	COVER ASM; BRG,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-079-1	01	1	0302-
6	COVER ASM; BRG,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-068-1	01	1	0108-0301
6	COVER ASM; BRG,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-068-1	01	1	0302-
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0105-0107
7	SEAL; OIL,BRG COVER,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-619-0	01	1	0108-0301
7	SEAL; OIL,BRG COVER,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-619-0	01	1	0302-
7	SEAL; OIL,BRG COVER,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-534-0	01	1	0108-0301
7	SEAL; OIL,BRG COVER,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-534-0	01	1	0302-
8	HEAD ASM; CYL,AIR CMPR	1-19110-072-0	01	1	0105-0107
8	HEAD ASM; CYL,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-072-0	01	1	0108-0301
8	HEAD ASM; CYL,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-072-0	01	1	0302-
8	HEAD ASM; CYL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	02	1	0108-0301
8	HEAD ASM; CYL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-016-0	02	1	0302-
9	VALVE ASM; UNLOADER,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	02	1	0108-0301
9	VALVE ASM; UNLOADER,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19120-021-1	02	1	0302-
10	SHIM; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	02	1	0108-0301
10	SHIM; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19139-021-0	02	1	0302-
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0105-0107
12	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-651-1	01	1	0108-0301
12	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0302-
12	GASKET; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	0108-0301
12	GASKET; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19623-539-0	02	1	0302-
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0105-0107
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-650-1	01	1	0108-0301
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0302-
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0105-0107
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-019-0	01	1	0108-0301
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0302-
13	GASKET; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19139-017-1	02	1	0108-0301
13	GASKET; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19139-017-1	02	1	0302-
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0105-0107
15	CYLINDER; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-065-0	01	1	0108-0301
15	CYLINDER; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0302-
15	CYLINDER; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	0108-0301
15	CYLINDER; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-251-0	02	1	0302-
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0105-0107
20	RING KIT; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-064-0	01	1	0108-0301
20	RING KIT; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0302-
20	RING KIT; PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	0108-0301
20	RING KIT; PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-051-1	02	1	0302-
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0105-0107
21	PISTON; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-023-0	01	1	0108-0301
21	PISTON; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0302-
21	PISTON; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	0108-0301
21	PISTON; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-016-0	02	1	0302-
23	RING; SNAP,PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-001-0	02	1	0302-
23	RING; SNAP,PISTON,AIR CMPR OD=67.2	9-09180-163-0	02	1	0105-0107
23	RING; SNAP,PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) OD=67.2	9-09180-163-0	02	1	0108-0301
23	RING; SNAP,PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	04	1	0108-0301
23	RING; SNAP,PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19168-003-0	04	1	0302-
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0105-0107
24	ROD ASM; CONN,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-078-0	01	1	0108-0301
24	ROD ASM; CONN,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-078-0	01	1	0302-
24	ROD ASM; CONN,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-006-0	02	1	0108-0301
24	ROD ASM; CONN,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19173-006-0	02	1	0302-
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0105-0107
25	PIN; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-004-0	01	1	0108-0301
25	PIN; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-004-0	01	1	0302-
25	PIN; PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	02	1	0108-0301
25	PIN; PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19167-003-0	02	1	0302-
27	BOLT; HD (A)	1-09044-071-0	01	1	0105-0107
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09044-071-0	01	1	0108-0301
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09044-071-0	01	1	0302-
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	0105-0107
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X80	1-19119-024-0	04	1	0108-0301
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X80	1-19119-024-0	04	1	0302-
27	BOLT; HD AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X60	9-01066-060-0	07	1	0108-0301
27	BOLT; HD AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M10X60	9-01066-060-0	07	1	0302-
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0105-0107
30	BOLT; CYL TO CRANKCASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X30	1-19119-026-0	04	1	0108-0301
30	BOLT; CYL TO CRANKCASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X30	1-19119-026-0	04	1	0302-
30	BOLT; CYL TO CRANKCASE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	08	1	0108-0301
30	BOLT; CYL TO CRANKCASE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X25	9-02051-025-0	08	1	0302-
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0105-0107
38	BOLT; COVER FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X30	0-20800-830-0	07	1	0108-0301
38	BOLT; COVER FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X30	0-20800-830-0	07	1	0302-
38	BOLT; COVER FIX AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19159-016-0	07	1	0108-0301
38	BOLT; COVER FIX AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19159-016-0	07	1	0302-
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	08	1	0108-0301
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=10.2	9-09150-610-0	08	1	0302-
44	STUD; CYL HD,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-019-1	01	1	0108-0301
44	STUD; CYL HD,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19119-019-1	01	1	0302-
46	SPACER; BRG	1-19179-029-0	01	1	0105-0107
46	SPACER; BRG HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-029-0	01	1	0108-0301
46	SPACER; BRG HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-029-0	01	1	0302-
46	SPACER; BRG AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-016-0	01	1	0108-0301
46	SPACER; BRG AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-016-0	01	1	0302-
47	BRACKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-028-0	02	1	0108-0301
47	BRACKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19119-028-0	02	1	0302-
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0105-0107
48	SLEEVE; CR/SHF HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-027-0	01	1	0108-0301
48	SLEEVE; CR/SHF HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-027-0	01	1	0302-
48	SLEEVE; CR/SHF AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-018-0	01	1	0108-0301
48	SLEEVE; CR/SHF AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-018-0	01	1	0302-

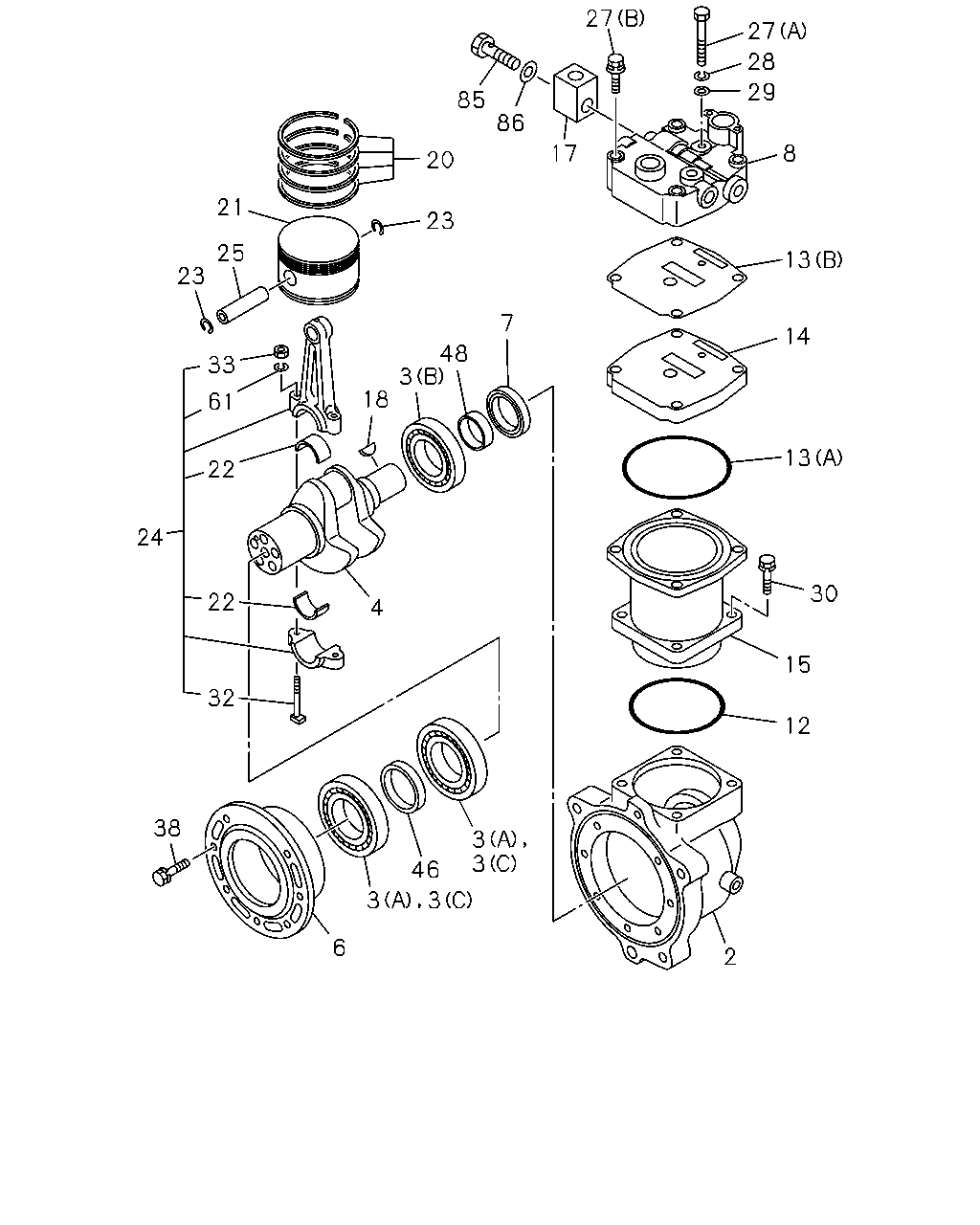

27 27 28 29 85 86 8 17 20 21 23 25 13 23 7 14 48 3 33 18 61 13 22 24 30 22 4 15 32 12 38 3 3 46 3 3 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR	1-19151-286-2	01	1	0105-0107
2	CRANKCASE; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-286-2	01	1	0108-0301
2	CRANKCASE; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-286-3	01	1	0302-
2	CRANKCASE; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-269-5	01	1	0108-0301
2	CRANKCASE; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-269-6	01	1	0302-
3	BEARING; AIR CMPR (B)	8-98171-672-0	01	1	0105-0107
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98171-672-0	01	1	0108-0301
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98171-672-0	01	1	0302-
3	BEARING; AIR CMPR (A)	1-09800-281-0	02	1	0105-0107
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09800-281-0	02	1	0108-0301
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09800-281-0	02	1	0302-0310
3	BEARING; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09800-232-0	01	1	0108-0301
3	BEARING; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09800-232-0	01	1	0302-
3	BEARING; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09800-246-0	02	1	0108-0301
3	BEARING; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-09800-246-0	02	1	0302-0310
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09800-246-0	02	1	0311-
3	BEARING; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09800-246-0	02	1	0311-
4	CRANKSHAFT; AIR CMPR	1-19171-080-0	01	1	0105-0107
4	CRANKSHAFT; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-080-0	01	1	0108-0301
4	CRANKSHAFT; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-080-0	01	1	0302-
4	CRANKSHAFT; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-068-0	01	1	0108-0301
4	CRANKSHAFT; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-068-0	01	1	0302-0302
4	CRANKSHAFT; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-088-0	01	1	0302-
6	COVER ASM; BRG,AIR CMPR	1-19156-079-1	01	1	0105-0107
6	COVER ASM; BRG,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-079-1	01	1	0108-0301
6	COVER ASM; BRG,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-079-1	01	1	0302-
6	COVER ASM; BRG,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-068-1	01	1	0108-0301
6	COVER ASM; BRG,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-068-1	01	1	0302-
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0105-0107
7	SEAL; OIL,BRG COVER,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-619-0	01	1	0108-0301
7	SEAL; OIL,BRG COVER,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-619-0	01	1	0302-
7	SEAL; OIL,BRG COVER,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-534-0	01	1	0108-0301
7	SEAL; OIL,BRG COVER,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-534-0	01	1	0302-
8	HEAD ASM; CYL,AIR CMPR	1-19110-072-0	01	1	0105-0107
8	HEAD ASM; CYL,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-072-0	01	1	0108-0301
8	HEAD ASM; CYL,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-072-0	01	1	0302-
8	HEAD ASM; CYL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	02	1	0108-0301
8	HEAD ASM; CYL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-016-0	02	1	0302-
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0105-0107
12	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-651-1	01	1	0108-0301
12	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0302-
12	GASKET; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	0108-0301
12	GASKET; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19623-539-0	02	1	0302-
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0105-0107
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-650-1	01	1	0108-0301
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0302-
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0105-0107
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-019-0	01	1	0108-0301
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0302-
13	GASKET; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19139-017-1	02	1	0108-0301
13	GASKET; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19139-017-1	02	1	0302-
14	PLATE; AIR CMPR	1-19110-064-1	01	1	0105-0107
14	PLATE; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-064-1	01	1	0108-0301
14	PLATE; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-064-1	01	1	0302-
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0105-0107
15	CYLINDER; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-065-0	01	1	0108-0301
15	CYLINDER; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0302-
15	CYLINDER; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	0108-0301
15	CYLINDER; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-251-0	02	1	0302-
17	ADAPTER; AIR CMPR	1-19119-034-1	01	1	0105-0107
17	ADAPTER; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-034-1	01	1	0108-0301
17	ADAPTER; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19119-034-1	01	1	0302-
18	KEY; AIR CMPR	9-08055-622-0	01	1	0105-0107
18	KEY; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0108-0301
18	KEY; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-08055-622-0	01	1	0302-
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0105-0107
20	RING KIT; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-064-0	01	1	0108-0301
20	RING KIT; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0302-
20	RING KIT; PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	0108-0301
20	RING KIT; PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-051-1	02	1	0302-
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0105-0107
21	PISTON; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-023-0	01	1	0108-0301
21	PISTON; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0302-
21	PISTON; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	0108-0301
21	PISTON; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-016-0	02	1	0302-
22	METAL; CONNROD,AIR CMPR	1-19179-025-0	02	1	0105-0107
22	METAL; CONNROD,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-025-0	02	1	0108-0301
22	METAL; CONNROD,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-025-0	02	1	0302-
23	RING; SNAP,PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-001-0	02	1	0302-
23	RING; SNAP,PISTON,AIR CMPR OD=67.2	9-09180-163-0	02	1	0105-0107
23	RING; SNAP,PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) OD=67.2	9-09180-163-0	02	1	0108-0301
23	RING; SNAP,PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	04	1	0108-0301
23	RING; SNAP,PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19168-003-0	04	1	0302-
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0105-0107
24	ROD ASM; CONN,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-078-0	01	1	0108-0301
24	ROD ASM; CONN,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-078-0	01	1	0302-
24	ROD ASM; CONN,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-006-0	02	1	0108-0301
24	ROD ASM; CONN,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19173-006-0	02	1	0302-
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0105-0107
25	PIN; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-004-0	01	1	0108-0301
25	PIN; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-004-0	01	1	0302-
25	PIN; PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	02	1	0108-0301
25	PIN; PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19167-003-0	02	1	0302-
27	BOLT; HD (A)	1-09044-071-0	01	1	0105-0107
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09044-071-0	01	1	0108-0301
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09044-071-0	01	1	0302-
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	0105-0107
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X80	1-19119-024-0	04	1	0108-0301
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X80	1-19119-024-0	04	1	0302-
27	BOLT; HD AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X60	9-01066-060-0	07	1	0108-0301
27	BOLT; HD AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M10X60	9-01066-060-0	07	1	0302-
28	WASHER; LK,HD BOLT ID=8.2	9-09150-508-0	01	1	0105-0107
28	WASHER; LK,HD BOLT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.2	9-09150-508-0	01	1	0108-0301
28	WASHER; LK,HD BOLT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=8.2	9-09150-508-0	01	1	0302-
29	WASHER; PL,HD BOLT ID=8.4	9-09160-508-0	01	1	0105-0107
29	WASHER; PL,HD BOLT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4	9-09160-508-0	01	1	0108-0301
29	WASHER; PL,HD BOLT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=8.4	9-09160-508-0	01	1	0302-
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0105-0107
30	BOLT; CYL TO CRANKCASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X30	1-19119-026-0	04	1	0108-0301
30	BOLT; CYL TO CRANKCASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X30	1-19119-026-0	04	1	0302-
30	BOLT; CYL TO CRANKCASE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	08	1	0108-0301
30	BOLT; CYL TO CRANKCASE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X25	9-02051-025-0	08	1	0302-
32	BOLT; CONNROD	1-19179-021-0	02	1	0105-0107
32	BOLT; CONNROD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-021-0	02	1	0108-0301
32	BOLT; CONNROD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-021-0	02	1	0302-
33	NUT; CONNROD BOLT	1-19179-026-0	02	1	0105-0107
33	NUT; CONNROD BOLT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-026-0	02	1	0108-0301
33	NUT; CONNROD BOLT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-026-0	02	1	0302-
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0105-0107
38	BOLT; COVER FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X30	0-20800-830-0	07	1	0108-0301
38	BOLT; COVER FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X30	0-20800-830-0	07	1	0302-
38	BOLT; COVER FIX AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19159-016-0	07	1	0108-0301
38	BOLT; COVER FIX AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19159-016-0	07	1	0302-
46	SPACER; BRG	1-19179-029-0	01	1	0105-0107
46	SPACER; BRG HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-029-0	01	1	0108-0301
46	SPACER; BRG HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-029-0	01	1	0302-
46	SPACER; BRG AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-016-0	01	1	0108-0301
46	SPACER; BRG AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-016-0	01	1	0302-
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0105-0107
48	SLEEVE; CR/SHF HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-027-0	01	1	0108-0301
48	SLEEVE; CR/SHF HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-027-0	01	1	0302-
48	SLEEVE; CR/SHF AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-018-0	01	1	0108-0301
48	SLEEVE; CR/SHF AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-018-0	01	1	0302-
61	WASHER; LK,CONNROD BOLT	1-19179-022-0	02	1	0105-0107
61	WASHER; LK,CONNROD BOLT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-022-0	02	1	0108-0301
61	WASHER; LK,CONNROD BOLT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-022-0	02	1	0302-
85	BOLT; ADAPTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X39 FLANGE	1-09675-089-0	01	1	0302-
86	GASKET; ADAPTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0302-

1 1 13 13 15 15 12 12 20 20 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINER KIT; CYL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	02	1	0108-0301
1	LINER KIT; CYL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-060-1	02	1	0302-
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0105-0107
12	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-651-1	01	1	0108-0301
12	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0302-
12	GASKET; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	0108-0301
12	GASKET; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19623-539-0	02	1	0302-
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0105-0107
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-650-1	01	1	0108-0301
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0302-
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0105-0107
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-019-0	01	1	0108-0301
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0302-
13	GASKET; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19139-017-1	02	1	0108-0301
13	GASKET; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19139-017-1	02	1	0302-
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0105-0107
15	CYLINDER; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-065-0	01	1	0108-0301
15	CYLINDER; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0302-
15	CYLINDER; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	0108-0301
15	CYLINDER; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-251-0	02	1	0302-
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0105-0107
20	RING KIT; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-064-0	01	1	0108-0301
20	RING KIT; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0302-
20	RING KIT; PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	0108-0301
20	RING KIT; PISTON,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-051-1	02	1	0302-
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0105-0107
21	PISTON; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-023-0	01	1	0108-0301
21	PISTON; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0302-
21	PISTON; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	0108-0301
21	PISTON; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-016-0	02	1	0302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
