3-46 — AIR DRYER (#124468) — 32 parça

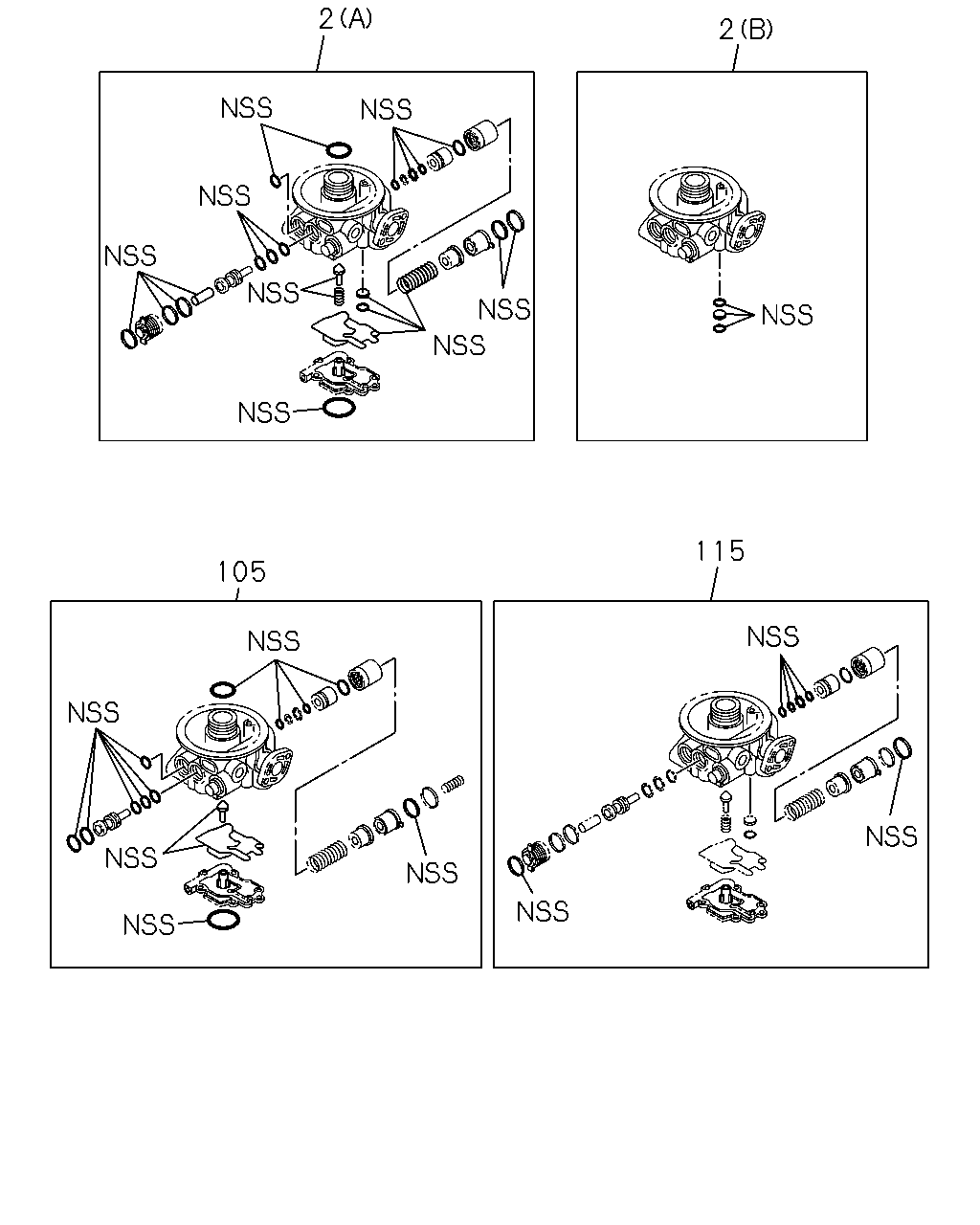

çizim 363335
115 105 2 2
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; AIR DRYER
(B) 		8-98302-391-0 01 1 1412-
2 REPAIR KIT; AIR DRYER
(A) 		8-98185-664-0 01 1 1306-
105 SEAL KIT; AIR DRYER 8-98185-665-0 01 1 1306-
115 REPAIR KIT; GOVERNOR,AIR DRYER 1-85576-400-0 01 1 1306-

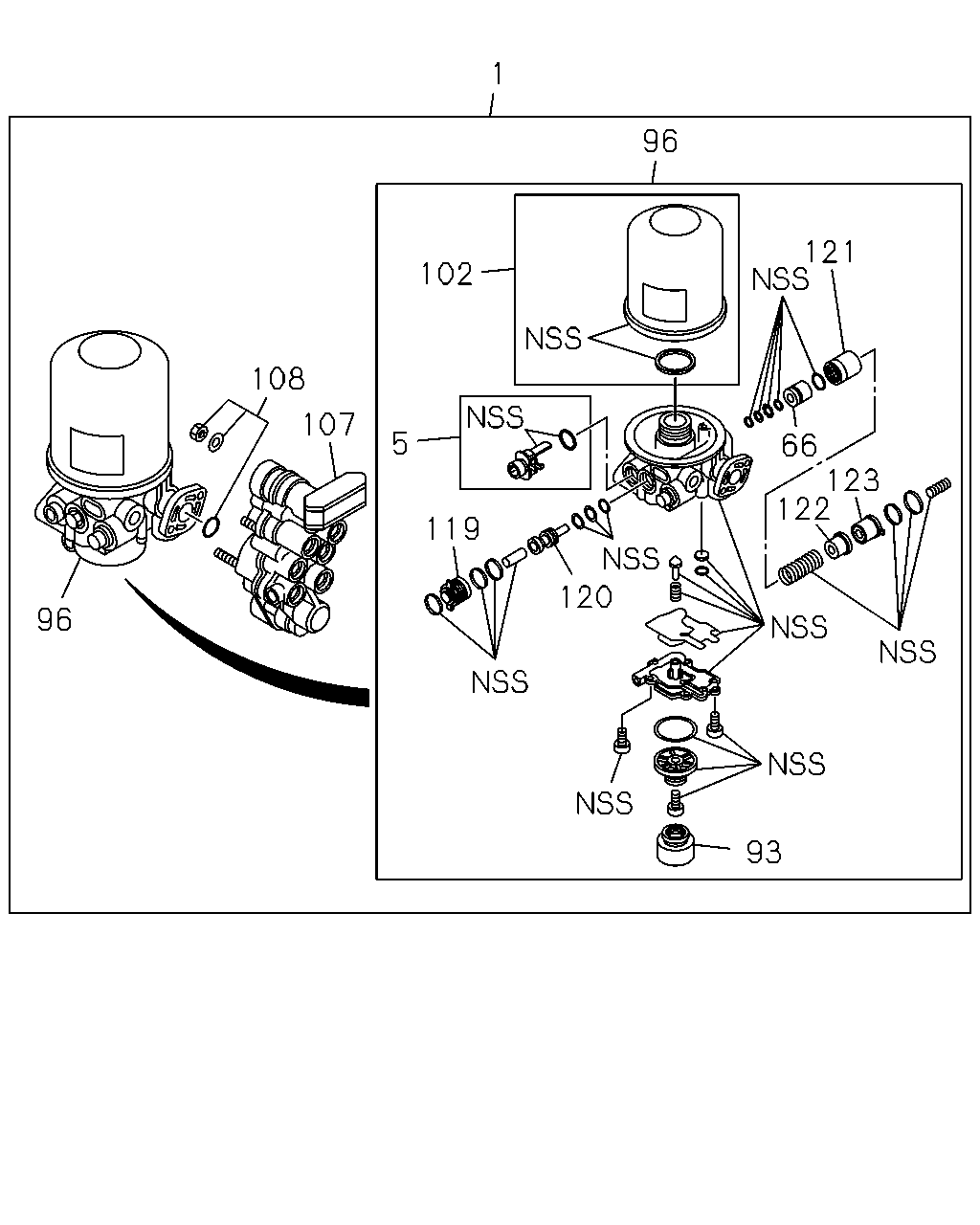

çizim 364257
1 108 107 96 102 5 119 120 93 122 123 66 121 96
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 8-98180-492-1 01 1 1306-
5 HEATER ASM; AIR DRYER 1-85576-363-0 01 1 1306-
66 PISTON; AIR DRYER 1-85576-475-0 01 1 1306-
93 SILENCER; AIR DRYER 1-85576-362-0 01 1 1306-
96 DRYER KIT; AIR 8-98185-663-1 01 1 1306-
102 CARTRIDGE; AIR DRYER 1-85576-450-2 01 1 1306-
107 VALVE ASM; PROTECTION,AIR DRYER 1-85576-369-3 01 1 1306-
108 FIXING KIT; PROTECTION,AIR DRYER 1-85576-371-0 01 1 1306-
119 COVER; PURGE VALVE 1-85576-473-0 01 1 1306-
120 TAPPET 8-98185-666-0 01 1 1306-
121 HOLDER; SPRING 1-85576-476-0 01 1 1306-
122 SEAT; SPRING 1-85576-477-0 01 1 1306-
123 COVER; GOVERNER 1-85576-478-0 01 1 1306-

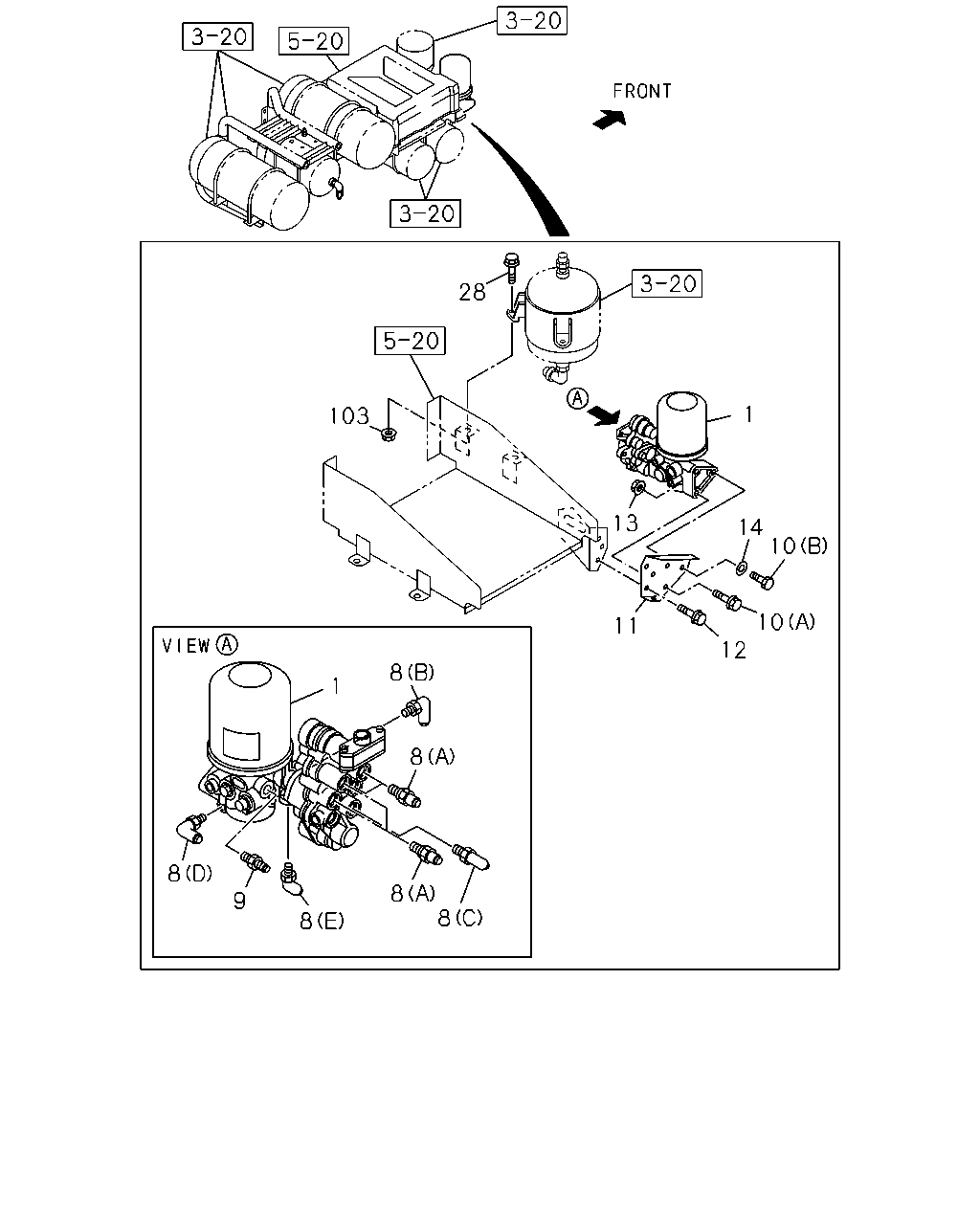

çizim 364296
28 103 1 14 10 10 12 11 13 8 8 8 8 8 8 9 8
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 8-98180-492-1 01 1 1306-
8 CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT 		1-09661-050-0 04 1 1306-
8 CONNECTOR; OUT,AIR DRYER
(E) 		1-09661-499-0 01 1 1306-
8 CONNECTOR; OUT,AIR DRYER
(B) DIN8 & M16 ELBOW 		1-09661-520-0 01 1 1306-
8 CONNECTOR; OUT,AIR DRYER
(C) DIN12 & M22 ELBOW 		1-09661-521-0 01 1 1306-
8 CONNECTOR; OUT,AIR DRYER
(D) DIN6 & M10 ELBOW 		1-09661-574-0 01 1 1306-
9 CONNECTOR; PIPE,AIR DRYER
M22X2 STRAIGHT 		8-98107-103-0 01 1 1306-
10 BOLT; AIR DRYER
(A) M12X50 FLANGE 		0-28051-250-0 01 1 1306-
10 BOLT; AIR DRYER
(B) M12X25 		1-09009-081-0 02 1 1306-
11 BRACKET; AIR DRYER 1-48316-019-0 01 1 1306-
12 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 03 1 1306-
13 NUT; AIR DRYER
M12 FLANGE 		0-91180-212-0 01 1 1306-
14 WASHER; PL,AIR DRYER
ID=12.5 OD=22 		0-91610-512-0 02 1 1306-
28 BOLT; PURGE TANK
M10X25 FLANGE 		0-28651-025-0 02 1 1306-
103 NUT; PURGE TANK
M10 FLANGE 		0-91180-210-0 02 1 1306-
