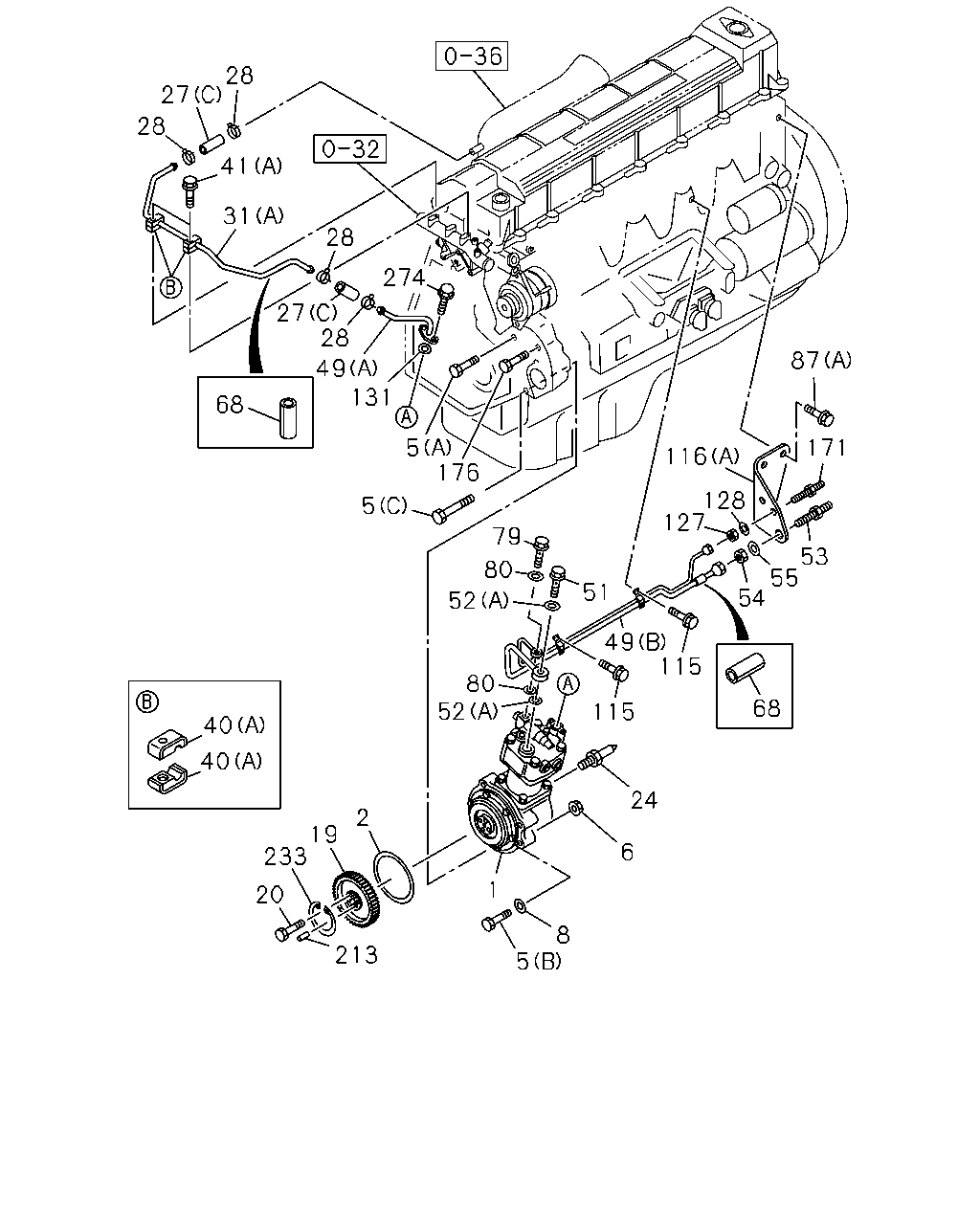

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#12446) — 247 parça

27 28 28 27 31 28 28 31 28 27 41 27 87 28 28 49 28 171 116 34 68 128 127 49 34 49 79 53 54 55 80 176 51 5 115 5 52 115 80 79 80 3 68 52 80 52 51 52 24 19 233 6 20 1 8 40 40 2 5 40 40 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0105-0107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-1	01	1	0108-0301
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-328-8	01	1	0302-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	0108-0301
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-300-5	01	1	0302-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0105-
3	KEY; COUPLING,INJ PUMP AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0108-0301
3	KEY; COUPLING,INJ PUMP AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-08055-622-0	01	1	0302-
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0105-
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0105-0512
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0105-
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0105-0301
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M14X100	9-91666-400-0	01	1	0302-0512
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M14X100	0-16956-400-0	01	1	0601-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0105-
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0105-
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0105-0202
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0105-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0105-
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-0107
27	HOSE; AIR CMPR,SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) L=55	1-09360-784-0	02	1	0108-0301
27	HOSE; AIR CMPR,SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) L=55	1-09360-784-0	02	1	0302-
27	HOSE; AIR CMPR,SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0108-0301
27	HOSE; AIR CMPR,SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	0-02117-080-0	02	1	0302-
27	HOSE; AIR CMPR,SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0108-0301
27	HOSE; AIR CMPR,SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09360-916-0	02	1	0302-
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-0107
28	CLIP; HOSE,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-0301
28	CLIP; HOSE,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=28.5	1-09707-150-0	04	1	0302-
28	CLIP; HOSE,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0108-0301
28	CLIP; HOSE,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=22.7	8-94466-382-0	08	1	0302-
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-327-0	01	1	0105-0107
31	PIPE; AIR,AIR CMPR SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-327-0	01	1	0108-0301
31	PIPE; AIR,AIR CMPR SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19193-279-0	01	1	0302-
31	PIPE; AIR,AIR CMPR SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-408-0	01	1	0108-0301
31	PIPE; AIR,AIR CMPR SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-278-0	01	1	0302-
31	PIPE; AIR,AIR CMPR SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-409-0	01	1	0108-0301
31	PIPE; AIR,AIR CMPR SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-455-0	01	1	0302-
34	NUT; LK SUCTION PIPE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0108-0301
34	NUT; LK SUCTION PIPE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-09840-254-0	02	1	0302-
40	CLIP; AIR PIPE (A)	1-09701-281-0	04	1	0105-0107
40	CLIP; AIR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09701-281-0	04	1	0108-0301
40	CLIP; AIR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09701-281-1	04	1	0302-
40	CLIP; AIR PIPE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=17 L=17	1-09701-284-0	08	1	0108-0301
40	CLIP; AIR PIPE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) ID=17 L=17	1-09701-284-0	04	1	0302-
40	CLIP; AIR PIPE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09701-210-0	04	1	0302-
41	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	02	1	0105-0107
41	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28080-845-0	02	1	0108-0301
41	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M8X45 FLANGE	0-28080-845-0	02	1	0302-0512
41	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-
41	BOLT; CLIP (C) M6X30 FLANGE	0-28080-630-0	04	1	0302-0512
41	BOLT; CLIP (C) M6X30 FLANGE	0-28050-630-0	04	1	0601-
41	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M8X70 FLANGE	0-28080-870-0	02	1	0108-0301
41	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X40 FLANGE	0-28080-840-0	02	1	0302-0512
41	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0105-0107
49	PIPE; AIR,CHARGE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-0301
49	PIPE; AIR,CHARGE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19193-122-1	01	1	0302-
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0105-0107
49	PIPE; AIR,CHARGE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-0301
49	PIPE; AIR,CHARGE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-126-2	01	1	0302-
49	PIPE; AIR,CHARGE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0108-0301
49	PIPE; AIR,CHARGE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-132-0	01	1	0302-
49	PIPE; AIR,CHARGE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	9-19119-032-0	02	1	0108-0301
49	PIPE; AIR,CHARGE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	9-19119-032-0	02	1	0302-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0105-0107
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0108-0301
51	BOLT; EYE,AIR PIPE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-1	01	1	0108-0301
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0302-
51	BOLT; EYE,AIR PIPE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M24X39	1-09675-175-2	01	1	0302-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	02	1	0105-0107
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0108-0301
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=24.5 OD=32	9-09571-424-0	02	1	0108-0301
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0302-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) ID=24.5 OD=32	9-09571-424-0	02	1	0302-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	08	1	0302-
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0105-
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0105-0512
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0105-
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0105-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0105-0107
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0108-0301
79	BOLT; EYE,AIR PIPE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0108-0301
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0302-
79	BOLT; EYE,AIR PIPE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 FLANGE	1-09675-086-0	01	1	0302-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-0107
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0108-0301
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	02	1	0108-0301
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0302-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=25	1-09630-141-0	02	1	0302-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28080-612-0	02	1	0302-0512
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0105-0512
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0105-
116	BRACKET; AIR PIPE (B)	1-19199-339-2	01	1	0302-
127	NUT; UNION M12	9-09840-280-0	01	1	0105-
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
171	UNION M12 L=62.5	9-09223-206-1	01	1	0105-
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0105-0512
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0105-
233	RING; FRICTION	1-12529-003-0	01	1	0105-0205

28 27 28 41 31 28 274 27 28 87 49 131 68 171 5 176 116 128 127 5 79 53 55 54 80 51 52 49 115 80 52 68 115 40 40 24 2 19 233 6 1 20 8 5 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0105-0107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-1	01	1	0108-0301
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-328-8	01	1	0302-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	0108-0301
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-300-5	01	1	0302-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0105-
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0105-
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0105-0512
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0105-
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0105-0301
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M14X100	9-91666-400-0	01	1	0302-0512
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M14X100	0-16956-400-0	01	1	0601-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0105-
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0105-
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0105-0202
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0105-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0105-
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-0107
27	HOSE; AIR CMPR,SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) L=55	1-09360-784-0	02	1	0108-0301
27	HOSE; AIR CMPR,SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) L=55	1-09360-784-0	02	1	0302-
27	HOSE; AIR CMPR,SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0108-0301
27	HOSE; AIR CMPR,SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	0-02117-080-0	02	1	0302-
27	HOSE; AIR CMPR,SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0108-0301
27	HOSE; AIR CMPR,SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09360-916-0	02	1	0302-
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-0107
28	CLIP; HOSE,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-0301
28	CLIP; HOSE,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=28.5	1-09707-150-0	04	1	0302-
28	CLIP; HOSE,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0108-0301
28	CLIP; HOSE,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=22.7	8-94466-382-0	08	1	0302-
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-327-0	01	1	0105-0107
31	PIPE; AIR,AIR CMPR SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-327-0	01	1	0108-0301
31	PIPE; AIR,AIR CMPR SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19193-279-0	01	1	0302-
31	PIPE; AIR,AIR CMPR SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-408-0	01	1	0108-0301
31	PIPE; AIR,AIR CMPR SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-278-0	01	1	0302-
31	PIPE; AIR,AIR CMPR SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-409-0	01	1	0108-0301
31	PIPE; AIR,AIR CMPR SUCTION AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-455-0	01	1	0302-
40	CLIP; AIR PIPE (A)	1-09701-281-0	04	1	0105-0107
40	CLIP; AIR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09701-281-0	04	1	0108-0301
40	CLIP; AIR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09701-281-1	04	1	0302-
40	CLIP; AIR PIPE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=17 L=17	1-09701-284-0	08	1	0108-0301
40	CLIP; AIR PIPE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) ID=17 L=17	1-09701-284-0	04	1	0302-
40	CLIP; AIR PIPE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09701-210-0	04	1	0302-
41	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	02	1	0105-0107
41	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28080-845-0	02	1	0108-0301
41	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M8X45 FLANGE	0-28080-845-0	02	1	0302-0512
41	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-
41	BOLT; CLIP (C) M6X30 FLANGE	0-28080-630-0	04	1	0302-0512
41	BOLT; CLIP (C) M6X30 FLANGE	0-28050-630-0	04	1	0601-
41	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M8X70 FLANGE	0-28080-870-0	02	1	0108-0301
41	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X40 FLANGE	0-28080-840-0	02	1	0302-0512
41	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0105-0107
49	PIPE; AIR,CHARGE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-0301
49	PIPE; AIR,CHARGE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19193-122-1	01	1	0302-
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0105-0107
49	PIPE; AIR,CHARGE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-0301
49	PIPE; AIR,CHARGE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-126-2	01	1	0302-
49	PIPE; AIR,CHARGE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0108-0301
49	PIPE; AIR,CHARGE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-132-0	01	1	0302-
49	PIPE; AIR,CHARGE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	9-19119-032-0	02	1	0108-0301
49	PIPE; AIR,CHARGE AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	9-19119-032-0	02	1	0302-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0105-0107
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0108-0301
51	BOLT; EYE,AIR PIPE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-1	01	1	0108-0301
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0302-
51	BOLT; EYE,AIR PIPE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M24X39	1-09675-175-2	01	1	0302-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	02	1	0105-0107
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0108-0301
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=24.5 OD=32	9-09571-424-0	02	1	0108-0301
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0302-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) ID=24.5 OD=32	9-09571-424-0	02	1	0302-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	08	1	0302-
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0105-
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0105-0512
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0105-
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0105-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0105-0107
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0108-0301
79	BOLT; EYE,AIR PIPE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0108-0301
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0302-
79	BOLT; EYE,AIR PIPE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 FLANGE	1-09675-086-0	01	1	0302-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-0107
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0108-0301
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	02	1	0108-0301
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0302-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=25	1-09630-141-0	02	1	0302-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28080-612-0	02	1	0302-0512
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0105-0512
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0105-
116	BRACKET; AIR PIPE (B)	1-19199-339-2	01	1	0302-
127	NUT; UNION M12	9-09840-280-0	01	1	0105-
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0105-0107
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=26.8	1-09623-415-0	01	1	0108-0301
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26.8	1-09623-415-0	01	1	0302-
171	UNION M12 L=62.5	9-09223-206-1	01	1	0105-
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0105-0512
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0105-
233	RING; FRICTION	1-12529-003-0	01	1	0105-0205
274	BOLT; PIPE M8X20 FLANGE	0-28080-820-0	02	1	0105-0107
274	BOLT; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 FLANGE	0-28080-820-0	02	1	0108-0301
274	BOLT; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X20 FLANGE	0-28080-820-0	02	1	0302-0512
274	BOLT; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X20 FLANGE	0-28050-820-0	02	1	0601-

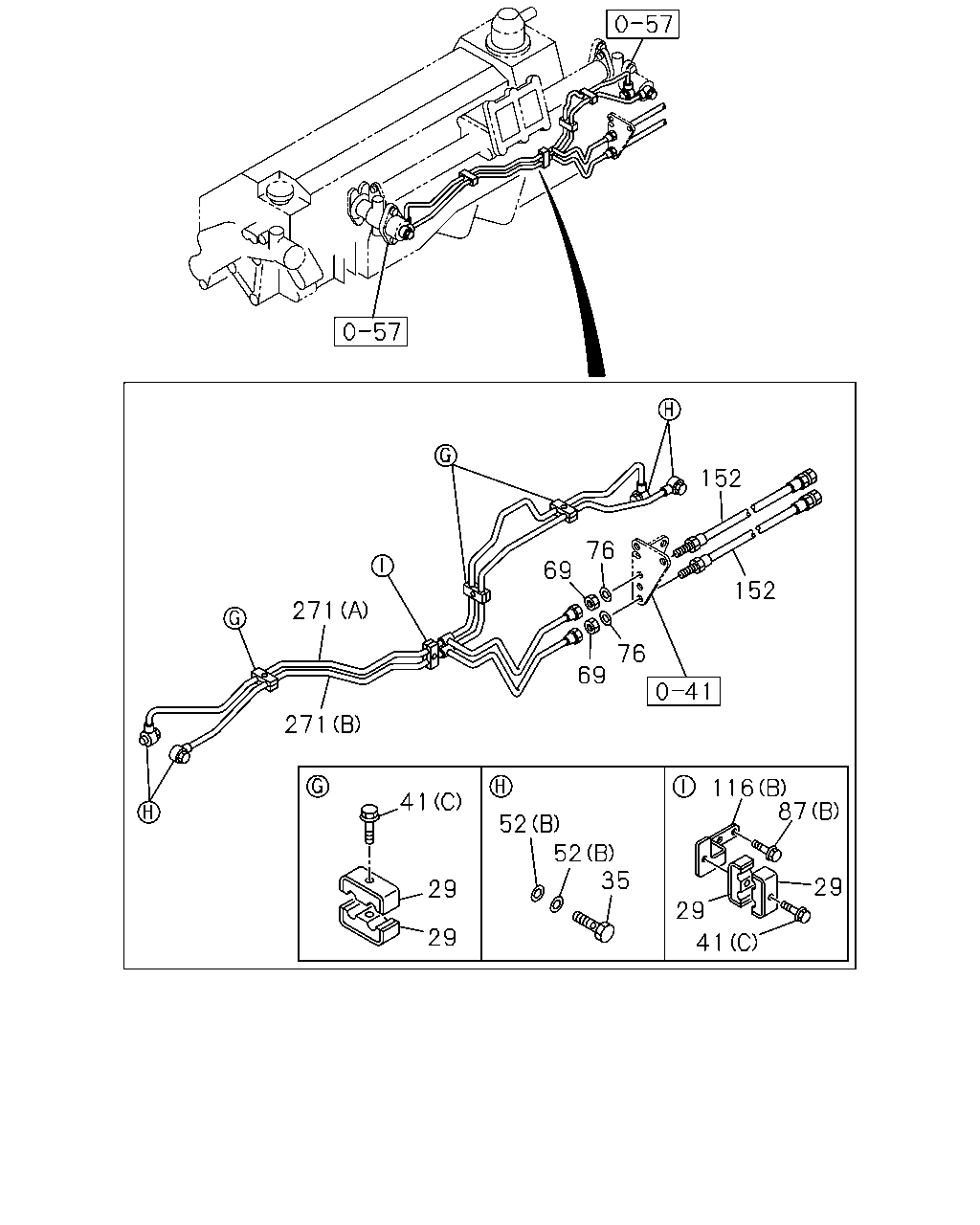

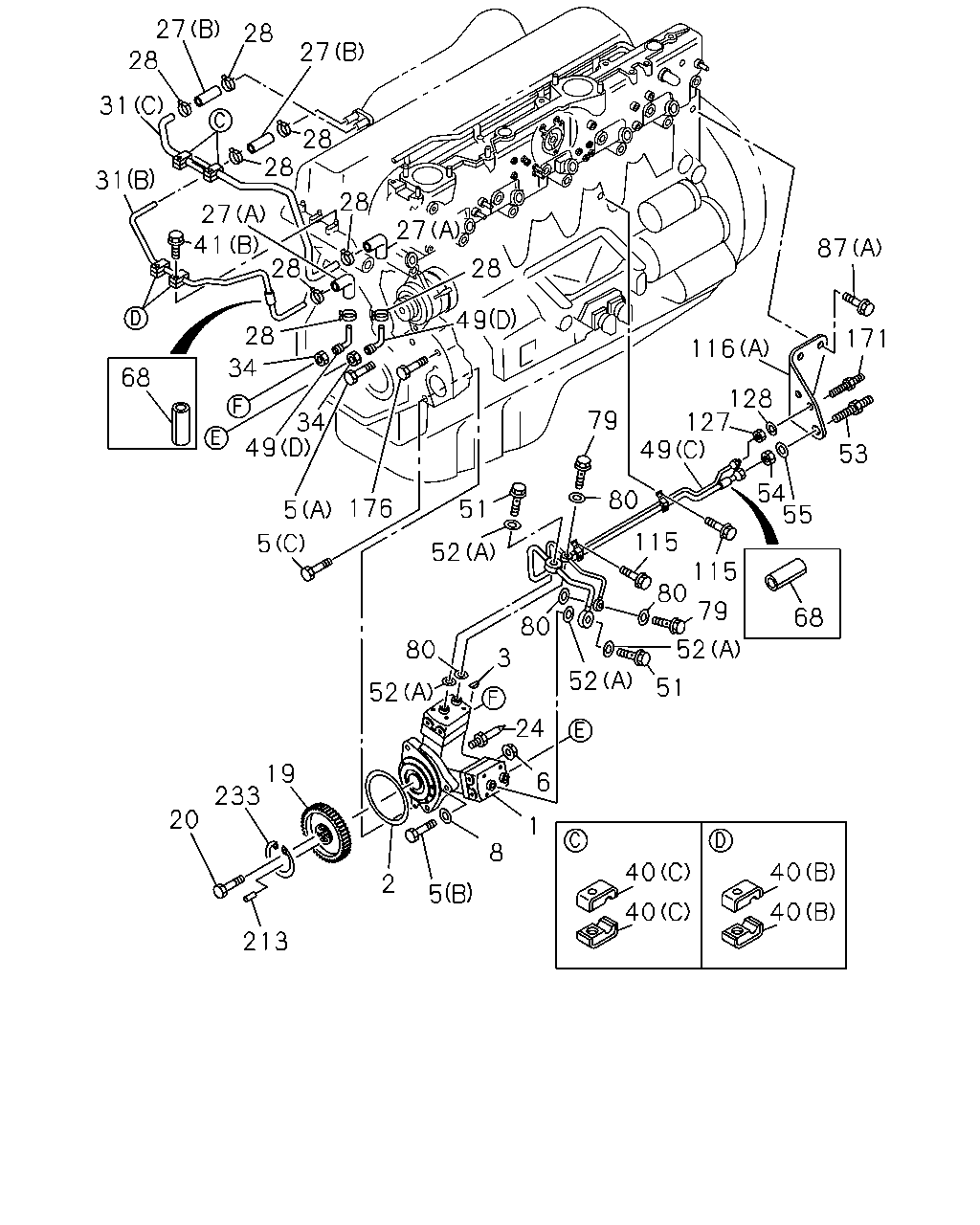

152 76 69 152 271 76 69 271 116 87 41 52 52 35 29 29 29 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	CLIP; AIR PIPE	1-09701-132-1	08	1	0302-
35	BOLT; EYE,AIR PIPE M10X21 FLANGE	8-94396-711-0	04	1	0302-
41	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	02	1	0105-0107
41	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28080-845-0	02	1	0108-0301
41	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M8X45 FLANGE	0-28080-845-0	02	1	0302-0512
41	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-
41	BOLT; CLIP (C) M6X30 FLANGE	0-28080-630-0	04	1	0302-0512
41	BOLT; CLIP (C) M6X30 FLANGE	0-28050-630-0	04	1	0601-
41	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M8X70 FLANGE	0-28080-870-0	02	1	0108-0301
41	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X40 FLANGE	0-28080-840-0	02	1	0302-0512
41	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	02	1	0105-0107
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0108-0301
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=24.5 OD=32	9-09571-424-0	02	1	0108-0301
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0302-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CONDITIONER MANUAL CONTROL(C60) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) ID=24.5 OD=32	9-09571-424-0	02	1	0302-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	08	1	0302-
69	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0302-
76	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0302-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28080-612-0	02	1	0302-0512
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0105-
116	BRACKET; AIR PIPE (B)	1-19199-339-2	01	1	0302-
152	HOSE; FLEX L=280	1-09363-610-0	02	1	0302-
271	PIPE; AIR,EGR CONT (A)	1-19193-236-0	01	1	0302-
271	PIPE; AIR,EGR CONT (B)	1-19193-237-0	01	1	0302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
