2-85 — POWER TAKE OFF CONTROL (#124456) — 20 parça

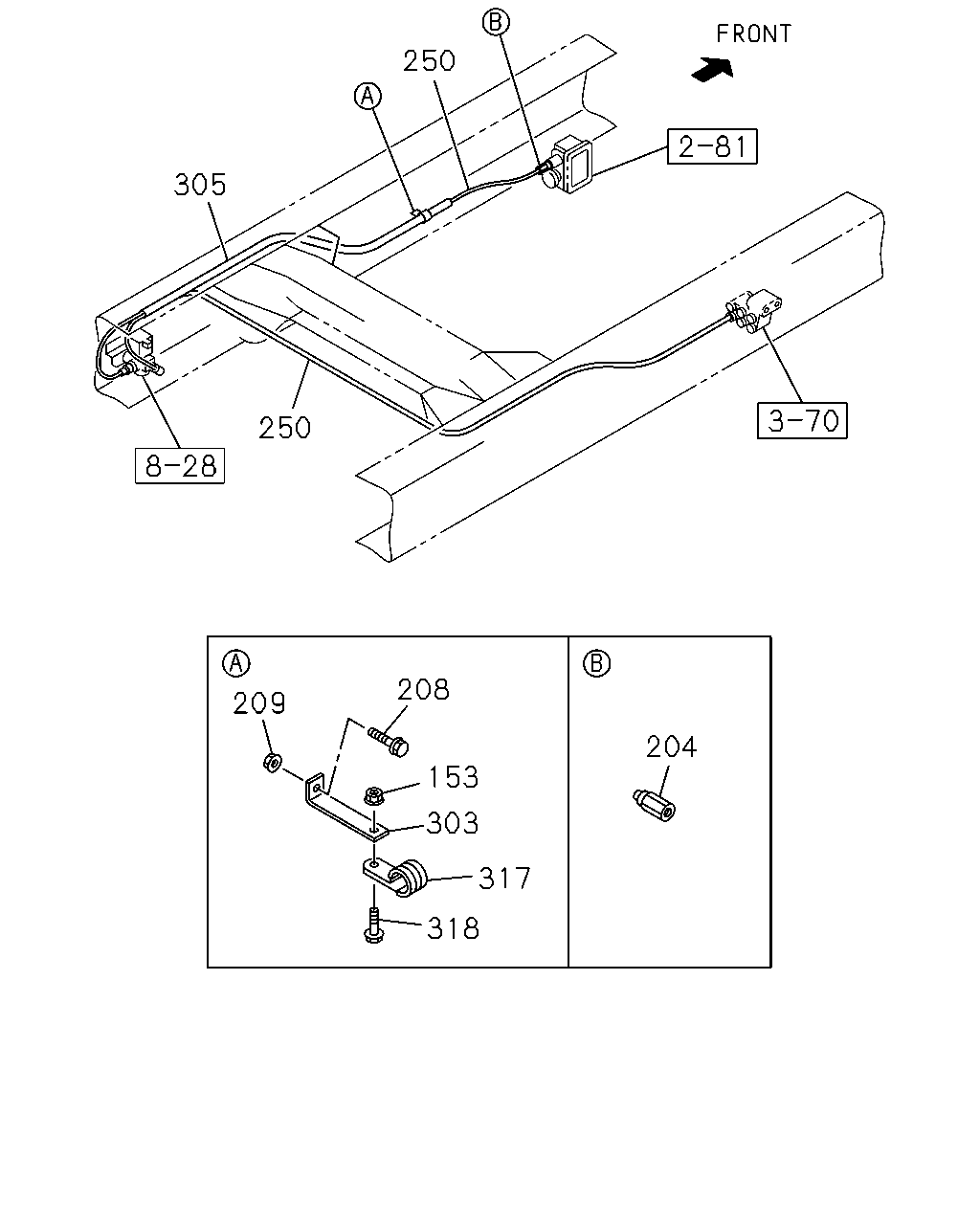

çizim 363202
250 305 250 204 209 208 153 303 317 318
BalonParca AdiParca NoAdetTipApplied Date
153 NUT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 01 1 1306-
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1306-
208 BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X35 FLANGE 		0-28650-835-0 01 1 1306-
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 01 1 1306-
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1306-
303 BRACKET; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=95 		1-82699-085-0 01 1 1306-
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1306-
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) ID=11 L=16 		0-95235-025-0 01 1 1306-
318 BOLT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE 		0-28650-825-0 01 1 1306-

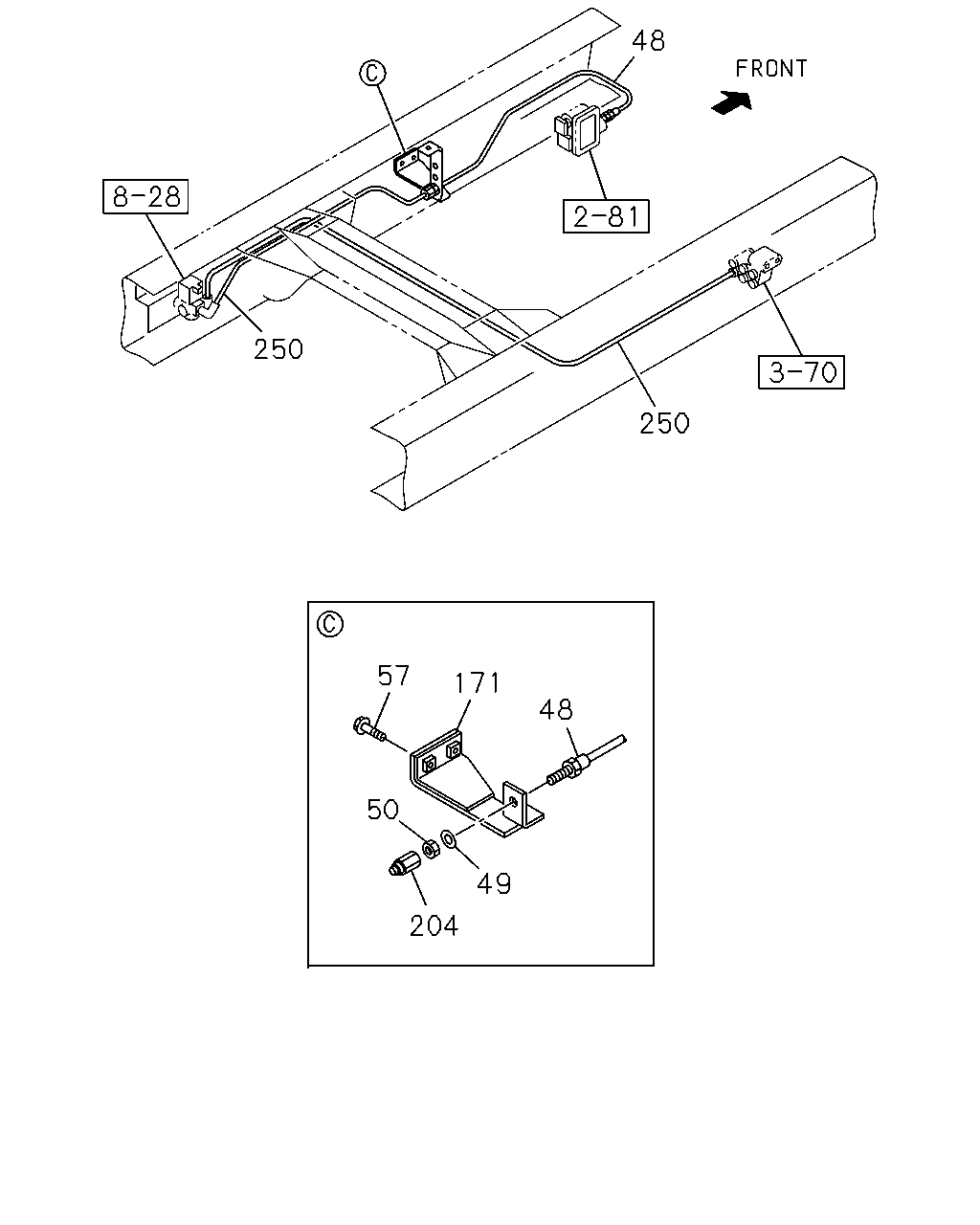

çizim 363204
250 48 250 48 171 57 50 204 49
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) L=350 		1-09363-624-0 01 1 1306-
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=12.2 		0-91510-512-0 01 1 1306-
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12 		9-09840-280-0 01 1 1306-
57 BOLT; BRKT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		8-97634-061-0 01 1 1306-
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1306-
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1306-
çizim 365884
55 3 1 3 3 139
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL<SV6> 		1-79907-048-1 01 1 1306-
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL<SV6> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1306-
55 GROMMET; CABLE
EXC. PTO CONTROL<SV6> 		1-09983-068-0 01 1 1306-
139 BRACKET; CONT BOX
PTO CONTROL<SV6> 		1-79907-044-0 01 1 1306-
