11526 - EXZ RHD EURO2
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶
2-53 — TRANSMISSION OIL COOLER SYSTEM
(#124454) — 31 parça
◀

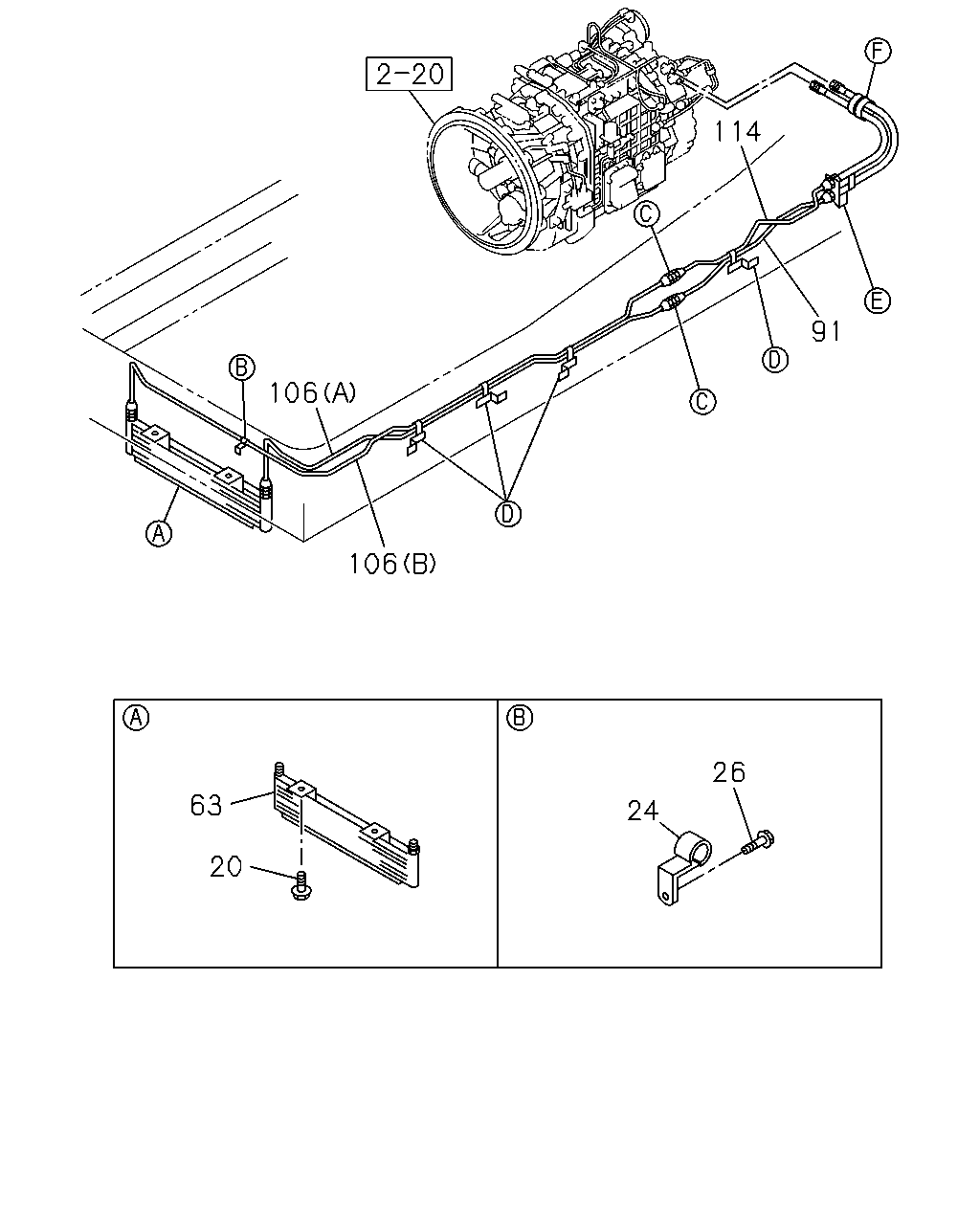

[253A] FRAME SIDE (8 parça)
[253A] FIXING;OTHER PARTS (23 parça)
▶
114
91
106
106
24
20
63
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
1306-
24
CLIP; OIL PIPE
ID=15 H=24 L=20
1-09700-606-0
01
1
1306-
26
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1306-
63
COOLER; OIL
8-98240-507-0
01
1
1306-
91
PIPE; OIL,FLEX HOSE TO UNION
L=919
1-49166-987-1
01
1
1306-
106
PIPE ASM; OIL,COOLER TO UNION
(A)
8-98240-378-0
01
1
1306-
106
PIPE ASM; OIL,COOLER TO UNION
(B)
8-98240-382-0
01
1
1306-
114
PIPE; OIL,UNION TO FLEX HOSE
L=849
1-49167-146-0
01
1
1306-
11
109
8
48
101
1
73
80
179
19
82
81
91
111
114
82
210
136
12
95
50
29
178
11
12
95
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=710
8-97635-173-0
01
1
1306-
8
UNION
M22 L=51
0-92123-015-0
01
1
1306-
11
CLIP; PIPE
ID=16X2 L=20
0-95325-535-0
05
1
1306-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1306-
19
BRACKET; FLEX HOSE
1-47479-561-1
01
1
1306-
29
BOLT; FILTER TO BRKT
M8X35 FLANGE
0-28650-835-0
02
1
1306-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1306-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
05
1
1306-
73
HOSE; FLEX,TRANS
L=630
8-97635-172-0
01
1
1306-
80
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
1306-
81
NUT; UNION
M22
0-91111-522-0
01
1
1306-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
02
1
1306-
91
PIPE; OIL,FLEX HOSE TO UNION
L=919
1-49166-987-1
01
1
1306-
95
BRACKET; CLIP
(A)
1-47479-482-0
03
1
1306-
95
BRACKET; CLIP
(B)
8-98199-287-2
01
1
1306-
101
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
1306-
109
UNION
M22 L=51
0-92123-015-0
01
1
1306-
111
NUT; UNION
M22
0-91111-522-0
01
1
1306-
114
PIPE; OIL,UNION TO FLEX HOSE
L=849
1-49167-146-0
01
1
1306-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
02
1
1306-
178
BOLT; BRKT,CLIP
M8X35 FLANGE
0-28650-835-0
01
1
1306-
179
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
1306-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
02
1
1306-
