◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11526 - EXZ RHD EURO2 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#124441) — 101 parça

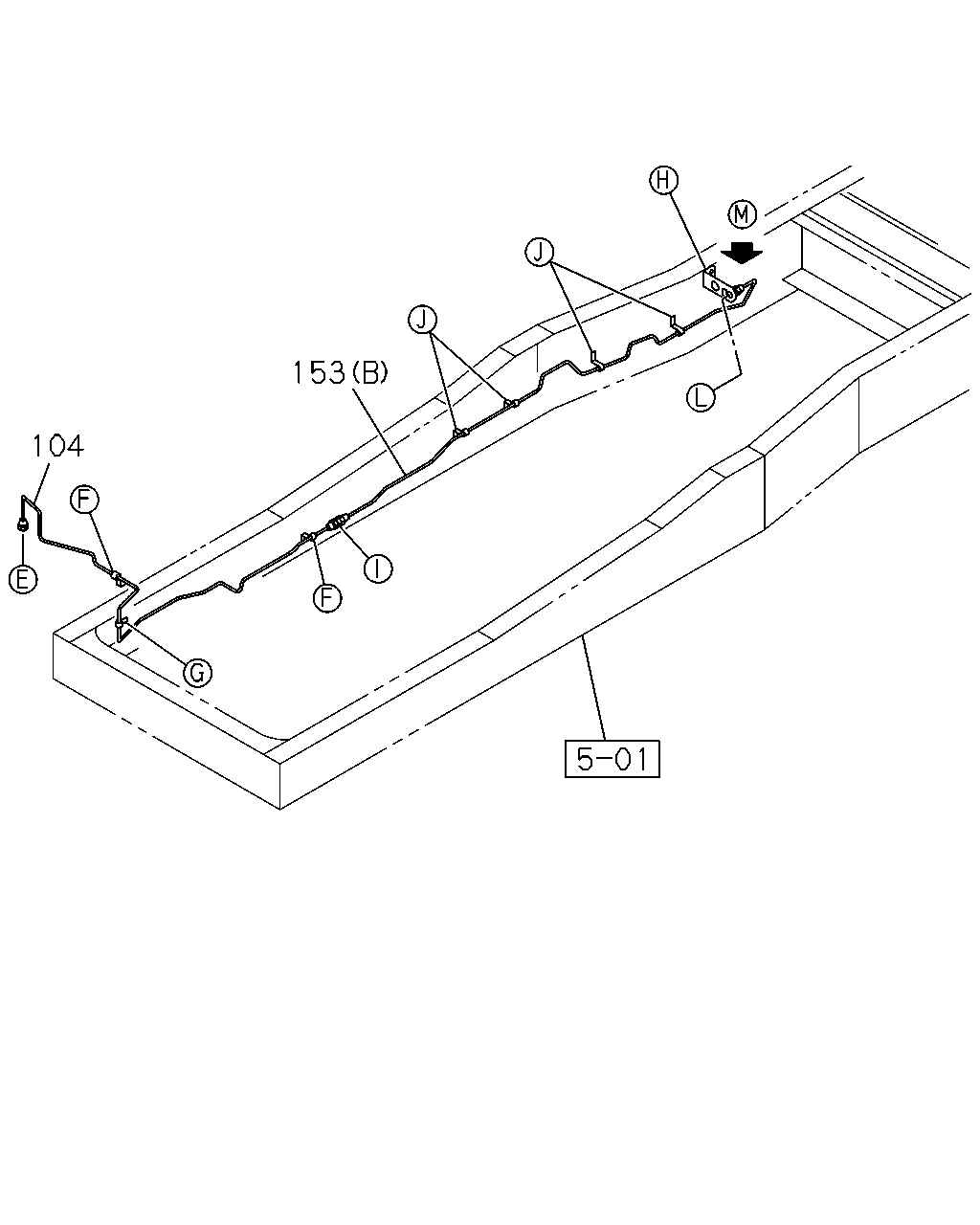

çizim 362832
153 104
BalonParca AdiParca NoAdetTipApplied Date
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1363 SERVICED BY L=1400 		1-47428-765-0 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1964 SERVICED BY L=2150 		1-47428-770-0 01 1 1306-1309
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2004 SERVICED BY L=2150 		1-47428-770-0 01 1 1310-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 1306-1510
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 1511-

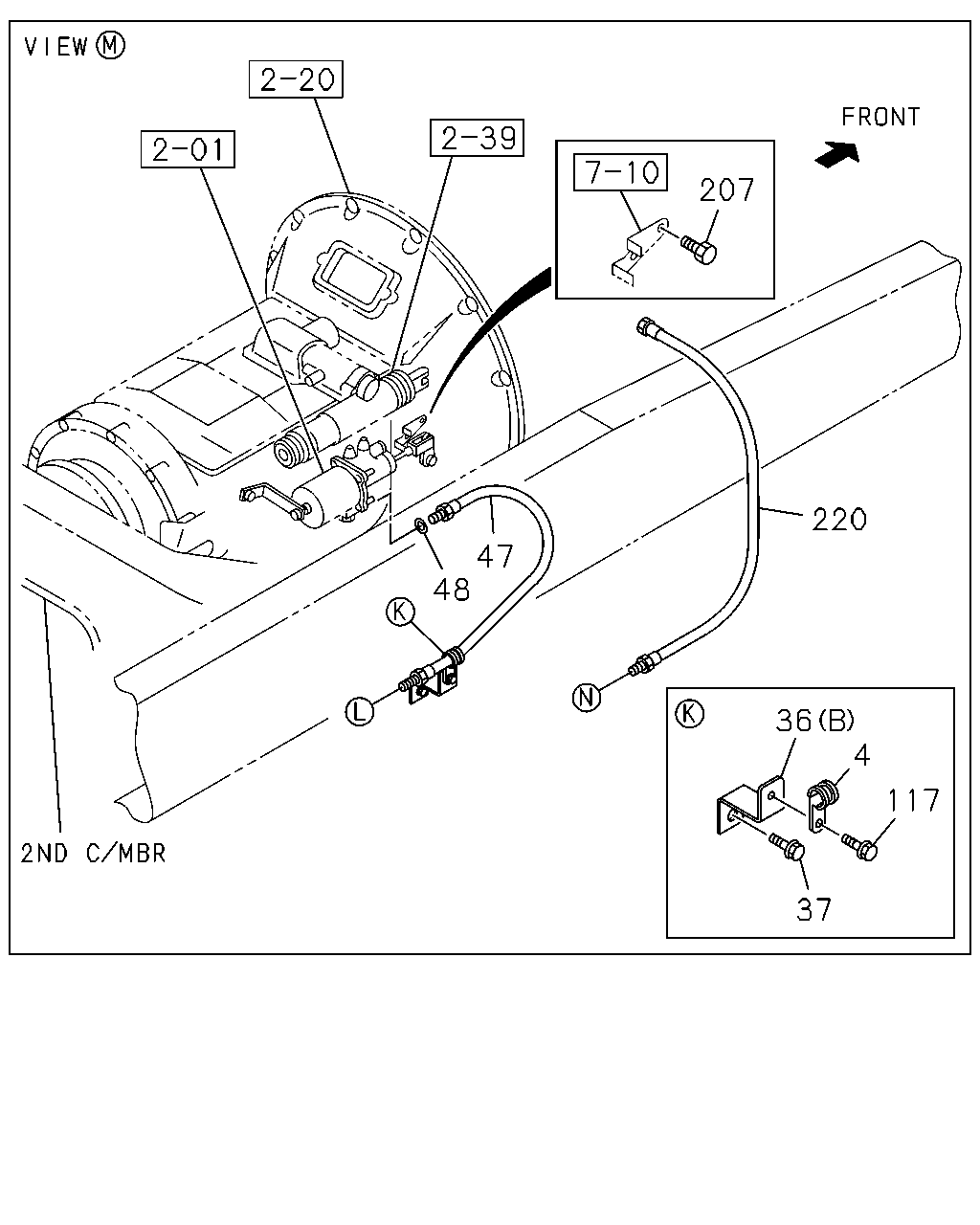

çizim 362836
220 117 37 4 36 47 48 207
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; FLEX HOSE,CLU CONT
ID=16 L=28 		1-09700-872-0 01 1 1306-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1306-1510
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1511-
36 BRACKET; CLIP
(B) L=60 		8-98162-941-0 01 1 1306-
37 BOLT; CLIP BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1306-
47 HOSE; FLEX,CLU CONT
L=550 		1-09364-434-0 01 1 1306-1309
47 HOSE; FLEX,CLU CONT
L=600 		1-09364-705-0 01 1 1310-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1306-
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 1306-
207 BOLT; CLIP
M10X16 FLANGE 		0-28151-016-0 02 1 1306-
220 HOSE; FLEX,POWER ASSIST
L=320 		1-09363-625-0 01 1 1306-

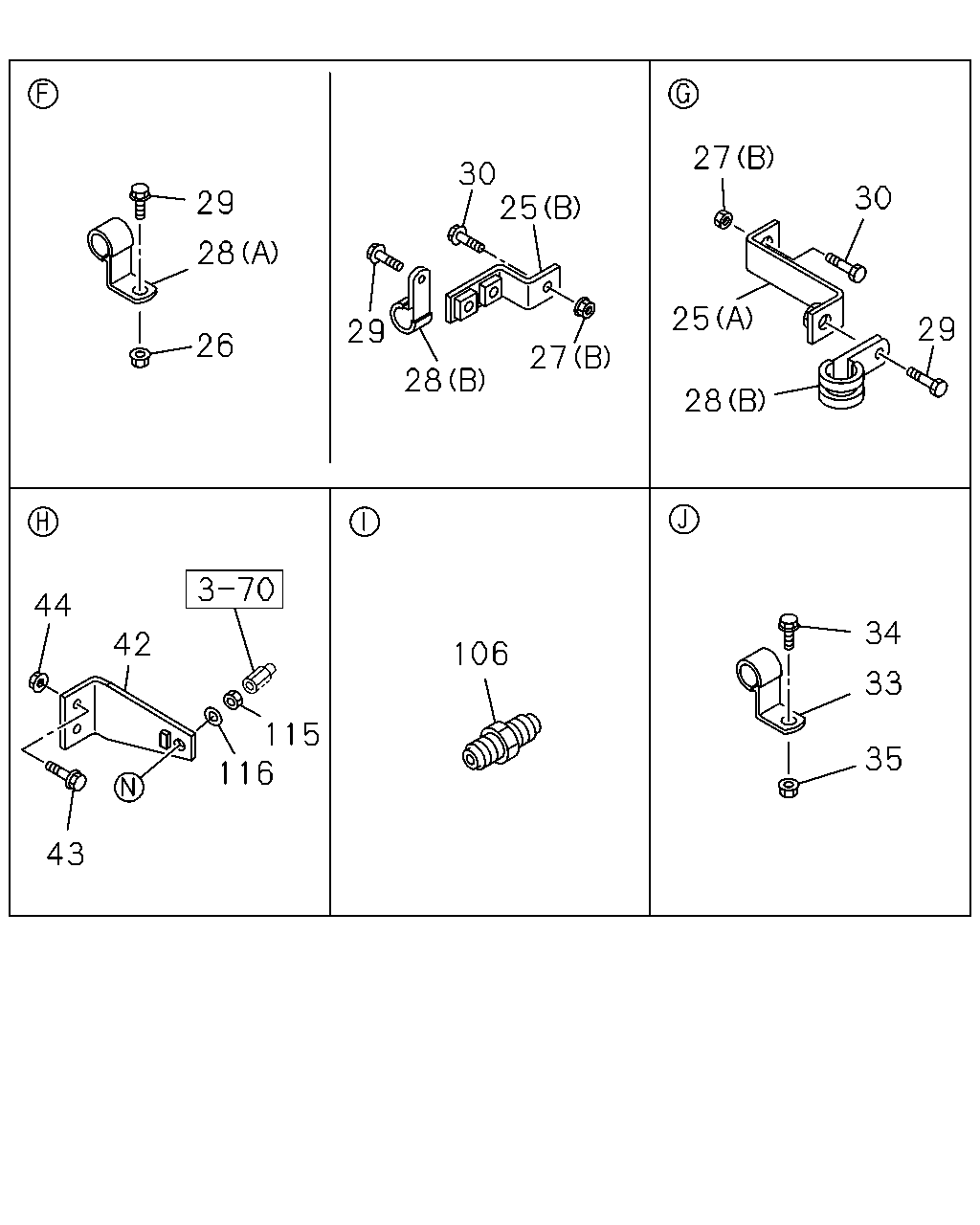

çizim 362978
30 27 29 25 28 30 29 27 25 29 28 28 26 34 35 106 33 115 116 44 43 42
BalonParca AdiParca NoAdetTipApplied Date
25 BRACKET; OIL PIPE
(A) 		1-46147-101-0 01 1 1306-
25 BRACKET; OIL PIPE
(B) 		1-47479-482-0 01 1 1306-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1306-
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1306-
27 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 02 1 1306-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 1306-1510
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 1511-
28 CLIP; OIL PIPE
(B) ID=9 L=20 		0-95234-835-0 02 1 1306-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1306-
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1306-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1306-
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 04 1 1306-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 1306-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1306-
42 BRACKET; FLEX HOSE,CLU CONT 1-47479-812-0 01 1 1306-1309
42 BRACKET; FLEX HOSE,CLU CONT 8-98251-782-0 01 1 1310-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 1306-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1306-
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 1306-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1306-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1306-

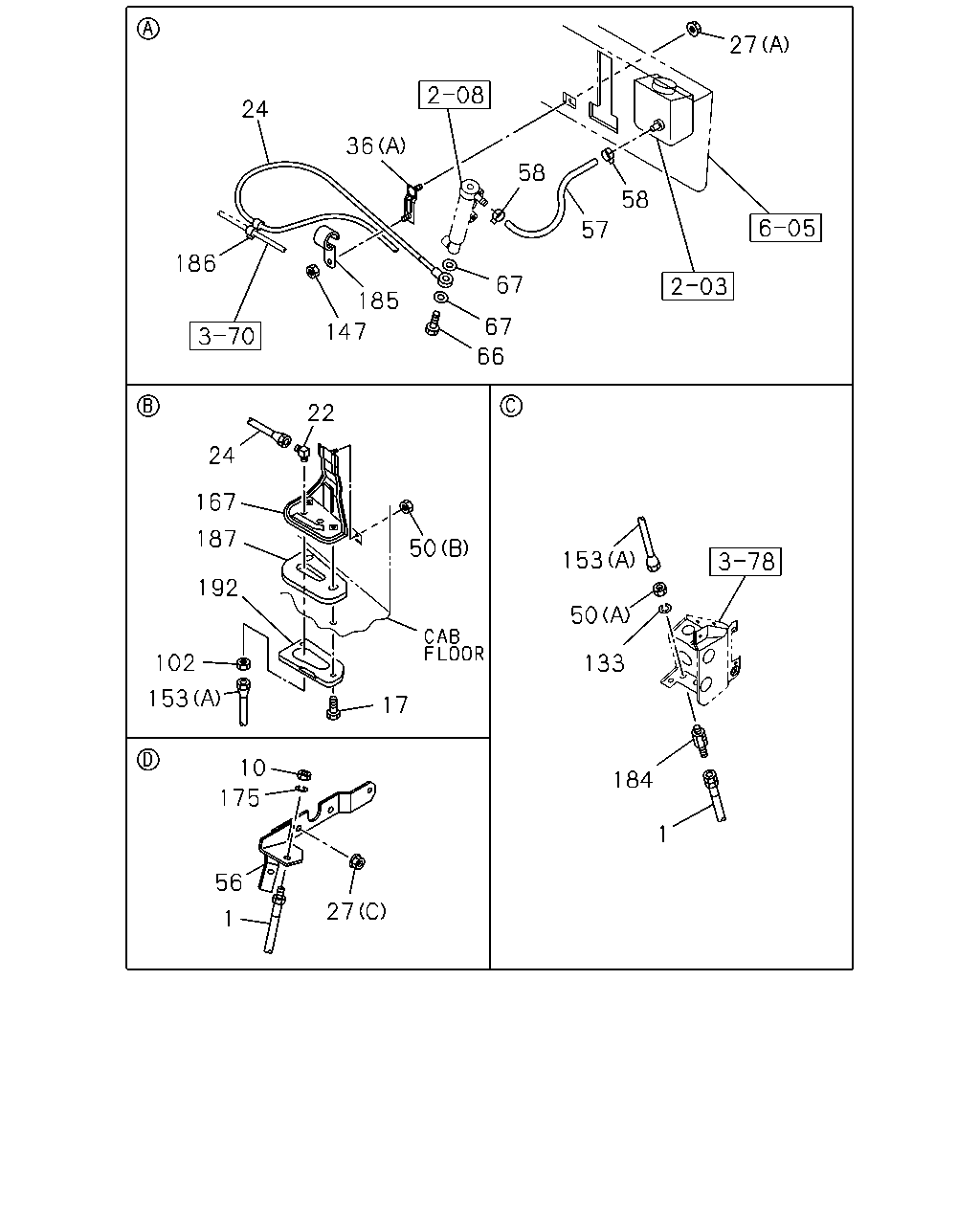

çizim 362983
27 58 67 67 185 66 22 24 167 187 192 102 153 17 50 10 175 56 1 27 1 184 133 50 153 57 58 36 24 186 147
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 1306-1510
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 1511-
10 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1306-1510
10 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1511-
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 1306-1510
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 1511-
22 UNION; CLU PIPE
M14 ELBOW 		0-92125-208-0 01 1 1306-1510
22 UNION; CLU PIPE
M14 ELBOW 		0-92125-208-0 01 1 1511-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 1306-1510
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 1511-
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1306-
27 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 02 1 1306-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 1306-1510
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 1511-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1306-1510
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1511-
36 BRACKET; CLIP
(B) L=60 		8-98162-941-0 01 1 1306-
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 1306-1510
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 1511-
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1306-1510
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1511-
56 BRACKET; FLEX HOSE 8-98151-406-1 01 1 1306-
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 1306-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 1306-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 1306-1510
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 1511-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1306-1312
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-1510
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1511-
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1306-1510
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1511-
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 1306-1510
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 1511-
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1306-1510
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1511-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1964 SERVICED BY L=2150 		1-47428-770-0 01 1 1306-1309
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2004 SERVICED BY L=2150 		1-47428-770-0 01 1 1310-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 1306-1510
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 1511-
167 BRACKET; UNION 1-71117-183-3 01 1 1306-1510
167 BRACKET; UNION 1-71117-183-3 01 1 1511-
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1306-1510
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1511-
184 UNION; FLEX HOSE
STRAIGHT 2WAY 		1-09654-435-0 01 1 1306-1510
184 UNION; FLEX HOSE
STRAIGHT 2WAY 		1-09654-435-0 01 1 1511-
185 CLIP; BRKT
ID=9 L=20 		0-95405-308-0 01 1 1306-1510
185 CLIP; BRKT
ID=9 L=20 		0-95405-308-0 01 1 1511-
186 HOLDER; CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 1306-
187 SEAL; BRKT 1-71117-222-0 01 1 1306-1510
187 SEAL; BRKT 1-71117-222-0 01 1 1511-
192 PLATE 1-71117-221-0 01 1 1306-1510
192 PLATE 1-71117-221-0 01 1 1511-
çizim 365819
24 167 153 56 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 1306-1510
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 1511-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 1306-1510
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 1511-
56 BRACKET; FLEX HOSE 8-98151-406-1 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1964 SERVICED BY L=2150 		1-47428-770-0 01 1 1306-1309
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2004 SERVICED BY L=2150 		1-47428-770-0 01 1 1310-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 1306-1510
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 1511-
167 BRACKET; UNION 1-71117-183-3 01 1 1306-1510
167 BRACKET; UNION 1-71117-183-3 01 1 1511-
