Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11526 - EXZ RHD EURO2
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

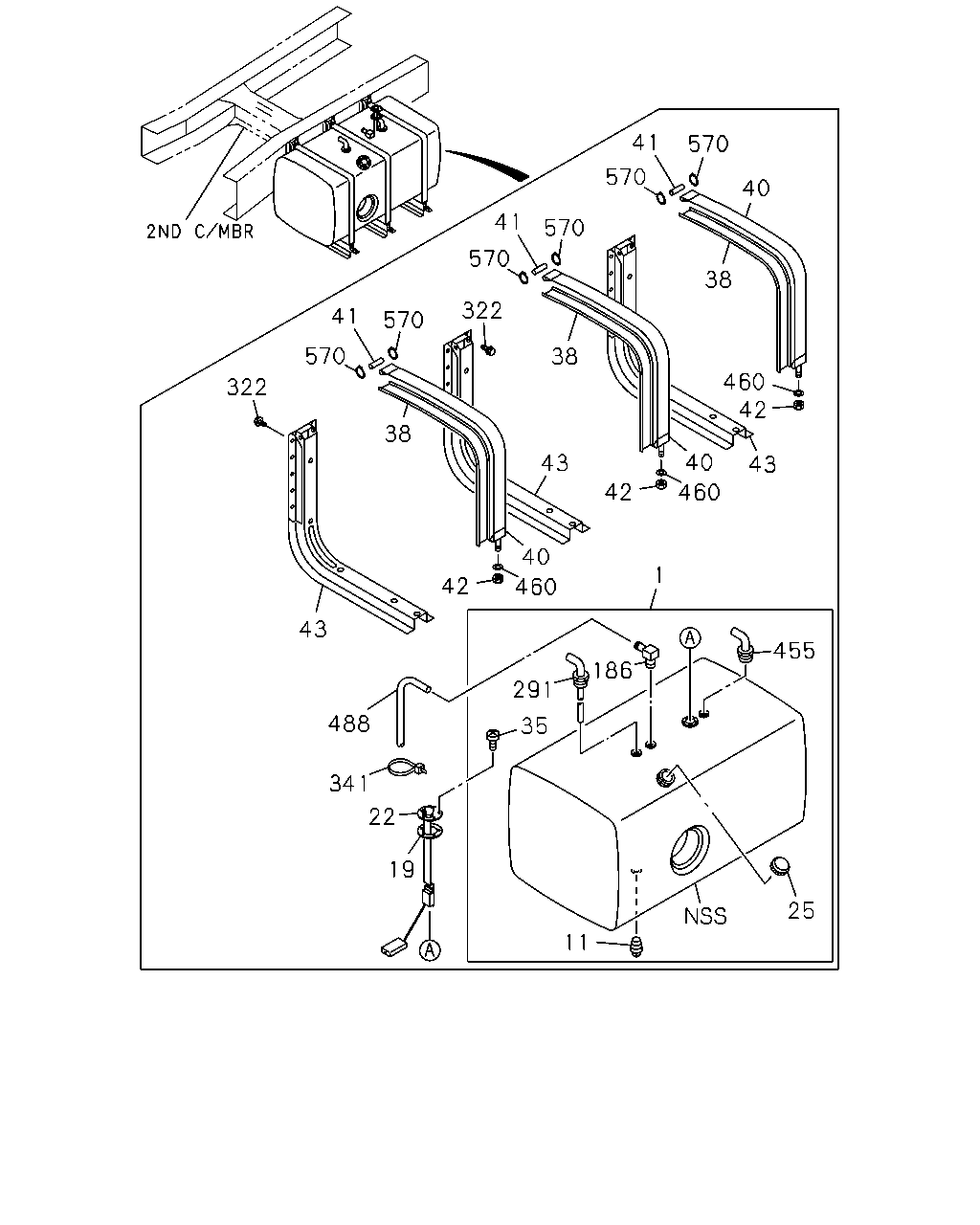

1-40 — FUEL TANK
(#124434) — 19 parça
41
570
40
38
460
42
43
40
460
42
1
43
38
570
570
41
570
322
570
41
570
38
40
460
455
25
186
291
35
488
341
22
19
43
42
322
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1280X700X700 550L
8-98140-322-0
01
1
1306-
11
PLUG; DRAIN,FUEL TANK
8-98154-085-0
02
1
1306-
19
GASKET; FUEL TANK UNIT
ID=45 OD=67
1-83149-003-0
01
1
1306-
22
UNIT; FUEL TANK
1-83141-150-1
01
1
1306-
25
CAP; FILLER,FUEL TANK
1-22440-057-2
01
1
1306-
35
SCREW; FUEL TANK UNIT
8-98168-468-0
05
1
1306-
38
INSULATION; SUPPORT BELT
8-98048-490-0
03
1
1306-
40
BELT; SUPPORT,FUEL TANK
8-98048-517-0
03
1
1306-
41
PIN; SUPPORT BELT
8-98048-491-0
03
1
1306-
42
NUT; SUPPORT BELT
1-22559-027-0
03
1
1306-
43
BRACKET; FUEL TANK
8-98110-151-0
03
1
1306-
186
VALVE; GT,FUEL TANK
8-98154-029-0
01
1
1306-
291
PIPE; FUEL,SUCTION
8-98154-021-0
01
1
1306-
322
BOLT; BRKT FIX
M12X45 FLANGE
0-28051-245-0
18
1
1306-
341
CLIP; BAND,RUBBER HOSE
L=350
1-09707-183-0
02
1
1306-
455
PIPE; FUEL,RETURN
8-98154-022-0
01
1
1306-
460
WASHER; PL,BRKT
0-91610-616-0
03
1
1306-
488
HOSE; RUBBER
8-98151-246-0
01
1
1306-
570
CLIP; PIN
1-22559-024-0
06
1
1306-
