◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11526 - EXZ RHD EURO2 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#124424) — 91 parça

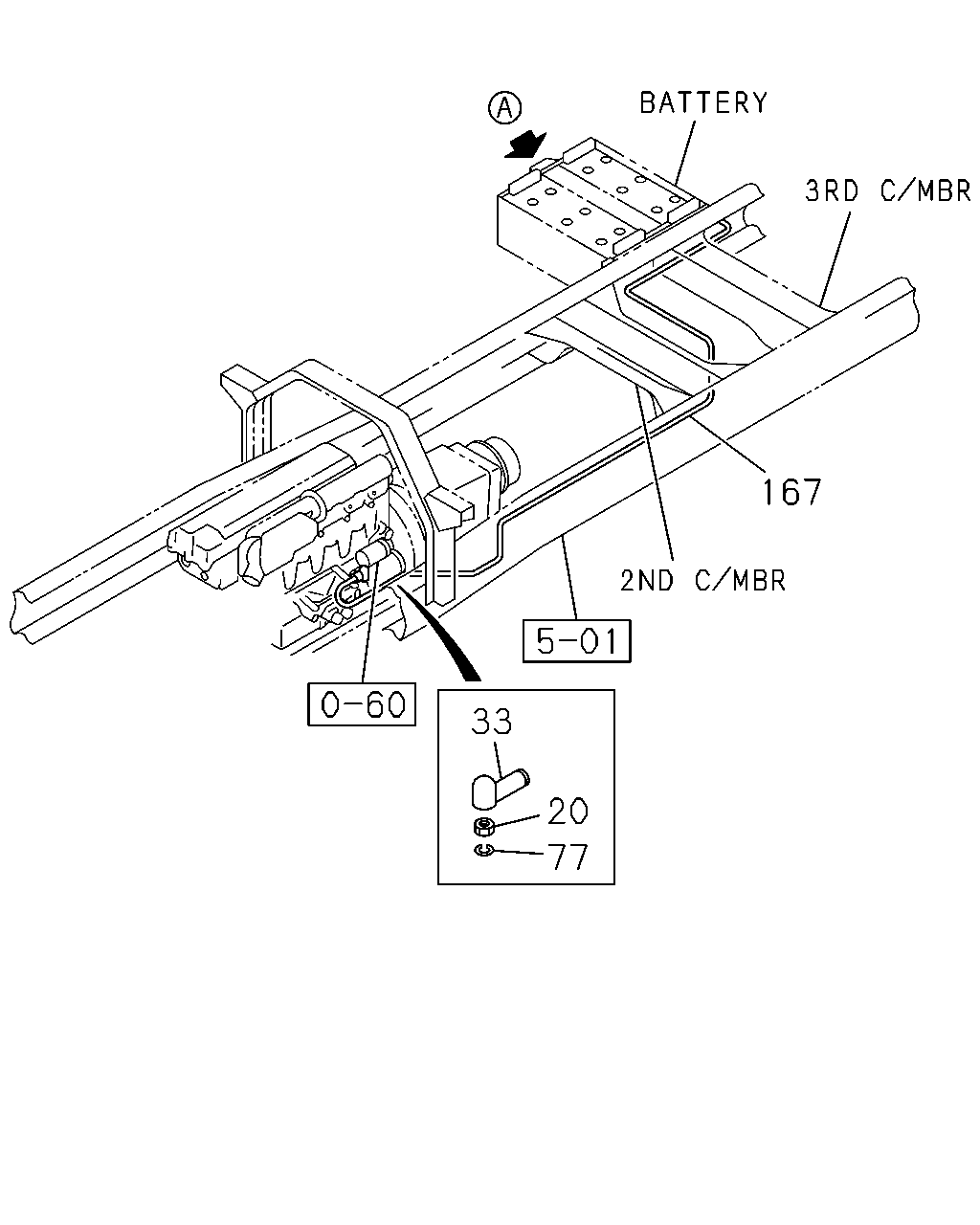

çizim 362539
167 33 20 77
BalonParca AdiParca NoAdetTipApplied Date
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1306-
33 CAP; INSULATOR 8-97181-965-0 01 1 1306-
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-610-0 01 1 1306-
167 CABLE; BATTERY RELAY TO STARTER 8-98228-024-0 01 1 1306-

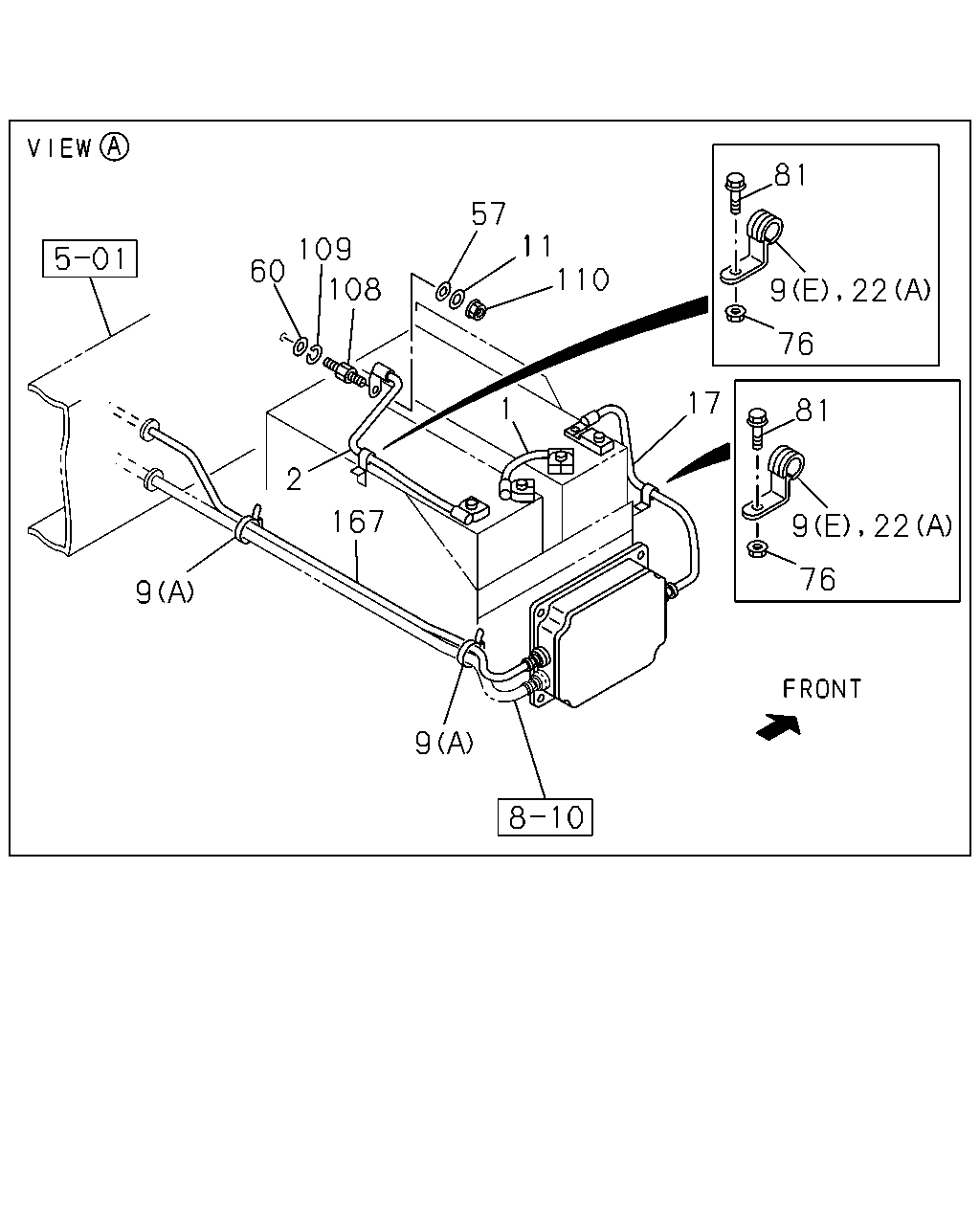

çizim 362593
22 76 9 81 17 76 22 9 81 1 9 167 2 108 109 60 110 11 57 9
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY 115F51 N120<SJ3> L=265 		1-82650-390-1 01 1 1306-
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8> L=450 		1-82650-391-1 01 1 1306-
2 CABLE; BATTERY
L=710 		8-98228-697-0 01 1 1306-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 01 1 1306-
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 1306-
9 CLIP; BATTERY CABLE
(E) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
9 CLIP; BATTERY CABLE
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1306-
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 03 1 1306-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 01 1 1306-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1306-
17 CABLE; BATTERY (+) TO RELAY
L=480 		8-98239-411-0 01 1 1306-
22 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
22 CLIP; BATTERY CABLE
(B) ID=11 & 13 H=26 L=48 		1-09701-270-0 03 1 1306-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		0-91614-506-0 01 1 1306-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1306-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 03 1 1306-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1306-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1306-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1306-
167 CABLE; BATTERY RELAY TO STARTER 8-98228-024-0 01 1 1306-

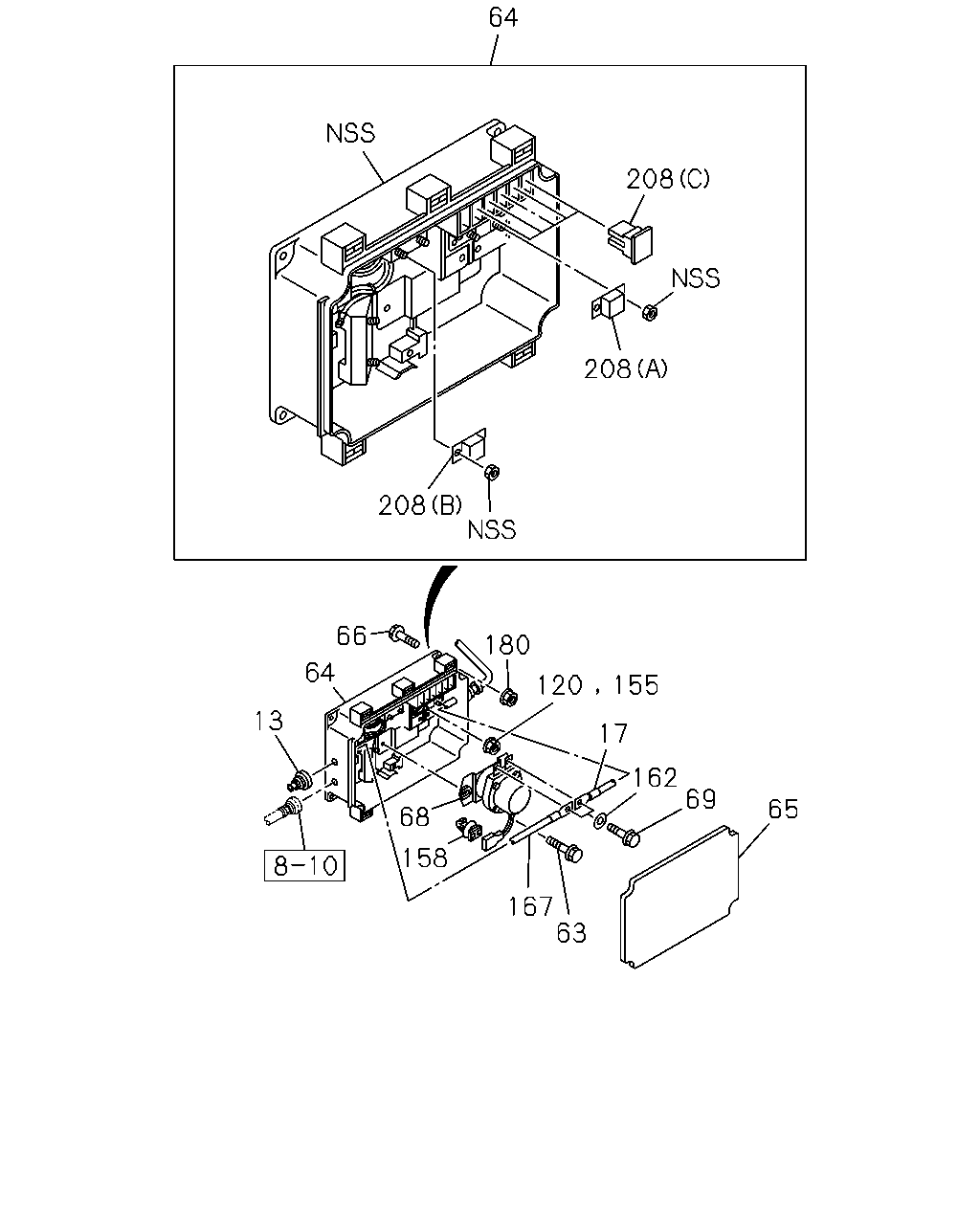

çizim 362605
65 69 162 17 63 167 155 120 180 158 68 66 64 13 208 208 208 64
BalonParca AdiParca NoAdetTipApplied Date
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 1306-
17 CABLE; BATTERY (+) TO RELAY
L=480 		8-98239-411-0 01 1 1306-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1306-
64 BOX; BATTERY RELAY 1-82510-648-0 01 1 1306-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 1306-
66 BOLT; COVER,BATTERY RELAY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1306-
68 RELAY; BATTERY 1-82550-313-0 01 1 1306-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1306-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1306-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1306-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1306-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1306-
167 CABLE; BATTERY RELAY TO STARTER 8-98228-024-0 01 1 1306-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 1306-
208 FUSE
(B) 80A 		1-82516-031-0 01 1 1306-
208 FUSE
(A) 100A 		1-82516-032-0 01 1 1306-
208 FUSE
(C) 40A GREEN 		8-94468-662-0 05 1 1306-
çizim 362610
158 9 9 9 9 99 99 9 9 22 22 18
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 01 1 1306-
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 1306-
9 CLIP; BATTERY CABLE
(E) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
9 CLIP; BATTERY CABLE
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1306-
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 03 1 1306-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 01 1 1306-
18 CLIP; BATTERY CABLE
ID=21 L=24 		8-94176-807-1 01 1 1306-
22 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
22 CLIP; BATTERY CABLE
(B) ID=11 & 13 H=26 L=48 		1-09701-270-0 03 1 1306-
99 CLIP; BATTERY CABLE
(A) ID=18 L=25 H=50 		1-09701-096-0 02 1 1306-
99 CLIP; BATTERY CABLE
(B) ID=18 H=23 L=28 		1-09701-070-0 02 1 1306-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1306-
çizim 366001
23 23 23 23 23 23 61 78 14 10 75 24 81 100 24 10 24 69 63 66 108 110 12 28 101 120 155 76 180 57 11 162 60 109 77 20
BalonParca AdiParca NoAdetTipApplied Date
10 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 05 1 1306-
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1306-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1306-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1306-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 07 1 1306-
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1306-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=40 		1-47478-410-0 01 1 1306-
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98171-604-0 01 1 1306-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82698-557-0 01 1 1306-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-82698-574-0 01 1 1306-
23 BRACKET; CABLE CLIP TO FRAME
(F) 		1-82698-575-1 01 1 1306-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		1-82698-589-0 01 1 1306-
24 BOLT; BRKT TO FRAME
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1511-
24 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
24 BOLT; BRKT TO FRAME
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1306-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1306-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		0-91614-506-0 01 1 1306-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1306-
61 BRACKET; BATTERY CABLE 8-98147-302-0 01 1 1306-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1306-
66 BOLT; COVER,BATTERY RELAY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1306-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1306-
75 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 1306-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 03 1 1306-
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-610-0 01 1 1306-
78 BRACKET; CLIP BATTERY 1-47476-396-1 01 1 1306-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 1306-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1306-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1306-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1306-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1306-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1306-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1306-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1306-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
