Sayfa 0-32 - Isuzu EPC

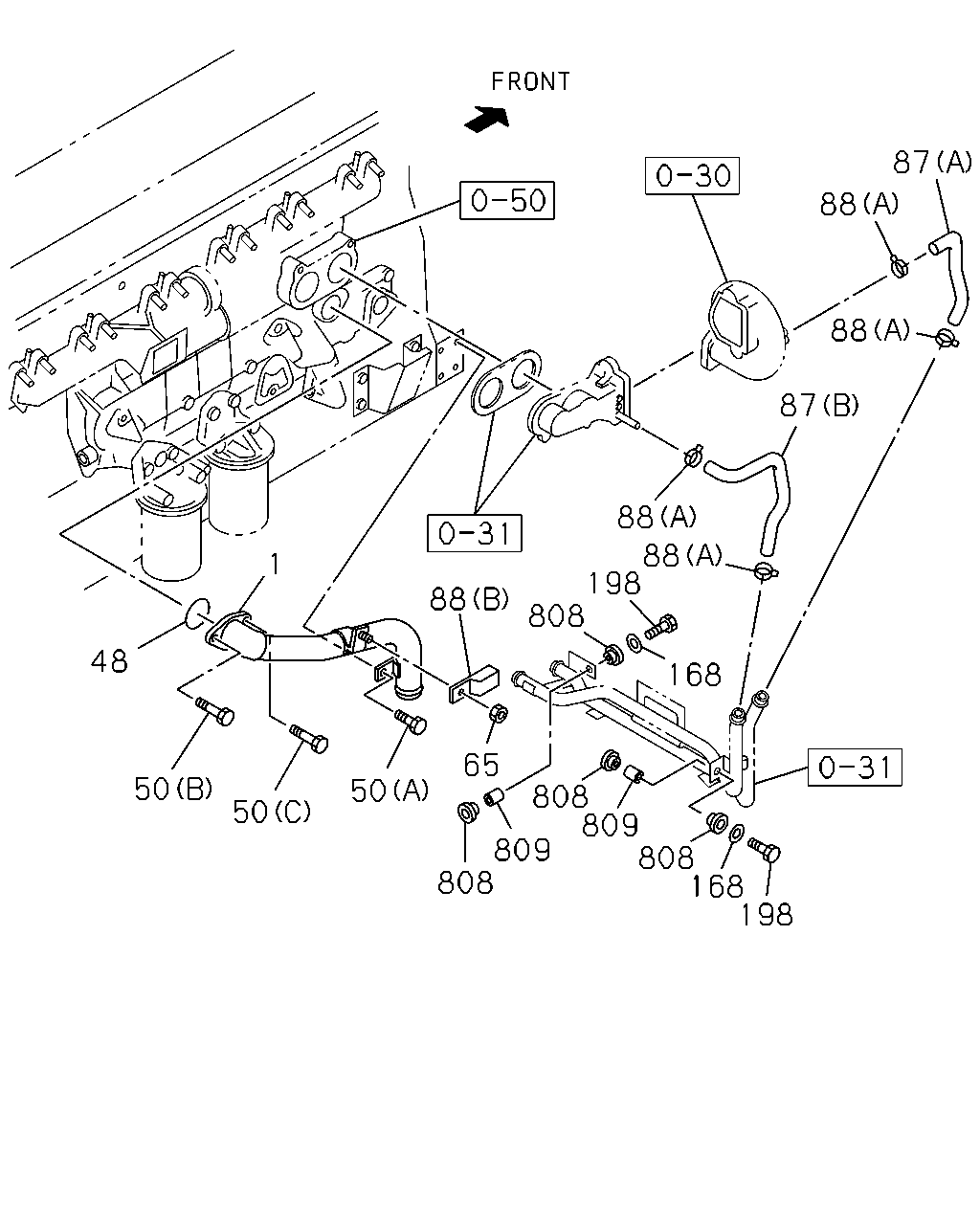

0-32 — WATER PIPING; ENGINE (#124409) — 39 parça

87 88 88 87 88 198 88 168 808 88 1 48 50 50 50 65 808 809 808 168 198 808 809

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	1306-
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	1306-
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	1306-
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	1306-
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	1306-
65	NUT M10 FLANGE	0-91180-110-0	01	1	1306-
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	1306-
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	1306-
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	1306-
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1306-
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	1306-
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	1306-
808	RUBBER; MTG	1-09337-017-0	04	1	1306-
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	1306-

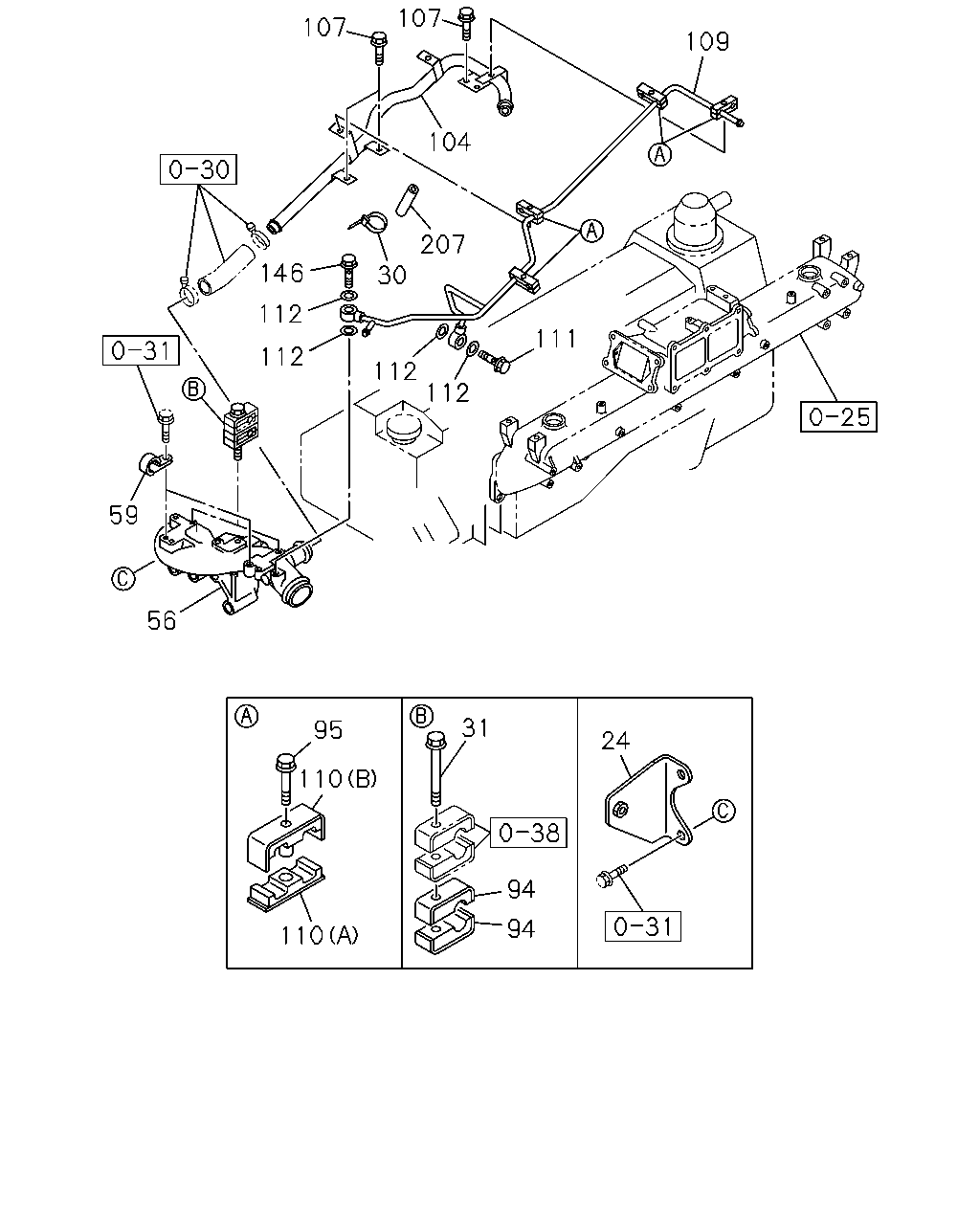

24 31 95 110 110 94 94 111 112 112 109 107 107 104 207 30 146 112 112 59 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE	1-13729-060-0	01	1	1306-
30	CLIP; HARNESS L=140	8-98216-431-0	02	1	1306-
31	BOLT; CLIP M6X70 FLANGE	0-28050-670-0	02	1	1306-
56	PIPE; WATER OUTLET	8-98039-673-0	01	1	1306-
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	0-95235-045-0	02	1	1306-
94	CLIP; WATER PIPE ID=14 L=15	1-09701-282-0	04	1	1306-
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	04	1	1306-
104	PIPE; WATER CHARGE	8-98228-041-0	01	1	1306-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	1306-
109	PIPE; AIR,LEAK,THERMOSTAT HSG	8-97606-594-0	01	1	1306-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	1306-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	1306-
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1306-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	1306-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1306-
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	1306-

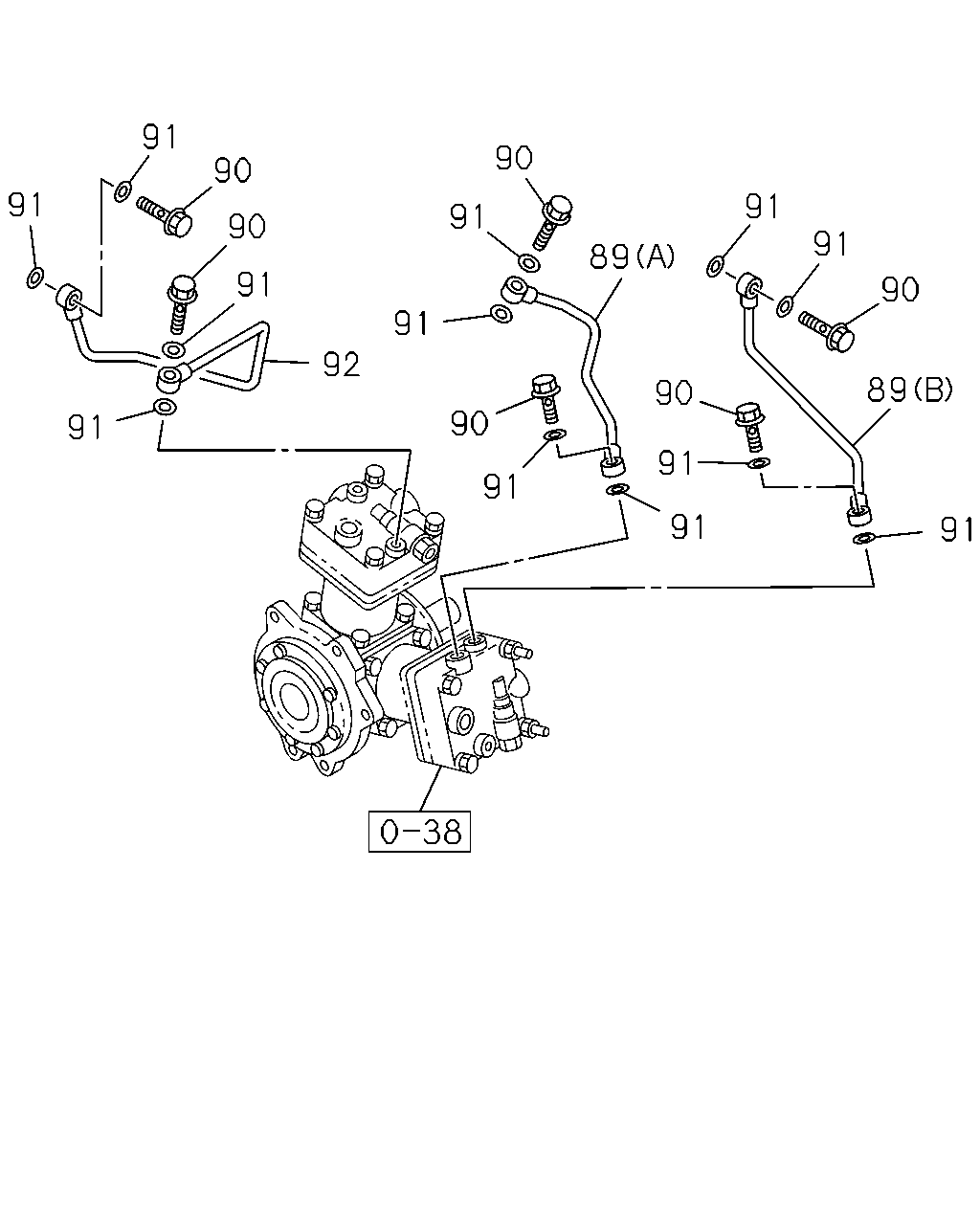

91 89 90 91 91 91 91 90 89 90 91 91 90 91 92 91 90 90 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	1306-
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	1306-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	1306-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	1306-
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	1306-

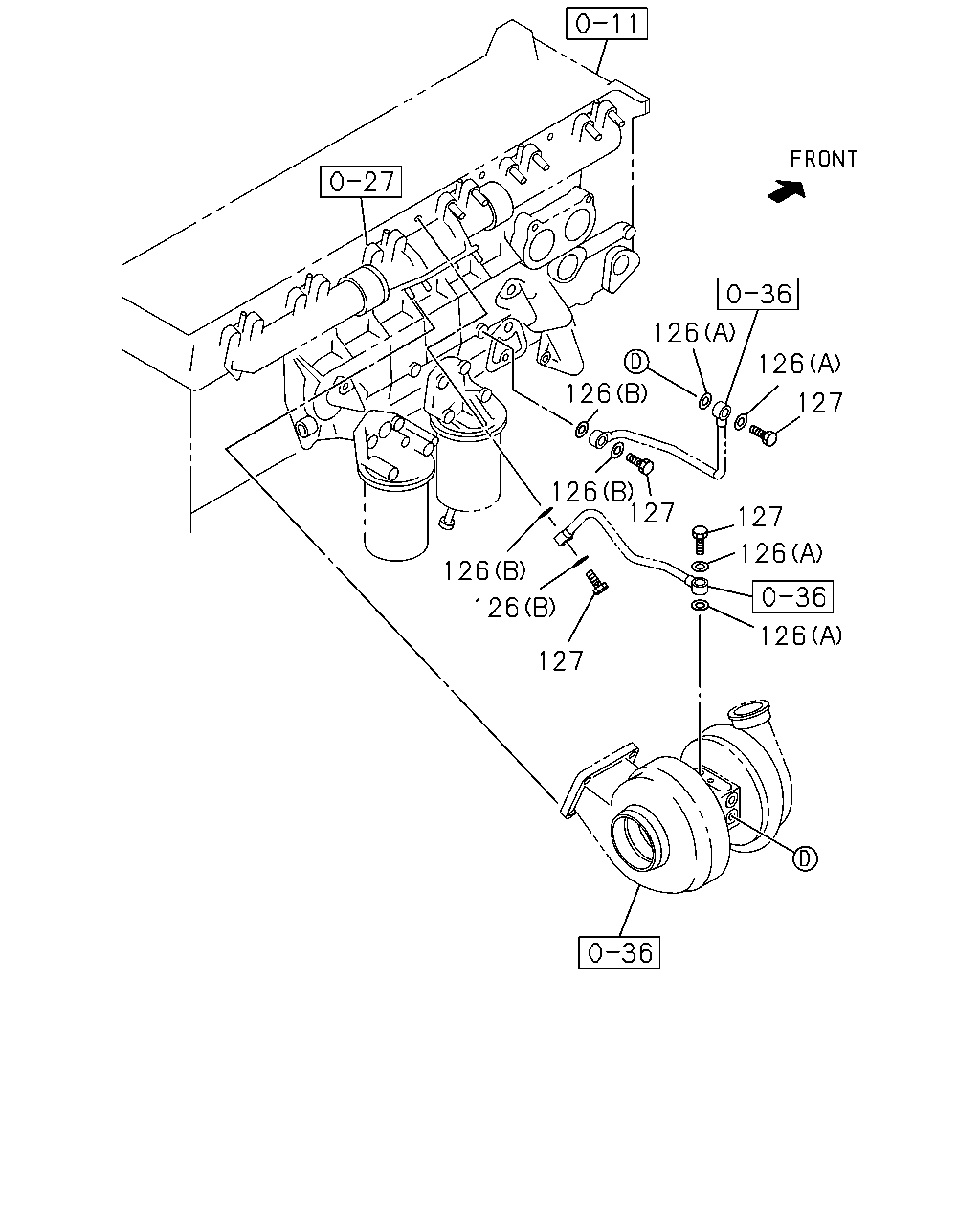

126 126 127 127 127 126 126 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1306-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	04	1	1306-
127	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	04	1	1306-
