0-30 — WATER PUMP AND CORROSION RESISTOR (#124407) — 27 parça

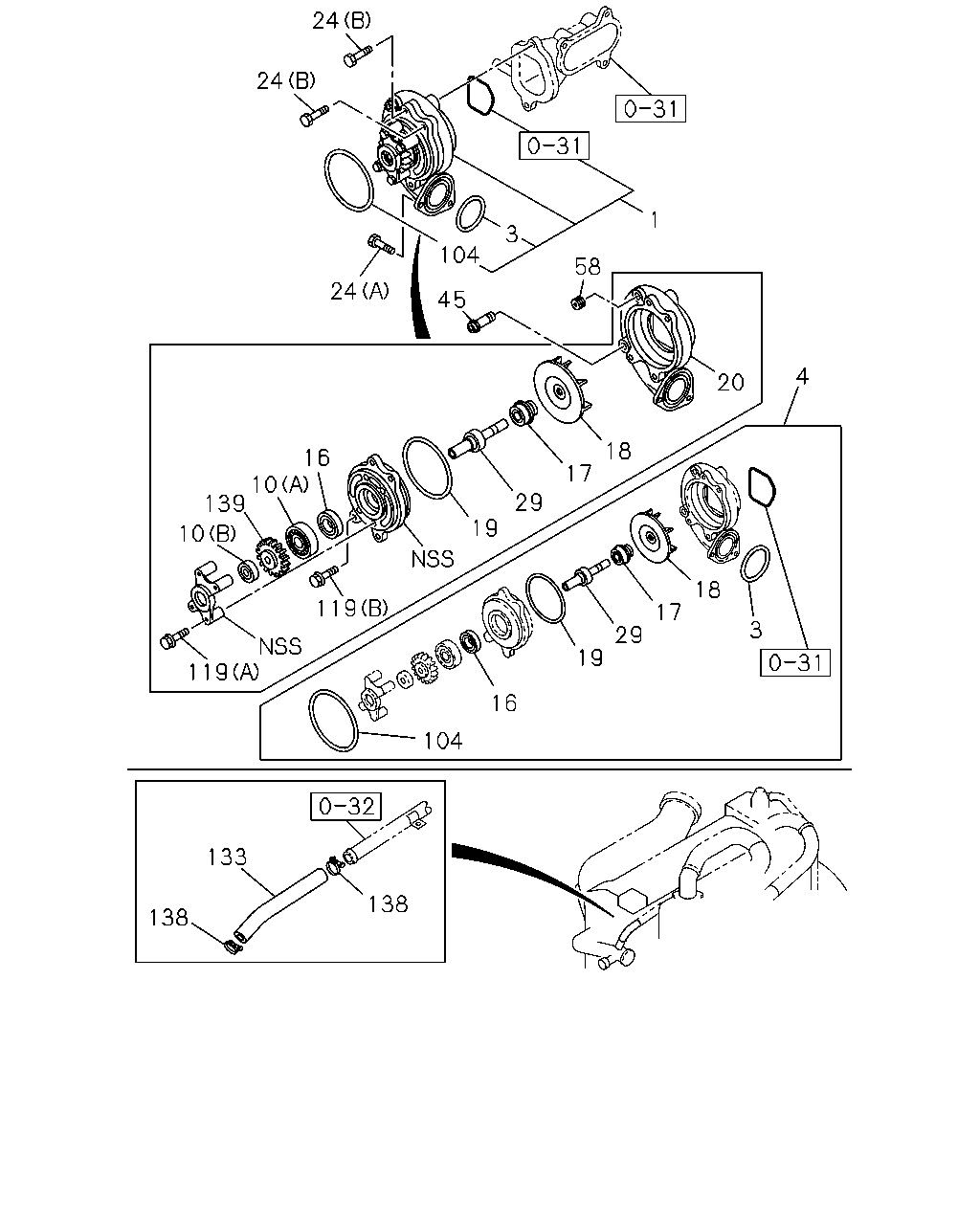

çizim 362214
24 24 24 45 104 3 58 1 20 18 17 29 19 16 119 10 139 10 119 104 16 19 29 17 18 3 133 138 138 4
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; WATER,W/GASKET 1-87310-865-0 01 1 1306-1312
1 PUMP ASM; WATER,W/GASKET 1-87310-957-0 01 1 1401-1406
1 PUMP ASM; WATER,W/GASKET 1-87310-996-0 01 1 1407-
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 1306-
4 REPAIR KIT; WATER PUMP 1-87813-957-0 01 1 1306-1312
4 REPAIR KIT; WATER PUMP 1-87813-813-0 01 1 1401-1406
4 REPAIR KIT; WATER PUMP 1-87814-621-0 01 1 1407-
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 1306-
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 1306-
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 1306-
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1306-1312
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1406
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1407-
18 IMPELLER; WATER PUMP 8-97608-969-0 01 1 1306-
19 GASKET; COVER TO BODY 8-97606-729-0 01 1 1306-
20 COVER; WATER PUMP 8-97611-134-0 01 1 1306-
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28151-025-0 02 1 1306-
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28151-090-0 04 1 1306-
29 SHAFT; WATER PUMP 8-98141-463-0 01 1 1306-
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 1306-
58 PLUG; HTR
PT3/8 		5-09605-005-0 02 1 1306-
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 1306-
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28050-840-0 04 1 1306-
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28151-020-0 01 1 1306-
133 HOSE; RUBBER,WATER PIPE
L=100 SERVICED BY L=3000 		0-03580-300-0 01 1 1306-
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 1306-
139 GEAR; WATER PUMP,DRIVE 8-97606-219-1 01 1 1306-
